◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#80726) — 14 parça

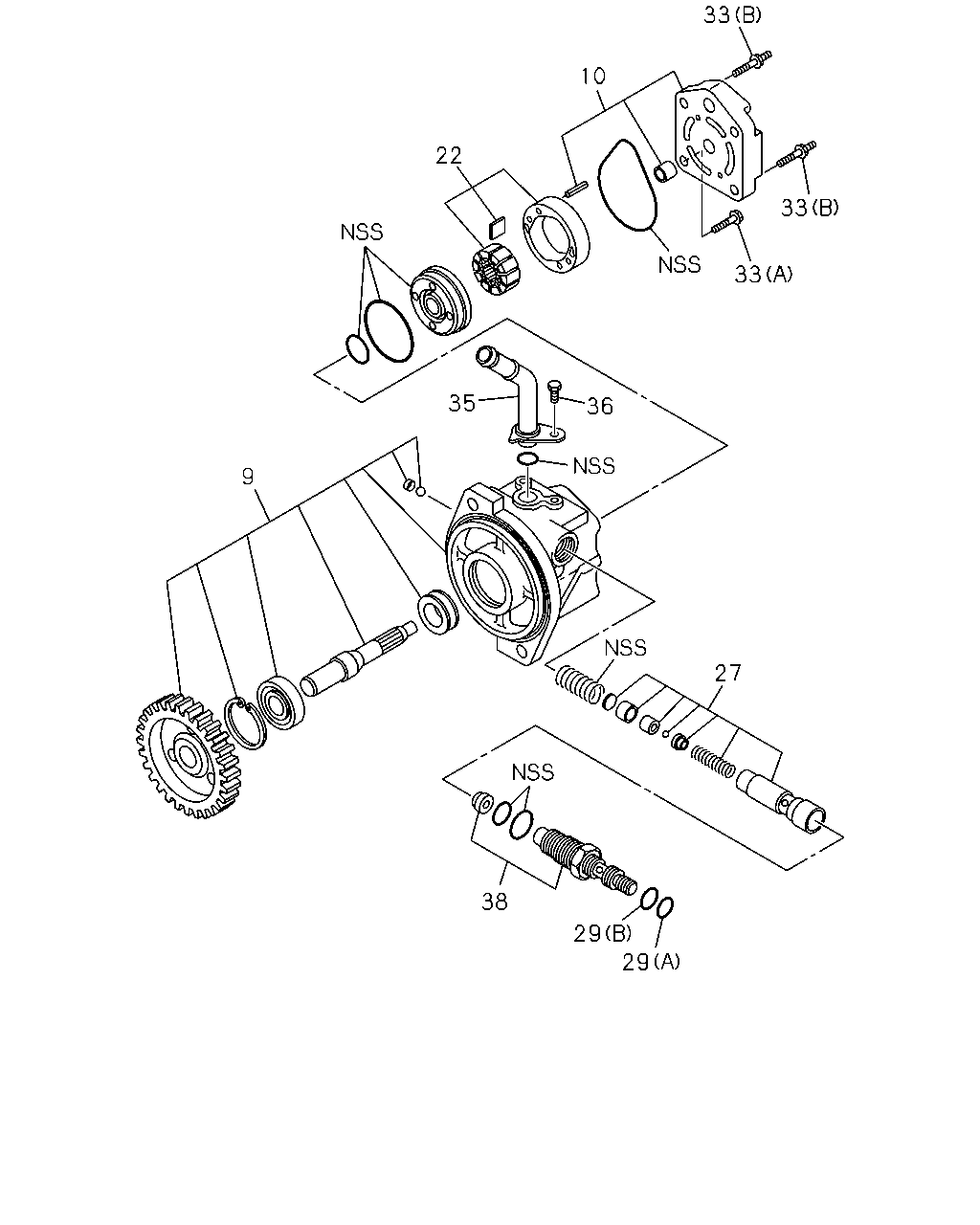

çizim 124405
33 10 22 33 33 35 36 9 27 38 29 29
BalonParca AdiParca NoAdetTipApplied Date
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-98006-793-4, 98006793 		8-98058-097-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-98006-793-4, 98006793 		8-98116-059-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-98006-793-4, 98006793 		8-98216-517-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: A = 8-98006-793-4, 98006793 		8-98058-091-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
06.674, (B) ASM PART: A = 8-98006-793-4, 98006793 		8-94379-666-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98006-793-4, 98006793 		8-97075-581-0 01 1 -
33 06.606 BOLT; COVER
(A) ASM PART: A = 8-98006-793-4, 98006793 		8-97184-761-0 02 1 -
33 06.606 BOLT; COVER
(B) ASM PART: A = 8-98006-793-4, 98006793 		8-97184-762-0 02 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-98006-793-4, 98006793 		8-98058-094-0 01 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: A = 8-98006-793-4, 98006793 		8-97184-763-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
ASM PART: A = 8-98006-793-4, 98006793 		8-97093-504-0 01 1 -
çizim 183197
1 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 06.609 REPAIR KIT; OIL PUMP
ASM PART: A = 8-98006-793-4, 98006793 		8-98058-096-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
06.674, (B) ASM PART: A = 8-98006-793-4, 98006793 		8-94379-666-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98006-793-4, 98006793 		8-97075-581-0 01 1 -
