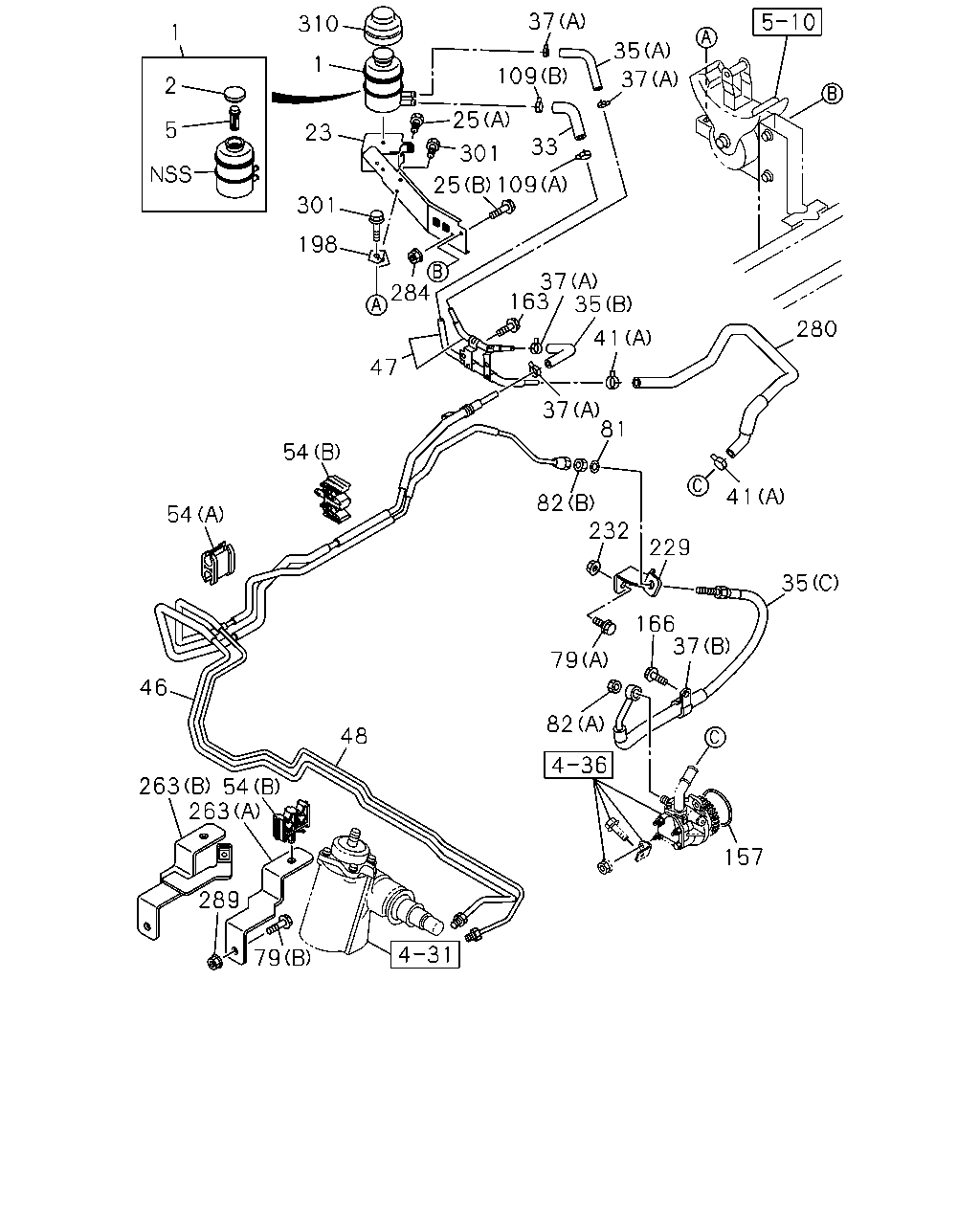

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#80723) — 133 parça

37 310 1 35 1 109 37 2 25 280 5 23 33 41 301 301 277 198 41 284 41 232 37 163 35 229 47 79 37 35 324 81 82 163 166 54 163 324 54 82 37 157 48 46 54 263 284 79 25 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1111-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1111-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1111-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1111-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1111-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1111-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1111-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1111-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1111-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1111-	●	●
37	01.762 CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1111-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1111-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (A) ID=21	8-98150-355-0	02	1	1111-	●	●
41	06.672 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1111-	●
41	06.672 CLIP; HOSE,P/S EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1111-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=2610	8-98135-831-0	01	1	1111-1507	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=2610	8-98135-831-0	01	1	1508-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) FRONT WIDE TREAD<7GV> L=2610	8-98135-831-0	01	1	1508-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO5 SPECIFICATION(NT5) FRONT WIDE TREAD<7GV> CATALYSIS CONTROL WITH DPD(8JM) L=2610	8-98135-831-0	01	1	1508-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1111-1507	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1508-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1508-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1508-		●
47	06.671 PIPE; RETURN	8-98174-178-1	01	1	1111-	●
47	06.671 PIPE; RETURN EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98174-178-1	01	1	1111-		●
47	06.671 PIPE; RETURN EURO2 SPECIFICATION(NT2)	8-98083-166-1	01	1	1111-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98317-274-0	01	1	1508-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=2835	8-98178-429-0	01	1	1111-1507	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=2835	8-98178-429-0	01	1	1508-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) FRONT WIDE TREAD<7GV> L=2835	8-98178-429-0	01	1	1508-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5 SPECIFICATION(NT5) FRONT WIDE TREAD<7GV> CATALYSIS CONTROL WITH DPD(8JM) L=2835	8-98178-429-0	01	1	1508-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRONT WIDE TREAD<7GV> L=2873	8-98174-179-0	01	1	1111-1507	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRONT WIDE TREAD<7GV> L=2873	8-98174-179-0	01	1	1508-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. FRONT WIDE TREAD<7GV> L=2873	8-98174-179-0	01	1	1508-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRONT WIDE TREAD<7GV> L=2873	8-98174-179-0	01	1	1508-		●
54	06.672 CLIP; OIL PIPE (A) ID=10X2 H=22	8-94252-455-2	01	1	1111-	●	●
54	06.672 CLIP; OIL PIPE 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	04	1	1111-	●	●
79	06.672 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●	●
79	06.672 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1111-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1111-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1111-	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1111-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1111-	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1111-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
163	06.671 BOLT; OIL PIPE EURO2 SPECIFICATION(NT2) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-	●
163	06.671 BOLT; OIL PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-		●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1111-	●	●
229	06.606 BRACKET; HOSE,POWER STRG	8-98140-300-0	01	1	1111-	●	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-	●	●
263	06.672 BRACKET; P/S PIPE (A)	8-98034-113-0	01	1	1111-	●
263	06.672 BRACKET; P/S PIPE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (A)	8-98034-113-0	01	1	1111-		●
263	06.672 BRACKET; P/S PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-98034-113-0	01	1	1111-		●
263	06.672 BRACKET; P/S PIPE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98190-269-0	01	1	1111-		●
277	06.672 BOLT; HOSE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●
277	06.672 BOLT; HOSE CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98174-177-2	01	1	1111-	●
280	06.672 HOSE; P/S OIL PUMP,INL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98174-177-2	01	1	1111-		●
280	06.672 HOSE; P/S OIL PUMP,INL EURO2 SPECIFICATION(NT2)	8-98082-973-0	01	1	1111-		●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-1507	●	●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1111-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●
324	06.660 NUT; OIL PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-		●

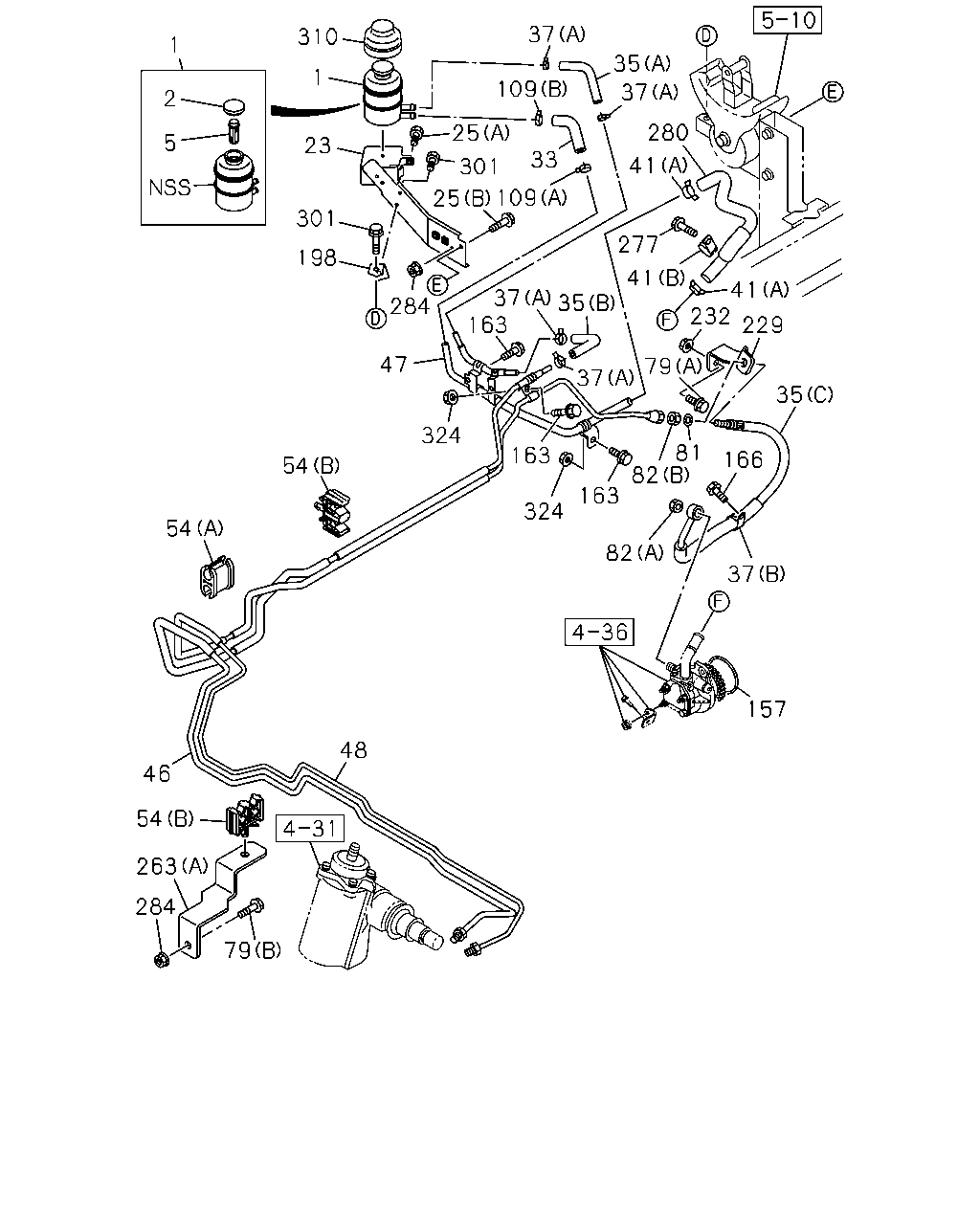

37 310 1 35 1 109 37 2 25 5 23 33 301 301 198 284 37 163 35 280 41 47 37 81 54 41 82 232 54 229 35 166 37 79 46 82 48 263 157 289 79 263 54 25 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1111-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1111-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1111-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1111-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1111-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1111-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1111-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1111-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1111-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1111-	●	●
37	01.762 CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1111-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1111-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (A) ID=21	8-98150-355-0	02	1	1111-	●	●
41	06.672 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1111-	●
41	06.672 CLIP; HOSE,P/S EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1111-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=2610	8-98135-831-0	01	1	1111-1507	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=2610	8-98135-831-0	01	1	1508-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) FRONT WIDE TREAD<7GV> L=2610	8-98135-831-0	01	1	1508-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO5 SPECIFICATION(NT5) FRONT WIDE TREAD<7GV> CATALYSIS CONTROL WITH DPD(8JM) L=2610	8-98135-831-0	01	1	1508-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1111-1507	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1508-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1508-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1508-		●
47	06.671 PIPE; RETURN	8-98174-178-1	01	1	1111-	●
47	06.671 PIPE; RETURN EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98174-178-1	01	1	1111-		●
47	06.671 PIPE; RETURN EURO2 SPECIFICATION(NT2)	8-98083-166-1	01	1	1111-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98317-274-0	01	1	1508-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=2835	8-98178-429-0	01	1	1111-1507	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=2835	8-98178-429-0	01	1	1508-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) FRONT WIDE TREAD<7GV> L=2835	8-98178-429-0	01	1	1508-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5 SPECIFICATION(NT5) FRONT WIDE TREAD<7GV> CATALYSIS CONTROL WITH DPD(8JM) L=2835	8-98178-429-0	01	1	1508-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRONT WIDE TREAD<7GV> L=2873	8-98174-179-0	01	1	1111-1507	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRONT WIDE TREAD<7GV> L=2873	8-98174-179-0	01	1	1508-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. FRONT WIDE TREAD<7GV> L=2873	8-98174-179-0	01	1	1508-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRONT WIDE TREAD<7GV> L=2873	8-98174-179-0	01	1	1508-		●
54	06.672 CLIP; OIL PIPE (A) ID=10X2 H=22	8-94252-455-2	01	1	1111-	●	●
54	06.672 CLIP; OIL PIPE 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	04	1	1111-	●	●
79	06.672 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●	●
79	06.672 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1111-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1111-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1111-	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1111-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1111-	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1111-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
163	06.671 BOLT; OIL PIPE EURO2 SPECIFICATION(NT2) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-	●
163	06.671 BOLT; OIL PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-		●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1111-	●	●
229	06.606 BRACKET; HOSE,POWER STRG	8-98140-300-0	01	1	1111-	●	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-	●	●
263	06.672 BRACKET; P/S PIPE (A)	8-98034-113-0	01	1	1111-	●
263	06.672 BRACKET; P/S PIPE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (A)	8-98034-113-0	01	1	1111-		●
263	06.672 BRACKET; P/S PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-98034-113-0	01	1	1111-		●
263	06.672 BRACKET; P/S PIPE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98190-269-0	01	1	1111-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98174-177-2	01	1	1111-	●
280	06.672 HOSE; P/S OIL PUMP,INL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98174-177-2	01	1	1111-		●
280	06.672 HOSE; P/S OIL PUMP,INL EURO2 SPECIFICATION(NT2)	8-98082-973-0	01	1	1111-		●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-1507	●	●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1111-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
