Isuzu WW
▶
TRUCKS
▶
NP
▶
51387 - NP/NQR AIR BRAKE LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

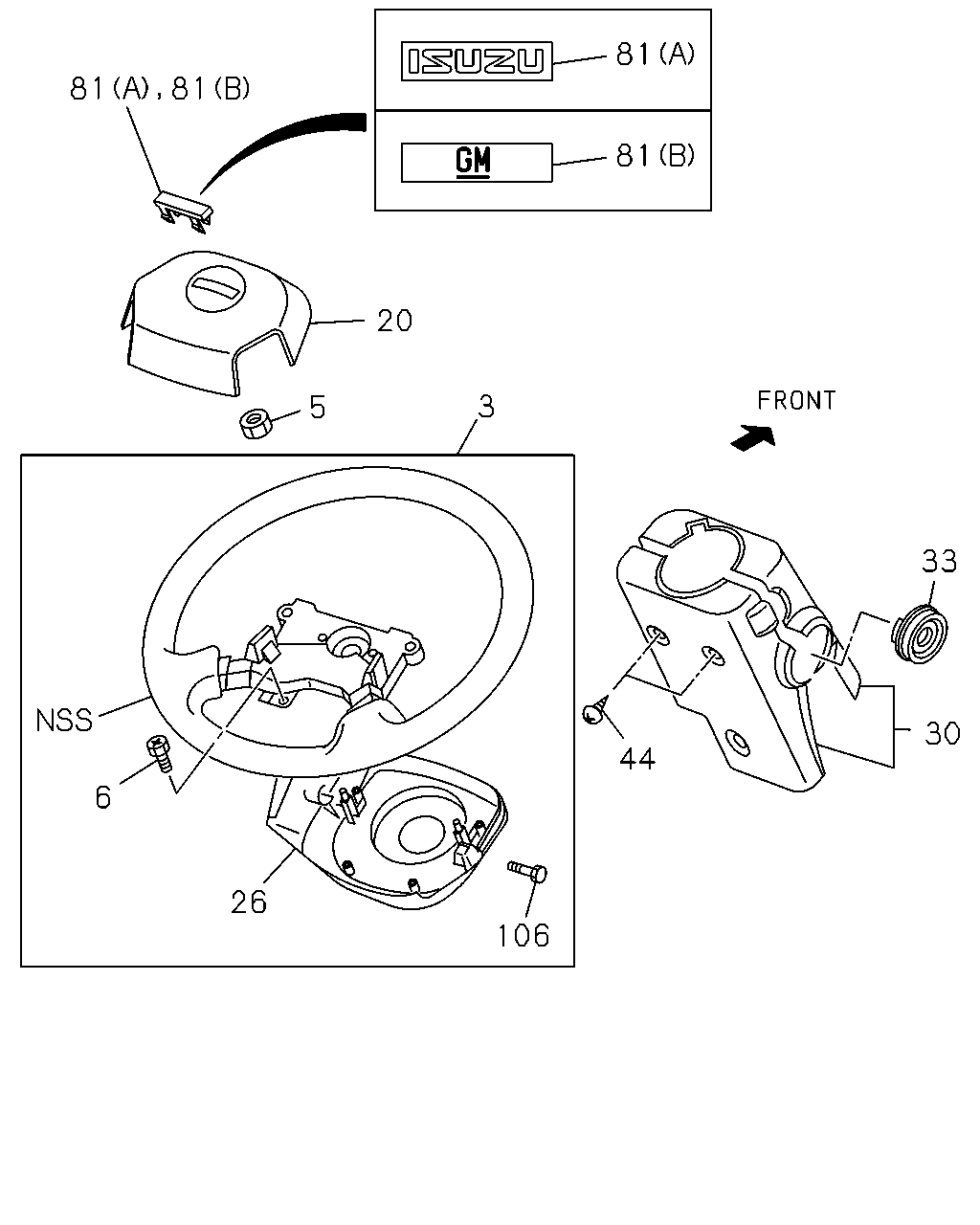

4-30 — STEERING WHEEL AND COWL
(#80720) — 12 parça
Tümü
A - NPR6SN
B - NPR6SS
30
33
44
106
26
6
3
5
20
81
81
81
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
06.513 WHEEL; STRG
DARK GRAY
8-97412-556-1
01
1
1111-
●
●
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1111-
●
●
6
02.820 SCREW; HORN SPR CONTACT
M4X12
8-97167-588-0
04
1
1111-
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY
8-97405-985-1
01
1
1111-
●
●
26
06.514 COVER; STRG WHEEL,LWR
DARK GRAY
8-97409-275-2
01
1
1111-
●
●
30
06.518 COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1111-
●
●
33
06.518 COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
1111-
●
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1111-
●
●
81
02.820 EMBLEM; STRG WHEEL
(A) DARK GRAY
8-97405-986-0
01
1
1111-
●
81
02.820 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> (A) DARK GRAY
8-97405-986-0
01
1
1111-
●
81
02.820 EMBLEM; STRG WHEEL
EXC. ISUZU BRAND<7WL> (B) DARK GRAY
8-97405-987-0
01
1
1111-
●
106
05.453 BOLT; TORX
8-98231-397-0
02
1
1111-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
