0-12 — CYLINDER BLOCK (#8072) — 123 parça

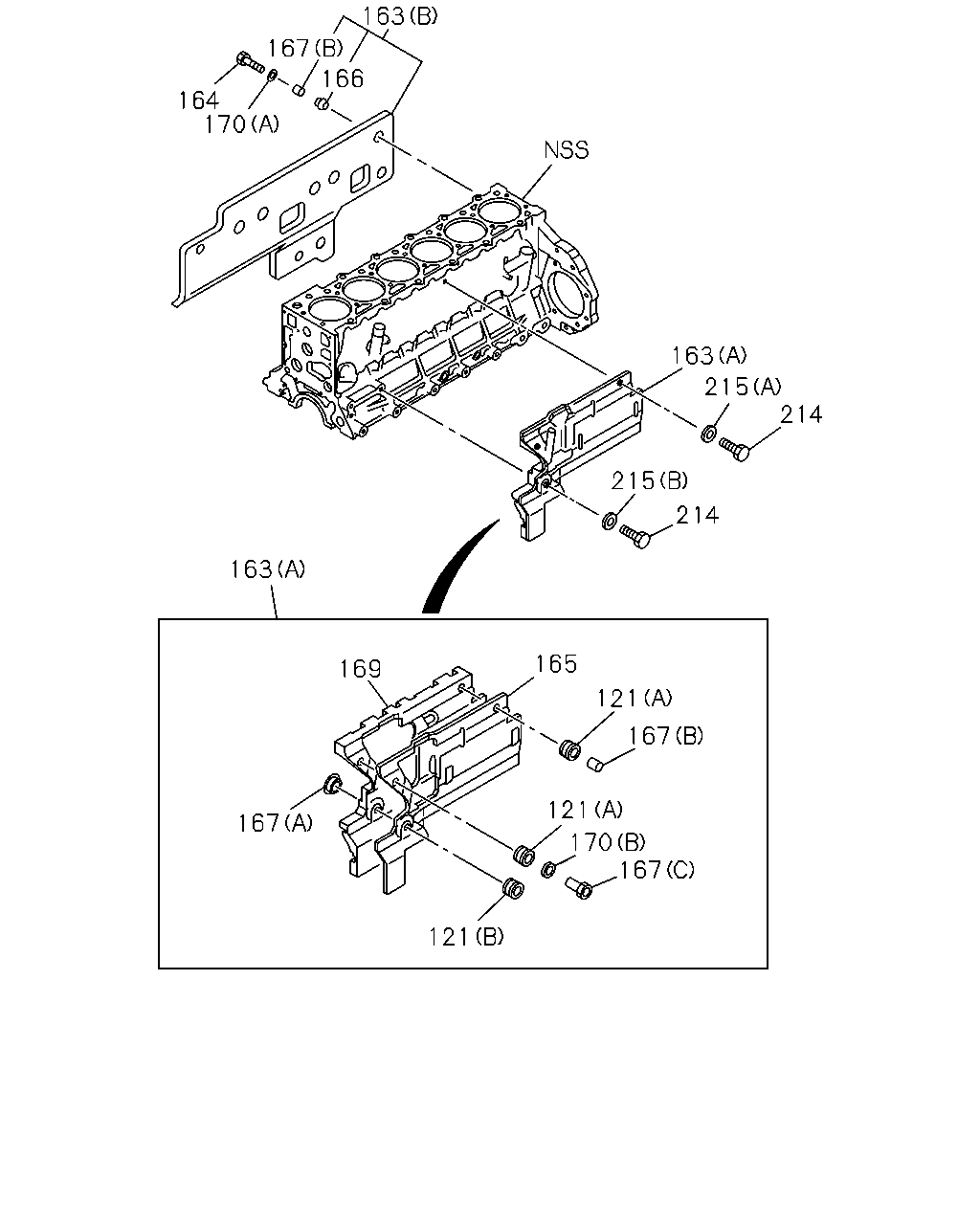

çizim 76516
163 167 166 164 170 163 215 214 215 214 163 165 169 121 167 121 167 170 167 121
BalonParca AdiParca NoAdetTipApplied Date A B C
121 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 02 1 0005-0210 ●
121 RUBBER; MTG,COVER
(B) OD=32 		8-94396-221-0 01 1 0005-0210 ●
163 COVER ASM; C/BL SKIRT
(A) 		8-94390-172-0 01 1 0005-0210 ●
163 COVER ASM; C/BL SKIRT
(B) 		8-94395-894-0 01 1 0005-0210 ●
164 BOLT; COVER BLOCK SKIRT
M8X25 FLANGE 		0-28680-825-0 04 1 0005-0210 ●
165 COVER; C/BL SKIRT 8-94395-694-1 01 1 0005-0210 ●
166 MOUNT; COVER BLOCK SKIRT
OD=22 		8-94140-428-1 04 1 0005-0210 ●
167 TUBE; DIST,SIDE COVER
(B) OD=13 T=9.5 		8-94140-427-1 05 1 0005-0210 ●
167 TUBE; DIST,SIDE COVER
(C) M10 		8-94393-791-2 01 1 0005-0210 ●
167 TUBE; DIST,SIDE COVER
(A) OD=32 W/FLANGE 		8-94397-356-1 01 1 0005-0210 ●
169 INSULATOR; SIDE COVER 8-94390-173-0 01 1 0005-0210 ●
170 WASHER; COVER
(A) ID=8.4 OD=22 		9-09160-708-0 04 1 0005-0210 ●
170 WASHER; COVER
(B) ID=14 OD=22 		9-47515-014-0 01 1 0005-0210 ●
214 BOLT; NOISE COVER
M10X25 FLANGE 		0-28181-025-0 02 1 0005-0210 ●
215 WASHER; PL,NOISE COVER
(A) ID=10.5 OD=22 		9-09164-610-0 01 1 0005-0210 ●
215 WASHER; PL,NOISE COVER
(B) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
çizim 102806
343 308 343 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-665-4 06 1 0005-0210 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-246-2 06 1 0211-0305 ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-763-3 06 1 0306-0706 ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-246-6 06 1 0707- ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-666-4 06 1 0005-0210 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-247-2 06 1 0211-0305 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-764-3 06 1 0306-0706 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-247-6 06 1 0707- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-0 06 1 0005-0210 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 06 1 0211- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-0 06 1 0005-0210 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 06 1 0211- ● ●
308 PROTECTOR; HEAT,HD COVER 8-94391-759-2 01 1 0005-0210 ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 05 1 0005-0210 ●

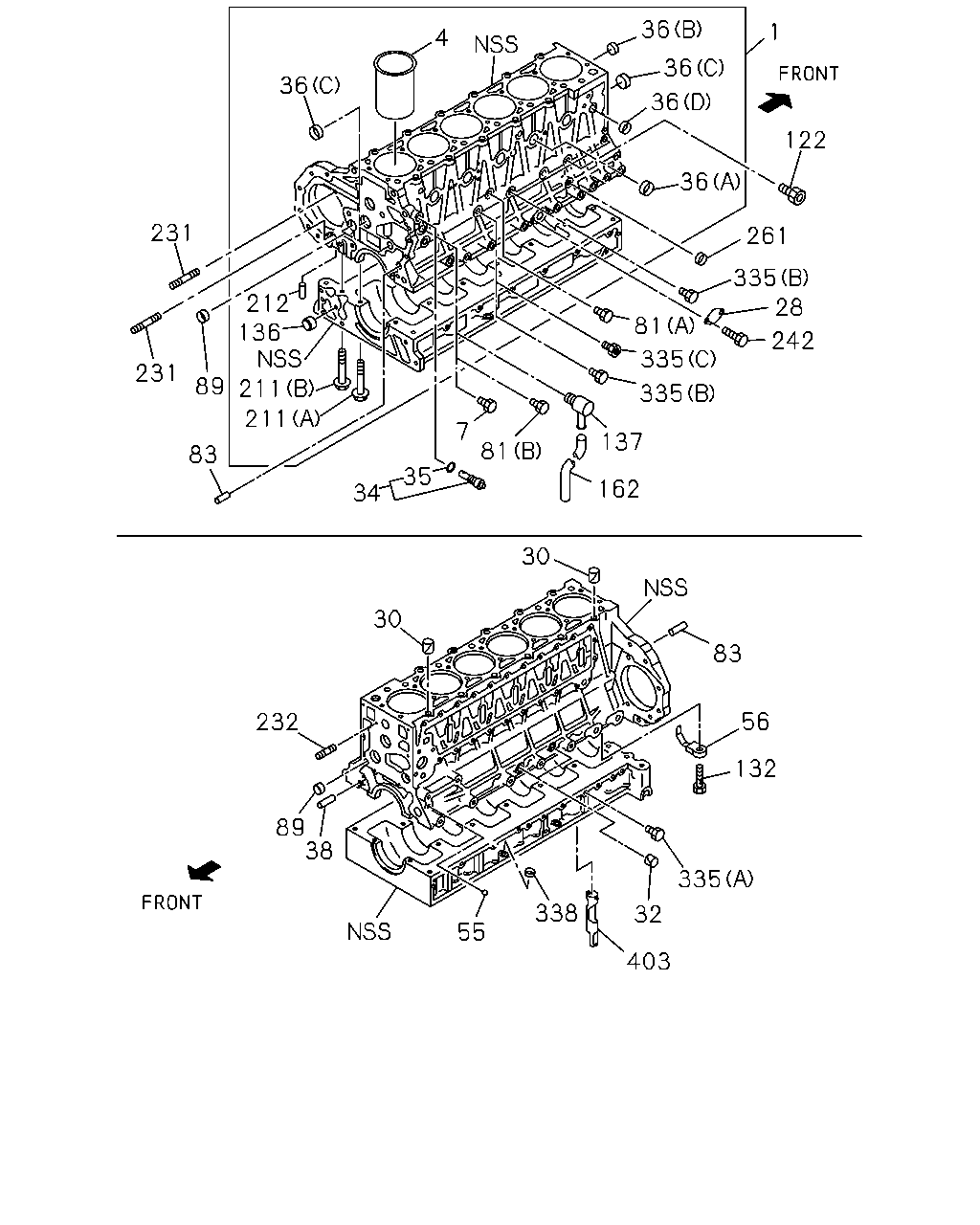

çizim 102845
36 1 4 36 36 36 122 36 231 261 212 136 335 28 81 242 335 231 89 211 335 211 7 137 81 83 35 162 34 30 30 83 56 232 132 89 38 335 338 32 55 403
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOCK ASM; CYL 8-97600-415-0 01 1 0005-0210 ●
1 BLOCK ASM; CYL 8-97602-024-2 01 1 0211-0504 ● ●
1 BLOCK ASM; CYL 8-98005-410-2 01 1 0505-1012 ● ●
1 BLOCK ASM; CYL 8-98180-708-0 01 1 1101-1209 ● ●
1 BLOCK ASM; CYL 8-98206-963-0 01 1 1210- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-0 06 1 0005-0210 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 06 1 0211- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-0 06 1 0005-0210 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 06 1 0211- ● ●
7 PLUG; WATER DRAIN
PT3/8 		8-94397-338-0 01 1 1101- ● ●
28 COVER; OIL PORT 1-11219-163-0 01 1 0005-0210 ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 0005-0210 ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 0211- ● ●
32 PIN; INJ PUMP BRKT
OD=14 		8-94453-344-0 02 1 0005-0210 ●
32 PIN; INJ PUMP BRKT
OD=14 		8-94453-344-0 02 1 0211- ● ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 0005-0210 ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 0211- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 0005-0210 ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 0211- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-1 05 1 0005-0210 ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 05 1 0211- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=25 		1-09600-016-0 01 1 0005-0210 ●
36 CUP; SEALING,WATER JACKET
(D) OD=25 		1-09600-016-0 01 1 0211- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		8-94399-005-0 01 1 0005-0210 ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		8-94399-005-0 01 1 0211- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94399-639-0 04 1 0005-0210 ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94399-639-0 04 1 0211-0502 ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-97096-824-0 04 1 0503- ● ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 0005-0210 ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 0211- ● ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 02 1 0005-0210 ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 02 1 0211- ● ●
56 JET; OIL,PISTON COOLING 8-94399-187-0 06 1 0005-0210 ●
56 JET; OIL,PISTON COOLING 8-94395-194-0 06 1 0211-0703 ● ●
56 JET; OIL,PISTON COOLING 8-98020-649-0 06 1 0704-1007 ● ●
56 JET; OIL,PISTON COOLING 8-98173-342-0 06 1 1008- ● ●
81 PLUG; WATER JACKET
(B) PT3/8 		8-94397-338-0 01 1 0212-0212 ● ●
81 PLUG; WATER JACKET
(A) M14 		8-94399-225-0 01 1 0005-0210 ●
81 PLUG; WATER JACKET
(A) M14 		8-94399-225-0 01 1 0211-0703 ● ●
81 PLUG; WATER JACKET
(A) M14X16.5 		8-97329-617-0 01 1 0704- ● ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0005-0210 ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0211-0306 ● ●
83 PIN; FLYWHEEL HSG
OD=10 L=20 		8-97135-423-0 02 1 0307-0307 ● ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0308- ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 0005-0210 ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 0211-0908 ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0909- ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94399-858-2 01 1 0005-0210 ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94399-858-2 01 1 0211- ● ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 06 1 0005-0210 ●
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 0211- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0211-0812 ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901- ● ●
137 COCK; DRAIN,WATER 1-09680-024-0 01 1 0301-1012 ● ●
137 COCK; DRAIN,WATER 1-09680-024-0 01 1 0005-0210 ●
137 COCK; DRAIN,WATER 1-09680-024-0 01 1 0211-0211 ● ●
162 HOSE; WATER DRAIN,C/BL
L=290 SERVICED BY L=3000 		0-03559-300-0 01 1 0301-1012 ● ●
162 HOSE; WATER DRAIN,C/BL
L=310 SERVICED BY L=3000 		0-03259-300-0 01 1 0005-0206 ●
162 HOSE; WATER DRAIN,C/BL
L=310 SERVICED BY L=3000 		0-03559-300-0 01 1 0207-0210 ●
162 HOSE; WATER DRAIN,C/BL
L=290 SERVICED BY L=3000 		0-03559-300-0 01 1 0211-0211 ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 0005-0210 ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 0211-0905 ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 0906- ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 0005-0210 ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 0211- ● ●
212 PIN; CRANKCASE
L=22 		8-94483-674-0 02 1 0005-0210 ●
212 PIN; CRANKCASE
L=22 		8-94483-674-0 02 1 0211-0306 ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0307- ● ●
231 STUD; AIR CMPR
M10X36.5 L=48.5 		8-94396-145-0 02 1 0005-0210 ●
231 STUD; AIR CMPR
M10X46.5 L=58.5 		8-97066-386-1 02 1 0211-0301 ● ●
231 STUD; AIR CMPR
M10X46.5 L=58.5 		8-97363-237-0 02 1 0302- ● ●
232 STUD; WATER PUMP
M8X55 L=67 		9-04110-855-0 03 1 0005-0210 ●
232 STUD; WATER PUMP
M8X55 L=67 		9-04110-855-0 03 1 0211-0604 ● ●
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 0605- ● ●
242 BOLT; COVER,OIL PORT
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ●
261 PLUG; OIL PRESS UNIT
OD=12.3 		5-09600-013-0 01 1 0005-0210 ●
261 PLUG; OIL PRESS UNIT
OD=12.3 		5-09600-013-0 01 1 0211-0307 ● ●
335 PLUG; C/BL,SIDE
(A) M8X6 		8-94399-421-0 01 1 0005-0210 ●
335 PLUG; C/BL,SIDE
(A) M8X6 		8-94399-421-0 01 1 0211-0501 ● ●
335 PLUG; C/BL,SIDE
(A) M8X10 		8-98003-416-0 01 1 0502- ● ●
335 PLUG; C/BL,SIDE
ENGINE REAR PTO(SV1) (C) M14 M10 		8-94396-547-0 01 1 0005-0210 ●
335 PLUG; C/BL,SIDE
ENGINE REAR PTO(SV1) (C) M14 M10 		8-94396-547-0 01 1 0211- ● ●
335 PLUG; C/BL,SIDE
ENGINE REAR PTO(SV1) (B) M14 		8-94399-225-0 03 1 0005-0210 ●
335 PLUG; C/BL,SIDE
ENGINE REAR PTO(SV1) (B) M14 		8-94399-225-0 02 1 0211-0703 ● ●
335 PLUG; C/BL,SIDE
ENGINE REAR PTO(SV1) (B) M14X16.5 		8-97329-617-0 02 1 0704- ● ●
335 PLUG; C/BL,SIDE
EXC. ENGINE REAR PTO(SV1) (B) M14 		8-94399-225-0 04 1 0005-0210 ●
335 PLUG; C/BL,SIDE
EXC. ENGINE REAR PTO(SV1) (B) M14 		8-94399-225-0 03 1 0211-0703 ● ●
335 PLUG; C/BL,SIDE
EXC. ENGINE REAR PTO(SV1) (B) M14X16.5 		8-97329-617-0 03 1 0704- ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 01 1 0005-0210 ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 01 1 0211-0607 ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 0608- ● ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 0005-0210 ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 0211- ● ●
