◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#80715) — 59 parça

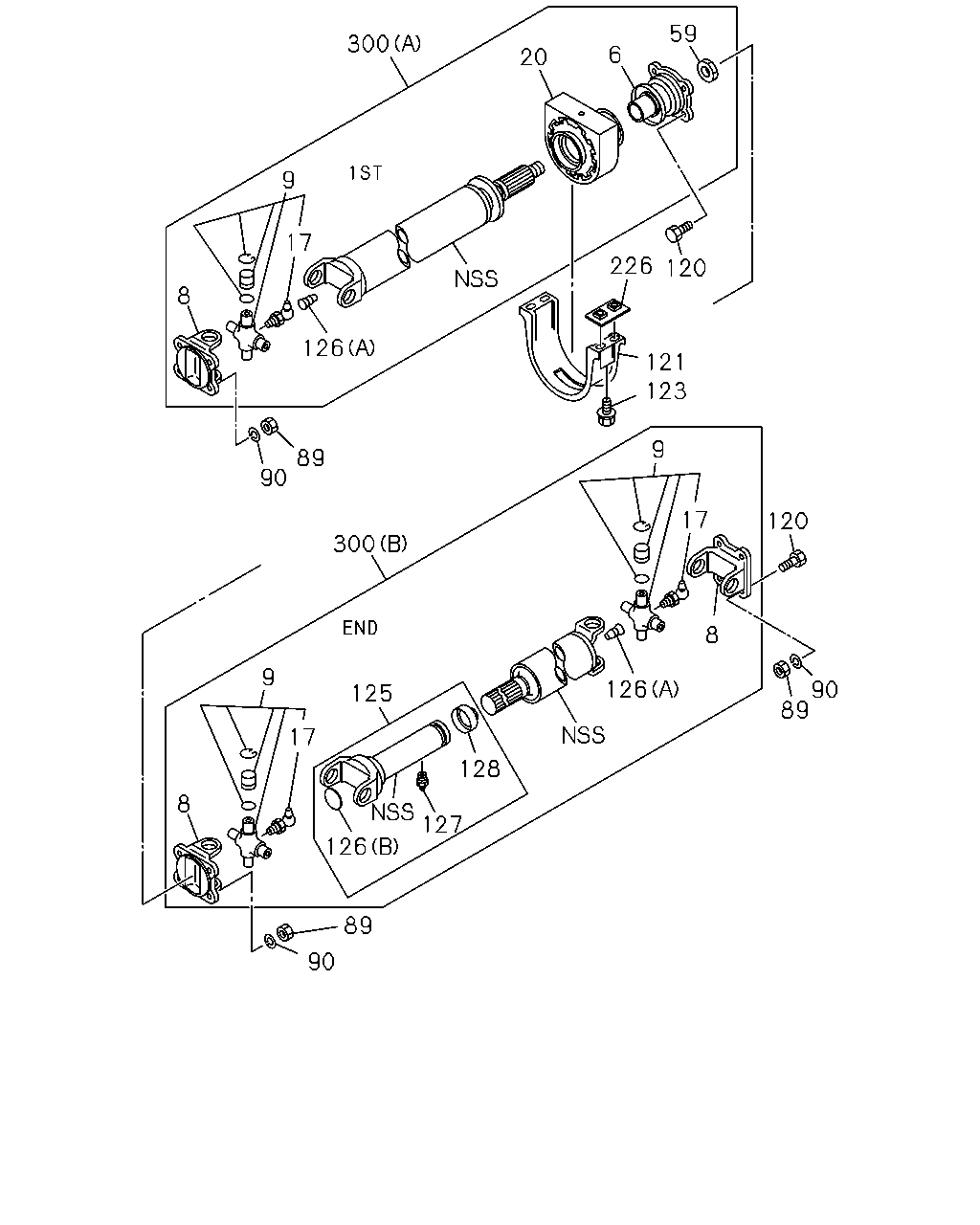

çizim 122487
59 300 6 20 9 17 226 120 8 126 121 123 9 89 90 17 120 300 8 9 126 90 89 125 17 128 127 8 126 89 90
BalonParca AdiParca NoAdetTipApplied Date A B
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT 8-98020-796-0 01 1 1111- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
D=80 		1-37211-037-4 01 1 1111- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
D=80 		1-37211-037-4 02 1 1111- ● ●
9 05.548 JOURNAL ASM; PROP SHAFT 8-98020-789-1 01 1 1111- ● ●
9 05.548 JOURNAL ASM; PROP SHAFT 8-98020-789-1 02 1 1111- ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 PT1/8 ELBOW 		0-90301-610-0 01 1 1111- ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 PT1/8 ELBOW 		0-90301-610-0 02 1 1111- ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT 8-98020-880-0 01 1 1111- ● ●
59 05.586 NUT; RET TO SUPPORT
M30 		8-97160-857-0 01 1 1111- ● ●
89 05.586 NUT; YOKE TO RR AXLE
M12 		8-97365-450-1 04 1 1111- ● ●
89 05.586 NUT; YOKE TO RR AXLE
M12 		8-97365-450-1 08 1 1111- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
07.347 ID=12.2 		0-91510-812-0 04 1 1111- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
07.347 ID=12.2 		0-91510-812-0 08 1 1111- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M12X35 		8-97365-451-1 04 1 1111- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M12X35 		8-97365-451-1 04 1 1111- ● ●
121 05.598 RETAINER; CUSHION RUBBER 8-97035-623-1 01 1 1111- ● ●
123 05.601 BOLT; RET
M10X25 W/LK&PL WASHER 		0-50641-025-0 04 1 1111- ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
L=224 		8-98044-229-0 01 1 1111- ● ●
126 05.556 PLUG; SPLINED YOKE
(A) 		1-09600-023-0 01 1 1111- ● ●
126 05.556 PLUG; SPLINED YOKE
(A) 		1-09600-023-0 01 1 1111- ● ●
126 05.556 PLUG; SPLINED YOKE
(B) 		8-94366-900-0 01 1 1111- ● ●
127 05.586 NIPPLE; GREASE,SPLINED YOKE
05.601 M6 STRAIGHT 		0-90301-406-0 01 1 1111- ● ●
128 05.586 SEAL; SLEEVE 8-97145-746-0 01 1 1111- ● ●
226 05.586 PLATE; LK,CENTER BRG 8-97371-572-0 02 1 1111- ● ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=1021 		8-98040-826-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) (B) L=1021 		8-98040-826-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (B) L=1021 		8-98040-826-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W) (B) L=1021 		8-98040-826-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=1021 		8-98040-826-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) (B) L=1021 		8-98040-826-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (B) L=1021 		8-98040-826-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (B) L=1021 		8-98040-826-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) L=1127 		8-98040-793-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) (A) L=1127 		8-98040-793-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127 		8-98040-793-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127 		8-98040-793-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) L=1127 		8-98040-793-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) (A) L=1127 		8-98040-793-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127 		8-98040-793-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127 		8-98040-793-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (A) L=630 		8-98024-913-1 01 1 1111- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1006 		8-98111-009-1 01 1 1111-1403 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 3300MM(33W) (B) L=1006 		8-98111-009-1 01 1 1111-1403 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1006 		8-98111-009-1 01 1 1404- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (B) L=1006 		8-98111-009-1 01 1 1404- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252 		8-98063-805-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4100MM(41W) (B) L=1252 		8-98063-805-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252 		8-98063-805-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) (B) L=1252 		8-98063-805-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (A) L=1367 		8-98019-423-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) (A) L=1367 		8-98019-423-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (A) L=1367 		8-98019-423-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (A) L=1367 		8-98019-423-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1436 		8-98111-010-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) (B) L=1436 		8-98111-010-1 01 1 1111-1201 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1436 		8-98111-010-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (B) L=1436 		8-98111-010-1 01 1 1202- ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 3300MM(33W) (A) L=683 		8-98006-982-1 01 1 1111-1403 ●
300 05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (A) L=683 		8-98006-982-1 01 1 1404- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
