3-75 — BRAKE PIPING; AIR,FRONT (#80712) — 180 parça

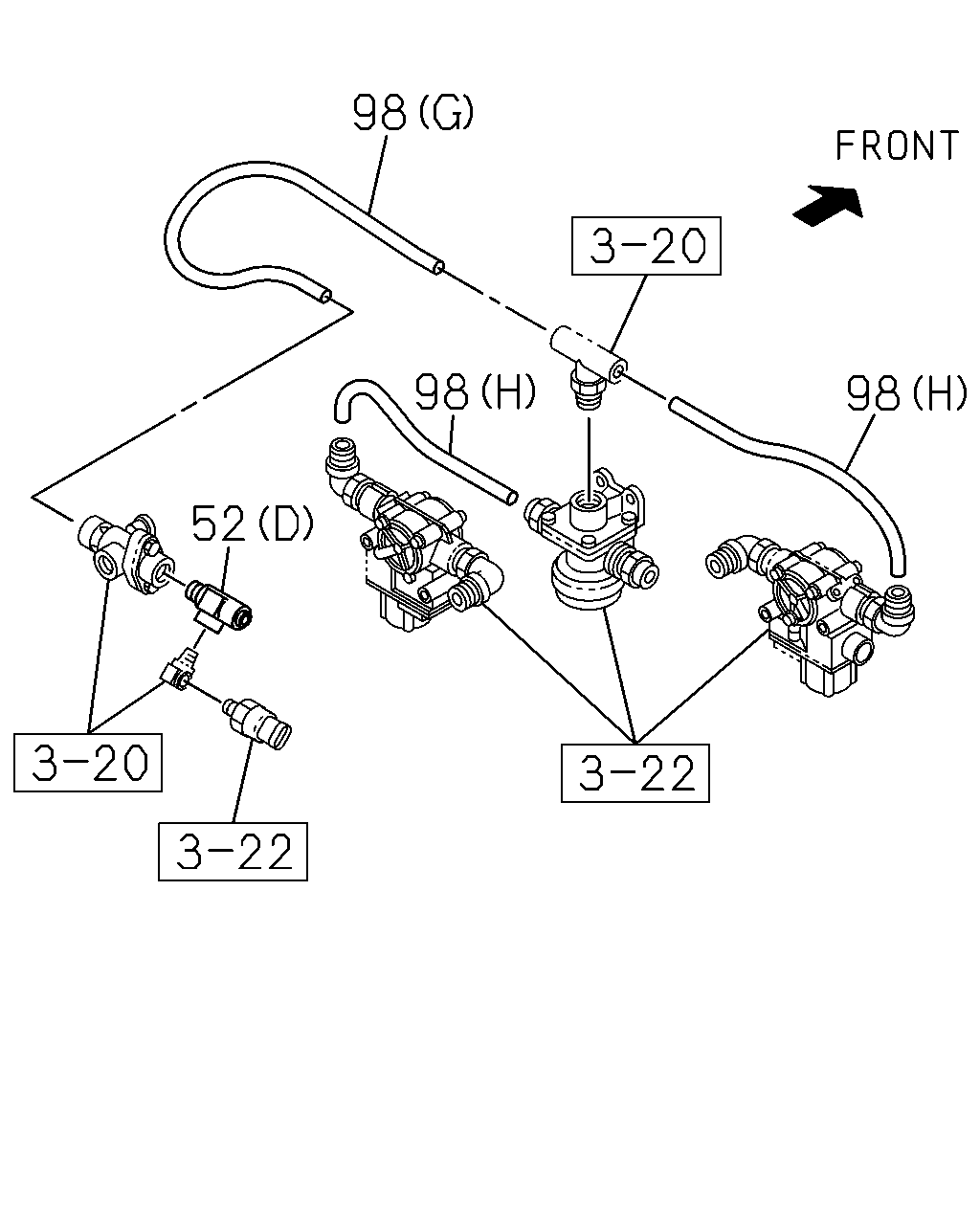

98 98 98 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	04.867 CONNECTOR; NYLON TUBE (D) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1111-	●	●
52	04.867 CONNECTOR; NYLON TUBE (B) DIN12 ID=15.4 ELBOW	1-09661-079-1	02	1	1111-	●	●
52	04.867 CONNECTOR; NYLON TUBE (C) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1111-	●	●
52	04.867 CONNECTOR; NYLON TUBE (A)	8-98202-492-0	02	1	1111-	●	●
98	04.867 TUBE; NYLON (D) SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	1111-	●	●
98	04.867 TUBE; NYLON (E) SERVICED BY L=4000 OD=12	1-87411-012-0	02	1	1111-	●	●
98	04.867 TUBE; NYLON (F)	8-98196-418-0	01	1	1111-1407	●
98	04.867 TUBE; NYLON WHEEL BASE 3800MM(38W) (F)	8-98196-418-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON (F)	8-98269-744-1	01	1	1408-	●
98	04.867 TUBE; NYLON WHEEL BASE 3800MM(38W) (F)	8-98269-744-1	01	1	1408-		●
98	04.867 TUBE; NYLON (A)	8-98186-672-1	01	1	1111-	●	●
98	04.867 TUBE; NYLON (G)	8-98196-434-0	01	1	1111-1502	●	●
98	04.867 TUBE; NYLON (G)	8-98288-834-0	01	1	1503-	●	●
98	04.867 TUBE; NYLON (B)	8-98178-076-3	01	1	1111-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98178-076-3	01	1	1111-		●
98	04.867 TUBE; NYLON (C)	8-98178-078-3	01	1	1111-1502	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98178-078-3	01	1	1111-1502		●
98	04.867 TUBE; NYLON (C)	8-98274-198-0	01	1	1503-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98274-198-0	01	1	1503-		●
98	04.867 TUBE; NYLON (I)	8-98181-107-1	02	1	1111-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-98181-107-1	02	1	1111-		●
98	04.867 TUBE; NYLON (H)	8-98181-108-1	02	1	1111-1502	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-98181-108-1	02	1	1111-1502		●
98	04.867 TUBE; NYLON (H)	8-98277-160-0	02	1	1503-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-98277-160-0	02	1	1503-		●
98	04.867 TUBE; NYLON WHEEL BASE 3300MM(33W) (F)	8-98196-417-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON WHEEL BASE 3300MM(33W) (F)	8-98269-743-1	01	1	1408-		●
98	04.867 TUBE; NYLON WHEEL BASE 4100MM(41W) (F)	8-98196-419-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON WHEEL BASE 4100MM(41W) (F)	8-98269-745-1	01	1	1408-		●
98	04.867 TUBE; NYLON WHEEL BASE 4400MM(44W) (F)	8-98196-420-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON WHEEL BASE 4400MM(44W) (F)	8-98269-746-1	01	1	1408-		●
98	04.867 TUBE; NYLON EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98181-168-2	01	1	1111-		●
98	04.867 TUBE; NYLON EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98181-169-3	01	1	1111-		●

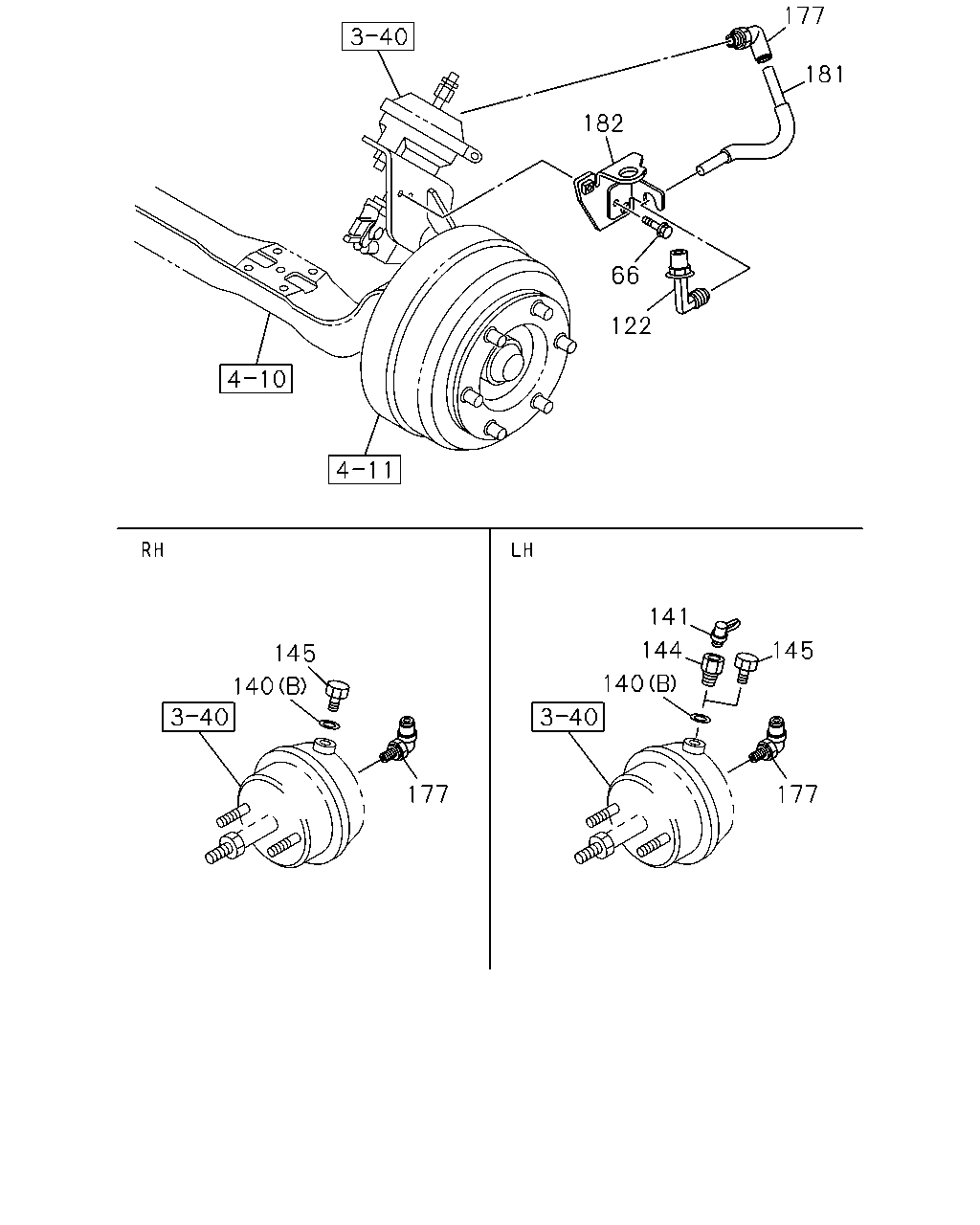

177 181 182 66 122 141 145 144 140 177 145 140 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	04.686 BOLT; HOSE BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-	●	●
122	04.866 CONNECTOR; FLEX HOSE	8-98179-488-0	02	1	1111-	●	●
140	04.868 GASKET; CONNECTOR 01.252 (B) ID=16.2 OD=24	9-09571-416-0	01	1	1111-	●
140	04.868 GASKET; CONNECTOR BRAKE REGULATION ECE(TDV) 01.252 (B) ID=16.2 OD=24	9-09571-416-0	01	1	1111-		●
140	04.868 GASKET; CONNECTOR (A) ID=11 OD=18	9-09572-510-0	04	1	1111-	●	●
141	04.868 CONNECTOR; TEST 04.866 R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1111-	●
141	04.868 CONNECTOR; TEST BRAKE REGULATION ECE(TDV) 04.866 R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1111-		●
144	04.866 ADAPTER	1-09661-821-0	01	1	1111-	●
144	04.866 ADAPTER BRAKE REGULATION ECE(TDV)	1-09661-821-0	01	1	1111-		●
145	04.868 PLUG	1-09661-522-0	01	1	1111-	●
145	04.868 PLUG BRAKE REGULATION ECE(TDV)	1-09661-522-0	01	1	1111-		●
145	04.868 PLUG EXC. BRAKE REGULATION ECE(TDV)	1-09661-522-0	02	1	1111-		●
177	04.866 CONNECTOR	1-09661-496-0	02	1	1111-	●	●
181	04.866 TUBE; CHAMBER,BRK	8-98182-142-0	02	1	1111-	●	●
182	04.866 BRACKET; CONNECTOR	8-98177-790-2	01	1	1111-1301	●	●
182	04.866 BRACKET; CONNECTOR	8-98238-363-0	01	1	1302-	●	●
182	04.866 BRACKET; CONNECTOR	8-98177-791-2	01	1	1111-1301	●	●
182	04.866 BRACKET; CONNECTOR	8-98238-364-0	01	1	1302-	●	●

96 96 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
96	04.867 TUBE ASM; NYLON AIR VLV TO UNION	8-98169-682-0	01	1	1111-	●	●
159	04.866 CLIP; NYLON TUBE 02.559 (A) L=251	8-97619-917-0	03	1	1111-	●	●
159	04.866 CLIP; NYLON TUBE (C) L=250	1-09707-126-0	01	1	1111-1111	●	●
159	04.866 CLIP; NYLON TUBE 04.439 (C) L=200	8-98081-183-0	01	1	1111-	●	●
159	04.866 CLIP; NYLON TUBE 04.128 (B) L=213.5	8-98000-506-1	05	1	1111-	●	●
159	04.866 CLIP; NYLON TUBE (D)	8-98179-225-0	01	1	1111-	●	●

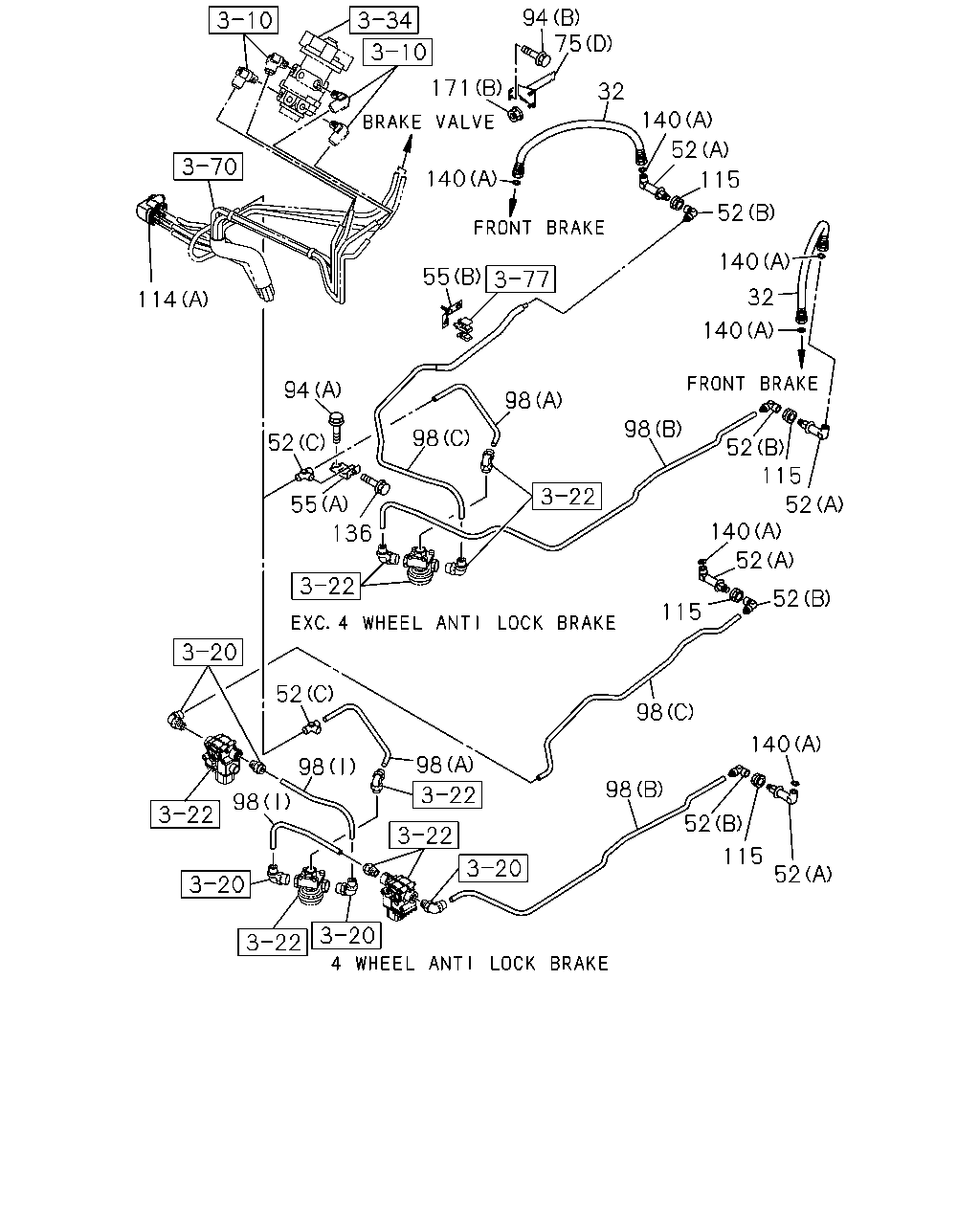

171 94 32 75 140 115 52 52 140 140 32 52 52 115 140 52 52 115 98 140 52 115 52 98 98 98 52 98 136 52 94 114 98 98 98 140 55 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	04.867 HOSE; FLEX,FRT FRONT WIDE TREAD<7GV>	8-98191-414-0	02	1	1111-	●	●
32	04.867 HOSE; FLEX,FRT EXC. FRONT WIDE TREAD<7GV>	8-98186-512-0	02	1	1111-	●	●
52	04.867 CONNECTOR; NYLON TUBE (D) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1111-	●	●
52	04.867 CONNECTOR; NYLON TUBE (B) DIN12 ID=15.4 ELBOW	1-09661-079-1	02	1	1111-	●	●
52	04.867 CONNECTOR; NYLON TUBE (C) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1111-	●	●
52	04.867 CONNECTOR; NYLON TUBE (A)	8-98202-492-0	02	1	1111-	●	●
55	04.866 BRACKET; TUBE UNION (A)	8-98186-684-1	01	1	1111-	●	●
55	04.866 BRACKET; TUBE UNION (B)	8-98203-066-0	01	1	1111-	●	●
75	04.866 BRACKET; UNION (D)	8-98178-160-2	01	1	1111-	●	●
75	04.866 BRACKET; UNION (E)	8-98196-435-0	01	1	1111-1407	●	●
75	04.866 BRACKET; UNION (E)	8-98268-192-0	01	1	1408-1501	●	●
75	04.866 BRACKET; UNION (E)	8-98284-449-0	01	1	1502-	●	●
75	04.866 BRACKET; UNION (C)	8-98196-436-0	01	1	1111-	●	●
75	04.866 BRACKET; UNION (B)	8-98197-668-1	01	1	1111-	●	●
75	04.866 BRACKET; UNION (A)	8-98197-669-0	01	1	1111-	●	●
94	04.866 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
94	04.866 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●	●
94	04.866 BOLT; BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	01	1	1111-	●	●
98	04.867 TUBE; NYLON (D) SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	1111-	●	●
98	04.867 TUBE; NYLON (E) SERVICED BY L=4000 OD=12	1-87411-012-0	02	1	1111-	●	●
98	04.867 TUBE; NYLON (F)	8-98196-418-0	01	1	1111-1407	●
98	04.867 TUBE; NYLON WHEEL BASE 3800MM(38W) (F)	8-98196-418-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON (F)	8-98269-744-1	01	1	1408-	●
98	04.867 TUBE; NYLON WHEEL BASE 3800MM(38W) (F)	8-98269-744-1	01	1	1408-		●
98	04.867 TUBE; NYLON (A)	8-98186-672-1	01	1	1111-	●	●
98	04.867 TUBE; NYLON (G)	8-98196-434-0	01	1	1111-1502	●	●
98	04.867 TUBE; NYLON (G)	8-98288-834-0	01	1	1503-	●	●
98	04.867 TUBE; NYLON (B)	8-98178-076-3	01	1	1111-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98178-076-3	01	1	1111-		●
98	04.867 TUBE; NYLON (C)	8-98178-078-3	01	1	1111-1502	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98178-078-3	01	1	1111-1502		●
98	04.867 TUBE; NYLON (C)	8-98274-198-0	01	1	1503-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98274-198-0	01	1	1503-		●
98	04.867 TUBE; NYLON (I)	8-98181-107-1	02	1	1111-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-98181-107-1	02	1	1111-		●
98	04.867 TUBE; NYLON (H)	8-98181-108-1	02	1	1111-1502	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-98181-108-1	02	1	1111-1502		●
98	04.867 TUBE; NYLON (H)	8-98277-160-0	02	1	1503-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-98277-160-0	02	1	1503-		●
98	04.867 TUBE; NYLON WHEEL BASE 3300MM(33W) (F)	8-98196-417-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON WHEEL BASE 3300MM(33W) (F)	8-98269-743-1	01	1	1408-		●
98	04.867 TUBE; NYLON WHEEL BASE 4100MM(41W) (F)	8-98196-419-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON WHEEL BASE 4100MM(41W) (F)	8-98269-745-1	01	1	1408-		●
98	04.867 TUBE; NYLON WHEEL BASE 4400MM(44W) (F)	8-98196-420-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON WHEEL BASE 4400MM(44W) (F)	8-98269-746-1	01	1	1408-		●
98	04.867 TUBE; NYLON EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98181-168-2	01	1	1111-		●
98	04.867 TUBE; NYLON EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98181-169-3	01	1	1111-		●
114	04.866 UNION; NYLON TUBE 04.032 (C)	8-98179-490-0	01	1	1111-1501	●	●
114	04.866 UNION; NYLON TUBE 04.032 (C)	8-98284-448-0	01	1	1502-	●	●
114	04.866 UNION; NYLON TUBE (B)	8-98187-030-0	03	1	1111-	●	●
114	04.866 UNION; NYLON TUBE (A)	8-98201-091-0	01	1	1111-	●	●
115	04.866 NUT; TUBE UNION	8-98201-087-0	02	1	1111-	●	●
136	04.866 BOLT; CONNECTOR 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
140	04.868 GASKET; CONNECTOR 01.252 (B) ID=16.2 OD=24	9-09571-416-0	01	1	1111-	●
140	04.868 GASKET; CONNECTOR BRAKE REGULATION ECE(TDV) 01.252 (B) ID=16.2 OD=24	9-09571-416-0	01	1	1111-		●
140	04.868 GASKET; CONNECTOR (A) ID=11 OD=18	9-09572-510-0	04	1	1111-	●	●
171	04.866 NUT; BRACKET 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	1111-1509	●	●
171	04.866 NUT; BRACKET 01.062 (B) M8 FLANGE	0-91180-108-0	05	1	1510-	●	●
171	04.866 NUT; BRACKET 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1111-	●	●
171	04.866 NUT; BRACKET 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-1509	●	●

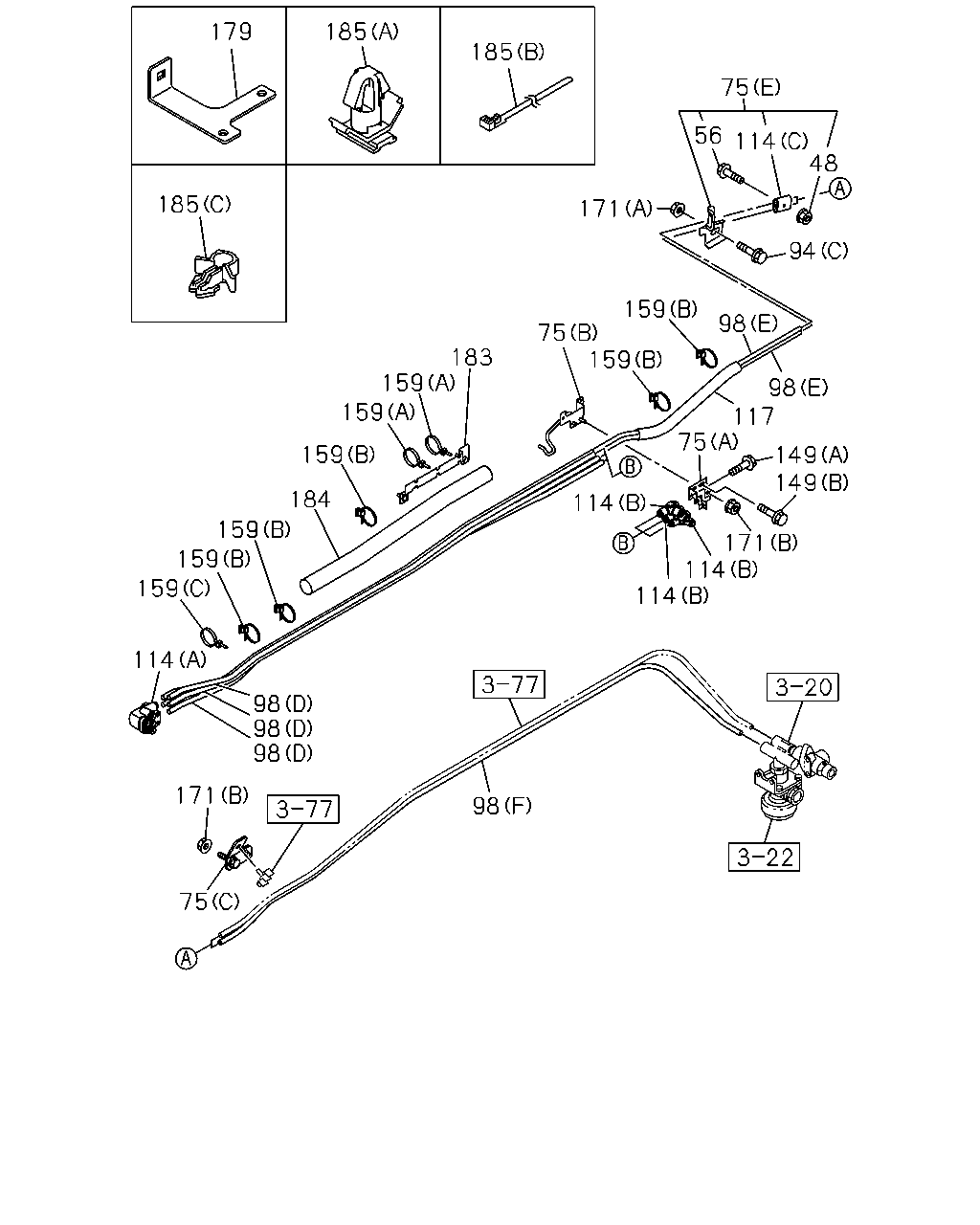

179 185 185 75 56 171 114 94 48 98 159 75 98 117 75 149 171 114 114 114 159 149 183 159 159 159 184 159 159 159 114 98 98 98 171 75 98 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	04.866 NUT; UNION BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1111-	●	●
56	04.866 BOLT; UNION BRKT 03.330 M6X35 FLANGE	0-28050-635-0	01	1	1111-	●	●
75	04.866 BRACKET; UNION (D)	8-98178-160-2	01	1	1111-	●	●
75	04.866 BRACKET; UNION (E)	8-98196-435-0	01	1	1111-1407	●	●
75	04.866 BRACKET; UNION (E)	8-98268-192-0	01	1	1408-1501	●	●
75	04.866 BRACKET; UNION (E)	8-98284-449-0	01	1	1502-	●	●
75	04.866 BRACKET; UNION (C)	8-98196-436-0	01	1	1111-	●	●
75	04.866 BRACKET; UNION (B)	8-98197-668-1	01	1	1111-	●	●
75	04.866 BRACKET; UNION (A)	8-98197-669-0	01	1	1111-	●	●
94	04.866 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
94	04.866 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●	●
94	04.866 BOLT; BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	01	1	1111-	●	●
98	04.867 TUBE; NYLON (D) SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	1111-	●	●
98	04.867 TUBE; NYLON (E) SERVICED BY L=4000 OD=12	1-87411-012-0	02	1	1111-	●	●
98	04.867 TUBE; NYLON (F)	8-98196-418-0	01	1	1111-1407	●
98	04.867 TUBE; NYLON WHEEL BASE 3800MM(38W) (F)	8-98196-418-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON (F)	8-98269-744-1	01	1	1408-	●
98	04.867 TUBE; NYLON WHEEL BASE 3800MM(38W) (F)	8-98269-744-1	01	1	1408-		●
98	04.867 TUBE; NYLON (A)	8-98186-672-1	01	1	1111-	●	●
98	04.867 TUBE; NYLON (G)	8-98196-434-0	01	1	1111-1502	●	●
98	04.867 TUBE; NYLON (G)	8-98288-834-0	01	1	1503-	●	●
98	04.867 TUBE; NYLON (B)	8-98178-076-3	01	1	1111-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98178-076-3	01	1	1111-		●
98	04.867 TUBE; NYLON (C)	8-98178-078-3	01	1	1111-1502	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98178-078-3	01	1	1111-1502		●
98	04.867 TUBE; NYLON (C)	8-98274-198-0	01	1	1503-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98274-198-0	01	1	1503-		●
98	04.867 TUBE; NYLON (I)	8-98181-107-1	02	1	1111-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-98181-107-1	02	1	1111-		●
98	04.867 TUBE; NYLON (H)	8-98181-108-1	02	1	1111-1502	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-98181-108-1	02	1	1111-1502		●
98	04.867 TUBE; NYLON (H)	8-98277-160-0	02	1	1503-	●
98	04.867 TUBE; NYLON 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-98277-160-0	02	1	1503-		●
98	04.867 TUBE; NYLON WHEEL BASE 3300MM(33W) (F)	8-98196-417-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON WHEEL BASE 3300MM(33W) (F)	8-98269-743-1	01	1	1408-		●
98	04.867 TUBE; NYLON WHEEL BASE 4100MM(41W) (F)	8-98196-419-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON WHEEL BASE 4100MM(41W) (F)	8-98269-745-1	01	1	1408-		●
98	04.867 TUBE; NYLON WHEEL BASE 4400MM(44W) (F)	8-98196-420-0	01	1	1111-1407		●
98	04.867 TUBE; NYLON WHEEL BASE 4400MM(44W) (F)	8-98269-746-1	01	1	1408-		●
98	04.867 TUBE; NYLON EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98181-168-2	01	1	1111-		●
98	04.867 TUBE; NYLON EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98181-169-3	01	1	1111-		●
114	04.866 UNION; NYLON TUBE 04.032 (C)	8-98179-490-0	01	1	1111-1501	●	●
114	04.866 UNION; NYLON TUBE 04.032 (C)	8-98284-448-0	01	1	1502-	●	●
114	04.866 UNION; NYLON TUBE (B)	8-98187-030-0	03	1	1111-	●	●
114	04.866 UNION; NYLON TUBE (A)	8-98201-091-0	01	1	1111-	●	●
117	04.867 TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1111-	●	●
149	04.866 BOLT; UNION 02.343 (A) M8X12 FLANGE	0-28050-812-0	03	1	1111-	●	●
149	04.866 BOLT; UNION 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1111-	●	●
159	04.866 CLIP; NYLON TUBE 02.559 (A) L=251	8-97619-917-0	03	1	1111-	●	●
159	04.866 CLIP; NYLON TUBE (C) L=250	1-09707-126-0	01	1	1111-1111	●	●
159	04.866 CLIP; NYLON TUBE 04.439 (C) L=200	8-98081-183-0	01	1	1111-	●	●
159	04.866 CLIP; NYLON TUBE 04.128 (B) L=213.5	8-98000-506-1	05	1	1111-	●	●
159	04.866 CLIP; NYLON TUBE (D)	8-98179-225-0	01	1	1111-	●	●
171	04.866 NUT; BRACKET 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	1111-1509	●	●
171	04.866 NUT; BRACKET 01.062 (B) M8 FLANGE	0-91180-108-0	05	1	1510-	●	●
171	04.866 NUT; BRACKET 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1111-	●	●
171	04.866 NUT; BRACKET 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-1509	●	●
179	04.866 BRACKET; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12)	8-98186-509-1	01	1	1111-	●	●
183	04.866 BRACKET; NYLON TUBE	8-98179-681-3	01	1	1111-	●	●
184	04.866 PROTECTOR; HEAT,NYLON TUBE	8-98187-615-2	01	1	1111-	●	●
185	04.681 CLIP; AIR BRAKE CHAS HARNESS 02.559 (A) OD=9 H=6	1-09709-178-0	01	1	1111-	●	●
185	04.681 CLIP; AIR BRAKE CHAS HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	1111-1203	●	●
185	04.681 CLIP; AIR BRAKE CHAS HARNESS 02.559 (C) ID=9	8-97063-874-0	01	1	1204-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
