Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#80711) — 49 parça

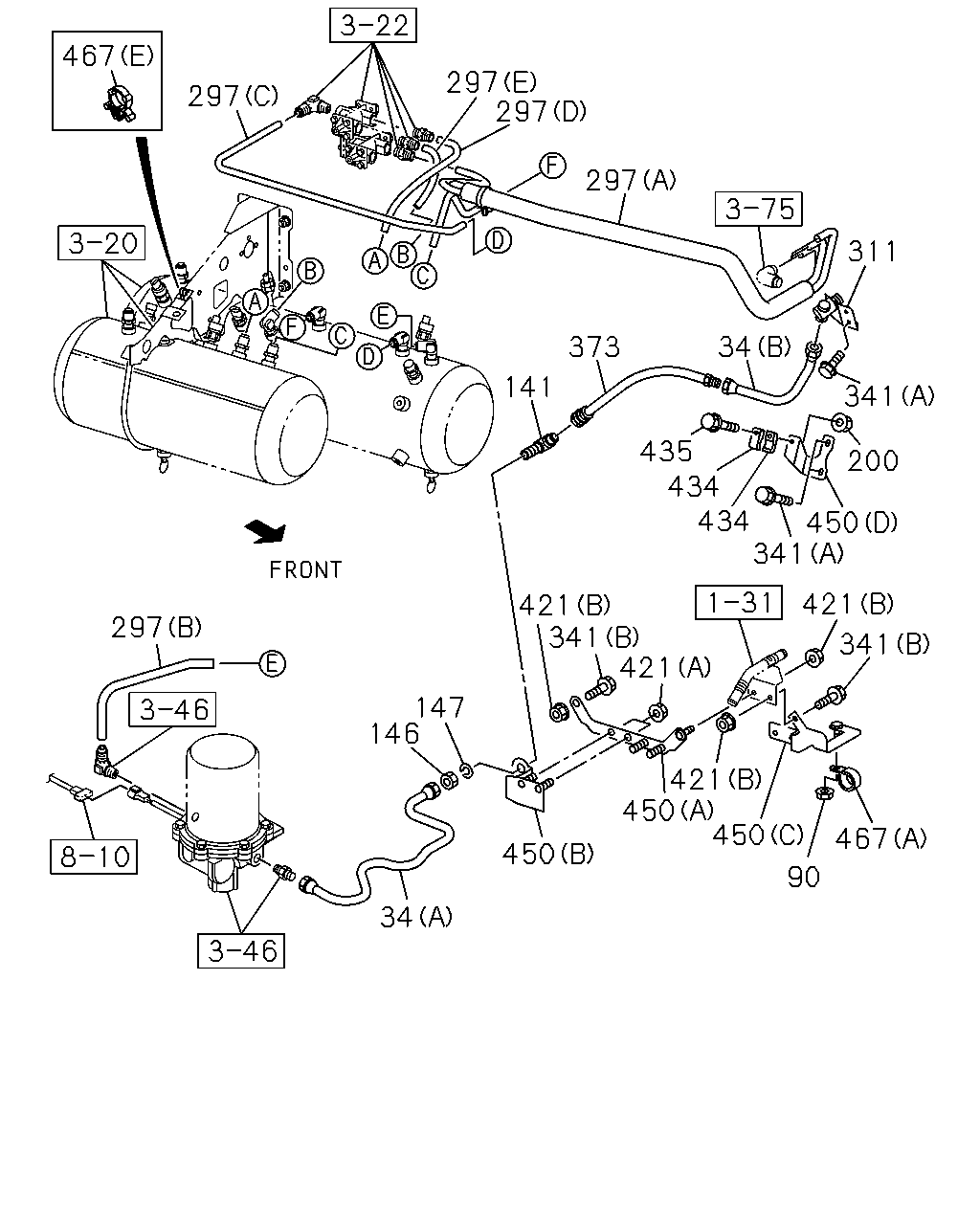

467 297 297 297 297 311 34 373 141 341 435 434 434 450 341 200 421 421 341 421 297 341 147 146 421 450 450 467 450 90 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	04.867 PIPE; AIR (A) L=708	8-98177-346-4	01	1	1111-	●	●
34	04.867 PIPE; AIR (B) L=282	8-98189-186-2	01	1	1111-1411	●	●
34	04.867 PIPE; AIR (B)	8-98287-884-0	01	1	1412-	●	●
90	04.866 NUT; TUBE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●	●
90	04.866 NUT; TUBE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
141	04.866 UNION; FLEX HOSE M22X2 ELBOW	0-92135-215-0	01	1	1111-	●	●
146	04.866 NUT; UNION 06.861 M22	0-91111-522-0	01	1	1111-	●	●
147	04.866 WASHER; LK,UNION 06.861 ID=22.5	0-91510-622-0	01	1	1111-	●	●
200	04.594 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1111-	●	●
297	04.867 TUBE; NYLON (A)	8-98181-138-3	01	1	1111-	●	●
297	04.867 TUBE; NYLON (B)	8-98186-473-0	01	1	1111-	●	●
297	04.867 TUBE; NYLON (C)	8-98186-474-1	01	1	1111-	●	●
297	04.867 TUBE; NYLON (D)	8-98186-475-0	01	1	1111-	●	●
297	04.867 TUBE; NYLON (E)	8-98186-476-1	01	1	1111-	●	●
311	04.866 BRACKET; PIPE	8-98189-184-0	01	1	1111-	●	●
341	04.866 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1111-	●	●
341	04.866 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●	●
373	04.866 HOSE; RUBBER,AIR CMPR	1-09363-910-0	01	1	1111-	●	●
421	04.866 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1111-	●	●
421	04.866 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1111-	●	●
434	04.866 CLIP 01.550	1-09701-282-0	02	1	1111-	●	●
435	04.866 BOLT; CLIP 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1111-	●	●
450	04.866 BRACKET; CLIP (A)	8-98186-455-1	01	1	1111-	●	●
450	04.866 BRACKET; CLIP (B)	8-98186-456-3	01	1	1111-	●	●
450	04.866 BRACKET; CLIP (C)	8-98186-457-0	01	1	1111-	●	●
450	04.866 BRACKET; CLIP (D)	8-98189-185-0	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE (D) ID=42.7 L=38	1-09700-583-1	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE 02.559 (C) L=212	8-94107-652-0	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE 04.128 (F) L=213.5	8-98000-506-1	02	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE 02.559 (F) L=170.3	1-09987-182-0	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE 02.559 (E) ID=12	1-09987-201-0	01	1	1111-	●	●

295 295 296 296

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	295	04.866 CONNECTOR; NYLON TUBE DIN12 & M16 ELBOW	1-09661-535-0	02	1	1111-	●	●
	296	04.867 TUBE; NYLON	8-98180-589-3	01	1	1111-	●	●

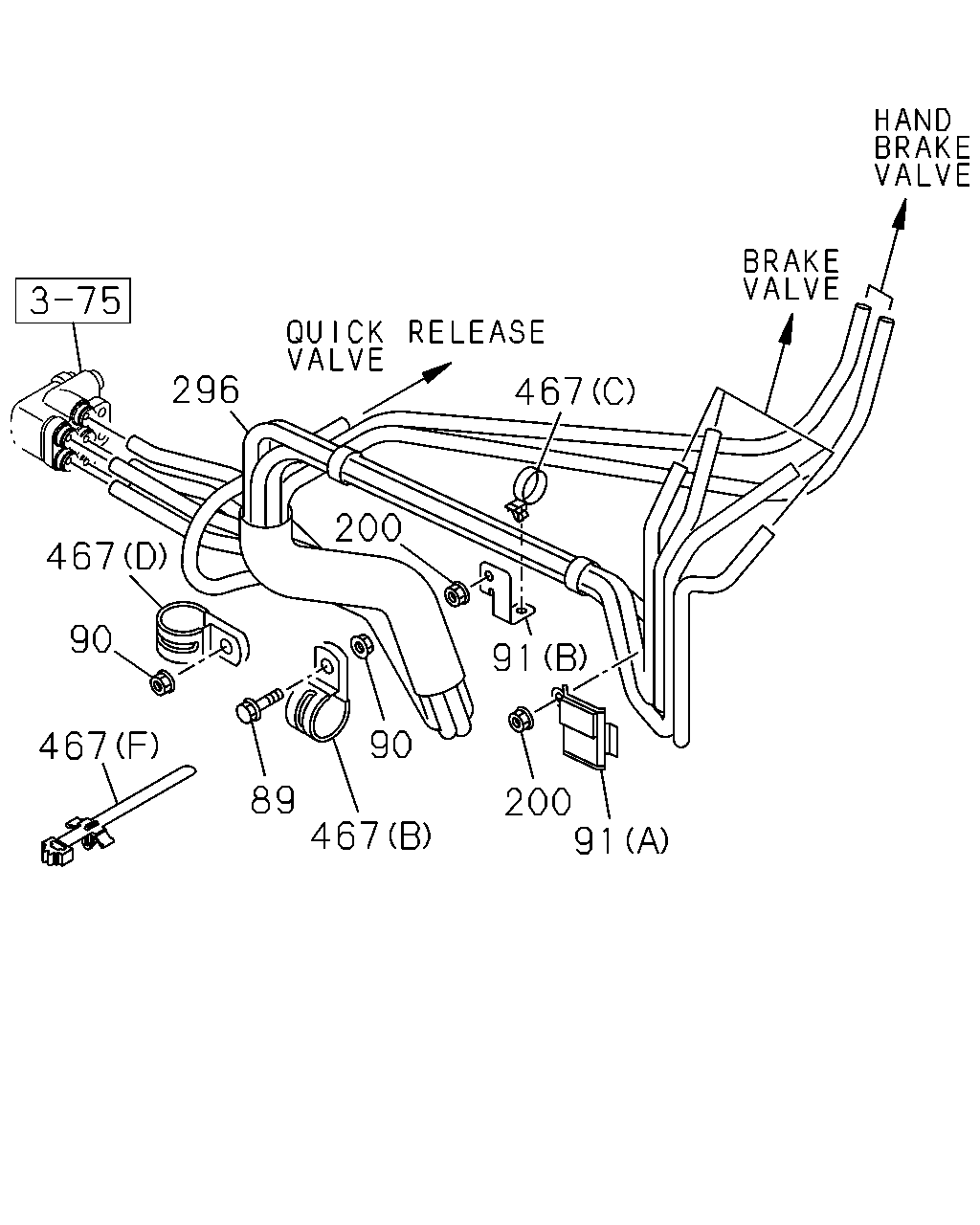

296 467 200 467 90 91 90 467 89 467 200 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	04.866 BOLT; TUBE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
90	04.866 NUT; TUBE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●	●
90	04.866 NUT; TUBE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
91	04.866 BRACKET; TUBE CLIP (A)	8-98180-585-1	01	1	1111-	●	●
91	04.866 BRACKET; TUBE CLIP (B)	8-98180-587-2	01	1	1111-	●	●
200	04.594 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1111-	●	●
296	04.867 TUBE; NYLON	8-98180-589-3	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE (D) ID=42.7 L=38	1-09700-583-1	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE 02.559 (C) L=212	8-94107-652-0	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE 04.128 (F) L=213.5	8-98000-506-1	02	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE 02.559 (F) L=170.3	1-09987-182-0	01	1	1111-	●	●
467	04.866 CLIP; NYLON TUBE 02.559 (E) ID=12	1-09987-201-0	01	1	1111-	●	●
