Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#80710) — 302 parça

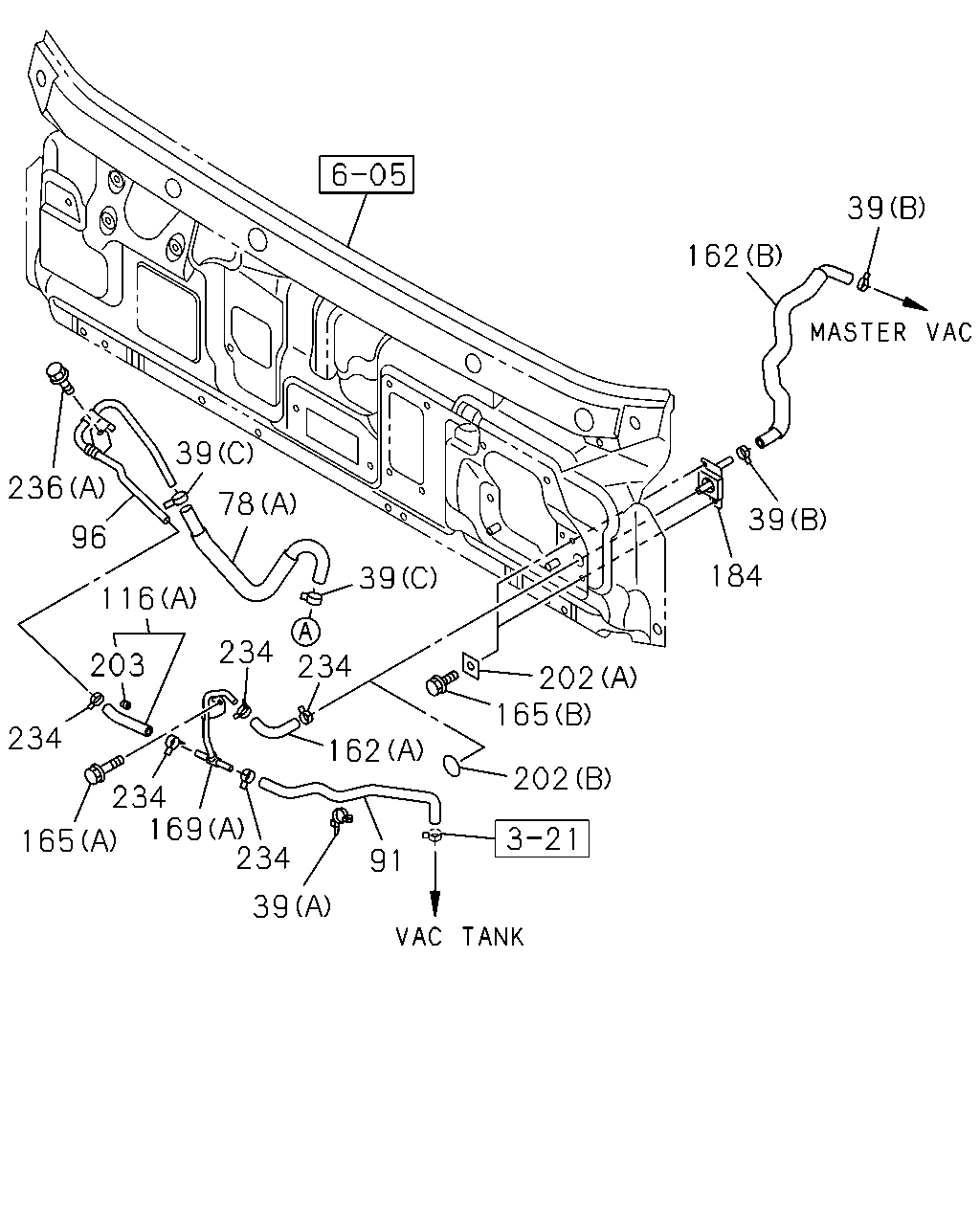

39 162 39 236 78 39 96 39 184 116 234 234 203 202 165 234 162 202 234 169 234 165 91 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (C) ID=16	8-98008-098-0	02	1	1111-1205	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1111-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1111-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98081-681-2	01	1	1111-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98197-253-0	01	1	1111-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98197-253-0	01	1	1111-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) (D)	8-98181-404-0	01	1	1111-		●
91	04.931 HOSE; VAC,RESERVE TANK POWER ASSIST CLUTCH(S2T)	8-98174-537-2	01	1	1111-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98181-382-1	01	1	1111-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-	●
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-560-0	01	1	1111-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1111-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (E) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-	●
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) 03.630 (E) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-		●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-98169-697-0	01	1	1111-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-561-0	01	1	1111-	●	●
165	04.686 BOLT; BRKT POWER ASSIST CLUTCH(S2T) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1111-	●	●
165	04.686 BOLT; BRKT POWER ASSIST CLUTCH(S2T) 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1111-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1111-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1111-1507	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1508-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98179-003-4	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1111-	●
169	04.930 PIPE; VAC,BOOSTER SIDE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1111-1507	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1508-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (E)	8-98180-913-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (C)	8-98181-501-3	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) (C)	8-98181-501-3	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (D)	8-98180-912-3	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98180-912-3	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (F)	8-98180-910-2	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98180-910-2	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-963-3	01	1	1111-		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T)	8-98169-731-1	01	1	1111-	●	●
202	04.686 SEAL POWER ASSIST CLUTCH(S2T) 08.845 (A)	8-97856-616-0	02	1	1111-	●	●
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98201-038-0	01	1	1111-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94104-021-0	01	1	1111-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	05	1	1111-	●	●
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1111-	●	●
236	04.930 BOLT; PIPE 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●
236	04.930 BOLT; PIPE 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-		●
236	04.930 BOLT; PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-		●
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-		●

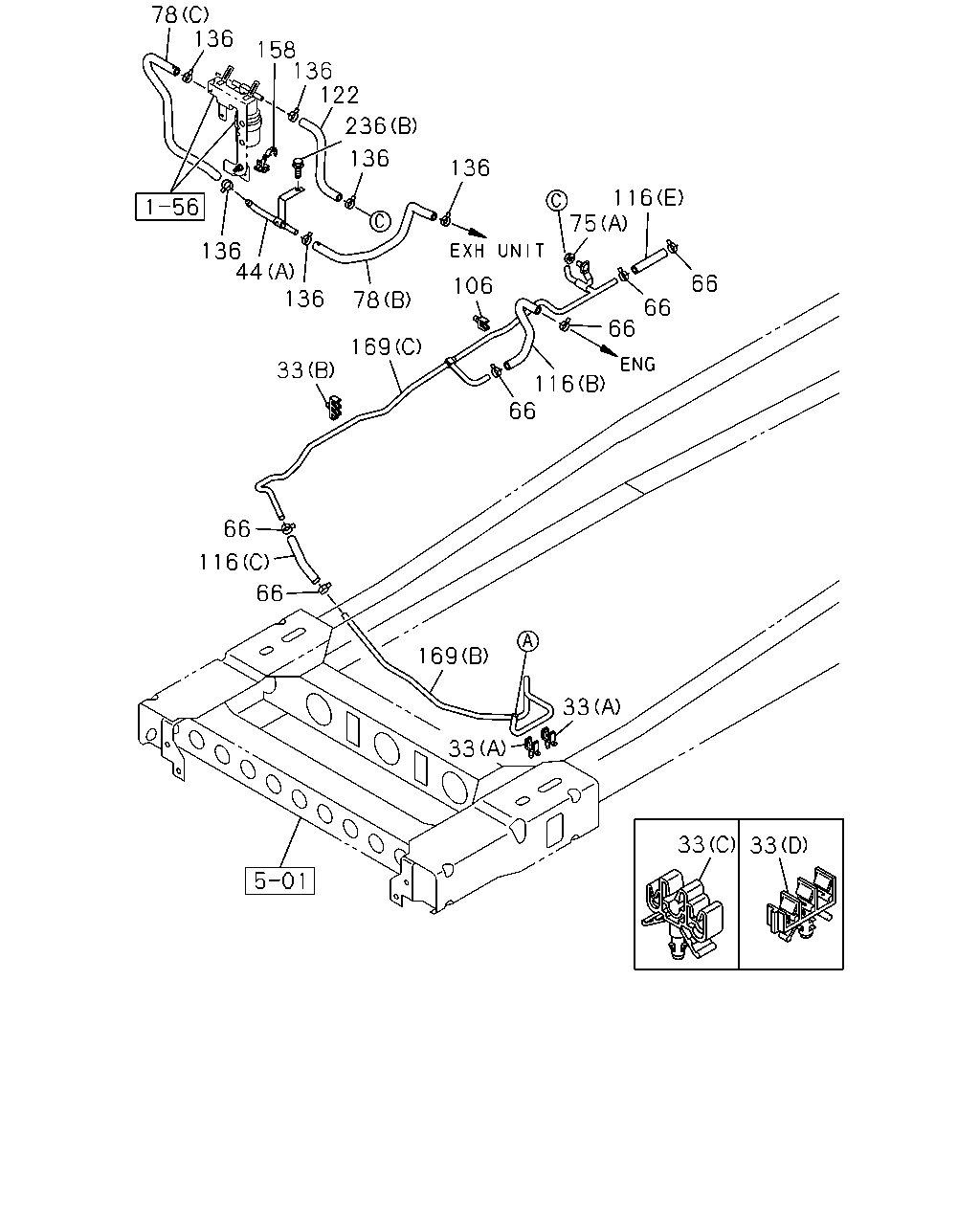

78 136 158 136 122 236 136 136 116 75 136 44 136 66 106 78 66 66 169 33 116 66 66 116 66 169 33 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-	●	●
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-	●	●
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-	●	●
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-	●	●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1111-	●	●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98040-807-1	01	1	1111-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	1111-		●
44	04.930 PIPE; VAC,MAG VLV EURO2 SPECIFICATION(NT2) (B)	8-98181-403-3	01	1	1111-		●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	04	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	04	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) 03.162 ID=16	8-98008-098-0	02	1	1111-1509	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509	●	●
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	06	1	1510-	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1510-		●
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-	●	●
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-		●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98081-681-2	01	1	1111-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98197-253-0	01	1	1111-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98197-253-0	01	1	1111-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) (D)	8-98181-404-0	01	1	1111-		●
106	04.930 CLIP; PIPE ID=10 H=40	8-94462-219-0	03	1	1111-	●
106	04.930 CLIP; PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) ID=10 H=40	8-94462-219-0	03	1	1111-		●
106	04.930 CLIP; PIPE EURO2 SPECIFICATION(NT2) ID=10 H=40	8-94462-219-0	02	1	1111-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-	●
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-560-0	01	1	1111-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1111-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (E) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-	●
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) 03.630 (E) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98179-179-1	01	1	1111-	●	●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1111-	●	●
136	04.681 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2) 03.162 ID=16	8-98008-098-0	02	1	1111-		●
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1111-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1111-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1111-1507	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1508-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98179-003-4	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1111-	●
169	04.930 PIPE; VAC,BOOSTER SIDE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1111-1507	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1508-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (E)	8-98180-913-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (C)	8-98181-501-3	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) (C)	8-98181-501-3	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (D)	8-98180-912-3	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98180-912-3	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (F)	8-98180-910-2	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98180-910-2	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-963-3	01	1	1111-		●
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1111-	●	●
236	04.930 BOLT; PIPE 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●
236	04.930 BOLT; PIPE 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-		●
236	04.930 BOLT; PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-		●
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-		●

122 136 136 136 78 136 136 78 44 136 158 236 44 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1111-	●	●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98040-807-1	01	1	1111-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	1111-		●
44	04.930 PIPE; VAC,MAG VLV EURO2 SPECIFICATION(NT2) (B)	8-98181-403-3	01	1	1111-		●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98081-681-2	01	1	1111-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98197-253-0	01	1	1111-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98197-253-0	01	1	1111-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) (D)	8-98181-404-0	01	1	1111-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98179-179-1	01	1	1111-	●	●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1111-	●	●
136	04.681 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2) 03.162 ID=16	8-98008-098-0	02	1	1111-		●
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1111-	●	●
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1111-	●	●
236	04.930 BOLT; PIPE 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●
236	04.930 BOLT; PIPE 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-		●
236	04.930 BOLT; PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-		●
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-		●

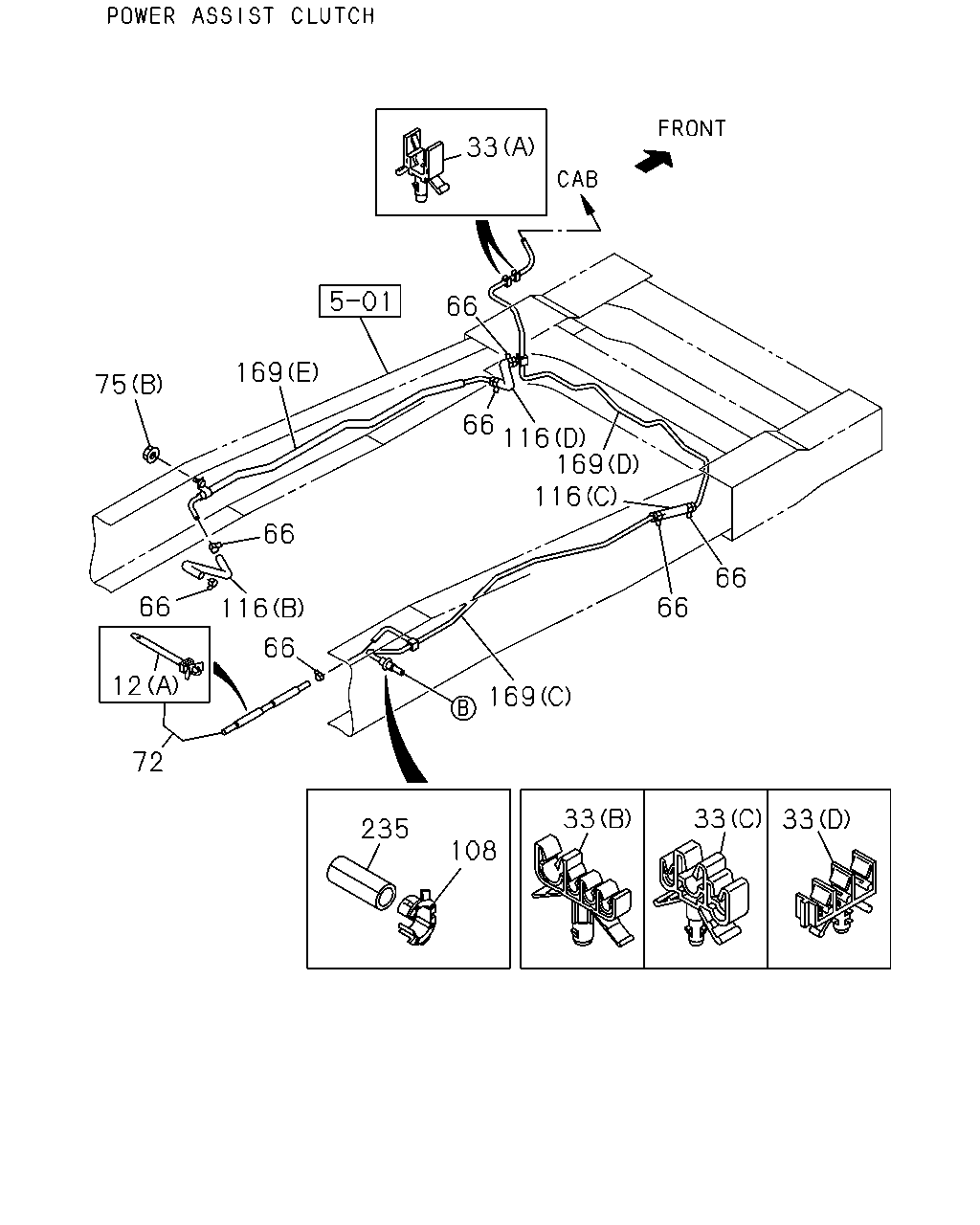

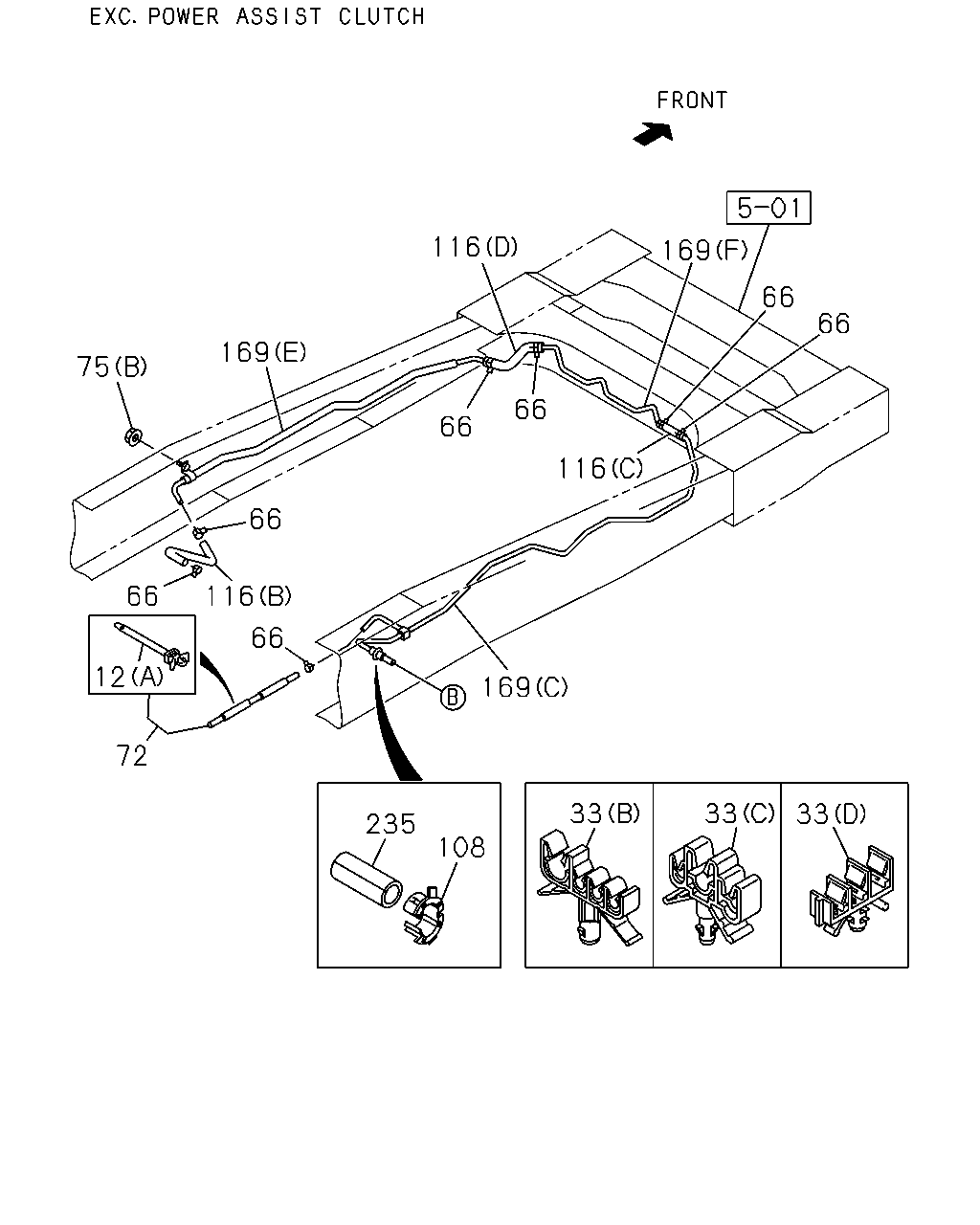

116 169 66 66 169 75 66 66 116 66 66 116 66 12 169 72 33 33 33 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1111-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	1111-		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1111-	●
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1111-		●
12	04.681 CLIP; HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) MANUAL TILT CAB<RWZ> 03.682 (A) L=218	8-98000-505-1	01	1	1111-1509		●
12	04.681 CLIP; HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) 03.682 (A) L=218	8-98000-505-1	01	1	1510-		●
12	04.681 CLIP; HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) EXC. MANUAL TILT CAB<RWZ> 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-1509		●
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-1509		●
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 04.128 (A) L=213.5	8-98000-506-1	01	1	1510-		●
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-	●	●
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-	●	●
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-	●	●
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	04	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	04	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) 03.162 ID=16	8-98008-098-0	02	1	1111-1509	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509	●	●
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	06	1	1510-	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1510-		●
72	04.931 HOSE; VAC,VAC PUMP TO PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) MANUAL TILT CAB<RWZ>	8-98201-856-1	01	1	1111-1509		●
72	04.931 HOSE; VAC,VAC PUMP TO PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2)	8-98201-856-1	01	1	1510-		●
72	04.931 HOSE; VAC,VAC PUMP TO PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) EXC. MANUAL TILT CAB<RWZ>	8-98201-857-1	01	1	1111-1509		●
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW)	8-98201-857-1	01	1	1111-1509		●
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW)	8-98201-857-1	01	1	1510-		●
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-	●	●
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-		●
108	04.931 GROMMET; PIPE EURO2 SPECIFICATION(NT2) 02.343 ID=17	8-94128-319-2	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-	●
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-560-0	01	1	1111-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1111-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (E) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-	●
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) 03.630 (E) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1111-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1111-1507	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1508-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98179-003-4	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1111-	●
169	04.930 PIPE; VAC,BOOSTER SIDE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1111-1507	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1508-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (E)	8-98180-913-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (C)	8-98181-501-3	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) (C)	8-98181-501-3	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (D)	8-98180-912-3	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98180-912-3	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (F)	8-98180-910-2	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98180-910-2	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-963-3	01	1	1111-		●
235	04.931 RUBBER; SUPPORT,PIPE EURO2 SPECIFICATION(NT2) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1111-		●

33 66 169 75 66 116 169 116 66 66 66 66 116 66 12 169 72 33 33 33 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1111-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	1111-		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1111-	●
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1111-		●
12	04.681 CLIP; HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) MANUAL TILT CAB<RWZ> 03.682 (A) L=218	8-98000-505-1	01	1	1111-1509		●
12	04.681 CLIP; HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) 03.682 (A) L=218	8-98000-505-1	01	1	1510-		●
12	04.681 CLIP; HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) EXC. MANUAL TILT CAB<RWZ> 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-1509		●
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-1509		●
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 04.128 (A) L=213.5	8-98000-506-1	01	1	1510-		●
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-	●	●
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-	●	●
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-	●	●
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	04	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	04	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1510-		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) 03.162 ID=16	8-98008-098-0	02	1	1111-1509	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509	●	●
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	06	1	1510-	●
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1510-		●
72	04.931 HOSE; VAC,VAC PUMP TO PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) MANUAL TILT CAB<RWZ>	8-98201-856-1	01	1	1111-1509		●
72	04.931 HOSE; VAC,VAC PUMP TO PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2)	8-98201-856-1	01	1	1510-		●
72	04.931 HOSE; VAC,VAC PUMP TO PIPE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) EXC. MANUAL TILT CAB<RWZ>	8-98201-857-1	01	1	1111-1509		●
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW)	8-98201-857-1	01	1	1111-1509		●
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW)	8-98201-857-1	01	1	1510-		●
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-	●	●
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-		●
108	04.931 GROMMET; PIPE EURO2 SPECIFICATION(NT2) 02.343 ID=17	8-94128-319-2	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-	●
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-560-0	01	1	1111-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1111-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (E) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-	●
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) 03.630 (E) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-		●
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1111-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1111-1507	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1508-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98179-003-4	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1111-	●
169	04.930 PIPE; VAC,BOOSTER SIDE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1111-1507	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1508-	●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (E)	8-98180-913-2	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (C)	8-98181-501-3	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) (C)	8-98181-501-3	01	1	1111-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (D)	8-98180-912-3	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98180-912-3	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (F)	8-98180-910-2	01	1	1111-1507		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98180-910-2	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-963-3	01	1	1111-		●
235	04.931 RUBBER; SUPPORT,PIPE EURO2 SPECIFICATION(NT2) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1111-		●

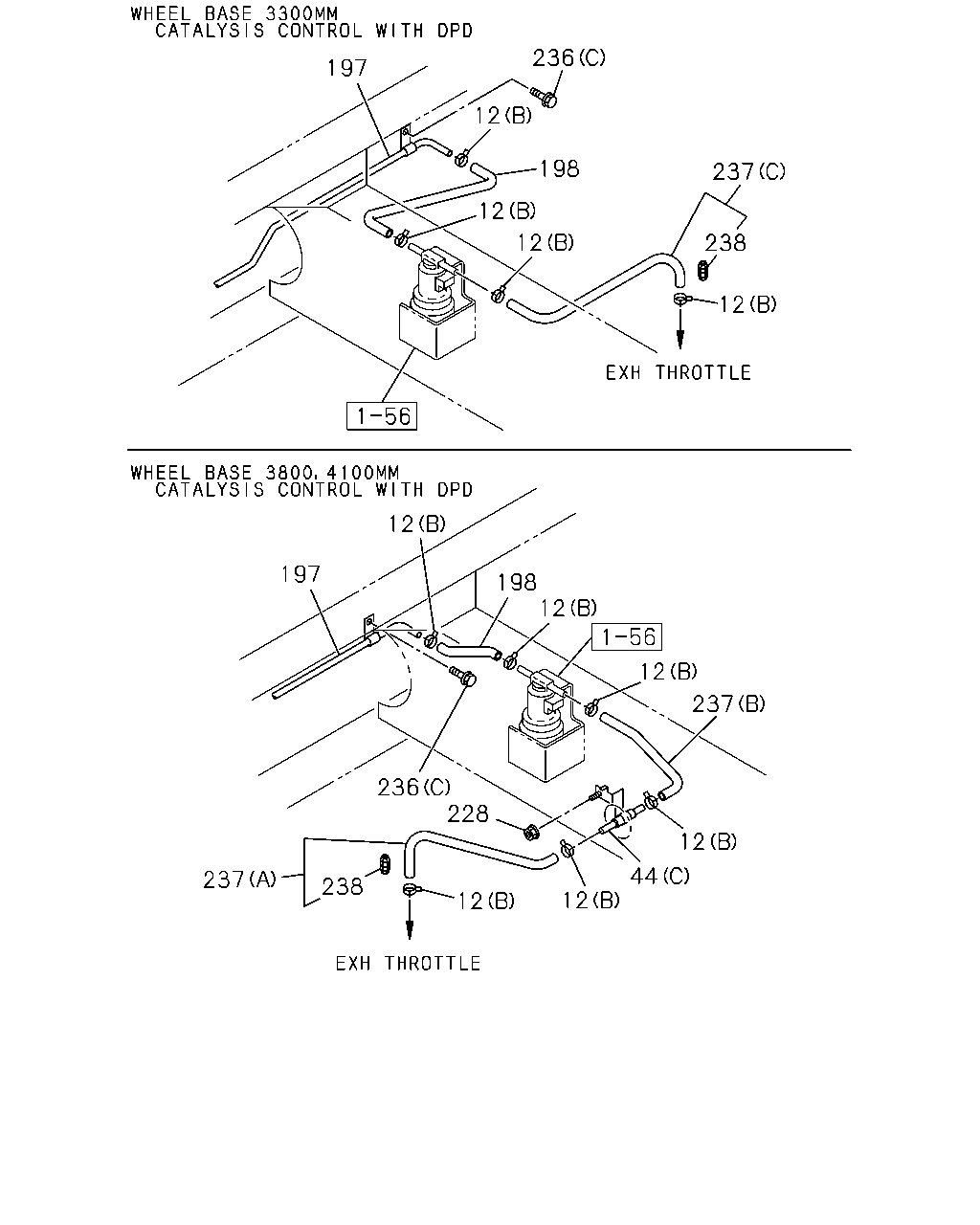

236 197 12 198 237 12 12 238 12 12 197 198 12 12 237 236 228 12 44 12 237 238 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1111-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	1111-		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1111-	●
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1111-		●
12	04.681 CLIP; HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) MANUAL TILT CAB<RWZ> 03.682 (A) L=218	8-98000-505-1	01	1	1111-1509		●
12	04.681 CLIP; HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) 03.682 (A) L=218	8-98000-505-1	01	1	1510-		●
12	04.681 CLIP; HOSE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) EXC. MANUAL TILT CAB<RWZ> 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-1509		●
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-1509		●
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 04.128 (A) L=213.5	8-98000-506-1	01	1	1510-		●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1111-	●	●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98040-807-1	01	1	1111-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	1111-		●
44	04.930 PIPE; VAC,MAG VLV EURO2 SPECIFICATION(NT2) (B)	8-98181-403-3	01	1	1111-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV	8-98179-118-4	01	1	1111-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM)	8-98179-118-4	01	1	1111-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM)	8-98181-077-4	01	1	1111-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 L=230 SERVICED BY L=3000	0-08258-300-0	01	1	1111-1111	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.630 L=230 SERVICED BY L=3000	0-08258-300-0	01	1	1111-1111		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98206-671-0	01	1	1111-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM)	8-98206-671-0	01	1	1111-		●
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-	●
228	04.930 NUT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-		●
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1111-	●	●
236	04.930 BOLT; PIPE 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●
236	04.930 BOLT; PIPE 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-		●
236	04.930 BOLT; PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1111-		●
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-97378-771-0	01	1	1111-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97378-771-0	01	1	1111-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98040-785-1	01	1	1111-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98040-785-1	01	1	1111-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97378-772-0	01	1	1111-		●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	02	1	1111-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	02	1	1111-		●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	01	1	1111-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
