Isuzu WW
▶
TRUCKS
▶
NP
▶
51387 - NP/NQR AIR BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#80708) — 26 parça
Tümü
A - NPR6SN
B - NPR6SS
◀

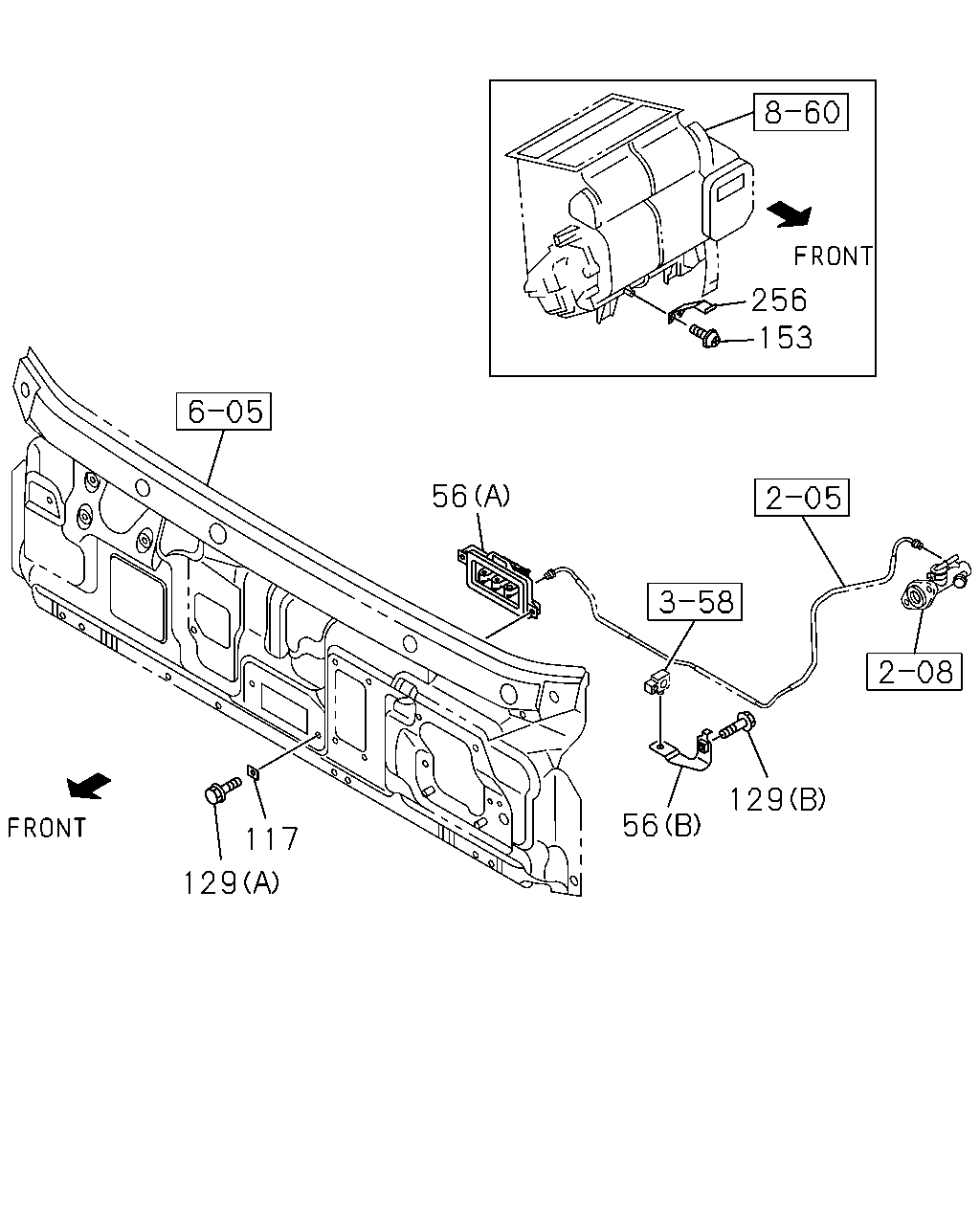

[350A] CAB SIDE (9 parça)
[350A] FRAME SIDE;FRONT (11 parça)
[350A] FRAME SIDE;REAR (6 parça)
▶
256
153
56
129
56
117
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
56
04.686 BRACKET; UNION,BRK
(B)
8-98169-698-0
01
1
1111-
●
●
56
04.686 BRACKET; UNION,BRK
(A)
8-98169-732-1
01
1
1111-
●
●
117
04.686 SEAL; UNION,BRK PIPE JOINT
08.845
8-97856-616-0
02
1
1111-
●
●
129
04.710 BOLT; BRKT
01.531 (B) M8X20 FLANGE
0-28650-820-0
01
1
1111-
●
●
129
04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1111-
●
●
153
04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
1111-
●
153
04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
1111-
●
256
04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>
8-98163-521-0
01
1
1111-
●
256
04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>
8-98163-521-0
01
1
1111-
●

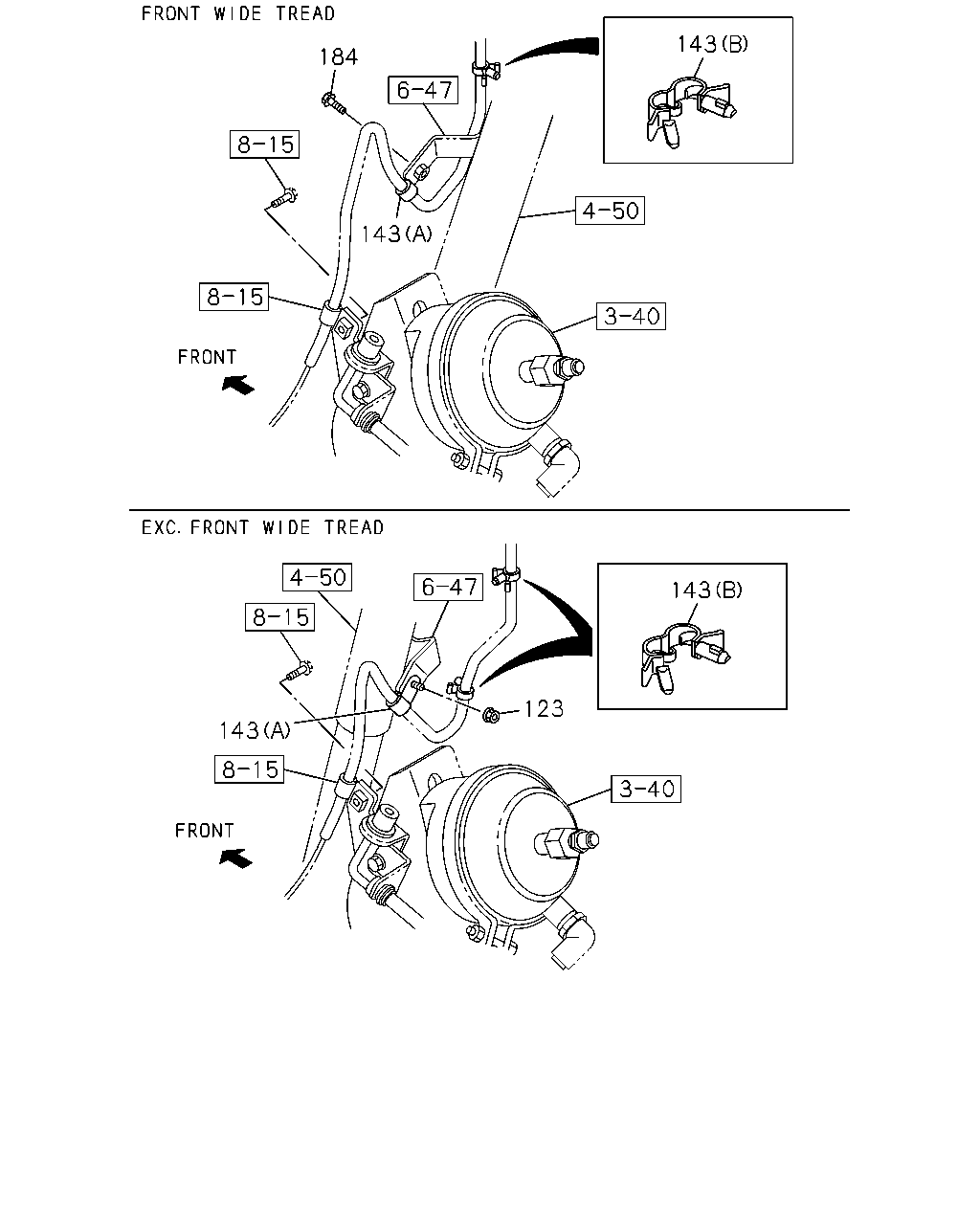

143
184
143
143
123
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
123
04.730 NUT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE
0-91180-108-0
02
1
1111-1111
●
●
123
04.730 NUT; SENSOR
EXC. FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE
0-91180-108-0
02
1
1112-
●
123
04.730 NUT; SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE
0-91180-108-0
02
1
1112-
●
123
04.730 NUT; SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> EXC. FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE
0-91180-108-0
02
1
1112-
●
143
04.710 CLIP; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.559 (B) ID=5-12 L=14.5
1-09987-221-0
02
1
1111-
●
●
143
04.710 CLIP; SPEED SENSOR
02.559 (A) ID=11 L=20
0-95235-035-0
02
1
1111-
●
143
04.710 CLIP; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (A) ID=11 L=20
0-95235-035-0
02
1
1111-
●
143
04.710 CLIP; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.559 (B) ID=5-12 L=14.5
1-09987-221-0
04
1
1111-
●
●
184
04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 M8X16 FLANGE
0-28050-816-0
02
1
1111-1111
●
●
184
04.681 BOLT; CLIP
FRONT WIDE TREAD<7GV> 02.343 M8X16 FLANGE
0-28050-816-0
02
1
1112-
●
184
04.681 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> FRONT WIDE TREAD<7GV> 02.343 M8X16 FLANGE
0-28050-816-0
02
1
1112-
●

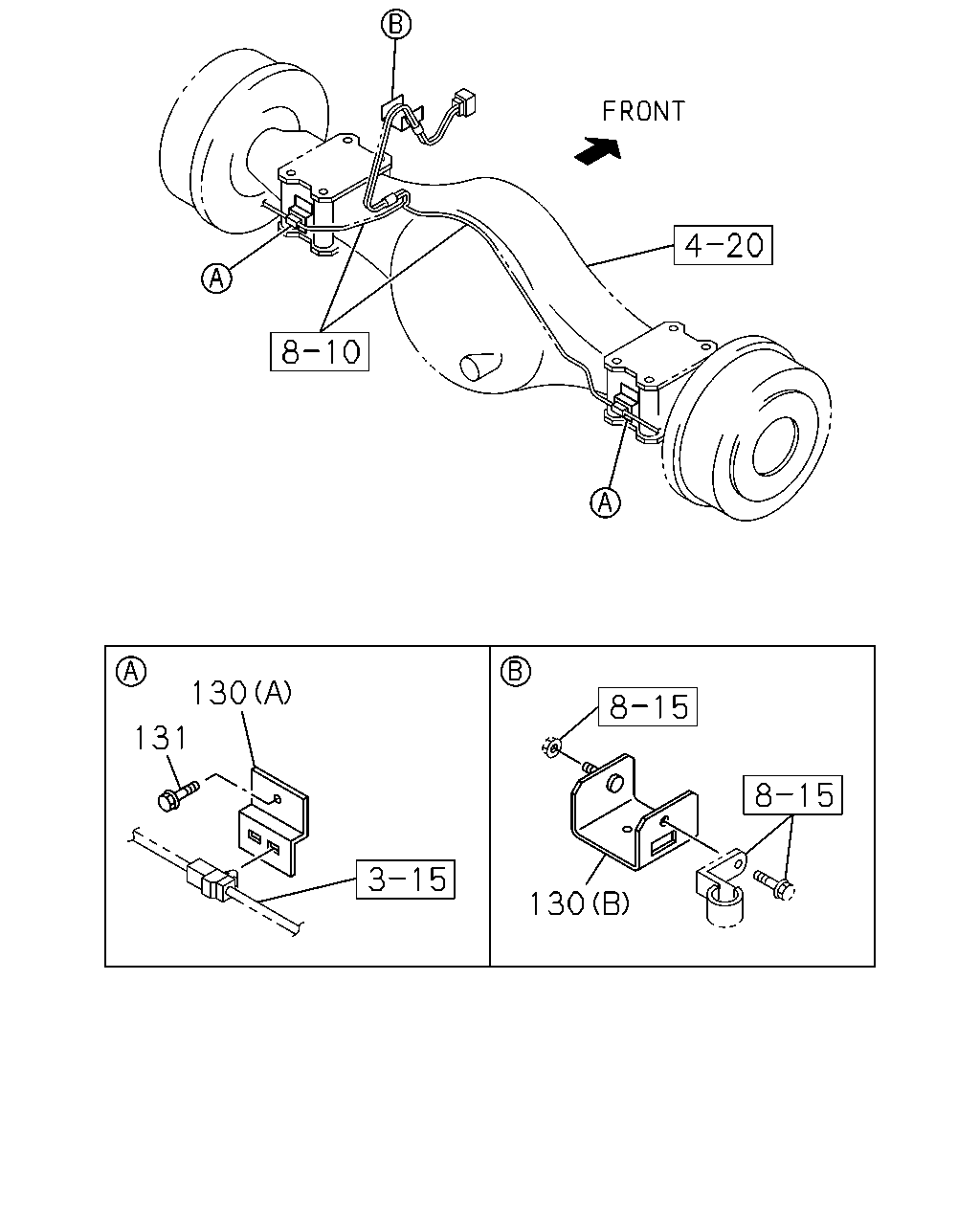

130
131
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
130
04.686 BRACKET; SPEED SENSOR
(A)
8-97080-060-2
02
1
1111-
●
130
04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (A)
8-97080-060-2
02
1
1111-
●
130
04.686 BRACKET; SPEED SENSOR
(B)
8-98182-120-1
01
1
1111-
●
130
04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98182-120-1
01
1
1111-
●
131
04.710 BOLT; BRKT
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1111-
●
131
04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE
0-28050-812-0
02
1
1111-
●
