Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#80707) — 167 parça

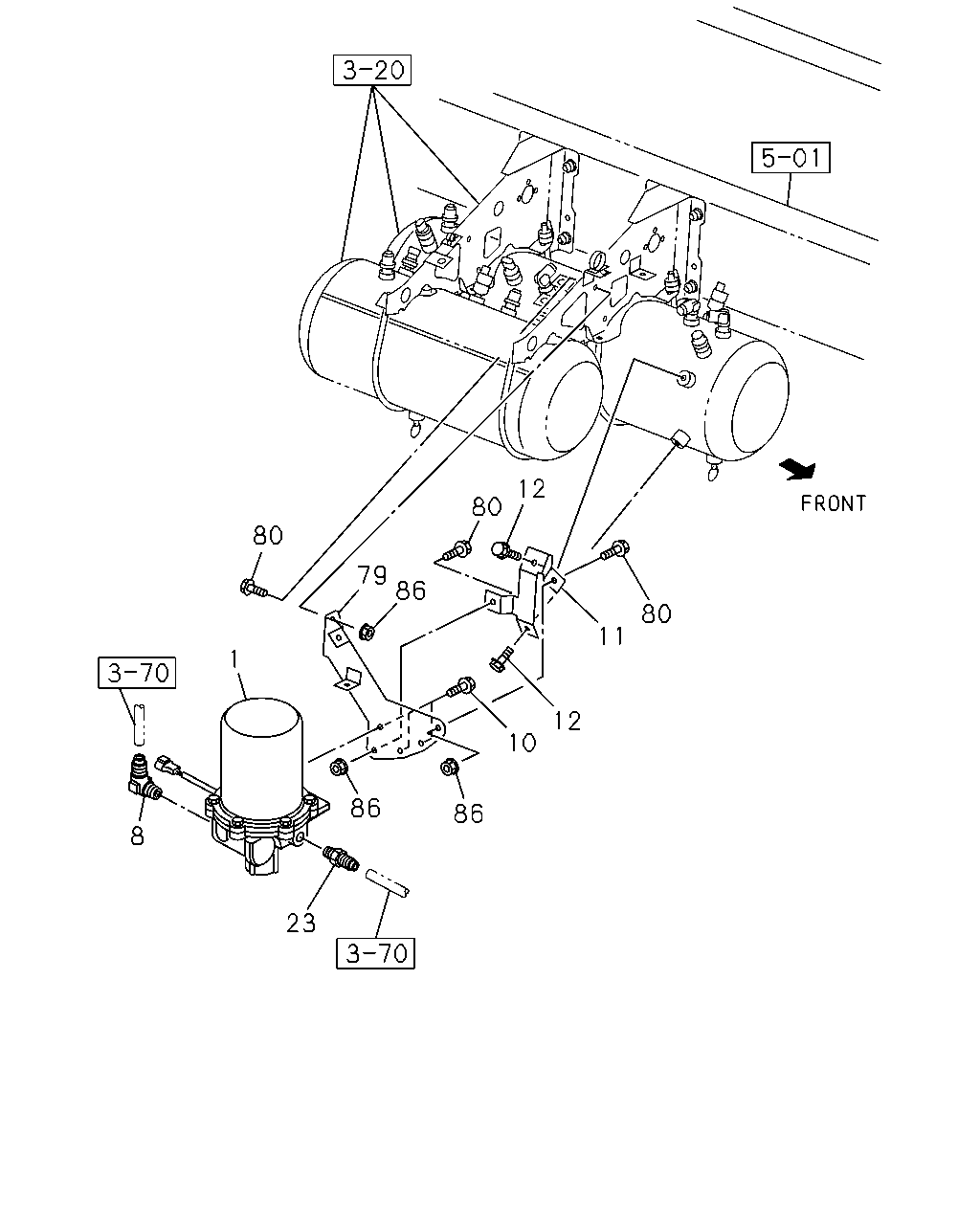

12 80 80 79 86 80 11 1 12 10 86 86 8 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.846 DRYER; AIR	8-98172-214-0	01	1	1111-1111	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-214-0	01	1	1111-1111		●
1	04.846 DRYER; AIR NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-214-0	01	1	1112-1212	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-214-0	01	1	1112-1212		●
1	04.846 DRYER; AIR NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-701-0	01	1	1301-	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-701-0	01	1	1301-		●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-322-0	01	1	1111-1111		●
1	04.846 DRYER; AIR EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-322-0	01	1	1112-1212	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-322-0	01	1	1112-1212		●
1	04.846 DRYER; AIR EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-700-0	01	1	1301-	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-700-0	01	1	1301-		●
8	04.846 CONNECTOR; OUT,AIR DRYER 04.642 DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1111-	●	●
10	04.846 BOLT; AIR DRYER 09.171 M10X25 FLANGE	0-28051-025-0	03	1	1111-	●	●
11	04.846 BRACKET; AIR DRYER	8-98176-286-2	01	1	1111-	●	●
12	04.846 BOLT; BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1111-	●	●
23	04.846 CONNECTOR; AIR TANK M22 & PT1/2 FLARE	0-92121-815-0	01	1	1111-	●	●
79	04.846 BRACKET; AIR DRYER	8-98176-285-3	01	1	1111-	●	●
80	04.846 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	03	1	1111-1111	●	●
80	04.846 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1111-	●	●
86	04.846 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1111-	●	●

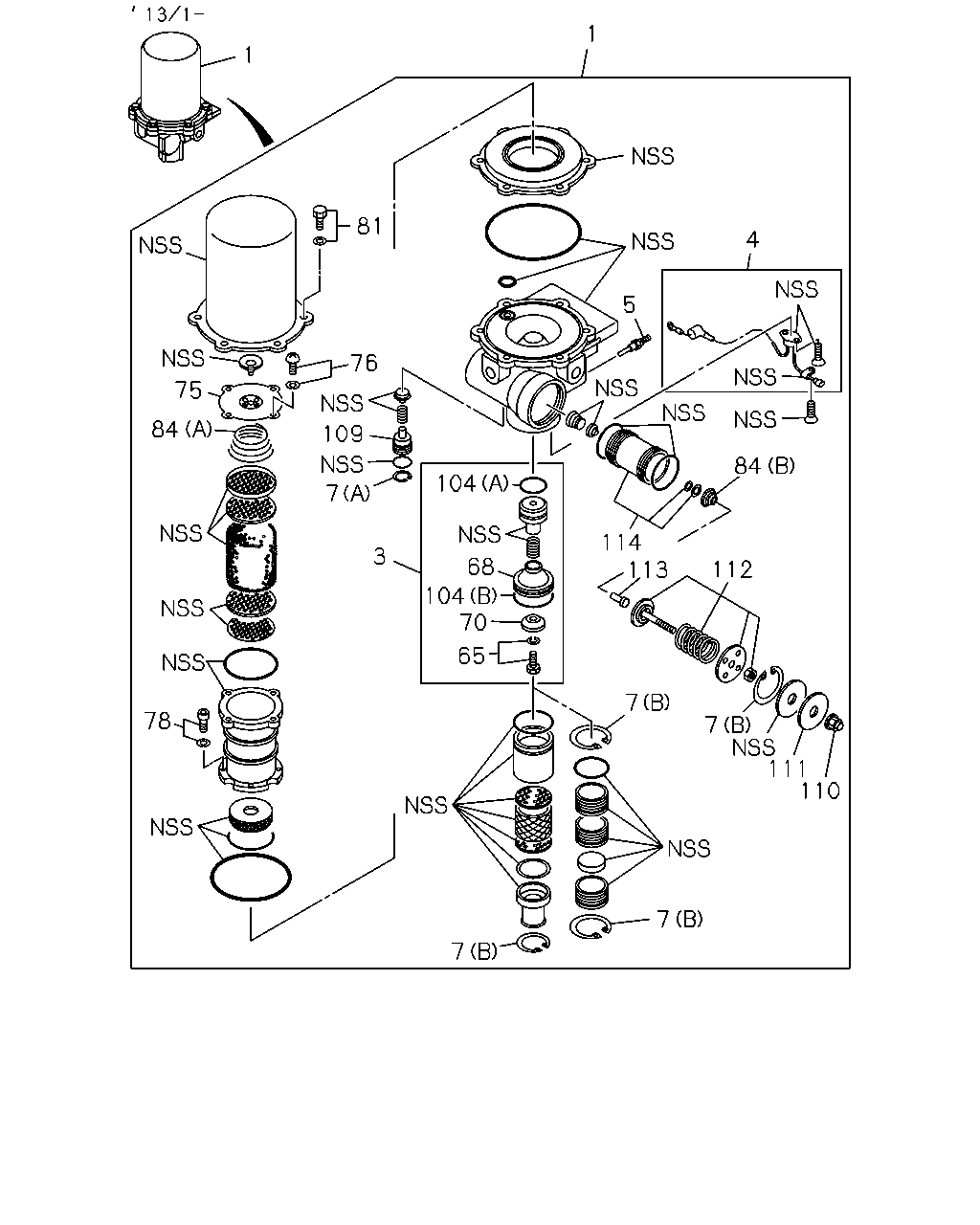

1 1 81 76 109 7 3 75 84 78 104 68 104 70 65 7 7 7 7 111 110 112 113 114 84 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.846 DRYER; AIR	8-98172-214-0	01	1	1111-1111	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-214-0	01	1	1111-1111		●
1	04.846 DRYER; AIR NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-214-0	01	1	1112-1212	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-214-0	01	1	1112-1212		●
1	04.846 DRYER; AIR NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-701-0	01	1	1301-	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-701-0	01	1	1301-		●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-322-0	01	1	1111-1111		●
1	04.846 DRYER; AIR EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-322-0	01	1	1112-1212	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-322-0	01	1	1112-1212		●
1	04.846 DRYER; AIR EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-700-0	01	1	1301-	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-700-0	01	1	1301-		●
3	04.846 PISTON KIT; AIR DRYER	1-85576-383-0	01	1	1111-1212	●	●
3	04.846 PISTON KIT; AIR DRYER	8-98226-322-0	01	1	1301-	●	●
4	04.846 THERMOSTAT KIT; AIR DRYER	1-85576-443-0	01	1	1111-	●	●
5	04.846 HEATER ASM; AIR DRYER	1-48199-530-0	01	1	1111-	●	●
7	04.846 RING; SNAP,AIR DRYER (A)	1-48199-529-0	01	1	1111-	●	●
7	04.846 RING; SNAP,AIR DRYER (B)	1-48199-520-0	03	1	1111-1111	●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	03	1	1111-1111		●
7	04.846 RING; SNAP,AIR DRYER NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	03	1	1112-	●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	03	1	1112-		●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (C)	1-48199-154-0	01	1	1111-1111		●
7	04.846 RING; SNAP,AIR DRYER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (C)	1-48199-154-0	01	1	1112-1212	●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (C)	1-48199-154-0	01	1	1112-1212		●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	02	1	1111-1111		●
7	04.846 RING; SNAP,AIR DRYER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	02	1	1112-	●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	02	1	1112-		●
65	04.846 BOLT; PURGE VLV	1-48199-517-0	01	1	1111-	●	●
68	04.846 BODY; VALVE	1-48199-515-0	01	1	1111-	●	●
70	04.846 VALVE; AIR DRYER	1-48199-504-0	01	1	1111-	●	●
75	04.846 COVER; CASE,AIR DRYER	1-48199-427-0	01	1	1111-	●	●
76	04.846 BOLT; COVER,AIR DRYER	1-48199-412-0	04	1	1111-	●	●
78	04.846 BOLT; OIL FILTER,AIR DRYER	1-48199-417-0	04	1	1111-	●	●
81	04.846 BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	1111-	●	●
84	04.846 SPRING; AIR DRYER (A)	1-48199-425-0	01	1	1111-	●	●
84	04.846 SPRING; AIR DRYER (B)	1-48199-523-0	01	1	1111-	●	●
104	04.846 GASKET (A)	1-48199-495-0	01	1	1111-1212	●	●
104	04.846 GASKET (A)	8-98226-321-0	01	1	1301-	●	●
104	04.846 GASKET (B)	1-48199-496-0	01	1	1111-1111	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	01	1	1111-1111		●
104	04.846 GASKET NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	01	1	1112-1212	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	01	1	1112-1212		●
104	04.846 GASKET (B)	1-48199-496-0	02	1	1301-	●	●
104	04.846 GASKET (C)	8-98172-786-0	01	1	1111-1111	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98172-786-0	01	1	1111-1111		●
104	04.846 GASKET NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98172-786-0	01	1	1112-1212	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98172-786-0	01	1	1112-1212		●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	02	1	1111-1111		●
104	04.846 GASKET EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	02	1	1112-1212	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	02	1	1112-1212		●
109	04.846 STOPPER; CHECK VALVE	1-48199-539-0	01	1	1111-	●	●
110	04.846 NUT; CAP	1-48199-527-0	01	1	1111-	●	●
111	04.846 PLATE; GOVERNOR	1-48199-526-0	01	1	1111-	●	●
112	04.846 SCREW & SPRING ASM; AIR DRYER	1-48199-524-0	01	1	1111-	●	●
113	04.846 STEM; EXHAUST	1-48199-522-0	01	1	1111-	●	●
114	04.846 PISTON ASM; GOVERNOR	1-48199-521-0	01	1	1111-	●	●

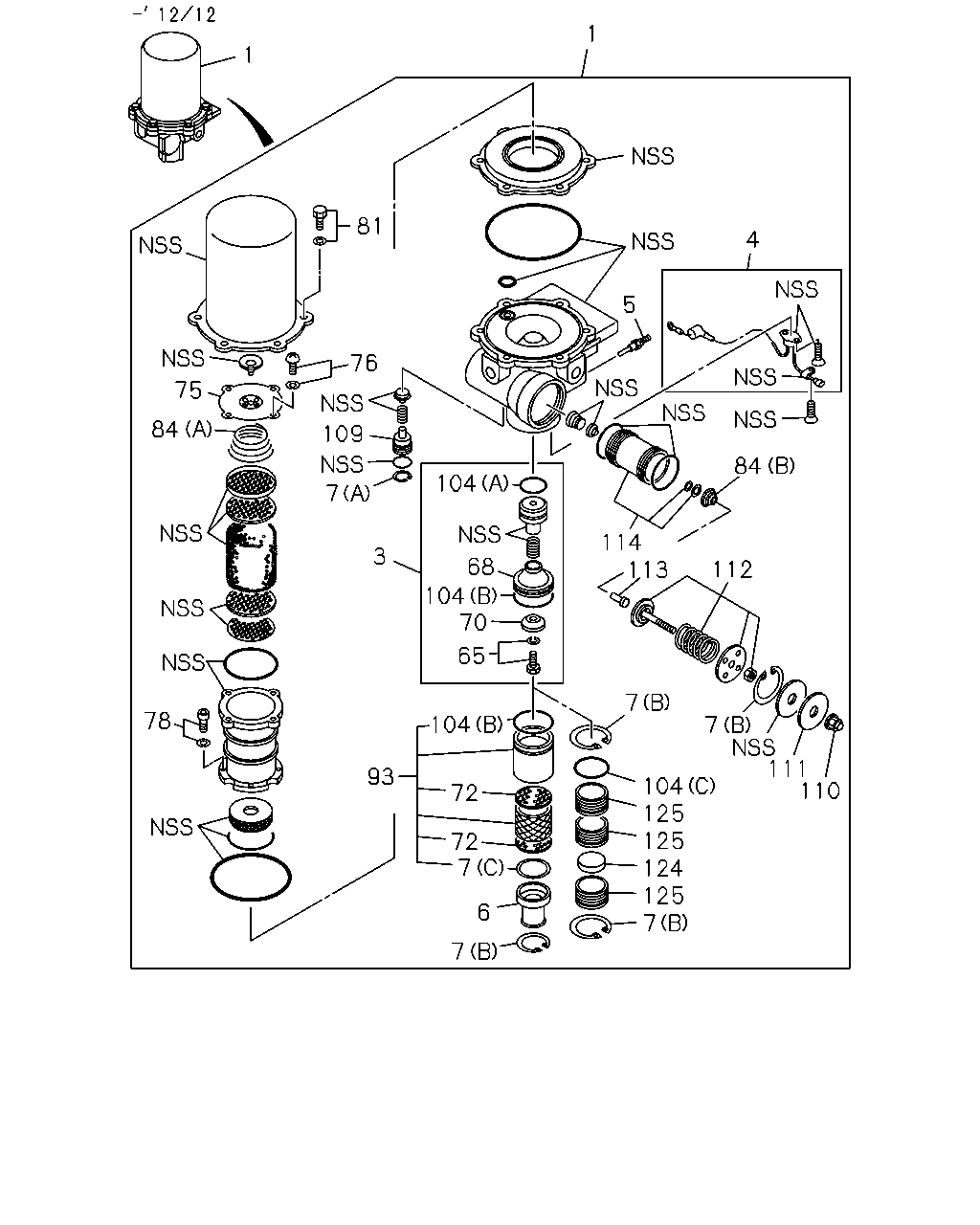

1 4 1 5 84 112 113 114 7 7 111 110 104 125 125 124 125 7 7 6 7 72 72 93 104 65 70 104 3 68 104 7 109 76 81 75 84 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.846 DRYER; AIR	8-98172-214-0	01	1	1111-1111	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-214-0	01	1	1111-1111		●
1	04.846 DRYER; AIR NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-214-0	01	1	1112-1212	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-214-0	01	1	1112-1212		●
1	04.846 DRYER; AIR NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-701-0	01	1	1301-	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-701-0	01	1	1301-		●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-322-0	01	1	1111-1111		●
1	04.846 DRYER; AIR EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-322-0	01	1	1112-1212	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-322-0	01	1	1112-1212		●
1	04.846 DRYER; AIR EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-700-0	01	1	1301-	●
1	04.846 DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98225-700-0	01	1	1301-		●
3	04.846 PISTON KIT; AIR DRYER	1-85576-383-0	01	1	1111-1212	●	●
3	04.846 PISTON KIT; AIR DRYER	8-98226-322-0	01	1	1301-	●	●
4	04.846 THERMOSTAT KIT; AIR DRYER	1-85576-443-0	01	1	1111-	●	●
5	04.846 HEATER ASM; AIR DRYER	1-48199-530-0	01	1	1111-	●	●
6	04.846 COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	1-48199-519-0	01	1	1111-1111		●
6	04.846 COVER; EXH,AIR DRYER EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	1-48199-519-0	01	1	1112-1212	●
6	04.846 COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	1-48199-519-0	01	1	1112-1212		●
7	04.846 RING; SNAP,AIR DRYER (A)	1-48199-529-0	01	1	1111-	●	●
7	04.846 RING; SNAP,AIR DRYER (B)	1-48199-520-0	03	1	1111-1111	●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	03	1	1111-1111		●
7	04.846 RING; SNAP,AIR DRYER NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	03	1	1112-	●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	03	1	1112-		●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (C)	1-48199-154-0	01	1	1111-1111		●
7	04.846 RING; SNAP,AIR DRYER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (C)	1-48199-154-0	01	1	1112-1212	●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (C)	1-48199-154-0	01	1	1112-1212		●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	02	1	1111-1111		●
7	04.846 RING; SNAP,AIR DRYER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	02	1	1112-	●
7	04.846 RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-520-0	02	1	1112-		●
65	04.846 BOLT; PURGE VLV	1-48199-517-0	01	1	1111-	●	●
68	04.846 BODY; VALVE	1-48199-515-0	01	1	1111-	●	●
70	04.846 VALVE; AIR DRYER	1-48199-504-0	01	1	1111-	●	●
72	04.846 PLATE; FILTER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	1-48199-550-0	02	1	1111-1111		●
72	04.846 PLATE; FILTER,AIR DRYER EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	1-48199-550-0	02	1	1112-1212	●
72	04.846 PLATE; FILTER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	1-48199-550-0	02	1	1112-1212		●
75	04.846 COVER; CASE,AIR DRYER	1-48199-427-0	01	1	1111-	●	●
76	04.846 BOLT; COVER,AIR DRYER	1-48199-412-0	04	1	1111-	●	●
78	04.846 BOLT; OIL FILTER,AIR DRYER	1-48199-417-0	04	1	1111-	●	●
81	04.846 BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	1111-	●	●
84	04.846 SPRING; AIR DRYER (A)	1-48199-425-0	01	1	1111-	●	●
84	04.846 SPRING; AIR DRYER (B)	1-48199-523-0	01	1	1111-	●	●
93	04.846 SILENCER; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	1-48199-518-0	01	1	1111-1111		●
93	04.846 SILENCER; AIR DRYER EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	1-48199-518-0	01	1	1112-1212	●
93	04.846 SILENCER; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	1-48199-518-0	01	1	1112-1212		●
104	04.846 GASKET (A)	1-48199-495-0	01	1	1111-1212	●	●
104	04.846 GASKET (A)	8-98226-321-0	01	1	1301-	●	●
104	04.846 GASKET (B)	1-48199-496-0	01	1	1111-1111	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	01	1	1111-1111		●
104	04.846 GASKET NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	01	1	1112-1212	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	01	1	1112-1212		●
104	04.846 GASKET (B)	1-48199-496-0	02	1	1301-	●	●
104	04.846 GASKET (C)	8-98172-786-0	01	1	1111-1111	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98172-786-0	01	1	1111-1111		●
104	04.846 GASKET NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98172-786-0	01	1	1112-1212	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98172-786-0	01	1	1112-1212		●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	02	1	1111-1111		●
104	04.846 GASKET EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	02	1	1112-1212	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	02	1	1112-1212		●
109	04.846 STOPPER; CHECK VALVE	1-48199-539-0	01	1	1111-	●	●
110	04.846 NUT; CAP	1-48199-527-0	01	1	1111-	●	●
111	04.846 PLATE; GOVERNOR	1-48199-526-0	01	1	1111-	●	●
112	04.846 SCREW & SPRING ASM; AIR DRYER	1-48199-524-0	01	1	1111-	●	●
113	04.846 STEM; EXHAUST	1-48199-522-0	01	1	1111-	●	●
114	04.846 PISTON ASM; GOVERNOR	1-48199-521-0	01	1	1111-	●	●
124	04.846 FILTER; SILENCER	8-98172-784-0	01	1	1111-1111	●
124	04.846 FILTER; SILENCER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-784-0	01	1	1111-1111		●
124	04.846 FILTER; SILENCER NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-784-0	01	1	1112-1212	●
124	04.846 FILTER; SILENCER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-784-0	01	1	1112-1212		●
125	04.846 CASE; SILENCER,AIR DRYER	8-98172-780-0	03	1	1111-1111	●
125	04.846 CASE; SILENCER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-780-0	03	1	1111-1111		●
125	04.846 CASE; SILENCER,AIR DRYER NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-780-0	03	1	1112-1212	●
125	04.846 CASE; SILENCER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98172-780-0	03	1	1112-1212		●

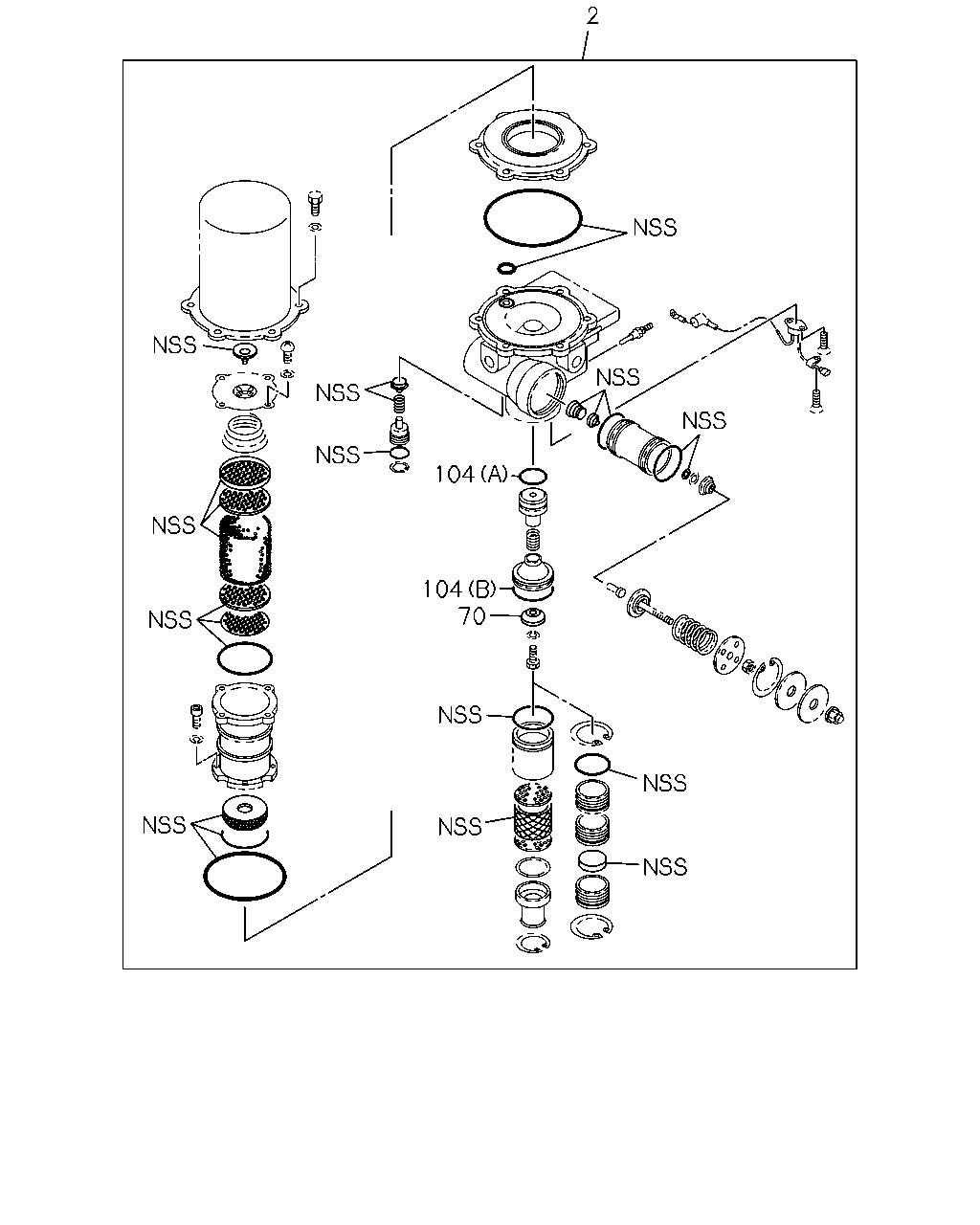

2 104 104 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.846 REPAIR KIT; AIR DRYER EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98226-324-0	01	1	1301-	●
2	04.846 REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98226-324-0	01	1	1301-		●
2	04.846 REPAIR KIT; AIR DRYER	8-98206-119-0	01	1	1111-1212	●	●
2	04.846 REPAIR KIT; AIR DRYER NOISE PACK FOR REGULATION VAR.2<7TF>	8-98226-325-0	01	1	1301-	●
2	04.846 REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF>	8-98226-325-0	01	1	1301-		●
70	04.846 VALVE; AIR DRYER	1-48199-504-0	01	1	1111-	●	●
104	04.846 GASKET (A)	1-48199-495-0	01	1	1111-1212	●	●
104	04.846 GASKET (A)	8-98226-321-0	01	1	1301-	●	●
104	04.846 GASKET (B)	1-48199-496-0	01	1	1111-1111	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	01	1	1111-1111		●
104	04.846 GASKET NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	01	1	1112-1212	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	01	1	1112-1212		●
104	04.846 GASKET (B)	1-48199-496-0	02	1	1301-	●	●
104	04.846 GASKET (C)	8-98172-786-0	01	1	1111-1111	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98172-786-0	01	1	1111-1111		●
104	04.846 GASKET NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98172-786-0	01	1	1112-1212	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98172-786-0	01	1	1112-1212		●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	02	1	1111-1111		●
104	04.846 GASKET EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	02	1	1112-1212	●
104	04.846 GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	1-48199-496-0	02	1	1112-1212		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
