Isuzu WW
▶
TRUCKS
▶
NP
▶
51387 - NP/NQR AIR BRAKE LHD
▶
3 - Brakes, Brake System
▶

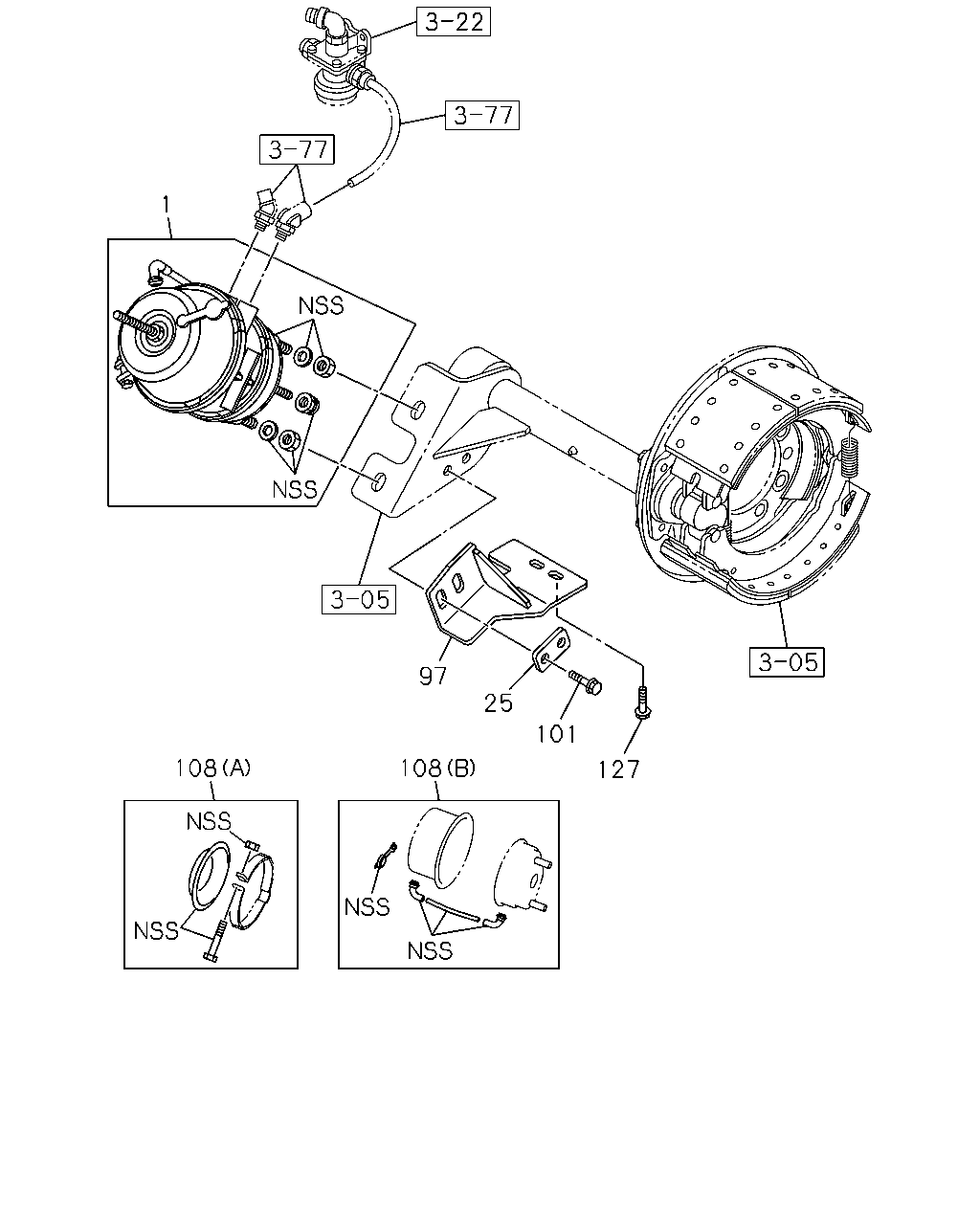

3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#80706) — 11 parça
Tümü
A - NPR6SN
B - NPR6SS
1
97
25
101
108
108
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
05.120 CHAMBER ASM; SPRING
8-98205-503-0
01
1
1111-
●
●
1
05.120 CHAMBER ASM; SPRING
8-98205-504-0
01
1
1111-
●
●
25
05.120 PLATE; PRESSURE,SPR CHAMBER
8-98200-650-0
02
1
1111-
●
●
97
05.120 BRACKET; CHAMBER
8-98200-654-0
01
1
1111-
●
●
97
05.120 BRACKET; CHAMBER
8-98200-655-0
01
1
1111-
●
●
101
05.002 BOLT; SPR CHAMBER
05.120 M14X30 FLANGE
0-28861-430-0
04
1
1111-
●
●
108
04.667 REPAIR KIT; SPR CHAMBER
(B)
8-98205-508-0
02
1
1210-
●
●
108
04.667 REPAIR KIT; SPR CHAMBER
(A)
8-98205-509-0
02
1
1210-
●
●
108
04.667 REPAIR KIT; SPR CHAMBER
(B)
8-98205-508-0
02
1
1111-1209
●
●
108
04.667 REPAIR KIT; SPR CHAMBER
(A)
8-98205-509-0
02
1
1111-1209
●
●
127
05.120 BOLT; BRKT
M14X30 FLANGE
0-28861-430-0
04
1
1111-
●
●
