3-22 — AIR CONTROL PARTS (#80703) — 174 parça
çizim 116765
21 21 49 105 21 13 19 20 48
BalonParca AdiParca NoAdetTipApplied Date A B
13 04.644 VALVE ASM; QUICK RELEASE 8-98172-212-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1112- ●
19 04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98289-461-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
(A) 		8-98187-192-1 01 1 1111- ● ●
19 04.644 BRACKET; QUICK RELEASE VLV
(C) 		8-98181-089-3 01 1 1111-1502 ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98181-089-3 01 1 1111-1502 ●
19 04.644 BRACKET; QUICK RELEASE VLV
(C) 		8-98274-201-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98274-201-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
(B) 		8-98186-494-3 01 1 1111-1502 ● ●
19 04.644 BRACKET; QUICK RELEASE VLV
(B) 		8-98274-211-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98274-211-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98181-090-0 01 1 1111- ●
20 04.661 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 05 1 1111- ● ●
21 04.661 CONNECTOR; QUICK RELEASE VLV
04.642 DIN12 & M22 ELBOW 		1-09661-497-0 03 1 1111- ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1510- ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 06 1 1111-1509 ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1510- ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 04 1 1510- ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 06 1 1111-1509 ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
105 04.661 NUT; BRKT,VALVE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1111- ● ●

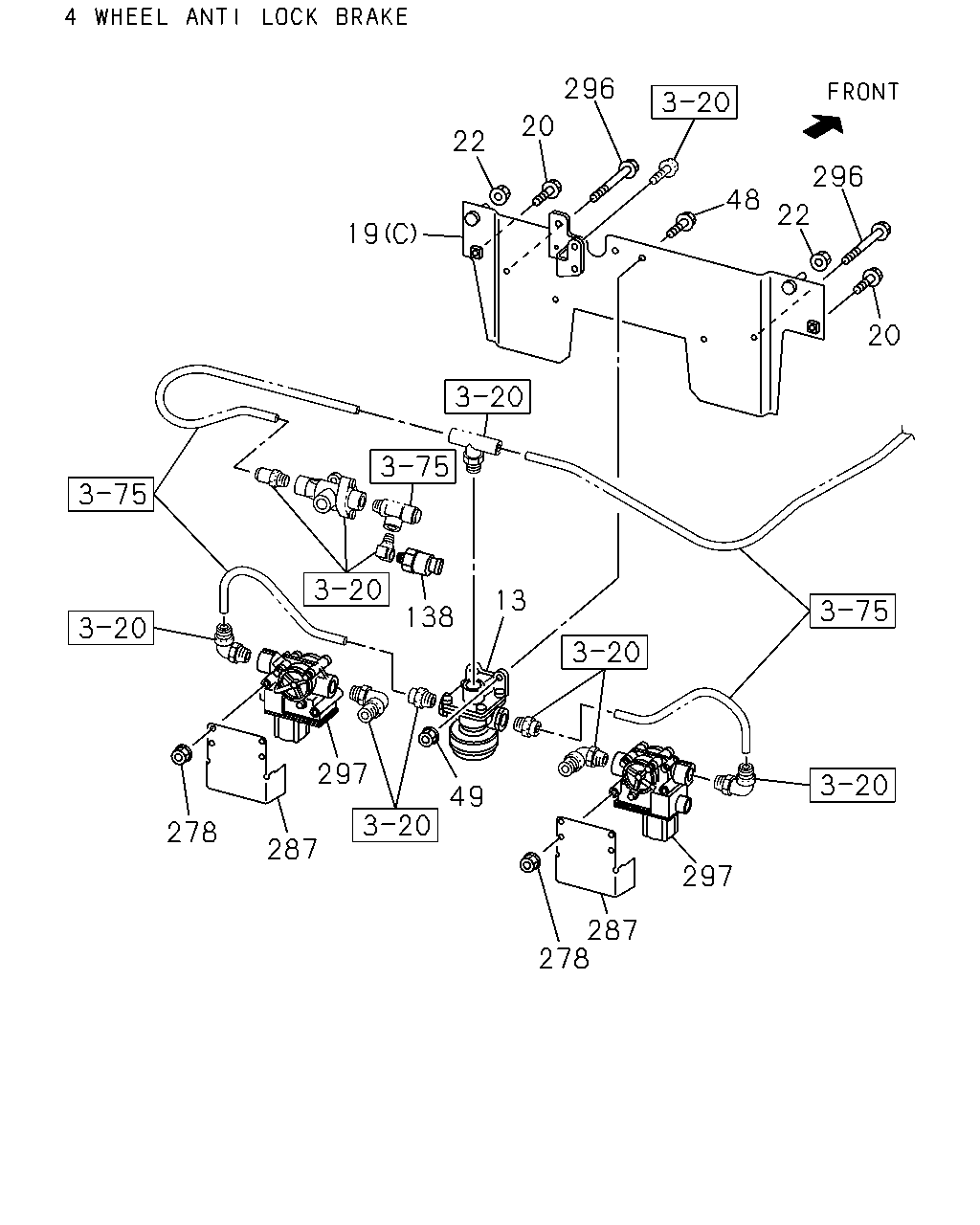

çizim 116866
296 20 22 296 48 22 19 20 13 138 297 49 278 287 297 287 278
BalonParca AdiParca NoAdetTipApplied Date A B
13 04.644 VALVE ASM; QUICK RELEASE 8-98172-212-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1112- ●
19 04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98289-461-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
(A) 		8-98187-192-1 01 1 1111- ● ●
19 04.644 BRACKET; QUICK RELEASE VLV
(C) 		8-98181-089-3 01 1 1111-1502 ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98181-089-3 01 1 1111-1502 ●
19 04.644 BRACKET; QUICK RELEASE VLV
(C) 		8-98274-201-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98274-201-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
(B) 		8-98186-494-3 01 1 1111-1502 ● ●
19 04.644 BRACKET; QUICK RELEASE VLV
(B) 		8-98274-211-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98274-211-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98181-090-0 01 1 1111- ●
20 04.661 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 05 1 1111- ● ●
22 04.661 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ●
22 04.661 NUT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ●
22 04.661 NUT; BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1111- ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1510- ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 06 1 1111-1509 ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1510- ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 04 1 1510- ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 06 1 1111-1509 ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
138 04.439 SWITCH; RELAY VALVE
04.642 STAMP 2.0 		8-98010-856-2 01 1 1111- ● ●
278 04.680 NUT; MODULATOR
01.062 M8 FLANGE 		0-91180-108-0 08 1 1111- ●
278 04.680 NUT; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 08 1 1111- ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT 		8-98190-606-1 01 1 1111-1502 ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT 		8-98274-200-0 01 1 1503- ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT 		1-47471-354-0 01 1 1111-1502 ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT 		8-98274-197-0 01 1 1503- ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR 		8-98190-605-0 02 1 1111-1502 ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR 		8-98274-199-0 02 1 1503- ●
296 04.680 BOLT; MODULATOR
01.252 M8X80 FLANGE 		0-28050-880-0 08 1 1111-1502 ●
296 04.680 BOLT; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.252 M8X80 FLANGE 		0-28050-880-0 08 1 1111-1502 ●
296 04.680 BOLT; MODULATOR
01.252 M8X85 FLANGE 		8-97023-062-0 08 1 1503- ●
296 04.680 BOLT; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.252 M8X85 FLANGE 		8-97023-062-0 08 1 1503- ●
297 04.680 MODULATOR; RR 1-48240-115-0 02 1 1111-1502 ●
297 04.680 MODULATOR; RR
4 WHEEL ANTI LOCK BRAKE<JE5> 		1-48240-115-0 02 1 1111-1502 ●
297 04.680 MODULATOR; RR 8-98215-454-0 02 1 1503- ●
297 04.680 MODULATOR; RR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98215-454-0 02 1 1503- ●
çizim 116968
286 278 287 278 21 287 286 49 21 13 21 105 296 19 20 48 296
BalonParca AdiParca NoAdetTipApplied Date A B
13 04.644 VALVE ASM; QUICK RELEASE 8-98172-212-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1112- ●
19 04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98289-461-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
(A) 		8-98187-192-1 01 1 1111- ● ●
19 04.644 BRACKET; QUICK RELEASE VLV
(C) 		8-98181-089-3 01 1 1111-1502 ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98181-089-3 01 1 1111-1502 ●
19 04.644 BRACKET; QUICK RELEASE VLV
(C) 		8-98274-201-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98274-201-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
(B) 		8-98186-494-3 01 1 1111-1502 ● ●
19 04.644 BRACKET; QUICK RELEASE VLV
(B) 		8-98274-211-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98274-211-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98181-090-0 01 1 1111- ●
20 04.661 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 05 1 1111- ● ●
21 04.661 CONNECTOR; QUICK RELEASE VLV
04.642 DIN12 & M22 ELBOW 		1-09661-497-0 03 1 1111- ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1510- ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 06 1 1111-1509 ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1510- ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 04 1 1510- ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 06 1 1111-1509 ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
105 04.661 NUT; BRKT,VALVE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1111- ● ●
278 04.680 NUT; MODULATOR
01.062 M8 FLANGE 		0-91180-108-0 08 1 1111- ●
278 04.680 NUT; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 08 1 1111- ●
286 04.680 MODULATOR; FRT 1-48240-115-0 02 1 1111-1502 ●
286 04.680 MODULATOR; FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		1-48240-115-0 02 1 1111-1502 ●
286 04.680 MODULATOR; FRT 8-98215-454-0 02 1 1503- ●
286 04.680 MODULATOR; FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98215-454-0 02 1 1503- ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT 		8-98190-606-1 01 1 1111-1502 ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT 		8-98274-200-0 01 1 1503- ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT 		1-47471-354-0 01 1 1111-1502 ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT 		8-98274-197-0 01 1 1503- ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR 		8-98190-605-0 02 1 1111-1502 ●
287 04.852 COVER; MODULATOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR 		8-98274-199-0 02 1 1503- ●
296 04.680 BOLT; MODULATOR
01.252 M8X80 FLANGE 		0-28050-880-0 08 1 1111-1502 ●
296 04.680 BOLT; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.252 M8X80 FLANGE 		0-28050-880-0 08 1 1111-1502 ●
296 04.680 BOLT; MODULATOR
01.252 M8X85 FLANGE 		8-97023-062-0 08 1 1503- ●
296 04.680 BOLT; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.252 M8X85 FLANGE 		8-97023-062-0 08 1 1503- ●

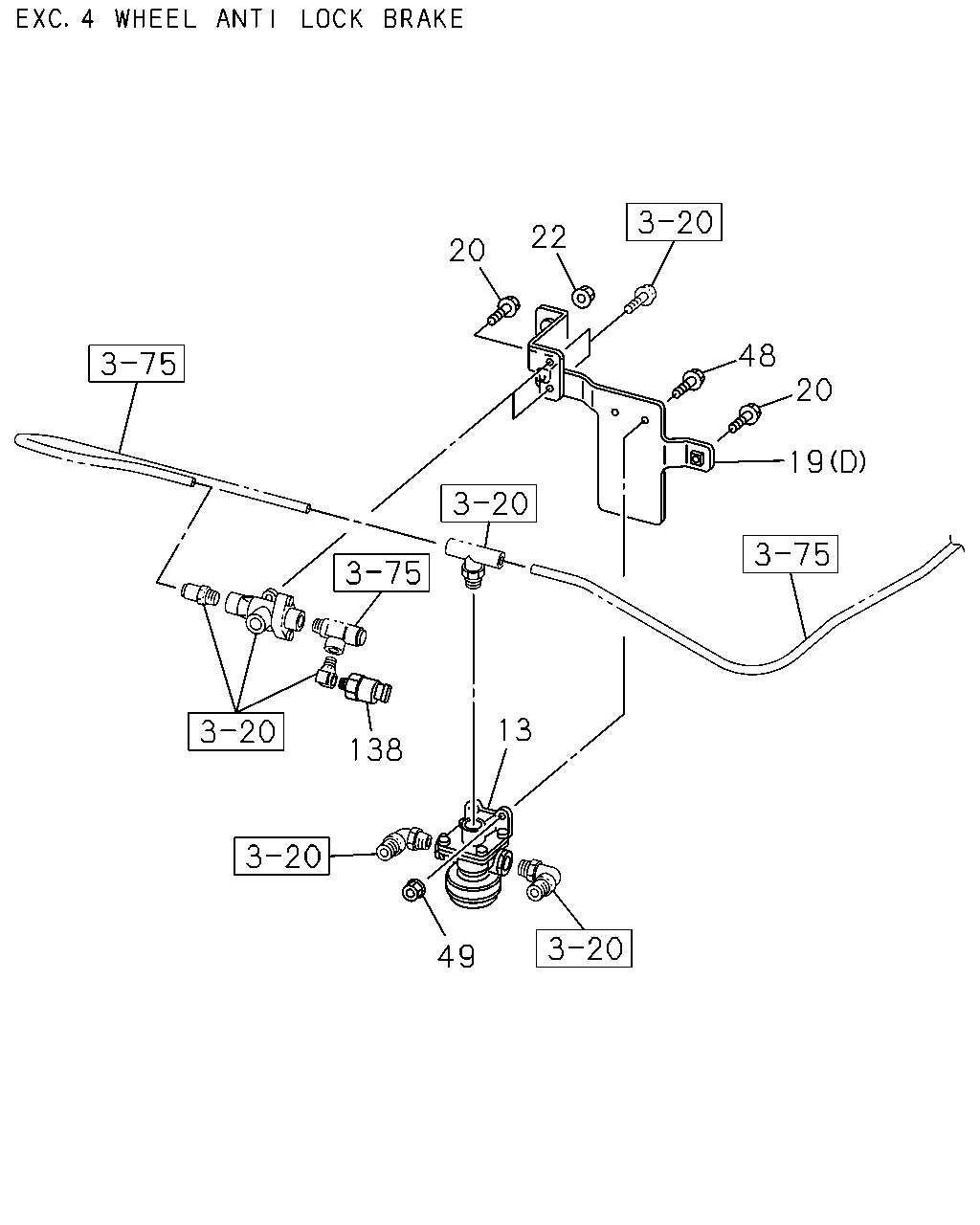

çizim 117010
22 20 48 20 19 13 138 49
BalonParca AdiParca NoAdetTipApplied Date A B
13 04.644 VALVE ASM; QUICK RELEASE 8-98172-212-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1112- ●
19 04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98289-461-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
(A) 		8-98187-192-1 01 1 1111- ● ●
19 04.644 BRACKET; QUICK RELEASE VLV
(C) 		8-98181-089-3 01 1 1111-1502 ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98181-089-3 01 1 1111-1502 ●
19 04.644 BRACKET; QUICK RELEASE VLV
(C) 		8-98274-201-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98274-201-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
(B) 		8-98186-494-3 01 1 1111-1502 ● ●
19 04.644 BRACKET; QUICK RELEASE VLV
(B) 		8-98274-211-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98274-211-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98181-090-0 01 1 1111- ●
20 04.661 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 05 1 1111- ● ●
22 04.661 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ●
22 04.661 NUT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ●
22 04.661 NUT; BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1111- ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1510- ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 06 1 1111-1509 ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1510- ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 04 1 1510- ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 06 1 1111-1509 ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
138 04.439 SWITCH; RELAY VALVE
04.642 STAMP 2.0 		8-98010-856-2 01 1 1111- ● ●

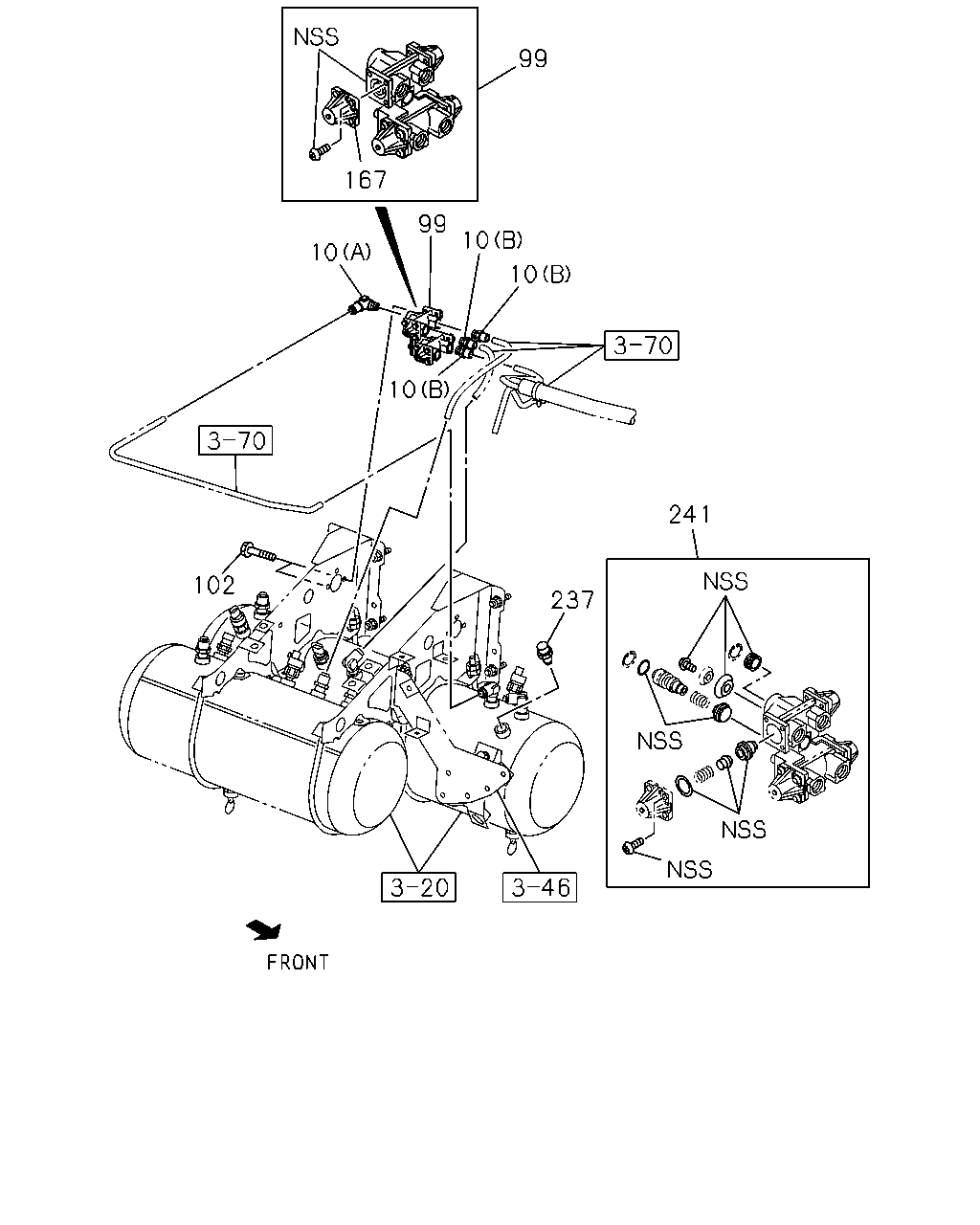

çizim 117155
167 99 99 10 10 10 10 241 237 102
BalonParca AdiParca NoAdetTipApplied Date A B
10 04.642 CONNECTOR
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1111- ● ●
10 04.642 CONNECTOR
04.866 (B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1111- ● ●
99 04.644 VALVE; PROTECTION 8-98157-654-1 01 1 1111-1302 ● ●
99 04.644 VALVE; PROTECTION 8-98241-586-2 01 1 1303- ● ●
102 04.644 BOLT; PROTECTION VALVE
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1111- ● ●
167 04.644 COVER; VALVE 1-48119-625-0 04 1 1111- ● ●
237 04.661 VALVE; SAFETY
04.955 		1-48320-012-2 01 1 1111- ● ●
241 04.872 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 1111- ● ●

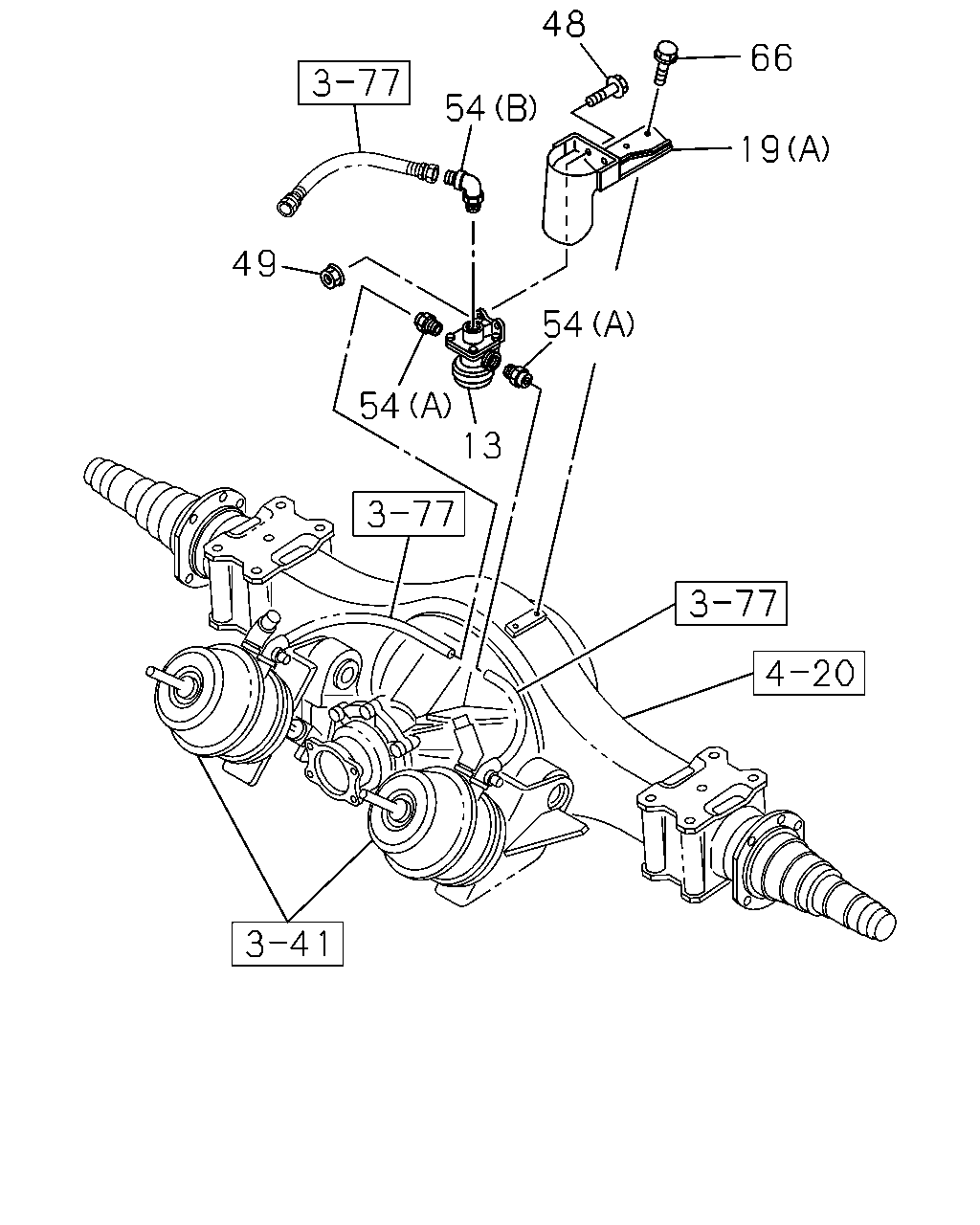

çizim 183187
48 66 54 19 49 54 54 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 04.644 VALVE ASM; QUICK RELEASE 8-98172-212-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-212-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1111-1111 ●
13 04.644 VALVE ASM; QUICK RELEASE
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1112- ●
13 04.644 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-213-0 03 1 1112- ●
19 04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98289-461-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
(A) 		8-98187-192-1 01 1 1111- ● ●
19 04.644 BRACKET; QUICK RELEASE VLV
(C) 		8-98181-089-3 01 1 1111-1502 ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98181-089-3 01 1 1111-1502 ●
19 04.644 BRACKET; QUICK RELEASE VLV
(C) 		8-98274-201-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98274-201-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
(B) 		8-98186-494-3 01 1 1111-1502 ● ●
19 04.644 BRACKET; QUICK RELEASE VLV
(B) 		8-98274-211-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98274-211-0 01 1 1503- ●
19 04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98181-090-0 01 1 1111- ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1510- ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 06 1 1111-1509 ● ●
48 04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1510- ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 04 1 1510- ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 06 1 1111-1509 ● ●
49 04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
54 04.661 CONNECTOR; QUICK RELEASE VLV
04.642 (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1111- ● ●
54 04.661 CONNECTOR; QUICK RELEASE VLV
04.642 (B) 		8-98179-494-0 01 1 1111- ● ●
66 04.642 BOLT; BRKT,RELAY VLV RR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1111- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
