◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#80701) — 65 parça

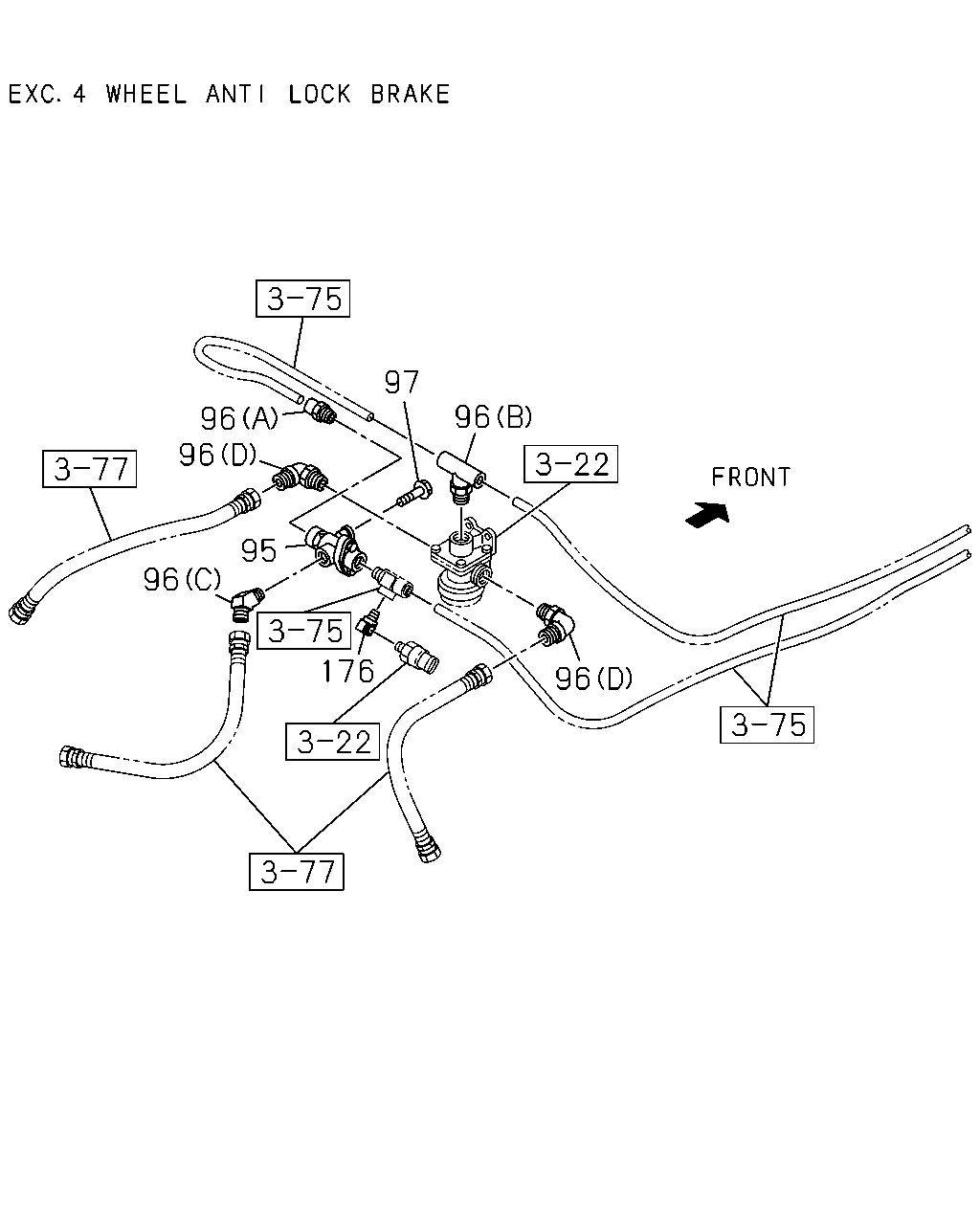

çizim 115450
97 96 96 96 95 96 176 96
BalonParca AdiParca NoAdetTipApplied Date A B
95 04.646 VALVE; DOUBLE CHECK 1-48410-531-1 01 1 1111- ● ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
04.866 (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1111- ● ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
17.505 (B) 		1-09661-568-0 01 1 1111- ● ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
(E) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1111- ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (E) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1111- ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98179-494-0 02 1 1111- ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
(C) 		8-98179-493-0 01 1 1111- ● ●
97 04.642 BOLT; BRKT,DBL CHECK VLV
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1111- ● ●
176 04.902 ADAPTER
04.642 PT1/4 2WAY 		1-09660-693-0 01 1 1111- ● ●

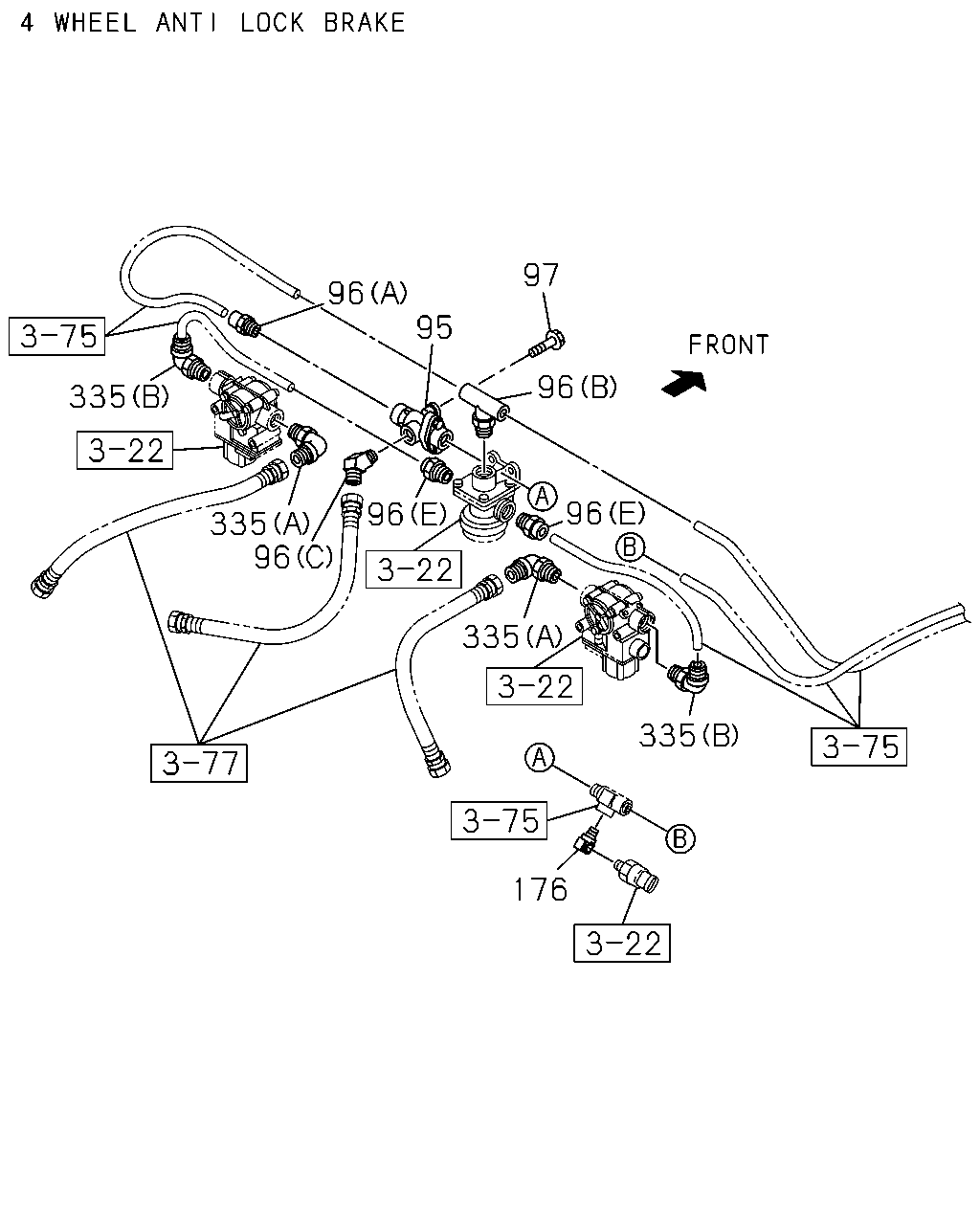

çizim 115588
97 96 95 96 335 96 96 335 96 335 335 176
BalonParca AdiParca NoAdetTipApplied Date A B
95 04.646 VALVE; DOUBLE CHECK 1-48410-531-1 01 1 1111- ● ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
04.866 (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1111- ● ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
17.505 (B) 		1-09661-568-0 01 1 1111- ● ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
(E) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1111- ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (E) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1111- ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98179-494-0 02 1 1111- ●
96 04.642 CONNECTOR; DOUBLE CHECK VLV
(C) 		8-98179-493-0 01 1 1111- ● ●
97 04.642 BOLT; BRKT,DBL CHECK VLV
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1111- ● ●
176 04.902 ADAPTER
04.642 PT1/4 2WAY 		1-09660-693-0 01 1 1111- ● ●
335 04.902 CONNECTOR; MODULATOR
04.642 (A) 		8-98179-494-0 02 1 1111- ●
335 04.902 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 04.642 (A) 		8-98179-494-0 02 1 1111- ●
335 04.902 CONNECTOR; MODULATOR
(B) 		8-98201-089-0 02 1 1111- ●
335 04.902 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98201-089-0 02 1 1111- ●

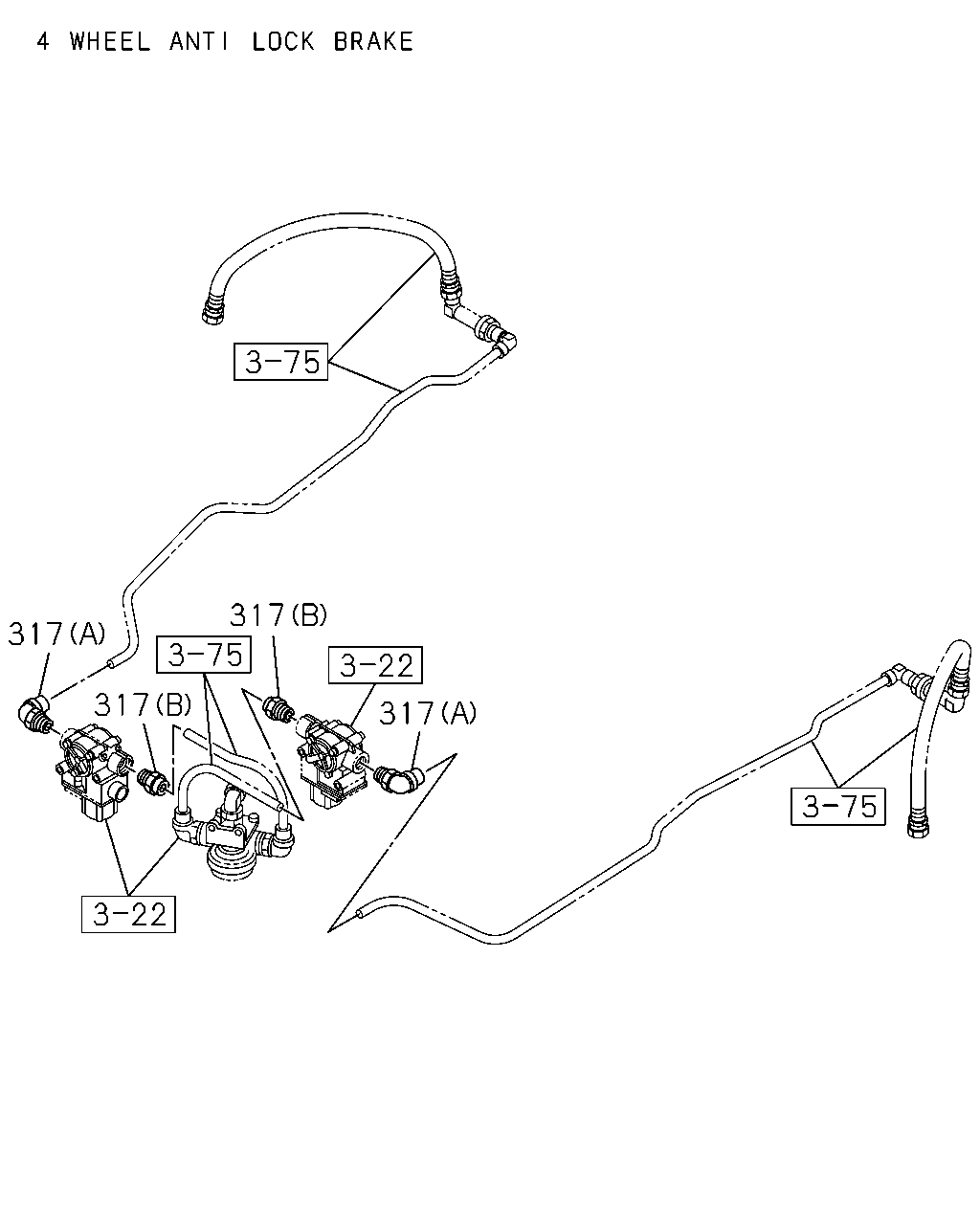

çizim 183181
317 317 317 317
BalonParca AdiParca NoAdetTipApplied Date A B
317 04.880 CONNECTOR; MODULATOR
04.642 (A) DIN12 & M22 ELBOW 		1-09661-497-0 02 1 1111- ●
317 04.880 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 04.642 (A) DIN12 & M22 ELBOW 		1-09661-497-0 02 1 1111- ●
317 04.880 CONNECTOR; MODULATOR
(B) 		8-98201-088-0 02 1 1111- ●
317 04.880 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98201-088-0 02 1 1111- ●

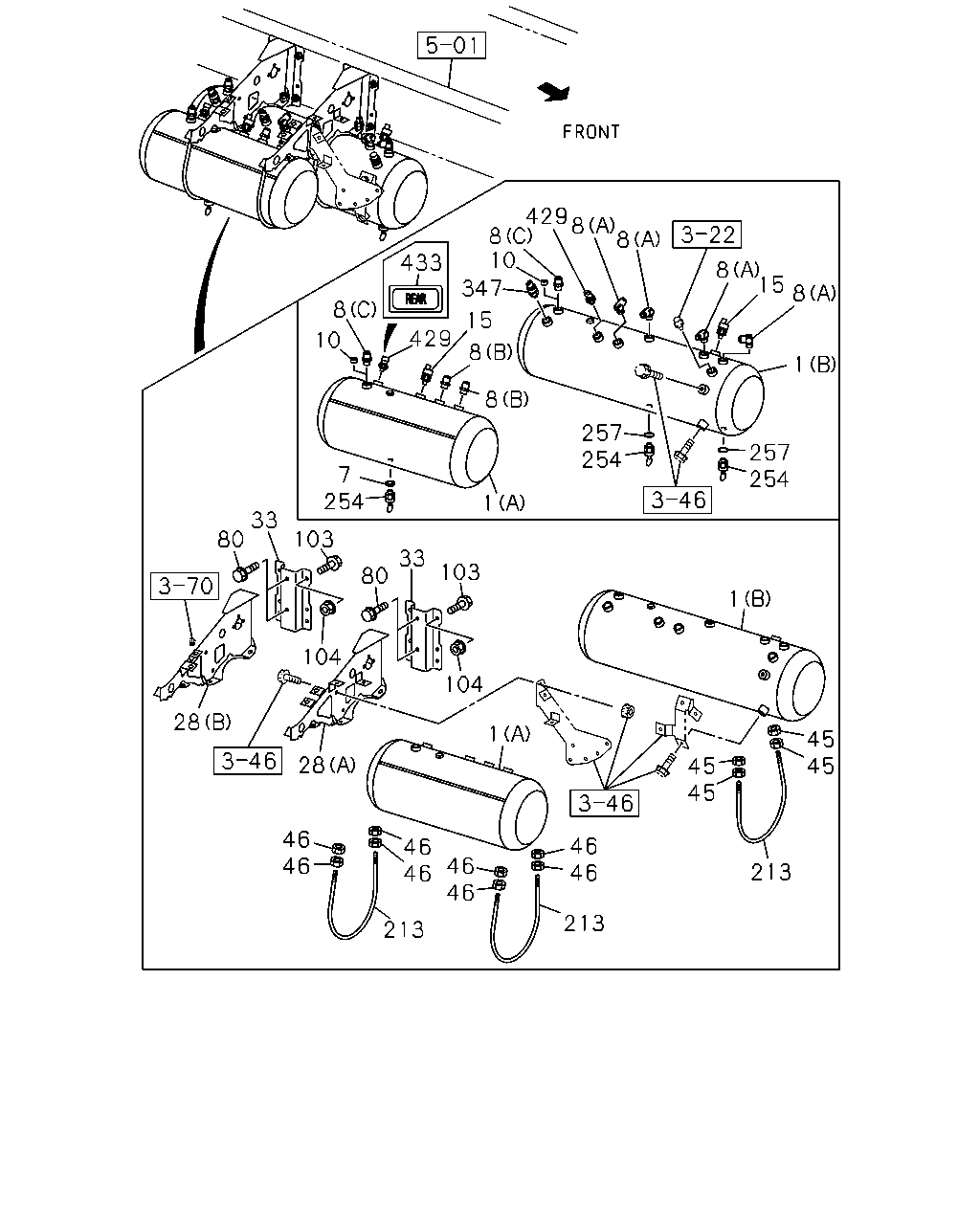

çizim 183182
429 8 8 10 347 8 433 8 15 8 8 15 429 10 8 1 8 257 254 257 254 7 254 1 33 80 103 33 103 80 1 104 104 28 1 45 45 45 45 28 46 46 46 46 46 46 46 46 213 213 213
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.902 TANK ASM; AIR
(A) 		8-98176-290-3 01 1 1111- ● ●
1 04.902 TANK ASM; AIR
(B) 		8-98176-293-3 01 1 1111- ● ●
7 04.902 GASKET; DRAIN COCK 8-98201-803-0 01 1 1111- ● ●
8 04.866 CONNECTOR; AIR TANK
04.902 (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1111- ● ●
8 04.866 CONNECTOR; AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1111- ● ●
8 04.866 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1111- ●
8 04.866 CONNECTOR; AIR TANK
BRAKE REGULATION ECE(TDV) (C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1111- ●
10 04.902 PLUG; AIR TANK
EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 02 1 1111- ●
15 04.902 SWITCH; LOW PRESS,AIR TANK
COLOMBIA EQUIPMENT(CB7) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> STAMP 6.5 		8-97609-252-0 02 1 1307- ●
15 04.902 SWITCH; LOW PRESS,AIR TANK
STAMP 5.5 		8-97609-249-0 01 1 1111-1306 ● ●
15 04.902 SWITCH; LOW PRESS,AIR TANK
STAMP 5.5 		8-97609-249-0 01 1 1111-1306 ● ●
15 04.902 SWITCH; LOW PRESS,AIR TANK
STAMP 5.5 		8-97609-249-0 02 1 1307- ●
15 04.902 SWITCH; LOW PRESS,AIR TANK
COLOMBIA EQUIPMENT(CB7) ECUADOR EQUIPMENT<CX3> 4 WHEEL ANTI LOCK BRAKE<JE5> STAMP 5.5 		8-97609-249-0 02 1 1307- ●
15 04.902 SWITCH; LOW PRESS,AIR TANK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ECUADOR EQUIPMENT<CX3> STAMP 5.5 		8-97609-249-0 02 1 1307- ●
15 04.902 SWITCH; LOW PRESS,AIR TANK
EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT<CX3>,4 WHEEL ANTI LOCK BRAKE<JE5> STAMP 5.5 		8-97609-249-0 02 1 1307- ●
28 04.902 BRACKET; AIR TANK
(A) 		8-98176-282-2 01 1 1111- ● ●
28 04.902 BRACKET; AIR TANK
(B) 		8-98176-283-2 01 1 1111- ● ●
33 04.902 BRACKET; BRKT,AIR TANK 8-98176-284-3 02 1 1111- ●
33 04.902 BRACKET; BRKT,AIR TANK
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 		8-98176-284-3 02 1 1111- ●
33 04.902 BRACKET; BRKT,AIR TANK
EURO2 SPECIFICATION(NT2) 		8-98176-284-3 01 1 1111- ●
33 04.902 BRACKET; BRKT,AIR TANK
EURO2 SPECIFICATION(NT2) 		8-98176-284-3 01 1 1111- ●
45 04.642 NUT; AIR TANK,MAIN
02.334 M8 		0-91110-508-0 08 1 1111- ● ●
46 04.902 NUT; U-BOLT
02.334 M8 		0-91110-508-0 08 1 1111- ● ●
80 04.642 BOLT; BRKT
09.003 M12X35 FLANGE 		0-28651-235-0 04 1 1111- ● ●
103 04.902 BOLT; BRKT
02.277 M10X35 FLANGE 		0-28651-035-0 07 1 1111- ●
103 04.902 BOLT; BRKT
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) 02.277 M10X35 FLANGE 		0-28651-035-0 07 1 1111- ●
103 04.902 BOLT; BRKT
EURO4 SPECIFICATION(NT4) 02.277 M10X35 FLANGE 		0-28651-035-0 08 1 1111- ●
104 04.852 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 07 1 1111- ● ●
213 04.902 BOLT; U AIR TANK 1-48317-254-1 04 1 1111- ● ●
254 04.642 PLUG; DRAIN COCK 8-98202-293-0 03 1 1111- ● ●
257 04.902 GASKET; PLUG 8-98201-803-0 02 1 1111- ● ●
347 04.902 SWITCH; LOW PRESS,WHEEL PARK
COLOMBIA EQUIPMENT(CB7) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> STAMP 6.5 		8-97609-252-0 01 1 1307- ●
347 04.902 SWITCH; LOW PRESS,WHEEL PARK
STAMP 5.5 		8-97609-249-0 01 1 1111-1306 ● ●
347 04.902 SWITCH; LOW PRESS,WHEEL PARK
STAMP 5.5 		8-97609-249-0 01 1 1307- ●
347 04.902 SWITCH; LOW PRESS,WHEEL PARK
COLOMBIA EQUIPMENT(CB7) ECUADOR EQUIPMENT<CX3> 4 WHEEL ANTI LOCK BRAKE<JE5> STAMP 5.5 		8-97609-249-0 01 1 1307- ●
347 04.902 SWITCH; LOW PRESS,WHEEL PARK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ECUADOR EQUIPMENT<CX3> STAMP 5.5 		8-97609-249-0 01 1 1307- ●
347 04.902 SWITCH; LOW PRESS,WHEEL PARK
EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT<CX3>,4 WHEEL ANTI LOCK BRAKE<JE5> STAMP 5.5 		8-97609-249-0 01 1 1307- ●
429 04.902 SENSOR
THREAD R1/4 		1-80220-023-1 02 1 1111- ● ●
433 01.303 PLATE; NAME 8-98121-996-0 01 1 1111- ● ●
