Isuzu WW
▶
TRUCKS
▶
NP
▶
51387 - NP/NQR AIR BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.)
▶

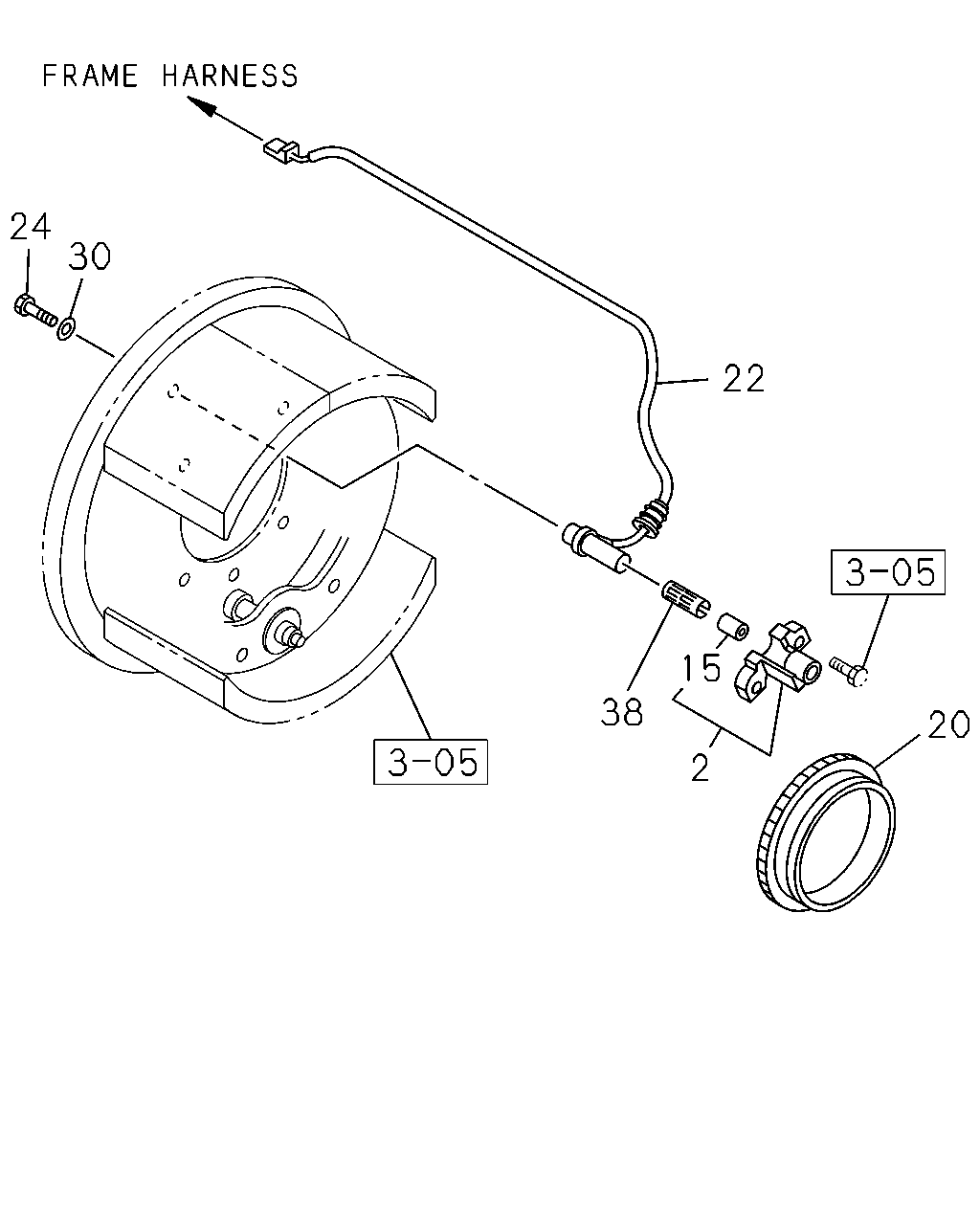

3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.)
(#80700) — 14 parça
Tümü
A - NPR6SN
B - NPR6SS
24
30
22
38
2
15
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
04.730 BRACKET; SENSOR
8-98186-628-0
02
1
1111-
●
2
04.730 BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98186-628-0
02
1
1111-
●
15
04.710 COVER; SENSOR
1-83129-471-0
02
1
1111-
●
15
04.710 COVER; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
1-83129-471-0
02
1
1111-
●
20
04.710 ROTOR; SENSOR
05.822
1-42319-169-1
02
1
1111-
●
20
04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 05.822
1-42319-169-1
02
1
1111-
●
22
04.710 SENSOR; SPEED
8-98171-005-0
02
1
1111-
●
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98171-005-0
02
1
1111-
●
24
04.730 BOLT; SENSOR
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1111-
●
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE
0-28050-812-0
02
1
1111-
●
30
04.730 WASHER
03.613 ID=8 OD=18 T=3
8-94174-537-0
02
1
1111-
●
30
04.730 WASHER
4 WHEEL ANTI LOCK BRAKE<JE5> 03.613 ID=8 OD=18 T=3
8-94174-537-0
02
1
1111-
●
38
04.710 HOLDER; SENSOR
1-83129-260-1
02
1
1111-
●
38
04.710 HOLDER; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
1-83129-260-1
02
1
1111-
●
