3-11 — PARKING BRAKE CONTROL (#80699) — 9 parça

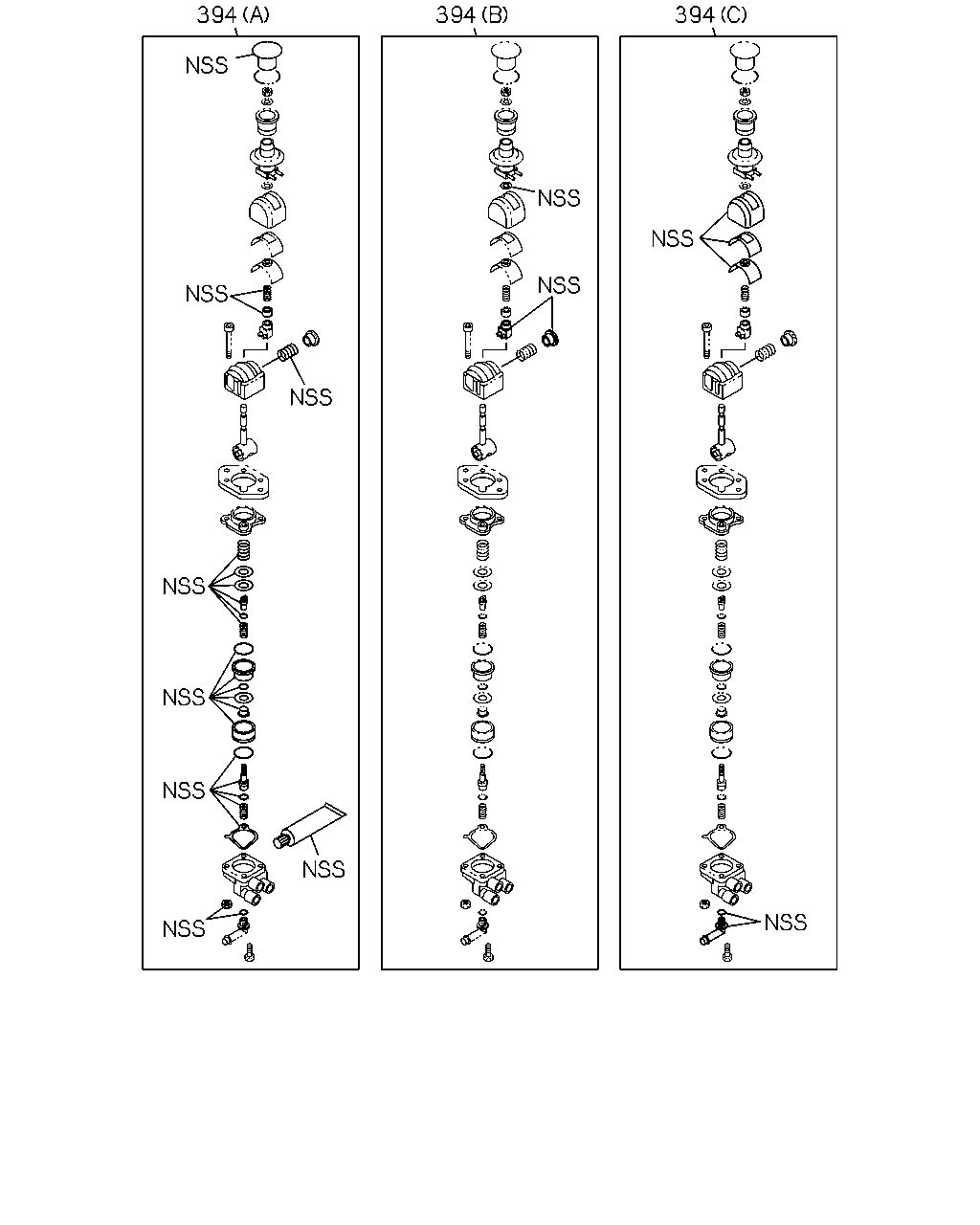

394 394 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
394	04.667 REPAIR KIT; HAND BRK VLV (A)	8-98206-116-0	01	1	1111-	●	●
394	04.667 REPAIR KIT; HAND BRK VLV (B)	8-98206-117-0	01	1	1111-	●	●
394	04.667 REPAIR KIT; HAND BRK VLV (C)	8-98206-118-0	01	1	1111-	●	●

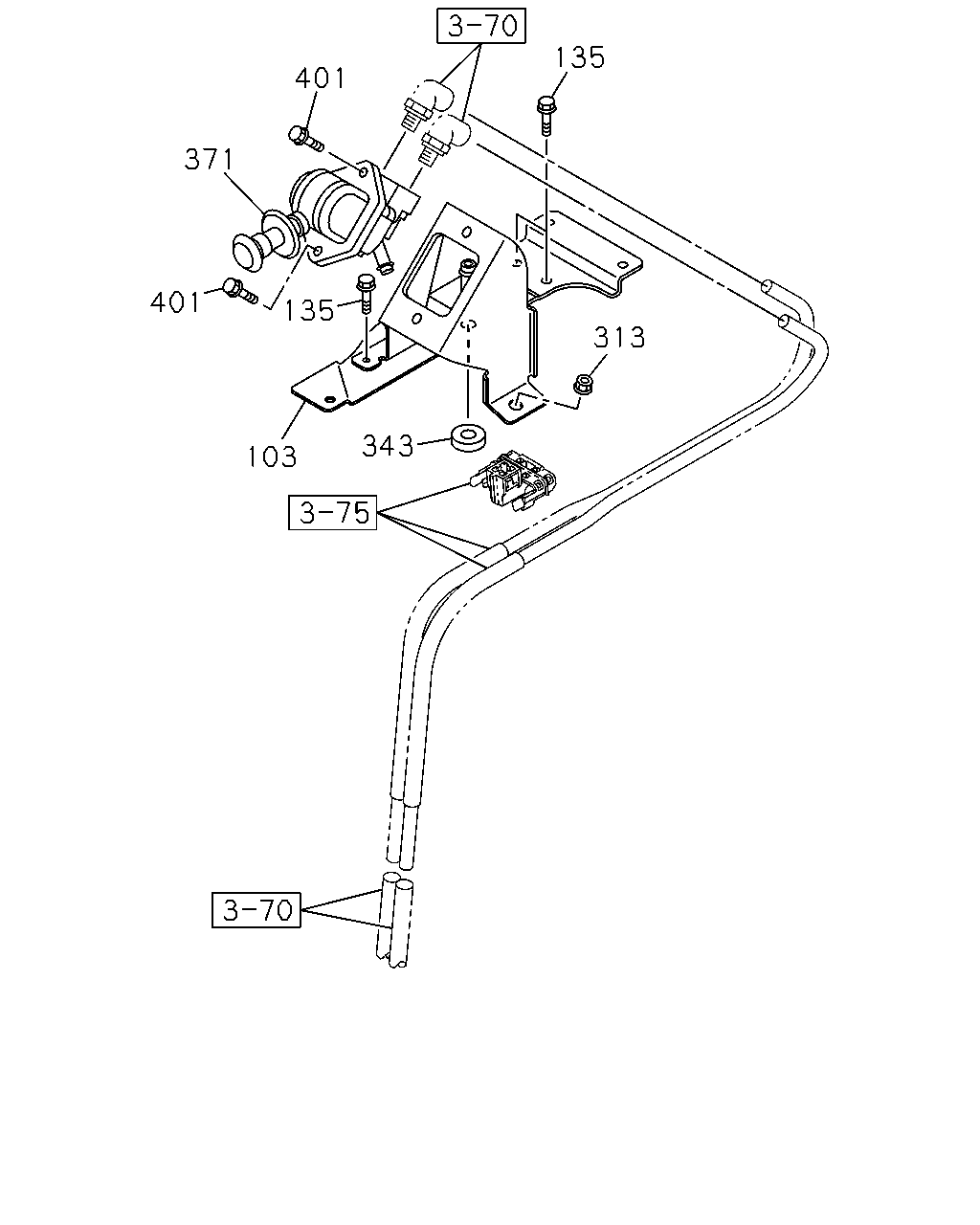

135 401 371 401 135 313 343 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	04.785 BRACKET; PARKING BRK CONT	8-98169-717-1	01	1	1111-	●	●
135	04.591 BOLT; PARKING BRK BRKT 03.162 M6X12 FLANGE	0-28050-612-0	03	1	1111-	●	●
313	04.785 NUT; BRKT FIX 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	01	1	1111-	●	●
343	04.589 SEAL	8-98169-675-0	01	1	1111-	●	●
371	04.591 VALVE; BRK,HAND CONT	8-98172-211-1	01	1	1111-	●	●
401	04.591 BOLT; HAND BRK VALVE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1111-	●	●
