51387 - NP/NQR AIR BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#80698) — 31 parça
Tümü
A - NPR6SN
B - NPR6SS
◀
[310A] NO.1 (6 parça)
[310A] NO.2 (19 parça)
[310A] NO.3 (6 parça)
▶

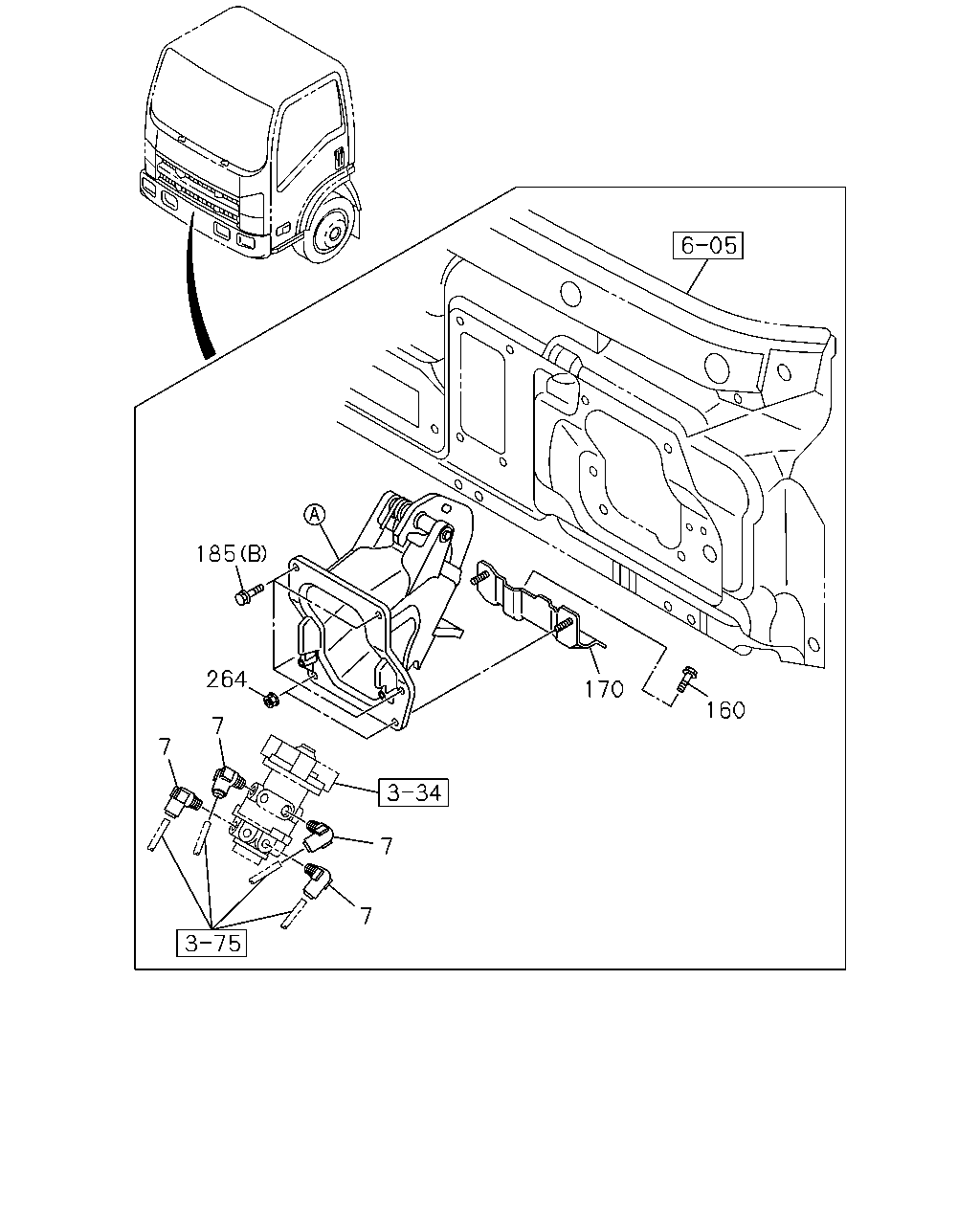

185
264
170
160
7
7
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
04.866 CONNECTOR; BRK VALVE
04.902 DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1111-
●
●
160
04.634 BOLT; BRK PEDAL
00.833 M10X22 W/PL WASHER
8-97313-188-0
01
1
1111-
●
●
170
04.634 BRACKET; SUPPORT,PEDAL
8-98168-721-0
01
1
1111-
●
●
185
04.634 BOLT; BRKT
03.680 (A) M8X30 FLANGE
0-28660-830-0
04
1
1111-
●
●
185
04.634 BOLT; BRKT
(B) M8X25 FLANGE
8-98057-109-0
04
1
1111-
●
●
264
04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
01.540 M8 FLANGE
0-91180-208-0
02
1
1111-
●
●

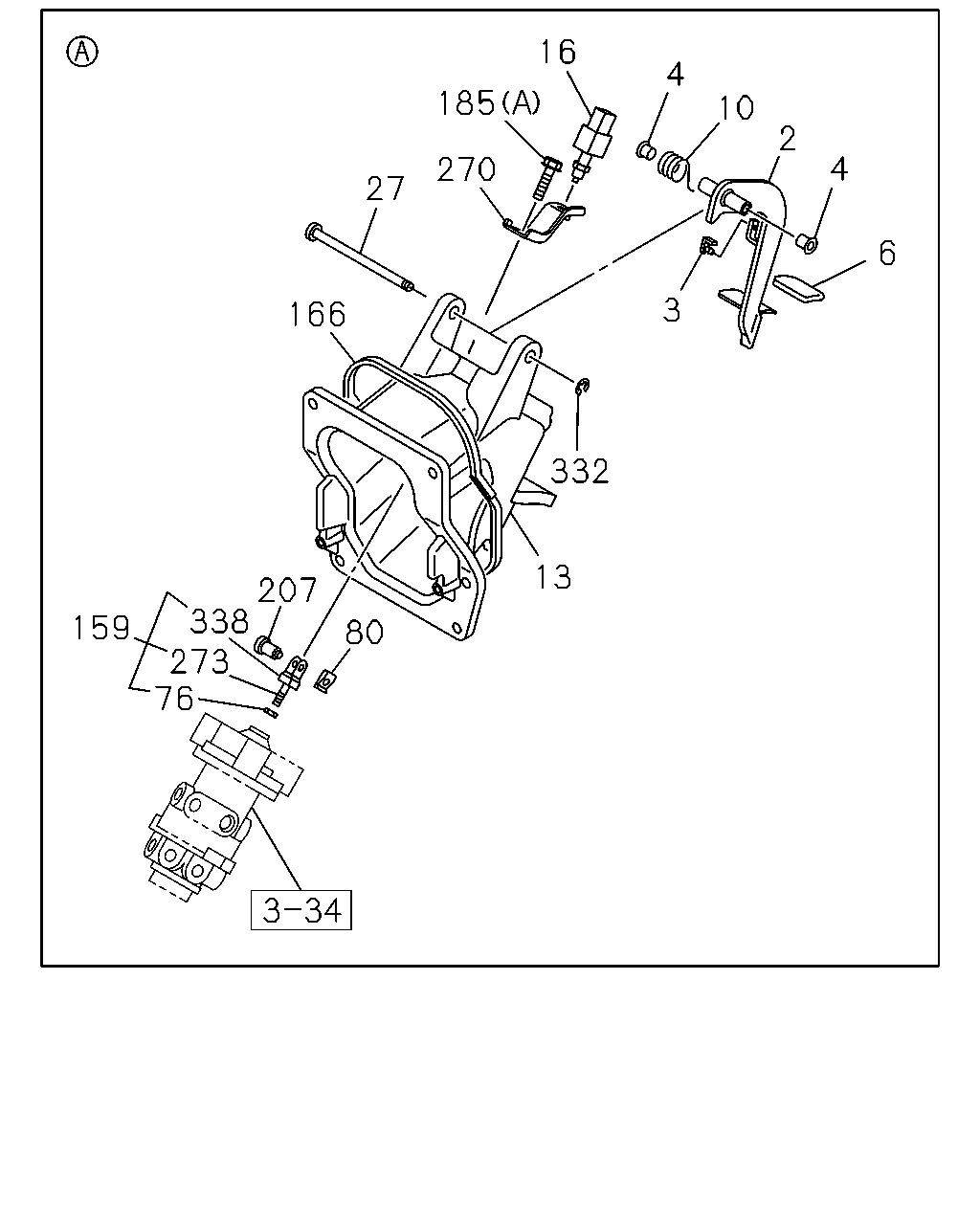

16
4
185
10
2
4
270
27
6
3
166
332
13
207
338
273
76
159
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
04.625 PEDAL; BRK
8-98197-235-0
01
1
1111-
●
●
3
04.634 STOPPER; BRK PEDAL
00.829
8-97853-534-1
01
1
1111-
●
●
4
04.634 BUSHING; BRK PEDAL
04.792
8-94238-596-0
02
1
1111-
●
●
6
04.630 COVER; BRK PEDAL
8-98056-865-0
01
1
1111-
●
●
10
04.639 SPRING; RETURN,BRK PEDAL
8-98057-232-1
01
1
1111-
●
●
13
04.634 BRACKET; BRK PEDAL
8-98171-262-1
01
1
1111-
●
●
16
02.447 SWITCH; STOP LAMP
8-98000-028-0
01
1
1111-
●
●
27
04.634 SHAFT; BRK PEDAL
8-98197-236-0
01
1
1111-
●
●
76
00.841 NUT; PUSH ROD
01.062 M8 FLANGE
0-91180-108-0
01
1
1111-
●
●
80
04.634 PIN; SNAP,BRK PEDAL
00.833
8-98007-161-0
01
1
1111-
●
●
159
04.634 ROD ASM; PUSH,BRK
8-98057-234-0
01
1
1111-
●
●
166
04.634 GASKET; PEDAL BRKT
8-98171-265-0
01
1
1111-
●
●
185
04.634 BOLT; BRKT
03.680 (A) M8X30 FLANGE
0-28660-830-0
04
1
1111-
●
●
185
04.634 BOLT; BRKT
(B) M8X25 FLANGE
8-98057-109-0
04
1
1111-
●
●
207
04.634 PIN; JOINT,BRK PEDAL LINK
8-98147-657-0
01
1
1111-
●
●
270
04.642 BRACKET ASM; BRK SW
8-98171-267-0
01
1
1111-
●
●
273
04.634 ROD; PULL
8-98057-233-0
01
1
1111-
●
●
332
04.634 RING; SNAP
04.790 ID=12
0-91805-512-0
01
1
1111-
●
●
338
04.634 CLEVIS
00.777
8-97167-770-0
01
1
1111-
●
●
43
44
46
71
48
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
43
04.651 TANK ASM; OIL
8-98182-497-0
01
1
1111-
●
●
44
04.651 CAP; OIL TANK
8-98022-268-0
01
1
1111-
●
●
46
04.651 FILTER; RESERVOIR,BRK
8-98022-269-0
01
1
1111-
●
●
48
04.651 BOLT; OIL TANK TO BRKT
08.077 M6X20 W/PL WASHER
8-97370-668-0
01
1
1111-
●
●
71
04.650 NUT; BRK M/CYL
01.062 M6 FLANGE
0-91180-106-0
01
1
1111-
●
●
89
04.901 BRACKET; M/CYL
8-98005-493-1
01
1
1111-
●
●
