Isuzu WW
▶
TRUCKS
▶
NP
▶
51387 - NP/NQR AIR BRAKE LHD
▶
2 - Clutch, Transmission, Trans Axle
▶

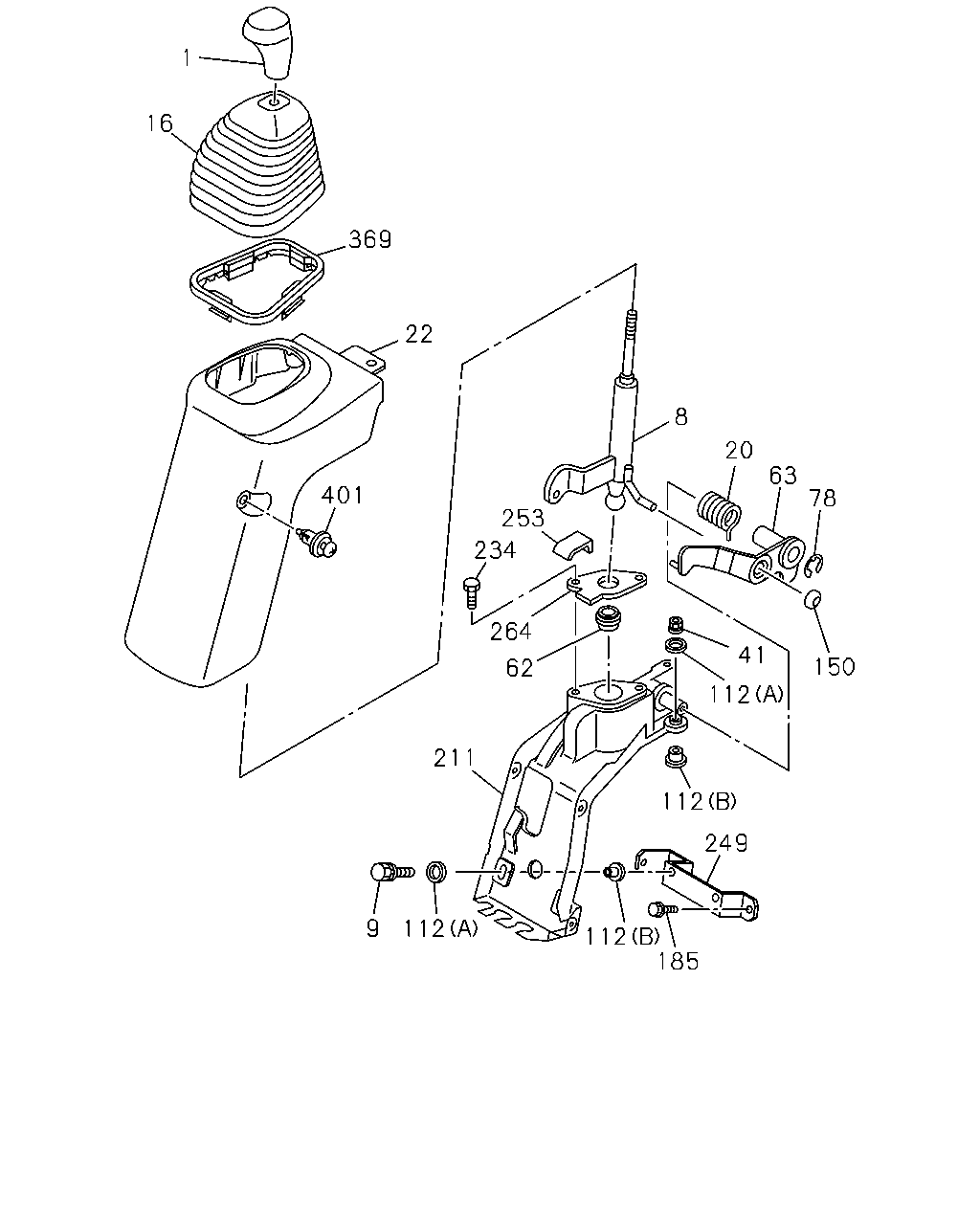

2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#80691) — 21 parça
Tümü
A - M/T MZZ6U
B - M/T MZZ6F
C - M/T MYY6S
1
16
369
22
8
20
63
401
78
253
234
264
41
150
62
112
211
112
249
112
185
9
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.006 KNOB; CHANGE LEVER
BLACK
8-97196-287-1
01
1
1111-
●
●
●
8
04.006 LEVER; CHANGE
8-97204-506-0
01
1
1111-
●
●
●
9
04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER
8-94438-324-1
02
1
1111-
●
●
●
16
04.015 BOOT; CHANGE LEVER
8-98035-063-0
01
1
1111-
●
●
●
20
04.012 SPRING; CHANGE LEVER
8-97204-514-1
01
1
1111-
●
●
●
22
04.015 COVER; DUST,CHANGE LEVER
GRAY
8-97422-706-0
01
1
1111-
●
●
●
41
04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER
8-97329-625-0
02
1
1111-
●
●
●
62
04.012 SEAT; BALL,CHANGE LEVER
8-97011-895-1
01
1
1111-
●
●
●
63
04.006 LEVER; RELAY,SELECT
8-97163-768-0
01
1
1111-
●
●
●
78
04.008 RING; SNAP,CHANGE LEVER
ID=10
0-91805-510-0
01
1
1111-
●
●
●
112
04.012 RUBBER; CUSHION
(A)
8-97091-426-0
04
1
1111-
●
●
●
112
04.012 RUBBER; CUSHION
(B)
8-97091-427-0
04
1
1111-
●
●
●
150
04.008 BALL; DETENT,CONT LEVER
8-97049-147-0
01
1
1111-
●
●
●
185
04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE
0-28650-820-0
02
1
1111-
●
●
●
211
04.010 BRACKET; CHANGE LEVER
8-97204-505-1
01
1
1111-
●
●
●
234
04.010 BOLT; BRKT
M6X12 FLANGE
1-33739-842-0
02
1
1111-
●
●
●
249
04.012 BRACKET; COVER
8-97387-767-0
01
1
1111-
●
●
●
253
04.012 STOPPER; CHANGE LEVER
8-97204-510-0
01
1
1111-
●
●
●
264
04.015 PLATE; COVER
8-97204-511-0
01
1
1111-
●
●
●
369
04.012 RETAINER; REINF
8-98032-213-1
01
1
1111-
●
●
●
401
04.012 CLIP; COVER
GRAY
8-97406-179-0
04
1
1111-
●
●
●
