2-20 — MANUAL TRANSMISSION ASM AND CASE (#80687) — 96 parça

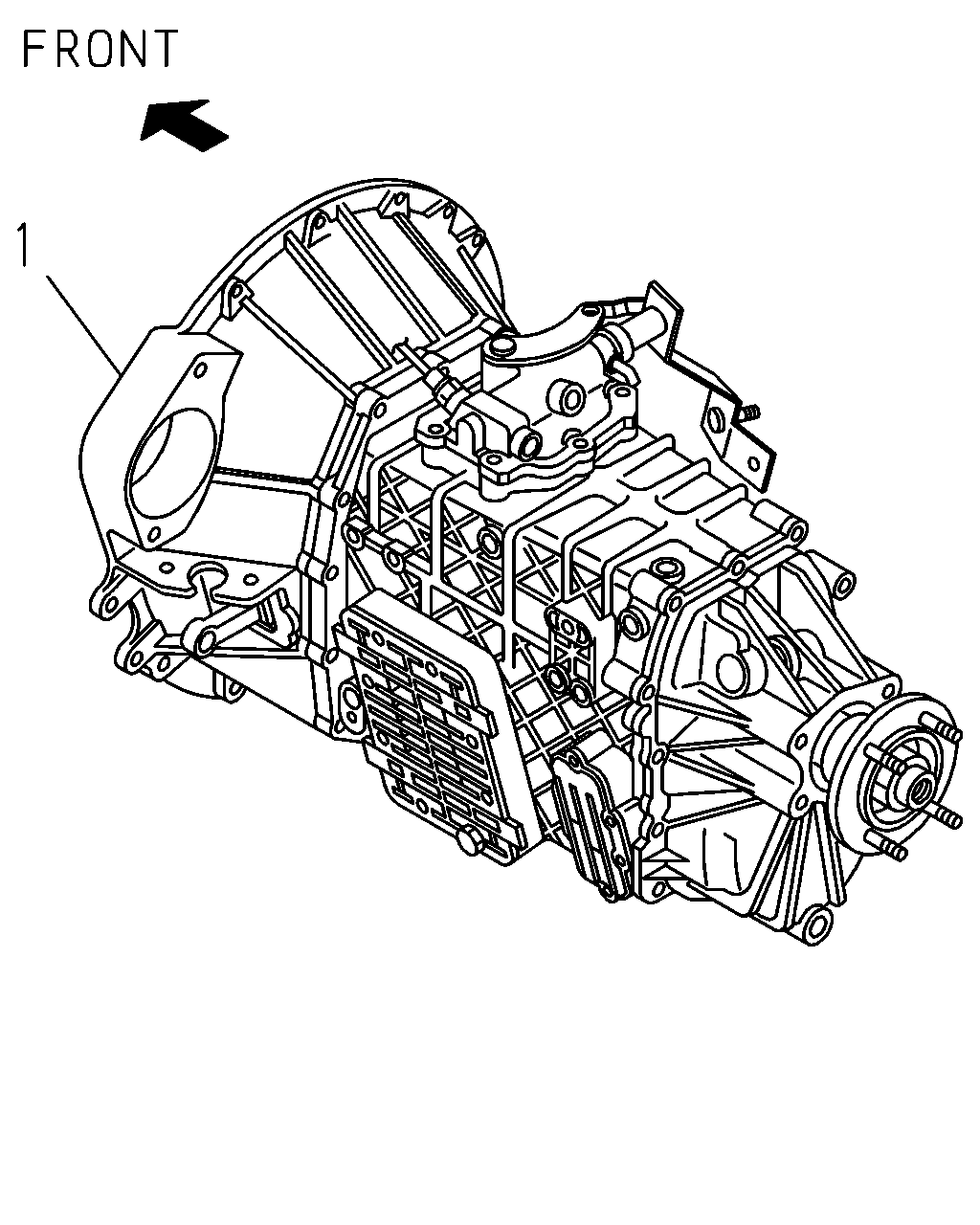

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR RATIO 41/10(GT5) F&R 225/75R17.5(BS)17.5X6.00-127 SILVER(CWZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98201-770-0	01	1	1404-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98181-496-0	01	1	1111-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-98181-496-0	01	1	1111-1305		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98181-496-0	01	1	1306-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)	8-98181-495-0	01	1	1111-1201	●
1	04.003 TRANSMISSION ASM; MANUAL	8-98181-495-0	01	1	1202-1403	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98181-495-0	01	1	1404-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) F&R 225/75R17.5(BS)17.5X6.00-127 SILVER(CWZ)	8-98201-770-0	01	1	1111-1111	●
1	04.003 TRANSMISSION ASM; MANUAL	8-98181-494-0	01	1	1111-			●

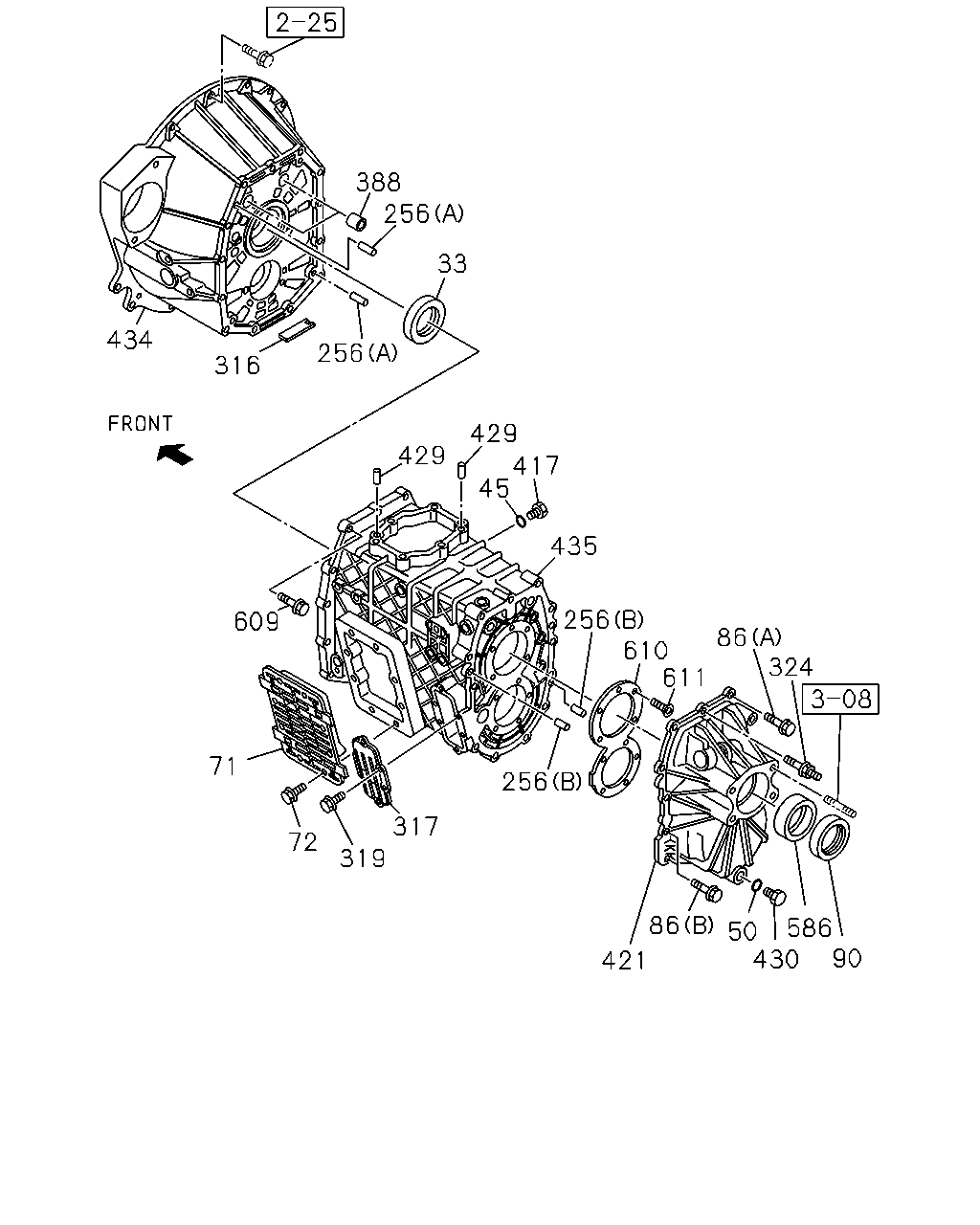

388 256 33 434 256 316 429 429 417 45 435 256 610 611 609 86 324 256 71 317 72 319 86 50 586 421 90 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1111-	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1111-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1111-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1111-	●		●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCN ENG(RDQ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	1111-1305		●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCN ENG(RDQ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97252-625-0	01	1	1306-		●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-624-2	01	1	1111-	●		●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1111-		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	08	1	1111-	●		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-	●		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1111-1405	●	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-		●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1111-	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1111-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1111-	●		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1111-	●	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1111-	●	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1111-	●	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1111-	●	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1111-	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-	●		●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1111-1405	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-		●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1111-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1111-	●	●	●
421	04.317 COVER; RR,TRANS	8-98020-028-0	01	1	1111-		●
421	04.317 COVER; RR,TRANS	8-97238-934-5	01	1	1111-	●		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1111-	●	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1111-		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1111-	●		●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1111-		●
434	00.683 HOUSING; CLU	8-97238-930-4	01	1	1111-	●		●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	1111-		●
435	04.103 CASE; TRANS	8-97382-868-1	01	1	1111-	●		●
586	00.683 BEARING; NEEDLE	8-97253-109-0	01	1	1111-		●
586	00.683 BEARING; NEEDLE	8-97253-108-0	01	1	1111-	●		●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1111-	●	●	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1111-		●
610	04.412 RETAINER; BRG	8-97241-314-2	01	1	1111-	●		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1111-		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	10	1	1111-	●		●

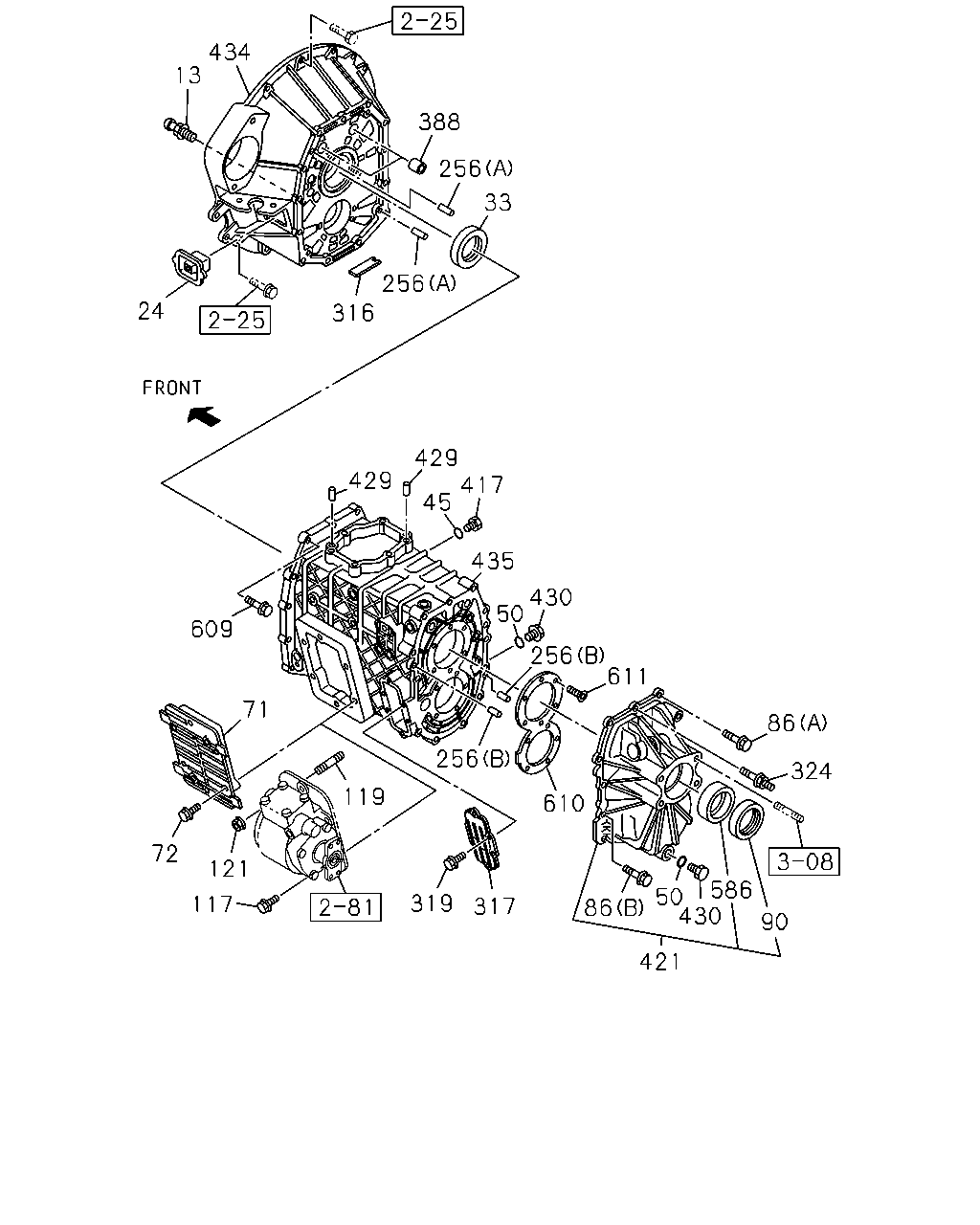

434 13 388 256 33 256 24 316 429 417 45 429 435 430 50 256 609 256 611 71 86 324 119 610 72 121 586 50 430 319 117 317 86 90 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	04.302 SUPPORT; SHIFT FORK	8-97255-385-1	01	1	1111-		●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1111-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1111-	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1111-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1111-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1111-	●		●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCN ENG(RDQ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	1111-1305		●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCN ENG(RDQ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97252-625-0	01	1	1306-		●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-624-2	01	1	1111-	●		●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1111-		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	08	1	1111-	●		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-	●		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1111-1405	●	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-		●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1111-	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1111-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1111-	●		●
117	04.439 BOLT; PTO FIX 4HK1-TCN ENG(RDQ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	1111-		●
119	04.439 STUD; PTO FIX 4HK1-TCN ENG(RDQ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.342 M10X25 L=40	0-44011-025-0	03	1	1111-		●
121	04.439 NUT; PTO FIX 4HK1-TCN ENG(RDQ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	03	1	1111-		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1111-	●	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1111-	●	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1111-	●	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1111-	●	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1111-	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-	●		●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1111-1405	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-		●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1111-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1111-	●	●	●
421	04.317 COVER; RR,TRANS	8-98020-028-0	01	1	1111-		●
421	04.317 COVER; RR,TRANS	8-97238-934-5	01	1	1111-	●		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1111-	●	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1111-		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1111-	●		●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1111-		●
434	00.683 HOUSING; CLU	8-97238-930-4	01	1	1111-	●		●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	1111-		●
435	04.103 CASE; TRANS	8-97382-868-1	01	1	1111-	●		●
586	00.683 BEARING; NEEDLE	8-97253-109-0	01	1	1111-		●
586	00.683 BEARING; NEEDLE	8-97253-108-0	01	1	1111-	●		●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1111-	●	●	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1111-		●
610	04.412 RETAINER; BRG	8-97241-314-2	01	1	1111-	●		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1111-		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	10	1	1111-	●		●
