2-05 — CLUTCH PIPING (#80682) — 30 parça

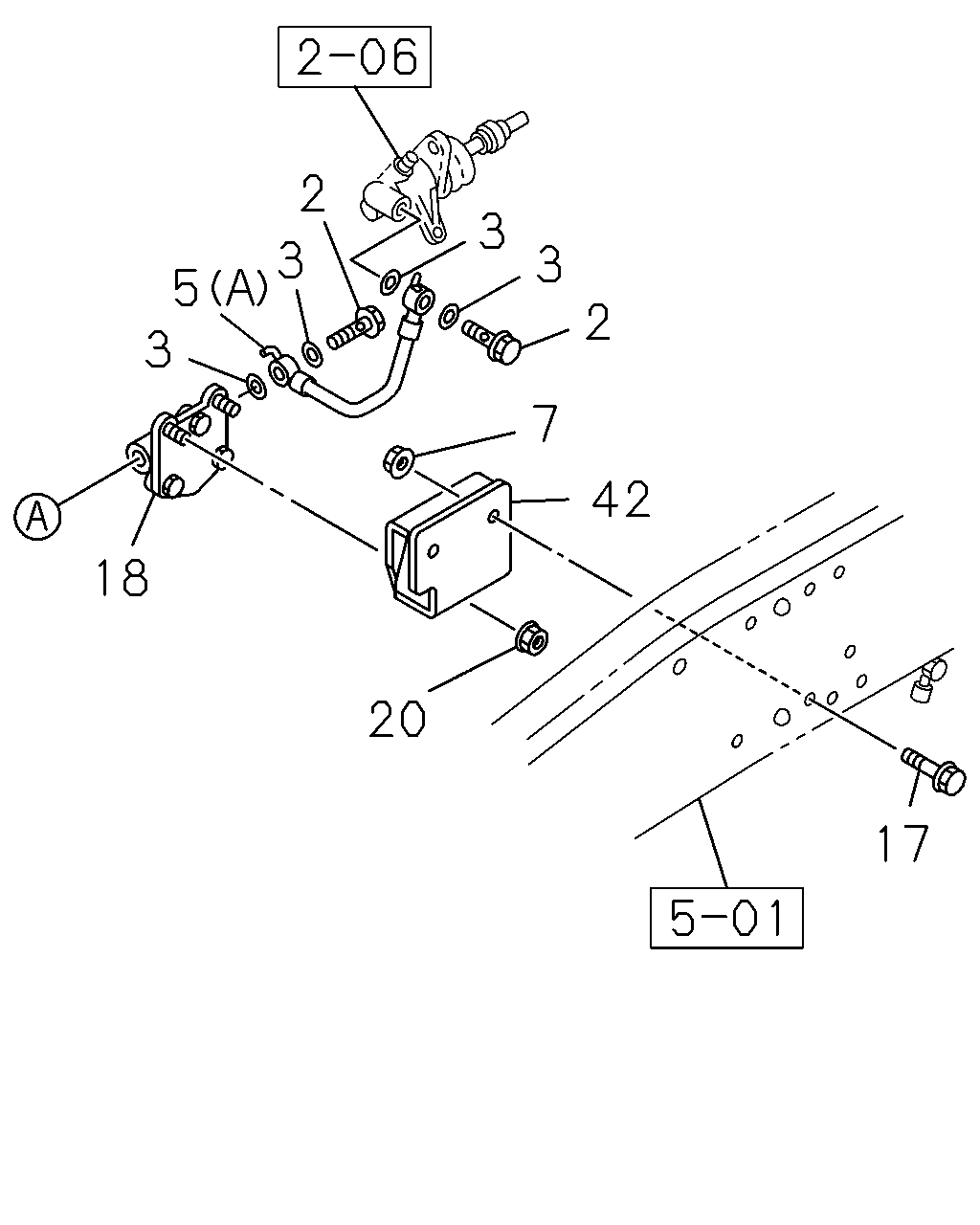

çizim 102256
2 3 3 3 2 5 3 7 42 18 20 17
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-98014-005-0 02 1 1111- ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1111- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EURO2 SPECIFICATION(NT2) (A) 		8-98081-052-2 01 1 1409- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-1 01 1 1111-1408 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1409- ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. EURO2 SPECIFICATION(NT2) (A) 		8-98077-611-2 01 1 1409- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98188-362-1 01 1 1111-1203 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98212-363-0 01 1 1204- ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ● ● ●
17 00.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111- ● ● ●
18 00.830 DAMPER ASM; CLU OIL 8-98077-610-1 01 1 1111- ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EXC. EURO2 SPECIFICATION(NT2) 		8-98082-472-2 01 1 1111- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCS ENG(RJS) 		8-98082-472-2 01 1 1111- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 		8-98100-943-1 01 1 1111- ●

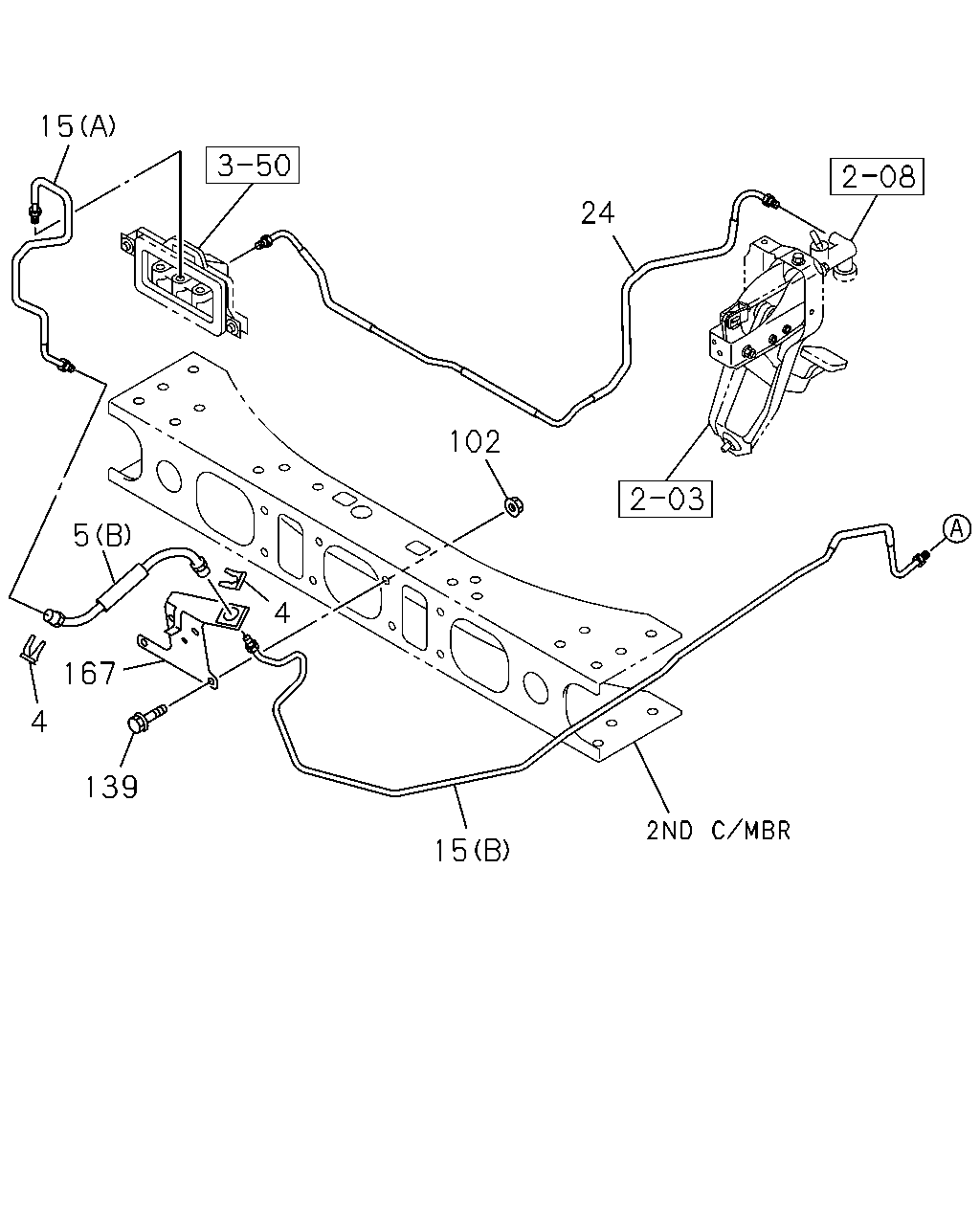

çizim 183169
15 24 102 5 4 167 4 139 15
BalonParca AdiParca NoAdetTipApplied Date A B C
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1111- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EURO2 SPECIFICATION(NT2) (A) 		8-98081-052-2 01 1 1409- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-1 01 1 1111-1408 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1409- ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. EURO2 SPECIFICATION(NT2) (A) 		8-98077-611-2 01 1 1409- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98188-362-1 01 1 1111-1203 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98212-363-0 01 1 1204- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98100-910-0 01 1 1111- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-98178-055-1 01 1 1111-1301 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-98234-990-0 01 1 1302- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER ASSIST CLUTCH(S2T) 		8-98169-695-1 01 1 1111- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER ASSIST CLUTCH(S2T) 		8-98173-608-1 01 1 1111- ● ● ●
102 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ● ● ●
139 00.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111- ● ● ●
167 00.785 BRACKET; UNION
04.686 		8-97389-845-2 01 1 1111- ● ● ●
