2-03 — CLUTCH PEDAL AND CONTROL (#80681) — 31 parça

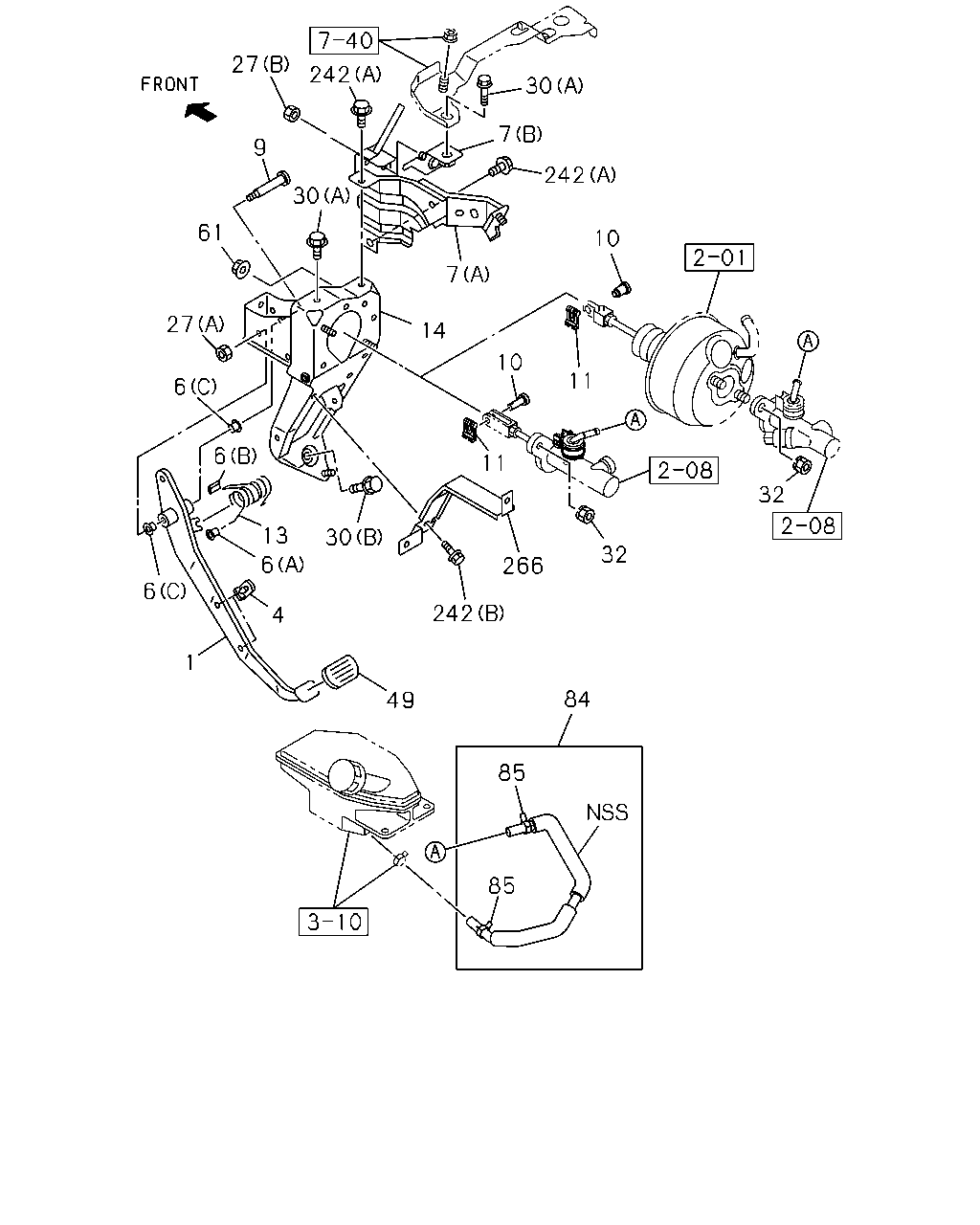

çizim 98566
27 242 30 7 9 242 30 61 10 7 27 14 10 11 6 6 11 32 13 30 32 6 266 6 242 4 1 84 49 85 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-98002-484-0 01 1 1111- ● ●
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-754-0 01 1 1111- ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 1111- ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 1111- ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 1111- ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 1111- ● ●
7 00.829 BRACKET; CLU PEDAL
(A) 		8-98029-186-4 01 1 1111- ● ●
7 00.829 BRACKET; CLU PEDAL
(B) 		8-98169-723-0 01 1 1111- ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 1111- ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-98147-657-0 01 1 1111- ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 1111- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98023-621-1 01 1 1111- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 1111- ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-98054-876-0 01 1 1111- ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-98054-878-0 01 1 1111- ● ●
27 00.833 NUT; FULCRUM PIN
04.634 (A) M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1111- ● ●
27 00.833 NUT; FULCRUM PIN
00.777 (B) M8 W/LK WASHER 		8-94279-050-0 01 1 1111- ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE 		0-28661-025-0 02 1 1111- ● ●
30 00.829 BOLT; CLU MTG BRKT
00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1111- ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 1111- ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 1111- ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 1111- ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98023-512-1 01 1 1111-1208 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98218-209-1 01 1 1209- ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98025-423-1 01 1 1111-1208 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1209- ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-98031-178-0 02 1 1111-1208 ● ●
85 00.785 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1209- ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1111- ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1111- ● ●
266 04.054 BRACKET; CLU SWITCH 8-98078-745-4 01 1 1111- ● ●
