1-56 — EXHAUST BRAKE SYSTEM (#80679) — 107 parça

1 8 5 5 1 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A)	8-98274-409-0	01	1	1404-1509	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXHAUST BRAKE VAR3<8QZ> (A)	8-98274-409-0	01	1	1510-	●
1	03.632 BRAKE UNIT; EXH (B)	8-98068-178-1	01	1	1111-1212		●
1	03.632 BRAKE UNIT; EXH EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98068-178-1	01	1	1111-1212	●
1	03.632 BRAKE UNIT; EXH (B)	8-98227-170-0	01	1	1301-		●
1	03.632 BRAKE UNIT; EXH EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98227-170-0	01	1	1301-	●
1	03.632 BRAKE UNIT; EXH (C)	8-98167-678-1	01	1	1111-1310		●
1	03.632 BRAKE UNIT; EXH EURO5 SPECIFICATION(NT5) (C)	8-98167-678-1	01	1	1111-1310	●
1	03.632 BRAKE UNIT; EXH (C)	8-98258-269-0	01	1	1311-1507		●
1	03.632 BRAKE UNIT; EXH EURO5 SPECIFICATION(NT5) (C)	8-98258-269-0	01	1	1311-1507	●
1	03.632 BRAKE UNIT; EXH (C)	8-98258-269-0	01	1	1508-		●
1	03.632 BRAKE UNIT; EXH EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98258-269-0	01	1	1508-	●
1	03.632 BRAKE UNIT; EXH EURO2 SPECIFICATION(NT2) (A)	8-98056-673-0	01	1	1111-1403	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7) (A)	8-98056-673-0	01	1	1404-1407	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) (A)	8-98056-673-0	01	1	1404-1407	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7) (A)	8-98288-176-0	01	1	1408-1509	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) (A)	8-98288-176-0	01	1	1408-1509	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) (A)	8-98332-039-0	01	1	1510-1510	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) (A)	8-98332-039-0	01	1	1510-1510	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) (A)	8-98333-421-0	01	1	1511-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) (A)	8-98333-421-0	01	1	1511-	●
5	03.634 GASKET; EXH BRAKE UNIT 03.611 ID=64	8-97373-108-0	02	1	1111-1507		●
5	03.634 GASKET; EXH BRAKE UNIT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) 03.611 ID=64	8-97373-108-0	02	1	1111-1507	●
5	03.634 GASKET; EXH BRAKE UNIT 03.611 ID=64	8-97373-108-0	02	1	1508-		●
5	03.634 GASKET; EXH BRAKE UNIT EURO2 SPECIFICATION(NT2) 03.611 ID=64	8-97373-108-0	02	1	1508-	●
5	03.634 GASKET; EXH BRAKE UNIT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.611 ID=64	8-97373-108-0	02	1	1508-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1111-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 03.613 (B) M8	1-09400-118-1	04	1	1204-1507		●
10	03.634 NUT; BRKT,EXH BRAKE EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.613 (B) M8	1-09400-118-1	04	1	1204-1507	●
10	03.634 NUT; BRKT,EXH BRAKE 03.613 (B) M8	1-09400-118-1	04	1	1508-		●
10	03.634 NUT; BRKT,EXH BRAKE EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) 03.613 (B) M8	1-09400-118-1	04	1	1508-	●
10	03.634 NUT; BRKT,EXH BRAKE 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1111-1203		●
10	03.634 NUT; BRKT,EXH BRAKE EURO5 SPECIFICATION(NT5) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1111-1203	●
10	03.634 NUT; BRKT,EXH BRAKE EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1204-1507	●
10	03.634 NUT; BRKT,EXH BRAKE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1508-	●

92 96 124 95 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-1509	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-1509		●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-1509	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-		●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-		●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1111-1509	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1510-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-98040-096-2	01	1	1111-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98040-096-2	01	1	1111-	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-		●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	1111-		●
124	03.636 VALVE; MAG,DPD EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1111-	●

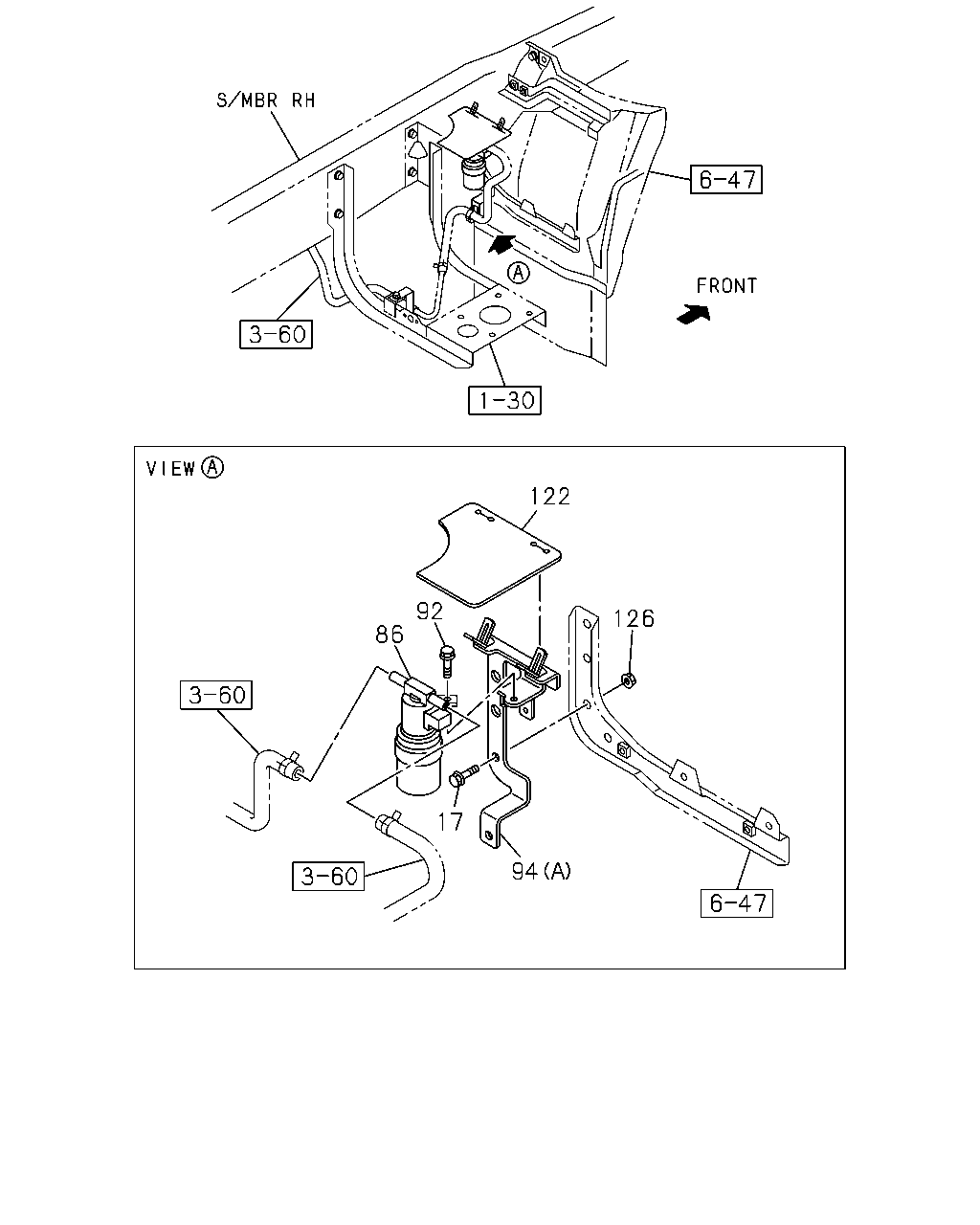

122 92 126 86 17 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	03.634 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-1509	●	●
17	03.634 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1111-1509	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1510-		●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98043-344-0	01	1	1510-	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-1509	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-1509		●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-1509	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-		●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-		●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1111-1509	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1510-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-98040-096-2	01	1	1111-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98040-096-2	01	1	1111-	●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1111-1509	●	●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1510-	●	●
126	03.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-1509	●	●
126	03.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1510-	●	●

5 1 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A)	8-98274-409-0	01	1	1404-1509	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXHAUST BRAKE VAR3<8QZ> (A)	8-98274-409-0	01	1	1510-	●
1	03.632 BRAKE UNIT; EXH (B)	8-98068-178-1	01	1	1111-1212		●
1	03.632 BRAKE UNIT; EXH EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98068-178-1	01	1	1111-1212	●
1	03.632 BRAKE UNIT; EXH (B)	8-98227-170-0	01	1	1301-		●
1	03.632 BRAKE UNIT; EXH EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98227-170-0	01	1	1301-	●
1	03.632 BRAKE UNIT; EXH (C)	8-98167-678-1	01	1	1111-1310		●
1	03.632 BRAKE UNIT; EXH EURO5 SPECIFICATION(NT5) (C)	8-98167-678-1	01	1	1111-1310	●
1	03.632 BRAKE UNIT; EXH (C)	8-98258-269-0	01	1	1311-1507		●
1	03.632 BRAKE UNIT; EXH EURO5 SPECIFICATION(NT5) (C)	8-98258-269-0	01	1	1311-1507	●
1	03.632 BRAKE UNIT; EXH (C)	8-98258-269-0	01	1	1508-		●
1	03.632 BRAKE UNIT; EXH EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98258-269-0	01	1	1508-	●
1	03.632 BRAKE UNIT; EXH EURO2 SPECIFICATION(NT2) (A)	8-98056-673-0	01	1	1111-1403	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7) (A)	8-98056-673-0	01	1	1404-1407	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) (A)	8-98056-673-0	01	1	1404-1407	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7) (A)	8-98288-176-0	01	1	1408-1509	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) (A)	8-98288-176-0	01	1	1408-1509	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) (A)	8-98332-039-0	01	1	1510-1510	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) (A)	8-98332-039-0	01	1	1510-1510	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) (A)	8-98333-421-0	01	1	1511-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) (A)	8-98333-421-0	01	1	1511-	●
5	03.634 GASKET; EXH BRAKE UNIT 03.611 ID=64	8-97373-108-0	02	1	1111-1507		●
5	03.634 GASKET; EXH BRAKE UNIT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) 03.611 ID=64	8-97373-108-0	02	1	1111-1507	●
5	03.634 GASKET; EXH BRAKE UNIT 03.611 ID=64	8-97373-108-0	02	1	1508-		●
5	03.634 GASKET; EXH BRAKE UNIT EURO2 SPECIFICATION(NT2) 03.611 ID=64	8-97373-108-0	02	1	1508-	●
5	03.634 GASKET; EXH BRAKE UNIT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.611 ID=64	8-97373-108-0	02	1	1508-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1111-	●	●

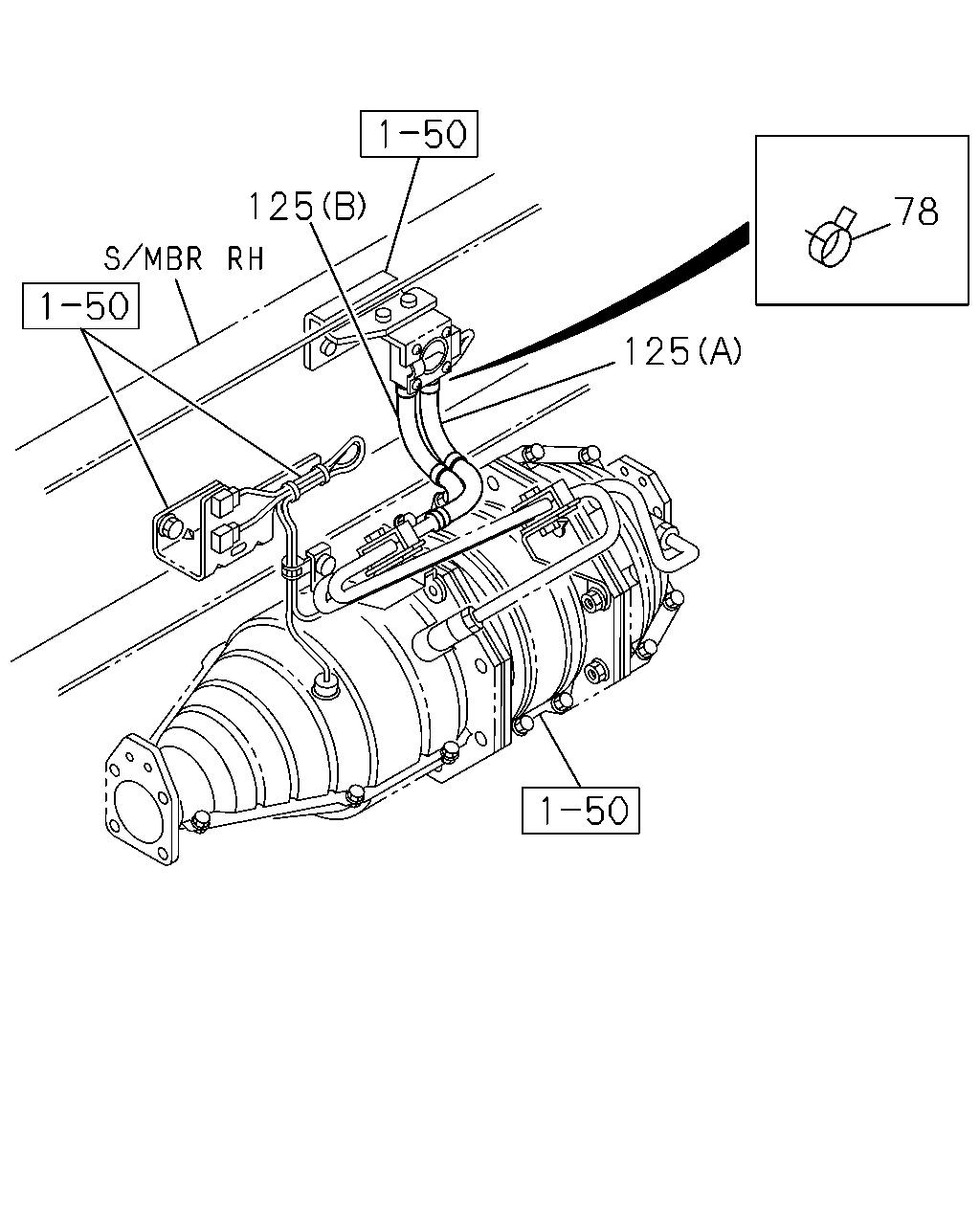

125 78 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
78	03.636 CLIP; HOSE 03.162 ID=13	8-97329-627-0	04	1	1111-		●
78	03.636 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=13	8-97329-627-0	04	1	1111-	●
125	03.630 HOSE; DPD 03.163 (B) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1111-		●
125	03.630 HOSE; DPD CATALYSIS CONTROL WITH DPD(8JM) 03.163 (B) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1111-	●
125	03.630 HOSE; DPD (A) L=170	8-98068-068-0	01	1	1111-		●
125	03.630 HOSE; DPD CATALYSIS CONTROL WITH DPD(8JM) (A) L=170	8-98068-068-0	01	1	1111-	●
