◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#80675) — 486 parça

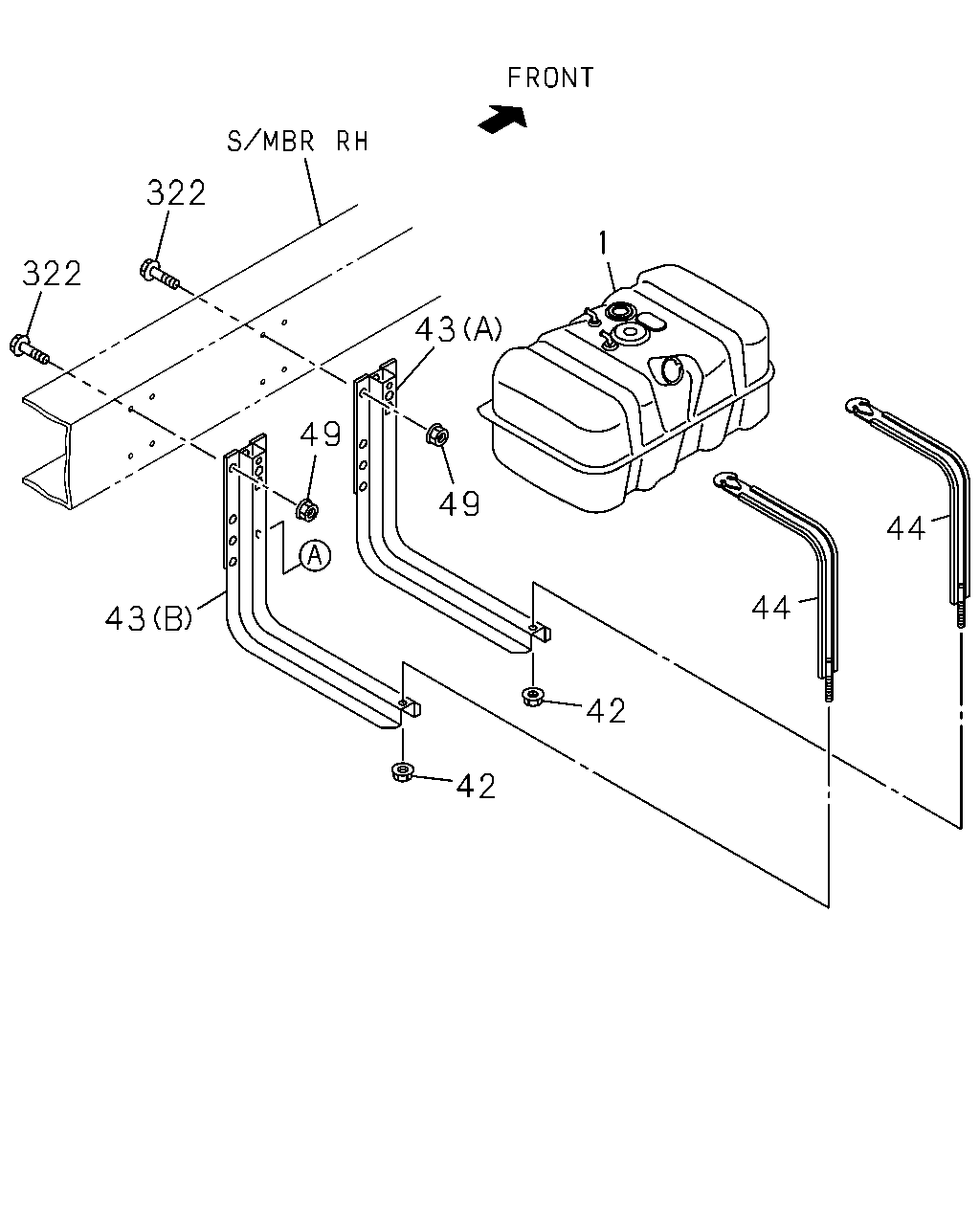

çizim 92835
322 1 322 43 49 49 44 44 43 42 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 140L 		8-98318-342-0 01 1 1507-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98318-342-0 01 1 1508- ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) FUEL TANK 140 LITTER<N19> 820X500X400 127L 		8-98181-863-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-3 01 1 1507-1507 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 127L 		8-98181-863-3 01 1 1507-1507 ●
1 03.001 TANK; FUEL
MINI BUS CHASSIS(V4B) 820X500X400 127L 		8-98181-863-3 01 1 1508- ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 820X500X400 127L 		8-98181-863-3 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L 		8-98104-006-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL WITH DPD(8JM) 756X482X376 100L 		8-98104-006-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS(V4B) 756X482X376 100L 		8-98104-006-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98326-229-0 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) 756X482X376 90L 		8-98153-046-1 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98062-738-3 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98062-738-3 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 100L 		8-98062-738-4 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 756X482X376 100L 		8-98062-738-4 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATAL YSIS CONTROL(6MZ) 756X482X376 100L 		8-98062-738-4 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 756X482X376 100L 		8-98062-738-4 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98153-048-1 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 100L 		8-98153-048-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12) 820X500X400 140L 		8-98181-864-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
42 03.023 NUT; SUPPORT BELT
00.833 M10 		0-91110-510-0 04 1 1111- ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 140 LITTER<N19> 00.833 M10 		0-91110-510-0 04 1 1111- ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 100 LITTER<N02> M8 FLANGE 		9-09130-408-0 02 1 1111- ●
43 03.015 BRACKET; FUEL TANK
(C) 		8-98049-768-1 01 1 1111- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (C) 		8-98049-768-1 01 1 1111- ●
43 03.015 BRACKET; FUEL TANK
(D) 		8-98127-229-0 01 1 1111- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (D) 		8-98127-229-0 01 1 1111- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (A) 		8-97384-060-5 01 1 1111- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (B) 		8-97384-062-6 01 1 1111- ●
44 03.023 BAND; FUEL TANK
L=925 		8-98049-769-1 02 1 1111- ●
44 03.023 BAND; FUEL TANK
FUEL TANK 140 LITTER<N19> L=925 		8-98049-769-1 02 1 1111- ●
44 03.023 BAND; FUEL TANK
FUEL TANK 100 LITTER<N02> L=795 		8-97384-080-2 02 1 1111- ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 1111- ● ●
322 03.895 BOLT; BRKT FIX
07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1112-1202 ●
322 03.895 BOLT; BRKT FIX
RUSSIA EQUIPMENT(B12) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1112-1202 ●
322 03.895 BOLT; BRKT FIX
07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1203-1309 ●
322 03.895 BOLT; BRKT FIX
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) MINI BUS CHASSIS VAR.2(6GQ) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1203-1309 ●
322 03.895 BOLT; BRKT FIX
RUSSIA EQUIPMENT(B12) EXC. MINI BUS CHASSIS VAR.2(6GQ) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1203-1309 ●
322 03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1111-1111 ● ●
322 03.895 BOLT; BRKT FIX
EXC. RUSSIA EQUIPMENT(B12) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1112-1202 ●
322 03.895 BOLT; BRKT FIX
EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1203-1309 ●
322 03.895 BOLT; BRKT FIX
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1203-1309 ●
322 03.895 BOLT; BRKT FIX
M10X40 FLANGE 		8-98124-451-2 08 1 1310- ● ●

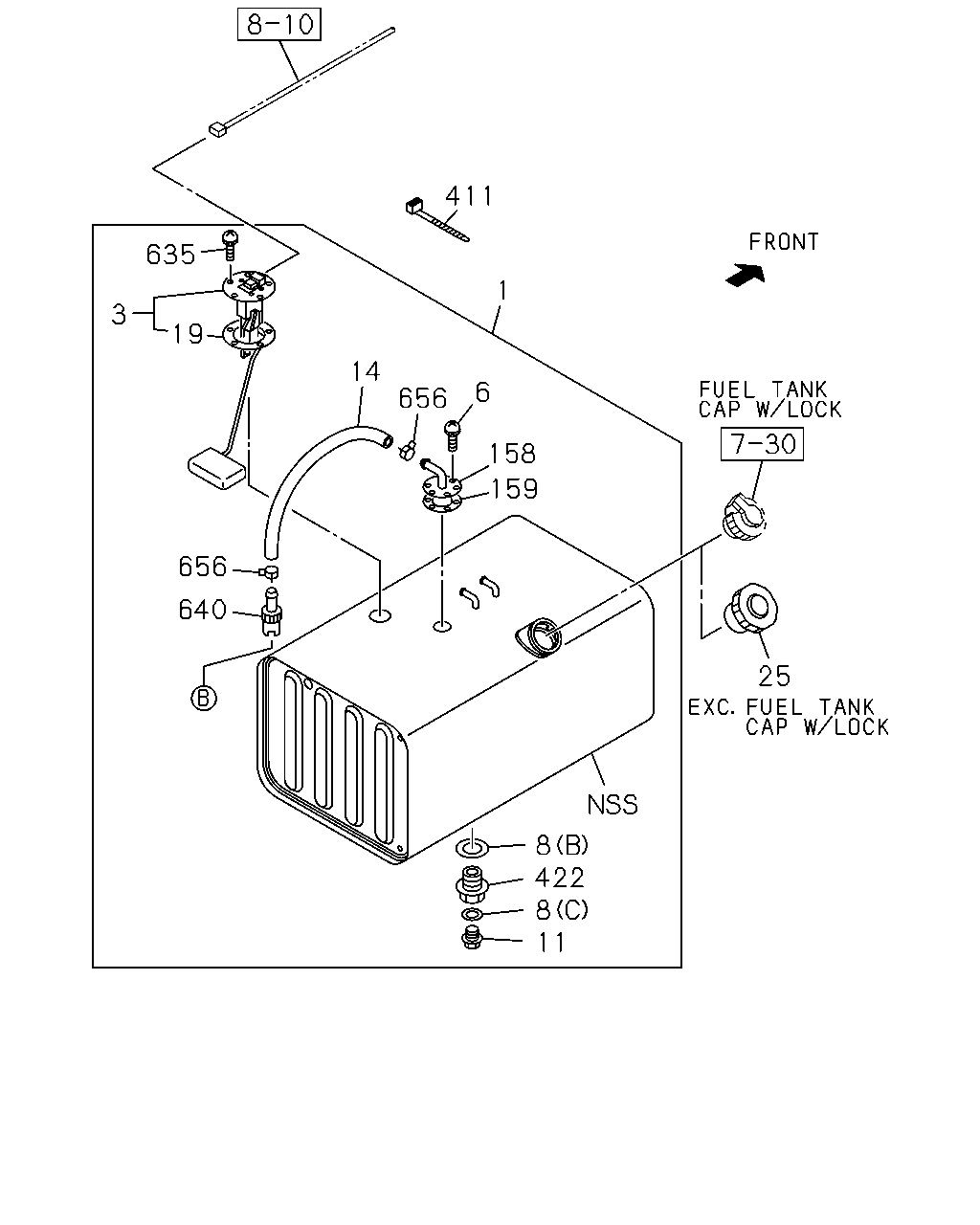

çizim 92841
25 8 422 8 11 159 158 656 6 14 1 411 635 3 656 640 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 140L 		8-98318-342-0 01 1 1507-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98318-342-0 01 1 1508- ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) FUEL TANK 140 LITTER<N19> 820X500X400 127L 		8-98181-863-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-3 01 1 1507-1507 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 127L 		8-98181-863-3 01 1 1507-1507 ●
1 03.001 TANK; FUEL
MINI BUS CHASSIS(V4B) 820X500X400 127L 		8-98181-863-3 01 1 1508- ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 820X500X400 127L 		8-98181-863-3 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L 		8-98104-006-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL WITH DPD(8JM) 756X482X376 100L 		8-98104-006-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS(V4B) 756X482X376 100L 		8-98104-006-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98326-229-0 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) 756X482X376 90L 		8-98153-046-1 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98062-738-3 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98062-738-3 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 100L 		8-98062-738-4 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 756X482X376 100L 		8-98062-738-4 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATAL YSIS CONTROL(6MZ) 756X482X376 100L 		8-98062-738-4 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 756X482X376 100L 		8-98062-738-4 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98153-048-1 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 100L 		8-98153-048-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12) 820X500X400 140L 		8-98181-864-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-180-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-180-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-180-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
MINI BUS CHASSIS(V4B) 		8-98113-180-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 		8-98113-180-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) 		8-98113-180-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 		8-98113-179-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) 		8-98113-179-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS(V4B) 		8-98113-179-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-179-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-179-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 		8-98113-179-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-179-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98056-705-0 01 1 1111-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATAL YSIS CONTROL(6MZ) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12) 		8-98065-304-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98065-304-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 		8-98065-304-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98065-304-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATALYSIS CONTROL(6MZ) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98065-304-0 01 1 1508- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1111- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 1111- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1111- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 1111- ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 1111- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=430 		8-98131-037-0 01 1 1111- ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1111- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1111-1507 ● ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1111-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
MINI BUS CHASSIS(V4B) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. MINI BUS CHASSIS VAR.2(6GQ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. UZBEKISTAN EQUIPMENT(JCW) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98051-797-0 01 1 1111-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATAL YSIS CONTROL(6MZ) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 		8-98051-797-0 01 1 1508- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1111- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 1111- ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 1111- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 1111- ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 1111- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 L=140 		5-09707-031-1 01 1 1111- ● ●
422 03.023 PLUG; FUEL TANK
FUEL TANK 140 LITTER<N19> 03.890 M30 		8-98067-038-0 01 1 1504- ● ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1111- ● ●
640 03.164 VENTILATOR; HOSE,BREATHER
FUEL TANK 140 LITTER<N19> 		8-98092-398-0 01 1 1111- ● ●
656 03.023 CLAMP; FUEL TANK
FUEL TANK 140 LITTER<N19> 		8-98304-416-0 02 1 1504- ● ●

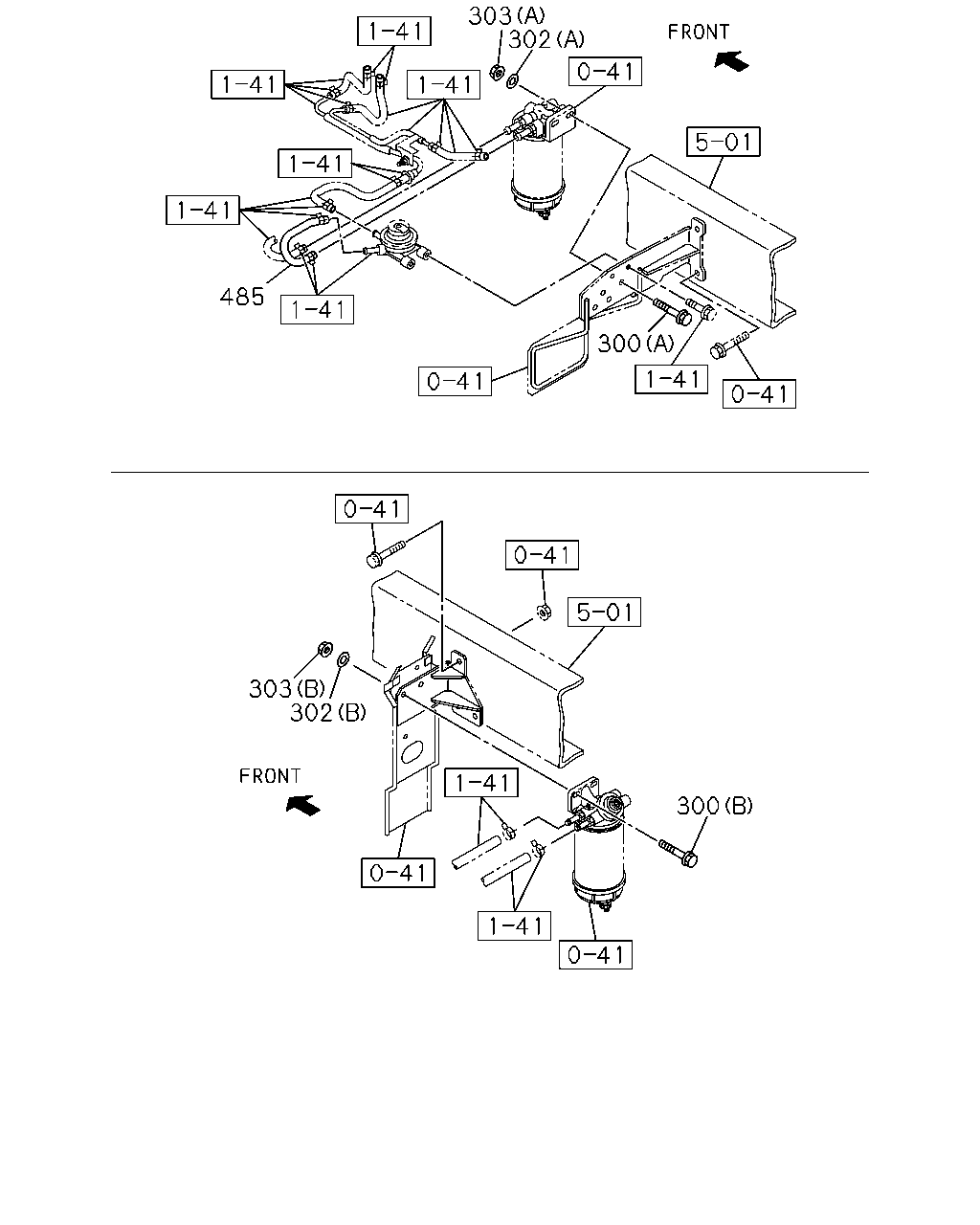

çizim 92844
303 485 300 302 303 302 300
BalonParca AdiParca NoAdetTipApplied Date A B
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE 		0-28651-040-0 02 1 1111- ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.613 (A) M10X40 FLANGE 		0-28651-040-0 02 1 1111- ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 02 1 1111-1305 ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 00.685 (B) M12X45 FLANGE 		0-28051-245-0 02 1 1306- ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 (A) ID=10.5 OD=26 		0-91614-710-0 02 1 1111- ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 04.085 (A) ID=10.5 OD=26 		0-91614-710-0 02 1 1111- ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 02.812 (B) ID=12.5 OD=26 		0-91610-612-0 02 1 1111- ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) (A) M10 FLANGE 		0-91180-110-0 02 1 1111- ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (A) M10 FLANGE 		0-91180-110-0 02 1 1111- ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1111- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> 		8-98138-300-0 01 1 1111-1204 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> 		8-98138-300-0 01 1 1205-1507 ●
485 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98138-300-0 01 1 1205-1507 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> 		8-98138-300-0 01 1 1508-1509 ●
485 03.163 HOSE; FUEL
COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> 		8-98138-300-0 01 1 1508-1509 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) 		8-98138-300-0 01 1 1510- ●
485 03.163 HOSE; FUEL
COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. CATALYSIS CONTROL(6MZ) 		8-98138-300-0 01 1 1510- ●
485 03.163 HOSE; FUEL
COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> 		8-98138-300-0 01 1 1510- ●
485 03.163 HOSE; FUEL
COLOMBIA EQUIPMENT(CB7) FUEL TANK 100 LITTER<N02> 		8-98138-300-0 01 1 1510- ●
485 03.163 HOSE; FUEL
FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 		8-98138-300-0 01 1 1510- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98105-710-0 01 1 1111-1204 ●
485 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98105-710-0 01 1 1111-1204 ●
485 03.163 HOSE; FUEL
COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98105-710-0 01 1 1205-1403 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIG H CAPACITY<8NK> 		8-98105-710-0 01 1 1205-1403 ●
485 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98105-710-0 01 1 1205-1403 ●
485 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIG H CAPACITY<8NK> 		8-98105-710-0 01 1 1205-1403 ●
485 03.163 HOSE; FUEL
COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98105-710-0 01 1 1404-1507 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIG H CAPACITY<8NK> 		8-98105-710-0 01 1 1404-1507 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIG H CAPACITY<8NK> 		8-98105-710-0 01 1 1404-1507 ●
485 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98105-710-0 01 1 1404-1507 ●
485 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIG H CAPACITY<8NK> 		8-98105-710-0 01 1 1404-1507 ●
485 03.163 HOSE; FUEL
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98105-710-0 01 1 1508-1509 ●
485 03.163 HOSE; FUEL
M/T MZZ6U(RSF),M/T MZZ6F(RSR) COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98105-710-0 01 1 1508-1509 ●
485 03.163 HOSE; FUEL
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO2 SPECIFICATION(NT2) CATALYSIS CONTROL(6MZ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98105-710-0 01 1 1508-1509 ●
485 03.163 HOSE; FUEL
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. CATALYSIS CONTROL(6MZ),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98105-710-0 01 1 1508-1509 ●
485 03.163 HOSE; FUEL
COLOMBIA EQUIPMENT(CB7) POOR QUALITY DIESEL FUEL(KF0) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. CATALYSIS CONTROL(6MZ),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98105-710-0 01 1 1508-1509 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),FUEL SED IMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98105-710-0 01 1 1508-1509 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98105-710-0 01 1 1510- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98105-710-0 01 1 1510- ●

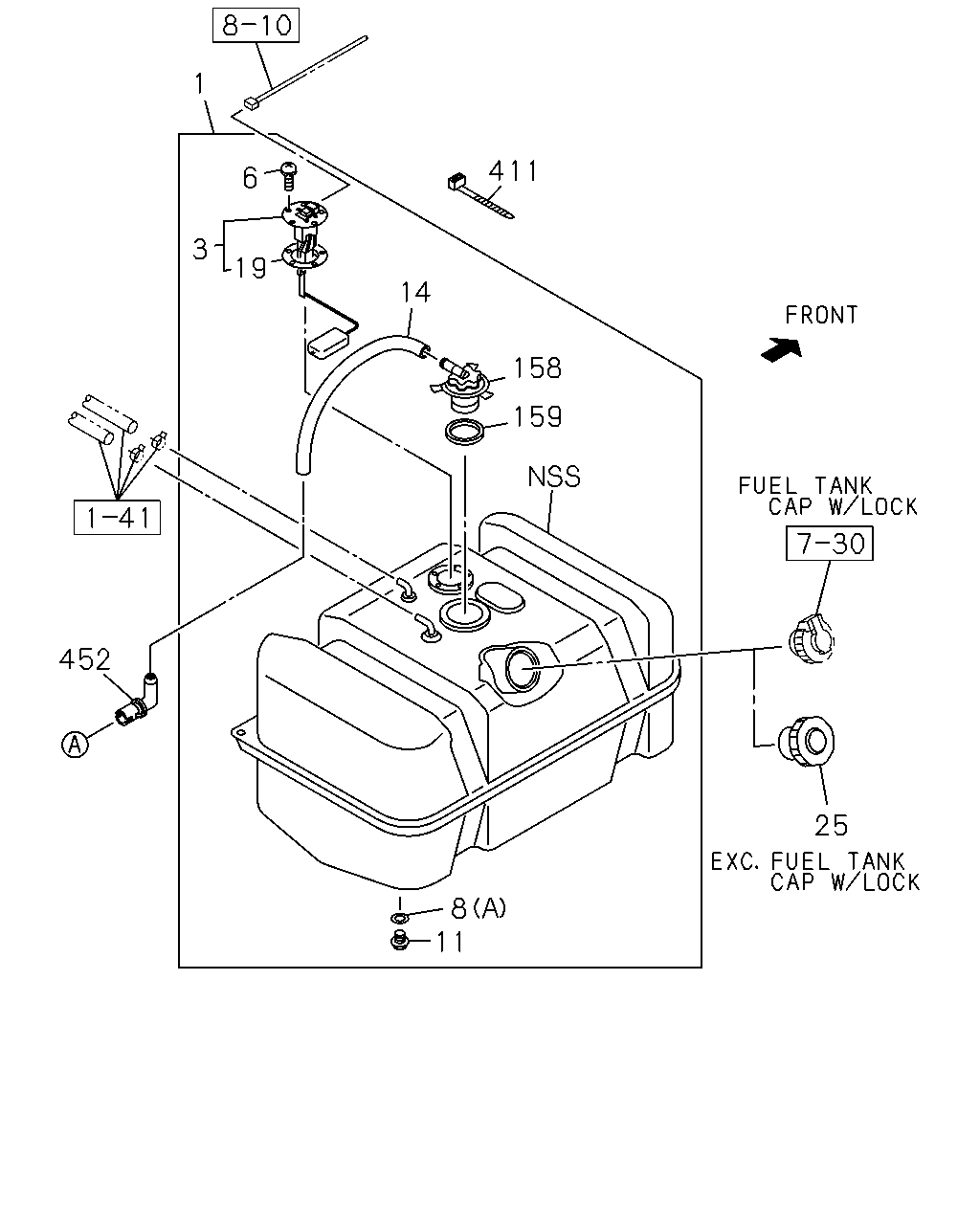

çizim 93267
25 11 8 452 19 3 6 1 411 14 158 159
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 140L 		8-98318-342-0 01 1 1507-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98318-342-0 01 1 1508- ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) FUEL TANK 140 LITTER<N19> 820X500X400 127L 		8-98181-863-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-3 01 1 1507-1507 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 127L 		8-98181-863-3 01 1 1507-1507 ●
1 03.001 TANK; FUEL
MINI BUS CHASSIS(V4B) 820X500X400 127L 		8-98181-863-3 01 1 1508- ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 820X500X400 127L 		8-98181-863-3 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L 		8-98104-006-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL WITH DPD(8JM) 756X482X376 100L 		8-98104-006-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS(V4B) 756X482X376 100L 		8-98104-006-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98326-229-0 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) 756X482X376 90L 		8-98153-046-1 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98062-738-3 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98062-738-3 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 100L 		8-98062-738-4 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 756X482X376 100L 		8-98062-738-4 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATAL YSIS CONTROL(6MZ) 756X482X376 100L 		8-98062-738-4 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 756X482X376 100L 		8-98062-738-4 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98153-048-1 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 100L 		8-98153-048-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12) 820X500X400 140L 		8-98181-864-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-180-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-180-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-180-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
MINI BUS CHASSIS(V4B) 		8-98113-180-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 		8-98113-180-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) 		8-98113-180-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 		8-98113-179-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) 		8-98113-179-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS(V4B) 		8-98113-179-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-179-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-179-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 		8-98113-179-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-179-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98056-705-0 01 1 1111-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATAL YSIS CONTROL(6MZ) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12) 		8-98065-304-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98065-304-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 		8-98065-304-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98065-304-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATALYSIS CONTROL(6MZ) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98065-304-0 01 1 1508- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1111- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 1111- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1111- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 1111- ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 1111- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=430 		8-98131-037-0 01 1 1111- ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1111- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1111-1507 ● ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1111-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
MINI BUS CHASSIS(V4B) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. MINI BUS CHASSIS VAR.2(6GQ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. UZBEKISTAN EQUIPMENT(JCW) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98051-797-0 01 1 1111-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATAL YSIS CONTROL(6MZ) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 		8-98051-797-0 01 1 1508- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1111- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 1111- ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 1111- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 1111- ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 1111- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 L=140 		5-09707-031-1 01 1 1111- ● ●
452 03.028 BREATHER; FUEL TANK
FUEL TANK 100 LITTER<N02> 		8-97357-261-0 01 1 1111- ●
çizim 93341
411 1 25 11 7 8 159 158 6 14 640 19 3 635
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 140L 		8-98318-342-0 01 1 1507-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98318-342-0 01 1 1508- ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) FUEL TANK 140 LITTER<N19> 820X500X400 127L 		8-98181-863-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-3 01 1 1507-1507 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 127L 		8-98181-863-3 01 1 1507-1507 ●
1 03.001 TANK; FUEL
MINI BUS CHASSIS(V4B) 820X500X400 127L 		8-98181-863-3 01 1 1508- ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 820X500X400 127L 		8-98181-863-3 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L 		8-98104-006-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL WITH DPD(8JM) 756X482X376 100L 		8-98104-006-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS(V4B) 756X482X376 100L 		8-98104-006-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98326-229-0 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) 756X482X376 90L 		8-98153-046-1 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98062-738-3 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98062-738-3 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 100L 		8-98062-738-4 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 756X482X376 100L 		8-98062-738-4 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATAL YSIS CONTROL(6MZ) 756X482X376 100L 		8-98062-738-4 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 756X482X376 100L 		8-98062-738-4 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98153-048-1 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 100L 		8-98153-048-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12) 820X500X400 140L 		8-98181-864-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-180-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-180-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-180-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
MINI BUS CHASSIS(V4B) 		8-98113-180-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 		8-98113-180-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) 		8-98113-180-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 		8-98113-179-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) 		8-98113-179-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS(V4B) 		8-98113-179-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-179-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-179-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 		8-98113-179-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98113-179-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98056-705-0 01 1 1111-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATAL YSIS CONTROL(6MZ) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12) 		8-98065-304-0 01 1 1111-1202 ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98065-304-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 		8-98065-304-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98065-304-0 01 1 1203-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATALYSIS CONTROL(6MZ) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98065-304-0 01 1 1508- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1111- ● ●
7 03.112 GASKET; TANK UNIT,SUB TANK
FUEL TANK 140 LITTER<N19> 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 1111-1503 ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 1111- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1111- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 1111- ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 1111- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=430 		8-98131-037-0 01 1 1111- ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1111- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1111-1507 ● ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1111-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
MINI BUS CHASSIS(V4B) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. MINI BUS CHASSIS VAR.2(6GQ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. UZBEKISTAN EQUIPMENT(JCW) ID=42 OD=71 		5-83148-001-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98051-797-0 01 1 1111-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATAL YSIS CONTROL(6MZ) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B) 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 		8-98051-797-0 01 1 1508- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1111- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 1111- ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 1111- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 1111- ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 1111- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 L=140 		5-09707-031-1 01 1 1111- ● ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1111- ● ●
640 03.164 VENTILATOR; HOSE,BREATHER
FUEL TANK 140 LITTER<N19> 		8-98092-398-0 01 1 1111- ● ●

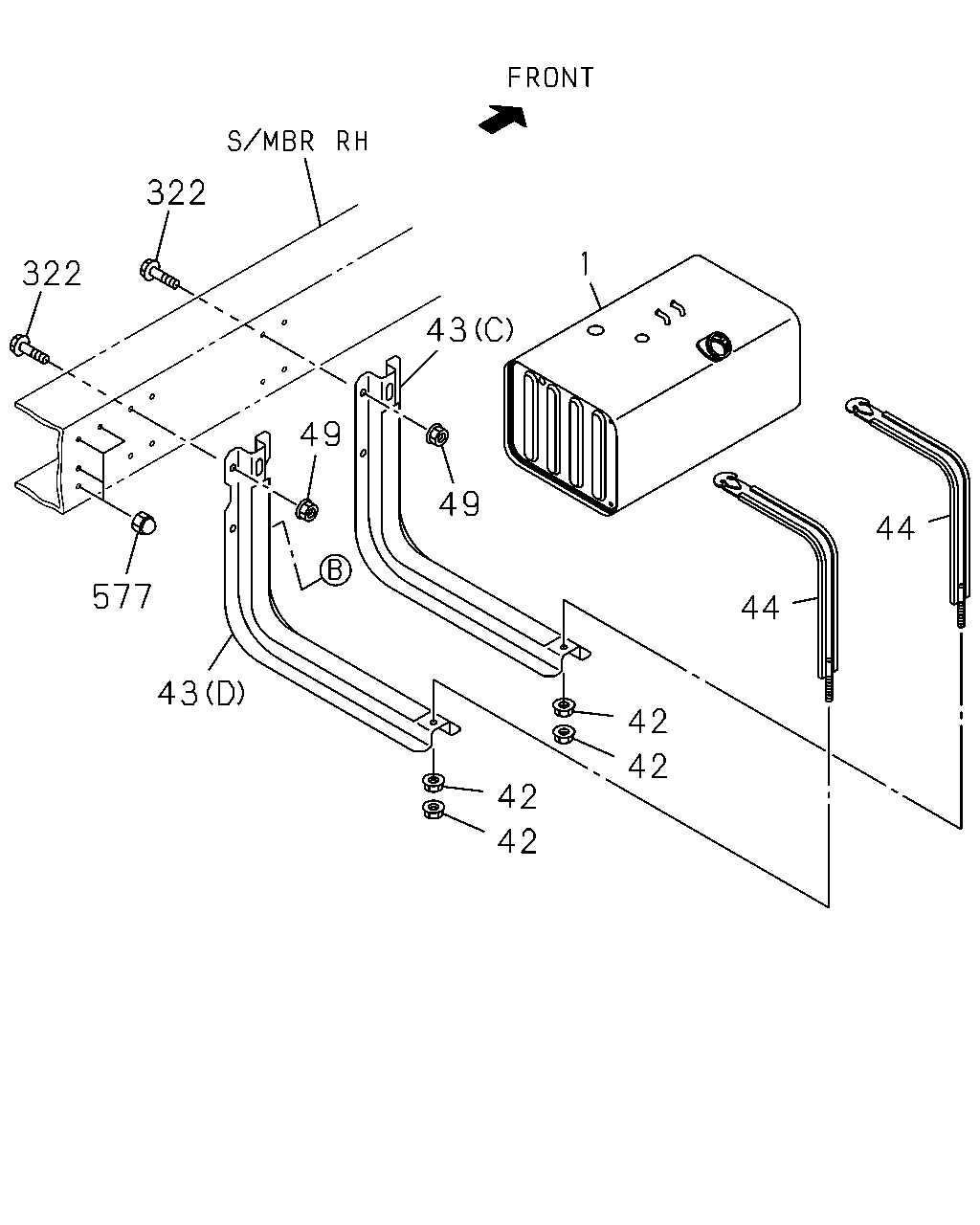

çizim 183164
44 44 42 42 42 42 43 577 322 322 43 49 49 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 140L 		8-98318-342-0 01 1 1507-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98318-342-0 01 1 1508- ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) FUEL TANK 140 LITTER<N19> 820X500X400 127L 		8-98181-863-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 127L 		8-98181-863-3 01 1 1203-1506 ●
1 03.001 TANK; FUEL
820X500X400 127L 		8-98181-863-3 01 1 1507-1507 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 127L 		8-98181-863-3 01 1 1507-1507 ●
1 03.001 TANK; FUEL
MINI BUS CHASSIS(V4B) 820X500X400 127L 		8-98181-863-3 01 1 1508- ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 820X500X400 127L 		8-98181-863-3 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L 		8-98104-006-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL WITH DPD(8JM) 756X482X376 100L 		8-98104-006-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS(V4B) 756X482X376 100L 		8-98104-006-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98326-229-0 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) 756X482X376 90L 		8-98153-046-1 01 1 1111-1202 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS VAR.2(6GQ) CATALYSIS CONTROL(6MZ) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98062-738-3 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL WITH DPD(8JM) EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98062-738-3 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 100L 		8-98062-738-4 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 756X482X376 100L 		8-98062-738-4 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATAL YSIS CONTROL(6MZ) 756X482X376 100L 		8-98062-738-4 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 756X482X376 100L 		8-98062-738-4 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12) 756X482X376 100L 		8-98153-048-1 01 1 1111-1202 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 756X482X376 100L 		8-98153-048-2 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> MINI BUS CHASSIS(V4B) CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12) 820X500X400 140L 		8-98181-864-2 01 1 1111-1202 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98181-864-3 01 1 1203-1507 ●
1 03.001 TANK; FUEL
UZBEKISTAN EQUIPMENT(JCW) EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS VAR.2(6GQ),C ATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO2 SPECIFICATION(NT2) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CATALYSIS CONTROL(6MZ) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
1 03.001 TANK; FUEL
EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 820X500X400 140L 		8-98181-864-3 01 1 1508- ●
42 03.023 NUT; SUPPORT BELT
00.833 M10 		0-91110-510-0 04 1 1111- ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 140 LITTER<N19> 00.833 M10 		0-91110-510-0 04 1 1111- ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 100 LITTER<N02> M8 FLANGE 		9-09130-408-0 02 1 1111- ●
43 03.015 BRACKET; FUEL TANK
(C) 		8-98049-768-1 01 1 1111- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (C) 		8-98049-768-1 01 1 1111- ●
43 03.015 BRACKET; FUEL TANK
(D) 		8-98127-229-0 01 1 1111- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (D) 		8-98127-229-0 01 1 1111- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (A) 		8-97384-060-5 01 1 1111- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (B) 		8-97384-062-6 01 1 1111- ●
44 03.023 BAND; FUEL TANK
L=925 		8-98049-769-1 02 1 1111- ●
44 03.023 BAND; FUEL TANK
FUEL TANK 140 LITTER<N19> L=925 		8-98049-769-1 02 1 1111- ●
44 03.023 BAND; FUEL TANK
FUEL TANK 100 LITTER<N02> L=795 		8-97384-080-2 02 1 1111- ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 1111- ● ●
322 03.895 BOLT; BRKT FIX
07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1112-1202 ●
322 03.895 BOLT; BRKT FIX
RUSSIA EQUIPMENT(B12) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1112-1202 ●
322 03.895 BOLT; BRKT FIX
07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1203-1309 ●
322 03.895 BOLT; BRKT FIX
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) MINI BUS CHASSIS VAR.2(6GQ) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1203-1309 ●
322 03.895 BOLT; BRKT FIX
RUSSIA EQUIPMENT(B12) EXC. MINI BUS CHASSIS VAR.2(6GQ) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1203-1309 ●
322 03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1111-1111 ● ●
322 03.895 BOLT; BRKT FIX
EXC. RUSSIA EQUIPMENT(B12) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1112-1202 ●
322 03.895 BOLT; BRKT FIX
EXC. RUSSIA EQUIPMENT(B12),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1203-1309 ●
322 03.895 BOLT; BRKT FIX
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1203-1309 ●
322 03.895 BOLT; BRKT FIX
M10X40 FLANGE 		8-98124-451-2 08 1 1310- ● ●
577 03.023 NUT; COVER
16.069 M10 CAP NUT 		8-98059-913-0 04 1 1202-1202 ●
577 03.023 NUT; COVER
RUSSIA EQUIPMENT(B12) FUEL TANK 140 LITTER<N19> 16.069 M10 CAP NUT 		8-98059-913-0 04 1 1202-1202 ●
577 03.023 NUT; COVER
16.069 M10 CAP NUT 		8-98059-913-0 04 1 1203-1403 ●
577 03.023 NUT; COVER
RUSSIA EQUIPMENT(B12) FUEL TANK 140 LITTER<N19> 16.069 M10 CAP NUT 		8-98059-913-0 04 1 1203-1403 ●
577 03.023 NUT; COVER
UZBEKISTAN EQUIPMENT(JCW) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 16.069 M10 CAP NUT 		8-98059-913-0 04 1 1203-1403 ●
577 03.023 NUT; COVER
16.069 M10 CAP NUT 		1-09984-134-0 04 1 1404- ●
577 03.023 NUT; COVER
RUSSIA EQUIPMENT(B12) FUEL TANK 140 LITTER<N19> 16.069 M10 CAP NUT 		1-09984-134-0 04 1 1404- ●
577 03.023 NUT; COVER
UZBEKISTAN EQUIPMENT(JCW) FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS VAR.2(6GQ) 16.069 M10 CAP NUT 		1-09984-134-0 04 1 1404- ●
çizim 471888
299 301 301 634 633 299 301
BalonParca AdiParca NoAdetTipApplied Date A B
299 03.162 BRACKET; FUEL FILTER
EURO2 SPECIFICATION(NT2) (B) 		8-98074-132-1 01 1 1111- ●
299 03.162 BRACKET; FUEL FILTER
(A) 		8-98172-650-0 01 1 1111- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
02.510 (A) M12X100 FLANGE 		0-28151-200-0 01 1 1111- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
00.685 (B) M12X50 FLANGE 		0-28151-250-0 01 1 1111- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
09.181 (C) M12X80 		0-28151-280-0 01 1 1111- ● ●
633 03.162 STUD; BRKT TO SEDIMENTER
03.275 M8X25 L=37 		0-41010-825-0 02 1 1111- ● ●
634 03.162 NUT; BRKT TO SEDIMENTER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
