1-11 — RADIATOR HOSE AND SUB TANK (#80671) — 14 parça

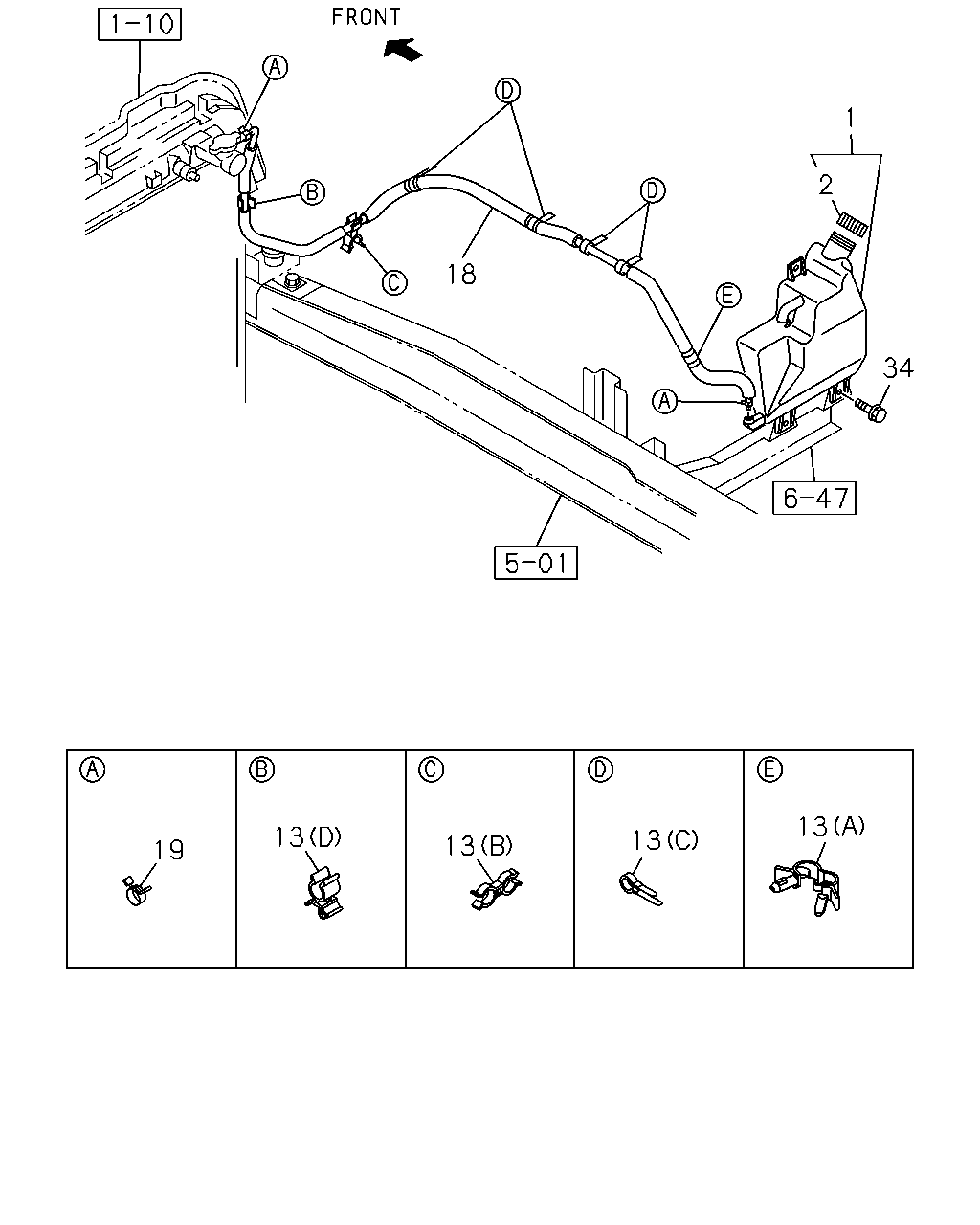

çizim 89101

1 2 18 34 13 13 13 13 19

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	01.219 TANK; SURGE,RAD	8-98178-179-0	01	1	1111-	●	●
	2	01.203 CAP; SURGE TANK	8-98178-074-0	01	1	1111-	●	●
	13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1111-	●	●
	13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	04	1	1111-	●	●
	13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1111-	●	●
	13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1111-	●	●
	18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-98006-531-3	01	1	1111-	●	●
	19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1111-	●	●
	34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1111-	●	●

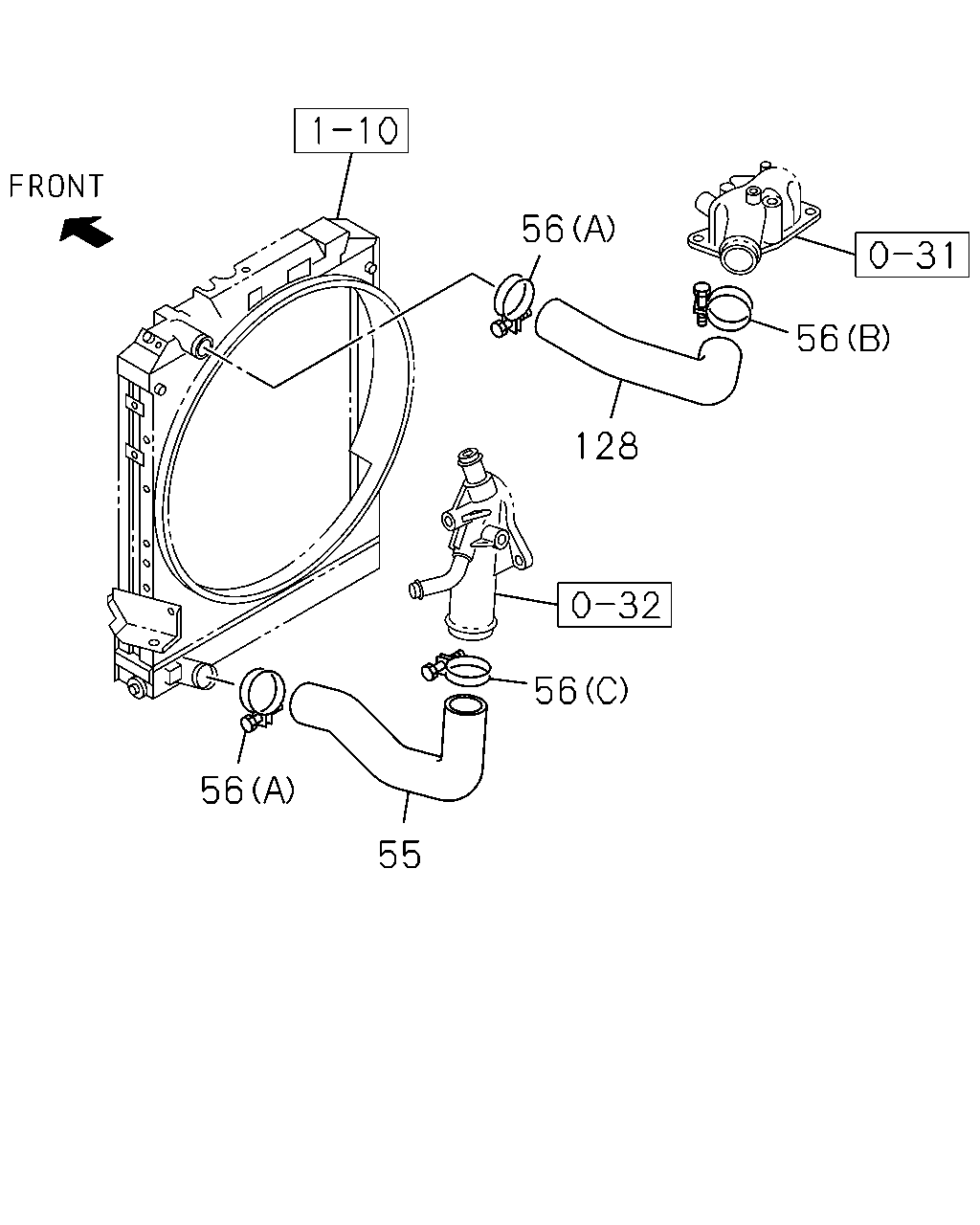

çizim 90554

56 56 128 56 56 55

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	55	01.173 HOSE; WATER,RAD OUTLET	8-98006-453-0	01	1	1111-	●	●
	56	01.166 CLIP; WATER HOSE,RAD 00.413 (B) ID=52	1-09704-057-0	01	1	1111-	●	●
	56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1111-	●	●
	56	01.166 CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1111-	●	●
	128	01.159 HOSE; WATER,RAD INL	8-98006-452-0	01	1	1111-	●	●
