◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#8067) — 206 parça

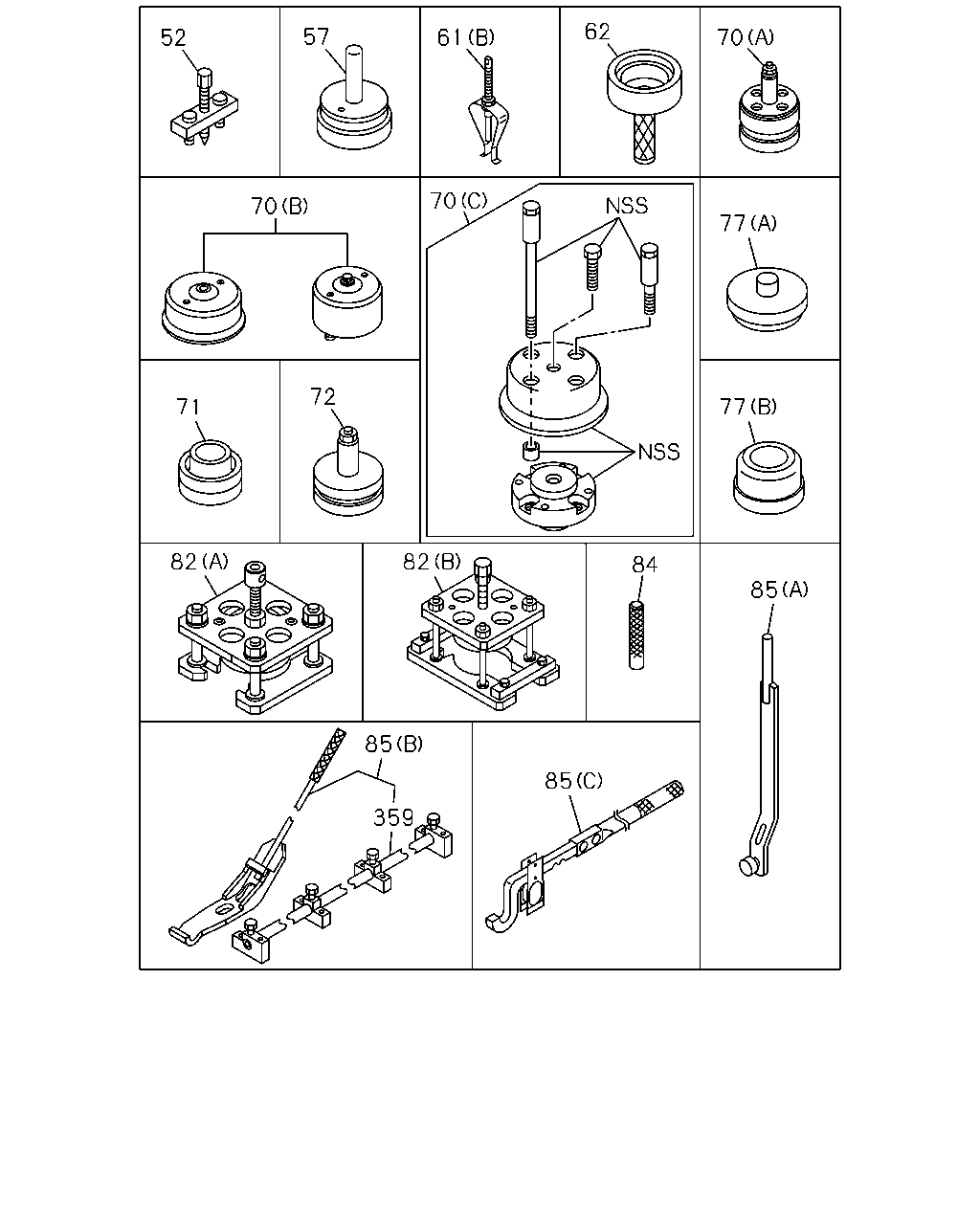

çizim 12086
62 57 52 61 70 70 70 77 72 77 71 82 82 84 85 85 85 359
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 REMOVER; WATER PUMP
6SD1 TCN ENG(31L) 		1-85210-047-0 01 1 0005-0011 ● ● ●
52 REMOVER; WATER PUMP
6SD1 TCN ENG(31L) 		1-85210-047-0 01 1 0012- ● ● ● ●
57 TOOL; SETTING CRANK GEAR
6HE1 TC ENG(57L) ID=134.5 		8-94396-819-0 01 1 0005-0210 ●
57 TOOL; SETTING CRANK GEAR
6SD1 TCN ENG(31L) ID=165.8 		1-85221-075-0 01 1 0211- ● ● ● ●
57 TOOL; SETTING CRANK GEAR
6SD1 TCN ENG(31L) ID=144.5 		1-85221-072-0 01 1 0005-0011 ● ● ●
57 TOOL; SETTING CRANK GEAR
6SD1 TCN ENG(31L) ID=144.5 		1-85221-072-0 01 1 0012- ● ● ● ●
61 PULLER ASM; PILOT BRG
6HE1 TC ENG(57L) (A) 		1-85210-050-0 01 1 0005-0210 ●
61 PULLER ASM; PILOT BRG
6HE1 TC ENG(57L) (B) 		9-85210-157-0 01 1 0005-0210 ●
61 PULLER ASM; PILOT BRG
6SD1 TCN ENG(31L) (B) 		1-85220-028-0 01 1 0211- ● ● ● ●
62 TOOL ASM; SETTING WEAR RING
6SD1 TCN ENG(31L) 		1-85221-079-0 01 1 0211- ● ● ● ●
70 TOOL; SETTING,OIL SEAL
6SD1 TCN ENG(31L) (C) 		8-98194-607-0 01 1 1109- ● ● ● ●
70 TOOL; SETTING,OIL SEAL
6HE1 TC ENG(57L) (B) 		8-94396-856-0 01 1 0005-0210 ●
70 TOOL; SETTING,OIL SEAL
6SD1 TCN ENG(31L) (A) 		1-85220-025-1 01 1 0005-0011 ● ● ●
70 TOOL; SETTING,OIL SEAL
6SD1 TCN ENG(31L) (A) 		1-85220-025-1 01 1 0012-0210 ● ● ● ●
71 TOOL; SETTING,OIL SEAL,FRT
6SD1 TCN ENG(31L) 		1-85220-029-0 01 1 0211-1108 ● ● ● ●
72 TOOL; SETTING,OIL SEAL,RR
6SD1 TCN ENG(31L) 		1-85220-030-0 01 1 0211-1108 ● ● ● ●
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG(57L) (B) 		8-94396-816-0 01 1 0005-0210 ●
77 TOOL; SETTING,CYL LINER
6SD1 TCN ENG(31L) (A) 		1-85221-073-0 01 1 0005-0011 ● ● ●
77 TOOL; SETTING,CYL LINER
6SD1 TCN ENG(31L) (A) 		1-85221-073-0 01 1 0012- ● ● ● ●
82 PULLER ASM; CR/SHF GEAR
6HE1 TC ENG(57L) (A) 		8-94396-818-0 01 1 0005-0210 ●
82 PULLER ASM; CR/SHF GEAR
6SD1 TCN ENG(31L) (B) 		1-85210-051-0 01 1 0211- ● ● ● ●
84 REPLACER; VALVE SEAL
6HE1 TC ENG(57L) 		8-94396-815-0 01 1 0005-0210 ●
85 REPLACER ASM; VALVE SPR
6HE1 TC ENG(57L) (B) 		8-94396-861-0 01 1 0005-0210 ●
85 REPLACER ASM; VALVE SPR
6HK1 TCS ENG(80L) (C) 		8-94391-528-0 01 1 0303- ●
85 REPLACER ASM; VALVE SPR
6SD1 TCN ENG(31L) (A) 		1-85235-007-0 01 1 0005-0011 ● ● ●
85 REPLACER ASM; VALVE SPR
6SD1 TCN ENG(31L) (A) 		1-85235-007-0 01 1 0012- ● ● ● ●
359 PIVOT
6HK1 TCS ENG(80L) 		8-94396-862-0 01 1 0303- ●
çizim 43407
9 17 12 13 23 22 21 20 29 29 29 193 115 208 230 237
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0005-0011 ● ● ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0012- ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0211-1411 ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1412- ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0005-0011 ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0012-0210 ● ● ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0005-0011 ● ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0012-0208 ● ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0209-0211 ● ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0212-1407 ● ● ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408- ● ● ● ●
17 HAMMER 9-85121-406-0 01 1 0005-0011 ● ● ●
17 HAMMER 9-85121-406-0 01 1 0012-0208 ● ● ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0209- ● ● ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0005-0011 ● ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0012-0208 ● ● ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0209-0607 ● ● ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0608- ● ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0005-0011 ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0012-0208 ● ● ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0209-0607 ● ● ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0608- ● ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0005-0011 ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0012-0208 ● ● ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0209-0607 ● ● ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0608- ● ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0005-0011 ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0012-0208 ● ● ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0209-0304 ● ● ● ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 0005-0011 ● ● ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 0012-0208 ● ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 		1-85151-004-0 01 1 0209- ● ● ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0005-0011 ● ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0012- ● ● ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 0005-0011 ● ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 0012-0208 ● ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0209- ● ● ● ●
115 PLIER 5-85171-002-0 01 1 0005-0011 ● ● ●
115 PLIER 5-85171-002-0 01 1 0012-0208 ● ● ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0209- ● ● ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 0005-0011 ● ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 0012-0504 ● ● ● ●
193 JACK ASM
10TON 		8-97607-599-0 01 1 0505- ● ● ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 0005-0011 ● ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 0012-0105 ● ● ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-1107 ● ● ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108- ● ● ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 0005-0011 ● ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 0012-0208 ● ● ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0209- ● ● ● ●
237 BAG; TOOL 8-97130-902-0 01 1 0005-0011 ● ● ●
237 BAG; TOOL 8-97130-902-1 01 1 0012- ● ● ● ●

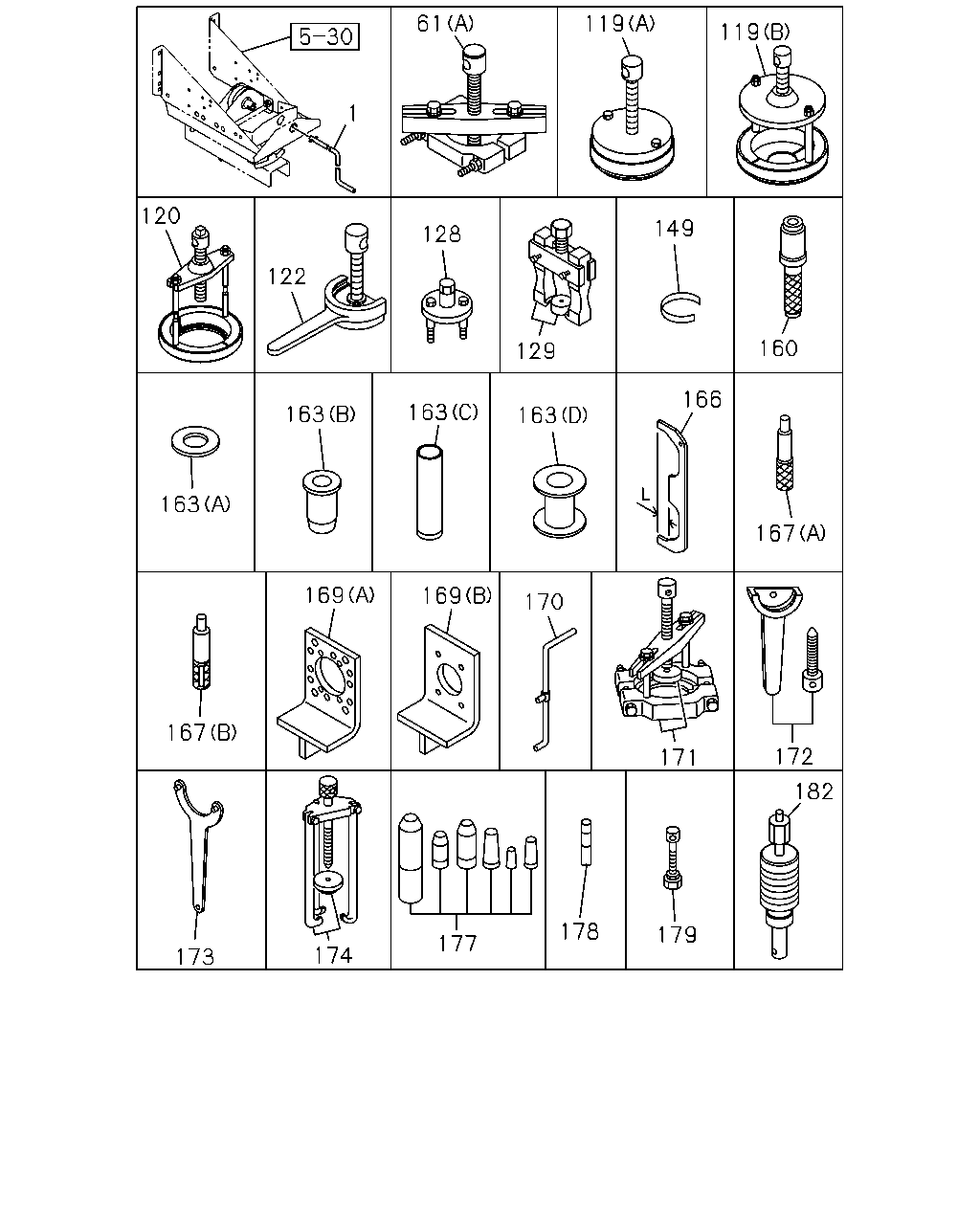

çizim 44684
61 119 119 1 120 149 128 122 160 129 166 163 163 163 163 167 169 169 170 167 172 171 182 178 179 177 174 173
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 0005-0011 ● ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 0012-0210 ● ●
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 0012-0210 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 0211- ●
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 0211- ● ●
61 PULLER ASM; PILOT BRG
6HE1 TC ENG(57L) (A) 		1-85210-050-0 01 1 0005-0210 ●
61 PULLER ASM; PILOT BRG
6HE1 TC ENG(57L) (B) 		9-85210-157-0 01 1 0005-0210 ●
61 PULLER ASM; PILOT BRG
6SD1 TCN ENG(31L) (B) 		1-85220-028-0 01 1 0211- ● ● ● ●
119 PULLER ASM; TOP GEAR BRG
6HE1 TC ENG(57L) (B) 		9-85210-185-0 01 1 0005-0210 ●
119 PULLER ASM; TOP GEAR BRG
6HE1 TC ENG(57L) (A) 		9-85210-186-0 01 1 0005-0210 ●
120 PULLER ASM; MAIN REAR BRG
6HE1 TC ENG(57L) 		9-85210-192-0 01 1 0005-0210 ●
122 PULLER ASM; COUNTER FRT
6HE1 TC ENG(57L) 		9-85210-129-1 01 1 0005-0210 ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0005-0011 ● ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0005-0011 ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0012-0210 ● ● ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0012-0210 ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0211- ● ● ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0005-0011 ● ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0005-0011 ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0012-0210 ● ● ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0012-0210 ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0211- ● ● ● ●
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 0005-0210 ●
160 REMOVER; NEEDLE BRG
6SD1 TCN ENG(31L) L=220 		1-85238-001-0 01 1 0005-0210 ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0005-0210 ● ●
163 TOOL; SETTING
6HE1 TC ENG(57L) (B) L=195 		1-85221-162-1 01 1 0005-0210 ●
163 TOOL; SETTING
6HE1 TC ENG(57L) (D) L=150 		1-85221-163-0 01 1 0005-0210 ●
163 TOOL; SETTING
6HE1 TC ENG(57L) (A) OD=120 		1-85221-164-0 01 1 0005-0210 ●
163 TOOL; SETTING
6HE1 TC ENG(57L) (B) L=150 		9-85221-248-0 01 1 0005-0210 ●
163 TOOL; SETTING
6HE1 TC ENG(57L) (C) L=350 		9-85221-310-0 01 1 0005-0210 ●
166 ALIGNER; CLU RELEASE LEVER
6HE1 TC ENG(57L) L=480 		1-85253-011-0 01 1 0005-0011 ●
166 ALIGNER; CLU RELEASE LEVER
6HE1 TC ENG(57L) L=480 		1-85253-011-0 01 1 0012-0210 ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 0012-0210 ●
167 ALIGNER; CLU PILOT
FULLER FS8209 DD M/T(Y2S) (B) D=36 L=190 		1-85253-022-0 01 1 0005-0011 ●
167 ALIGNER; CLU PILOT
FULLER RT7608LL M/T(X8P) (B) D=36 L=190 		1-85253-022-0 01 1 0005-0011 ●
167 ALIGNER; CLU PILOT
(B) D=36 L=190 		1-85253-022-0 01 1 0005-0011 ●
167 ALIGNER; CLU PILOT
FULLER FS8209 DD M/T(Y2S) (B) D=36 L=190 		1-85253-022-0 01 1 0012-0210 ●
167 ALIGNER; CLU PILOT
FULLER RT7608LL M/T(X8P) (B) D=36 L=190 		1-85253-022-0 01 1 0012-0210 ●
167 ALIGNER; CLU PILOT
(B) D=36 L=190 		1-85253-022-0 01 1 0012-0210 ● ●
167 ALIGNER; CLU PILOT
6HE1 TC ENG(57L) (A) D=30.6 L=185 		1-85253-012-0 01 1 0005-0210 ●
169 BRACKET; SPLINE YOKE
(A) 		9-85221-243-1 01 1 0005-0011 ● ● ●
169 BRACKET; SPLINE YOKE
(A) 		9-85221-243-1 01 1 0012-0210 ● ● ● ●
169 BRACKET; SPLINE YOKE
P115 PROP SHAFT(C5X) (B) 		1-85221-317-0 01 1 0211- ●
169 BRACKET; SPLINE YOKE
(B) 		1-85221-317-0 01 1 0211- ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 0005-0011 ● ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 0012-0210 ● ● ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 0005-0011 ● ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 0012-0210 ● ● ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 0005-0011 ● ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 0012-0210 ● ● ● ●
173 WRENCH; COUPLING DRIVER 9-85111-942-0 01 1 0005-0011 ● ●
173 WRENCH; COUPLING DRIVER 9-85111-942-0 01 1 0012-0210 ● ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0005-0011 ● ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0005-0011 ●
174 PULLER ASM; MAIN CLU SHAFT
6HE1 TC ENG(57L) 		9-85210-148-0 01 1 0005-0011 ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0012-0210 ● ● ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0012-0210 ●
174 PULLER ASM; MAIN CLU SHAFT
6HE1 TC ENG(57L) 		9-85210-148-0 01 1 0012-0210 ●
174 PULLER ASM; MAIN CLU SHAFT
FULLER FS8209HD DD M/T(Y3A) 		9-85210-148-0 01 1 0211-0302 ● ● ●
174 PULLER ASM; MAIN CLU SHAFT
FULLER RT7608LL M/T(X8P) 		9-85210-148-0 01 1 0211-0302 ●
174 PULLER ASM; MAIN CLU SHAFT
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) 		9-85210-148-0 01 1 0303- ● ● ● ●
177 SETTING TOOL KIT 9-85220-040-0 01 1 0005-0210 ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0005-0011 ● ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0012-0210 ● ● ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 0005-0011 ● ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 0012-0210 ● ● ● ●
182 REMOVER ASM 9-85210-095-0 01 1 0005-0011 ● ● ●
182 REMOVER ASM 9-85210-095-0 01 1 0012-0210 ● ● ● ●
çizim 47210
274 271 268 209 285 280 282 284 283 446 263 281
BalonParca AdiParca NoAdetTipApplied Date A B C D
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 0005-0011 ● ● ●
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 0012-0708 ● ● ● ●
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709- ● ● ● ●
263 BRACKET; TOOL 1-53459-665-2 02 1 0408- ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0005-0011 ● ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0012-0604 ● ● ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ● ● ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 0005-0011 ● ● ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 0012-0708 ● ● ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709- ● ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0005-0011 ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0012-0604 ● ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ● ● ●
280 BOX; TOOL 1-85561-006-2 01 1 0005-0011 ● ● ●
280 BOX; TOOL 1-85561-006-3 01 1 0012- ● ● ● ●
281 BRACKET; TOOL BOX 1-53459-665-2 02 1 0005-0011 ● ● ●
281 BRACKET; TOOL BOX 1-53459-665-2 02 1 0012-0407 ● ● ● ●
281 BRACKET; TOOL BOX 1-53459-665-2 02 1 0408- ● ● ●
282 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0011 ● ● ●
282 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0012-0602 ● ● ● ●
282 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
283 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 04 1 0005-0011 ● ● ●
283 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 04 1 0012-0407 ● ● ● ●
283 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 04 1 0408-0603 ● ● ●
283 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 04 1 0604- ● ● ●
284 BOLT; TOOL BOX
M10X20 FLANGE 		0-28681-020-0 04 1 0005-0011 ● ● ●
284 BOLT; TOOL BOX
M10X20 FLANGE 		0-28681-020-0 04 1 0012-0512 ● ● ● ●
284 BOLT; TOOL BOX
M10X20 FLANGE 		0-28651-020-0 04 1 0601- ● ● ● ●
285 NUT; TOOL BOX
M10 FLANGE 		0-91150-210-0 04 1 0005-0011 ● ● ●
285 NUT; TOOL BOX
M10 FLANGE 		0-91150-210-0 04 1 0012-0602 ● ● ● ●
285 NUT; TOOL BOX
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
446 WASHER; SPRING
ID=10.2 		9-09150-510-0 04 1 0408-0603 ●
446 WASHER; SPRING
ID=10.2 		0-91510-510-0 04 1 0604- ●

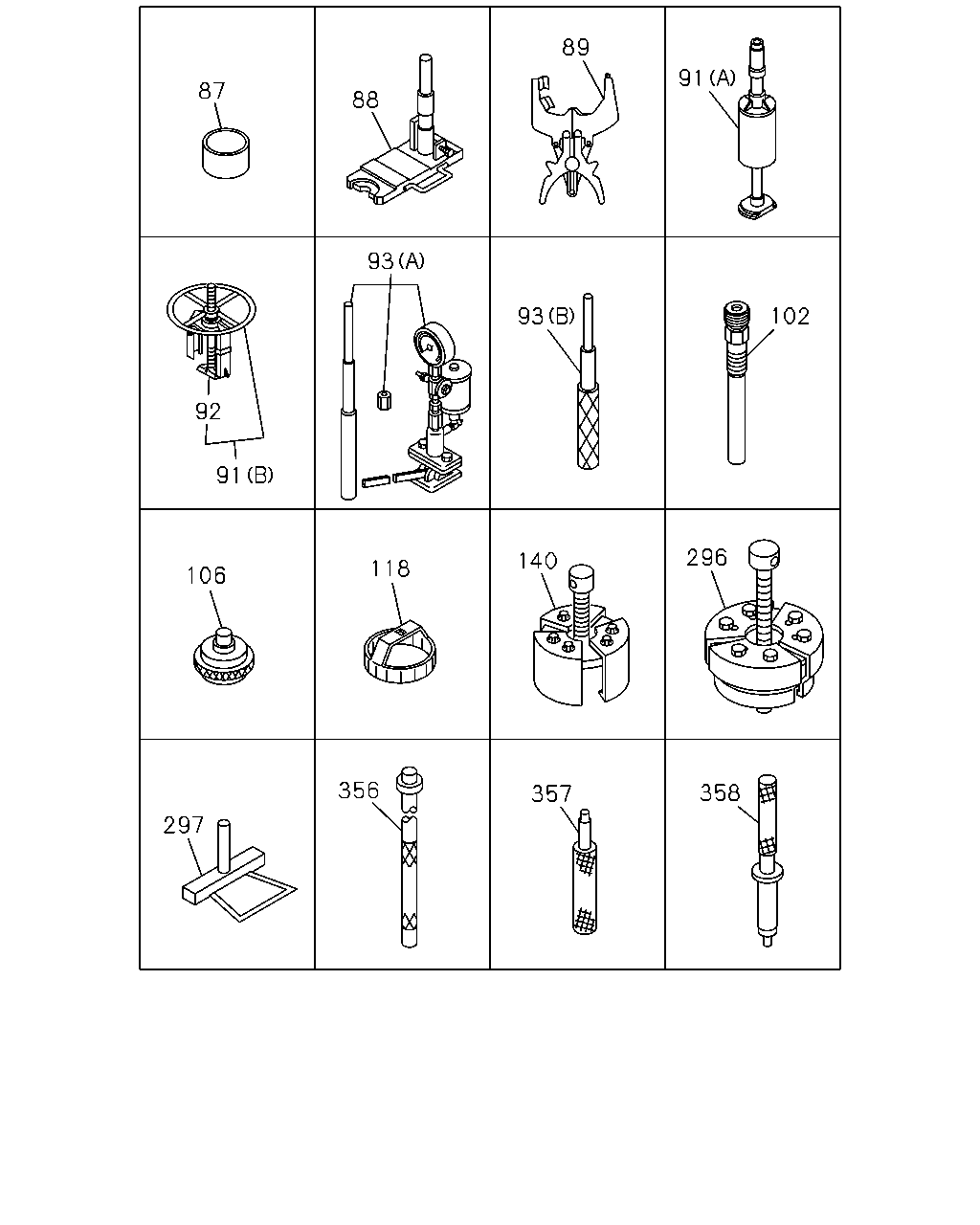

çizim 96912
89 91 87 88 93 93 102 92 91 296 140 118 106 356 358 357 297
BalonParca AdiParca NoAdetTipApplied Date A B C D
87 TOOL; PISTON
6SD1 TCN ENG(31L) 		1-85221-082-0 01 1 0005-0011 ● ● ●
87 TOOL; PISTON
6SD1 TCN ENG(31L) 		1-85221-082-0 01 1 0012- ● ● ● ●
88 TOOL; CONNROD BUSHING
6SD1 TCN ENG(31L) 		1-85220-037-0 01 1 0005-0011 ● ● ●
88 TOOL; CONNROD BUSHING
6SD1 TCN ENG(31L) 		1-85220-037-0 01 1 0012- ● ● ● ●
89 TOOL; PISTON RING
6SD1 TCN ENG(31L) 		1-85221-029-0 01 1 0005-0011 ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 0005-0011 ● ●
89 TOOL; PISTON RING
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) 		1-85221-029-0 01 1 0012-0210 ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 0012-0210 ● ●
89 TOOL; PISTON RING
6HE1 TC ENG(57L) 		1-85221-029-0 01 1 0012-0210 ●
91 REPLACER ASM; CYL LINER
6HE1 TC ENG(57L) (B) 		8-94396-849-0 01 1 0005-0210 ●
91 REPLACER ASM; CYL LINER
6SD1 TCN ENG(31L) (A) 		1-85231-021-0 01 1 0005-0011 ● ● ●
91 REPLACER ASM; CYL LINER
6SD1 TCN ENG(31L) (A) 		1-85231-021-0 01 1 0012- ● ● ● ●
92 ANKLE; REPLACER,CYL LINER
6HE1 TC ENG(57L) 		8-94396-821-0 01 1 0005-0210 ●
93 SETTING KIT; VALVE GUIDE
6HE1 TC ENG(57L) (A) 		1-85220-001-0 01 1 0005-0210 ●
93 SETTING KIT; VALVE GUIDE
6SD1 TCN ENG(31L) (B) L=260 		9-85231-202-0 01 1 0005-0011 ● ● ●
93 SETTING KIT; VALVE GUIDE
6SD1 TCN ENG(31L) (B) L=260 		9-85231-202-0 01 1 0012- ● ● ● ●
102 ADAPTER; COMP GAGE
6SD1 TCN ENG(31L) 		5-85317-001-0 01 1 0005-0011 ● ● ●
102 ADAPTER; COMP GAGE
6SD1 TCN ENG(31L) 		5-85317-001-0 01 1 0012- ● ● ● ●
106 TOOL; SETTING PILOT BRG
6SD1 TCN ENG(31L) 		1-85221-080-0 01 1 0211- ● ● ● ●
118 WRENCH; OIL FILTER
6HE1 TC ENG(57L) 		1-85221-097-0 01 1 0005-0210 ●
140 REMOVER; WEAR RING
6SD1 TCN ENG(31L) 		1-85210-053-0 01 1 0211- ● ● ● ●
296 REPLACER; SLINGER
6HE1 TC ENG(57L) 		8-94396-858-0 01 1 0005-0210 ●
297 CUTTER; SEAL,OIL PAN
6HE1 TC ENG(57L) 		8-94393-112-0 01 1 0005-0210 ●
356 TOOL; SETTING,OIL SEAL,CYL HEAD
6HK1 TCS ENG(80L) 		8-94391-527-0 01 1 0303- ●
357 REPLACER; NOZZLE SLEEVE
6HK1 TCS ENG(80L) 		8-94391-555-0 01 1 0303- ●
358 PLACER; NOZZLE SLEEVE
6HK1 TCS ENG(80L) 		8-94391-556-0 01 1 0303- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
