1 |

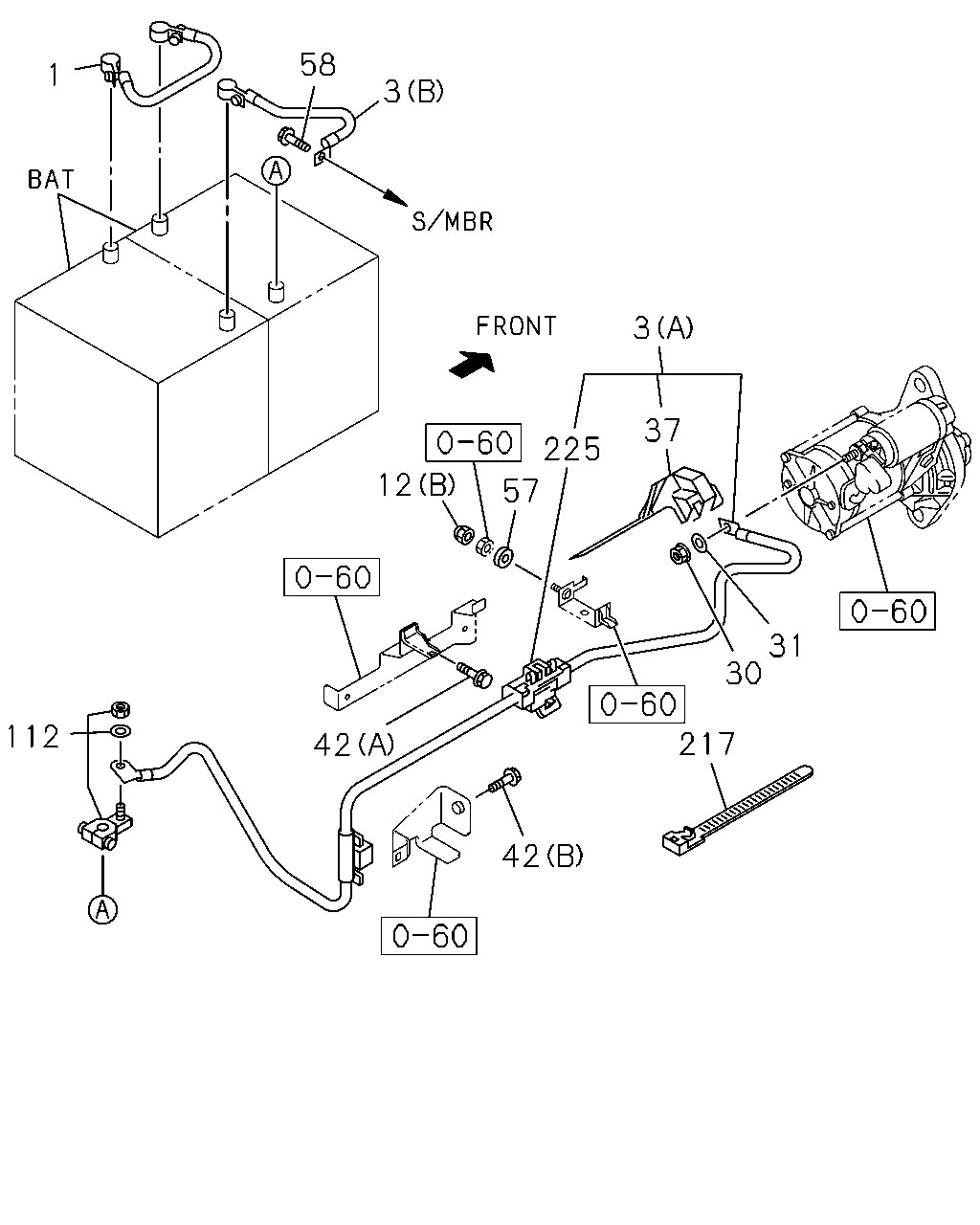

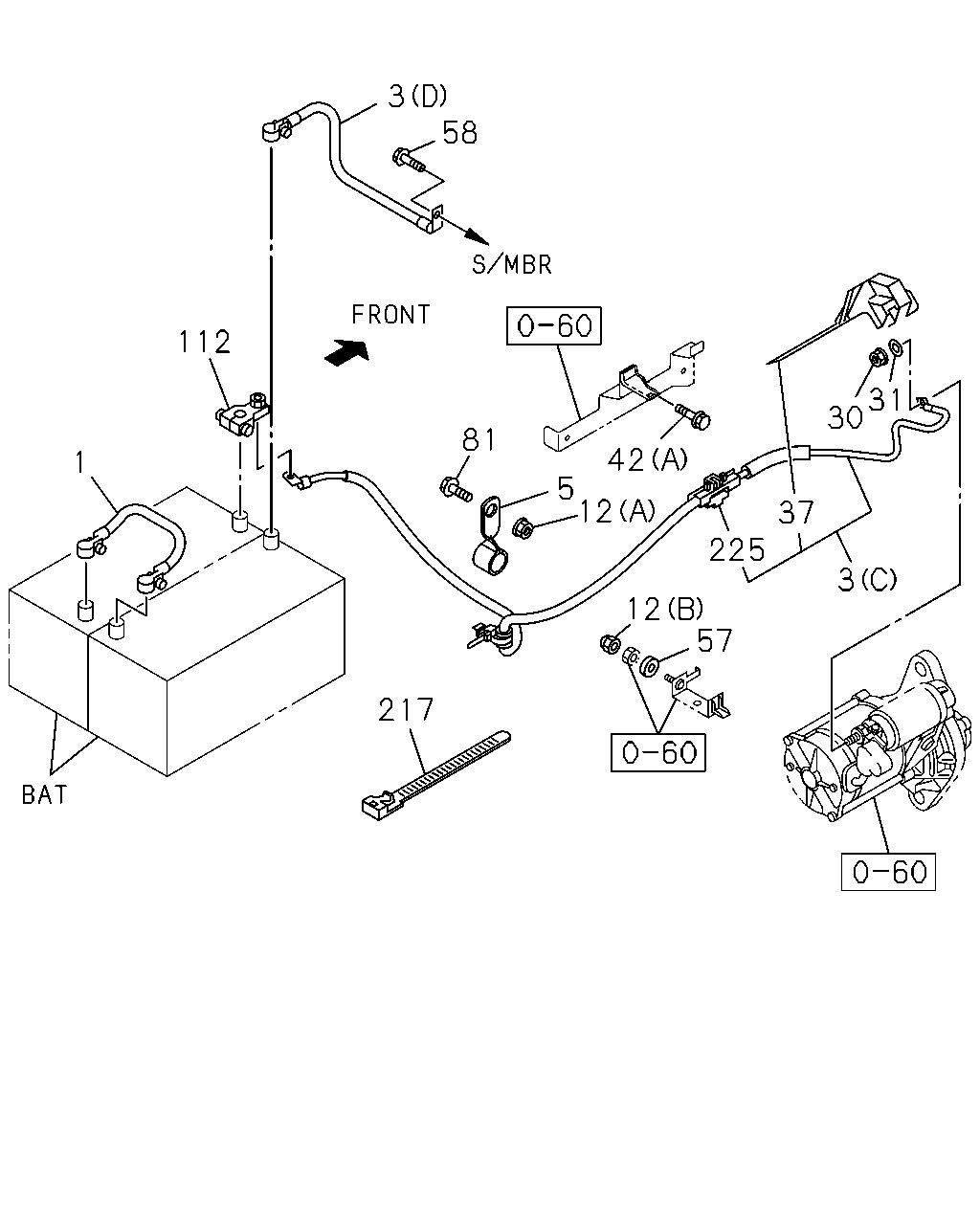

02.341 CABLE; BATTERY
L=280
|
8-98025-412-3 |
01 |
1 |
1111- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
FUEL TANK 140 LITTER<N19>
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98275-538-0 |
01 |
1 |
1406-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
FUEL TANK 140 LITTER<N19>
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98294-772-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FUEL TANK 140 LITTER<N19>
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY
115E41L<8MA>
(A)
|
8-98208-149-0 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FUEL TANK 140 LITTER<N19>
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY
115E41L<8MA>
(A)
|
8-98294-771-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
BATTERY 115E41L<8MA>
EXC. COLOMBIA EQUIPMENT(CB7),FUEL TANK
140 LITTER<N19>
(C)
|
8-98208-147-0 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
BATTERY 115E41L<8MA>
EXC. COLOMBIA EQUIPMENT(CB7),FUEL TANK
140 LITTER<N19>
(C)
|
8-98294-769-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
BATTERY 115E41L<8MA>
EXC. COLOMBIA EQUIPMENT(CB7),FUEL TANK
140 LITTER<N19>
(C)
|
8-98208-148-0 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
BATTERY 115E41L<8MA>
EXC. COLOMBIA EQUIPMENT(CB7),FUEL TANK
140 LITTER<N19>
(C)
|
8-98294-770-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FUEL TANK 140 LITTER<N19>
BATTERY 115E41L<8MA>
(C)
|
8-98182-014-2 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FUEL TANK 140 LITTER<N19>
BATTERY 115E41L<8MA>
(C)
|
8-98294-766-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FUEL TANK 140 LITTER<N19>
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98182-012-1 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FUEL TANK 140 LITTER<N19>
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98294-765-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
BATTERY 115E41L<8MA>
(D)
|
8-98201-106-0 |
01 |
1 |
1111- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
EXC. BATTERY 115E41L<8MA>
(B)
L=250
|
8-98056-338-1 |
01 |
1 |
1111- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FUEL TANK 140 LITTER<N19>
BATTERY 115E41L<8MA>
(C)
|
8-98181-999-1 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FUEL TANK 140 LITTER<N19>
BATTERY 115E41L<8MA>
(C)
|
8-98294-761-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FUEL TANK 140 LITTER<N19>
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98181-995-0 |
01 |
1 |
1111-1111 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
FUEL TANK 140 LITTER<N19>
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98181-995-0 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
FUEL TANK 140 LITTER<N19>
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98294-760-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
EXC. FUEL TANK 140 LITTER<N19>,BATTERY
115E41L<8MA>
(A)
|
8-98182-009-0 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
EXC. FUEL TANK 140 LITTER<N19>,BATTERY
115E41L<8MA>
(A)
|
8-98294-764-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98179-217-2 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98294-757-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
EXC. FUEL TANK 140 LITTER<N19>,BATTERY
115E41L<8MA>
(A)
|
8-98179-216-0 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
EXC. FUEL TANK 140 LITTER<N19>,BATTERY
115E41L<8MA>
(A)
|
8-98294-756-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
FUEL TANK 140 LITTER<N19>
BATTERY 115E41L<8MA>
(C)
|
8-98182-016-2 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
FUEL TANK 140 LITTER<N19>
BATTERY 115E41L<8MA>
(C)
|
8-98294-767-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98200-999-1 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98294-768-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W)
BATTERY 115E41L<8MA>
(D)
L=400
|
8-98201-105-0 |
01 |
1 |
1111- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W)
EXC. BATTERY 115E41L<8MA>
(B)
L=200
|
8-98056-337-1 |
01 |
1 |
1111- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98179-215-1 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98294-755-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
EXC. FUEL TANK 140 LITTER<N19>,BATTERY
115E41L<8MA>
(A)
|
8-98179-214-0 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
EXC. FUEL TANK 140 LITTER<N19>,BATTERY
115E41L<8MA>
(A)
|
8-98294-754-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98181-991-1 |
01 |
1 |
1111-1111 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
COLOMBIA EQUIPMENT(CB7)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98181-991-1 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
COLOMBIA EQUIPMENT(CB7)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98294-759-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
EXC. FUEL TANK 140 LITTER<N19>,BATTERY
115E41L<8MA>
(A)
|
8-98181-987-0 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
EXC. FUEL TANK 140 LITTER<N19>,BATTERY
115E41L<8MA>
(A)
|
8-98294-758-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
FUEL TANK 140 LITTER<N19>
BATTERY 115E41L<8MA>
(C)
|
8-98182-006-1 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
FUEL TANK 140 LITTER<N19>
BATTERY 115E41L<8MA>
(C)
|
8-98294-763-0 |
01 |
1 |
1410- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98182-003-1 |
01 |
1 |
1111-1111 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98182-003-1 |
01 |
1 |
1111-1409 |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
BATTERY 115E41L<8MA>
EXC. FUEL TANK 140 LITTER<N19>
(C)
|
8-98294-762-0 |
01 |
1 |
1410- |
● |
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41L<8MA>
ID=19 L=58
|
1-09700-733-1 |
01 |
1 |
1111- |
● |
● |
| |
12 |
02.343 NUT; BATTERY CABLE CLIP
TURKEY EQUIPMENT(B11),RUSSIA
EQUIPMENT(B12)
16.069
(B)
M8 CAP NUT
|
8-98059-914-0 |
02 |
1 |
1202- |
● |
● |
| |
12 |
02.343 NUT; BATTERY CABLE CLIP
UZBEKISTAN EQUIPMENT(JCW)
MINI BUS CHASSIS VAR.2(6GQ)
16.069
(B)
M8 CAP NUT
|
8-98059-914-0 |
02 |
1 |
1202- |
● |
● |
| |
12 |
02.343 NUT; BATTERY CABLE CLIP
BATTERY 115E41L<8MA>
01.062
(A)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1111- |
● |
● |
| |
30 |
02.334 NUT; CABLE,STARTER TO BATTERY
M8
|
0-91110-508-0 |
01 |
1 |
1111- |
● |
● |
| |
31 |
02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559
ID=8.2
|
0-91510-808-0 |
01 |
1 |
1111- |
● |
● |
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
|
8-98042-507-0 |
01 |
1 |
1111- |
● |
● |
| |
42 |
02.343 BOLT; BRKT,BATTERY CABLE
02.500
(A)
M6X16 FLANGE
|
8-97329-599-0 |
01 |
1 |
1111- |
● |
● |
| |
42 |
02.343 BOLT; BRKT,BATTERY CABLE
EXC. BATTERY 115E41L<8MA>
00.685
(B)
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
1111- |
● |
● |
| |
57 |
02.343 WASHER; PL,BATTERY CABLE
TURKEY EQUIPMENT(B11),RUSSIA
EQUIPMENT(B12)
ID=8.2
|
8-98019-967-0 |
02 |
1 |
1202- |
● |
● |
| |
57 |
02.343 WASHER; PL,BATTERY CABLE
UZBEKISTAN EQUIPMENT(JCW)
MINI BUS CHASSIS VAR.2(6GQ)
ID=8.2
|
8-98019-967-0 |
02 |
1 |
1202- |
● |
● |
| |
58 |
02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER
|
8-98141-256-1 |
01 |
1 |
1111- |
● |
● |
| |
81 |
02.559 BOLT; BATTERY CABLE
BATTERY 115E41L<8MA>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1111- |
● |
● |
| |
112 |
02.343 TERMINAL; BATTERY
<+>
|
8-97365-771-0 |
01 |
1 |
1111- |
● |
● |
| |
217 |
02.343 CLIP; BAND,CABLE
RUSSIA EQUIPMENT(B12),UZBEKISTAN
EQUIPMENT(JCW)
IDENTIFICATION LABEL FOR KD<6UT>
03.162
L=140
|
5-09707-031-1 |
01 |
1 |
1111- |
● |
● |
| |
225 |
02.343 BLOCK; TERMINAL
|
8-98029-689-0 |
01 |
1 |
1111-1409 |
● |
● |
| |
225 |
02.343 BLOCK; TERMINAL
|
8-98294-524-0 |
01 |
1 |
1410- |
● |
● |
