0-57 — EMISSION PIPING (#80662) — 66 parça

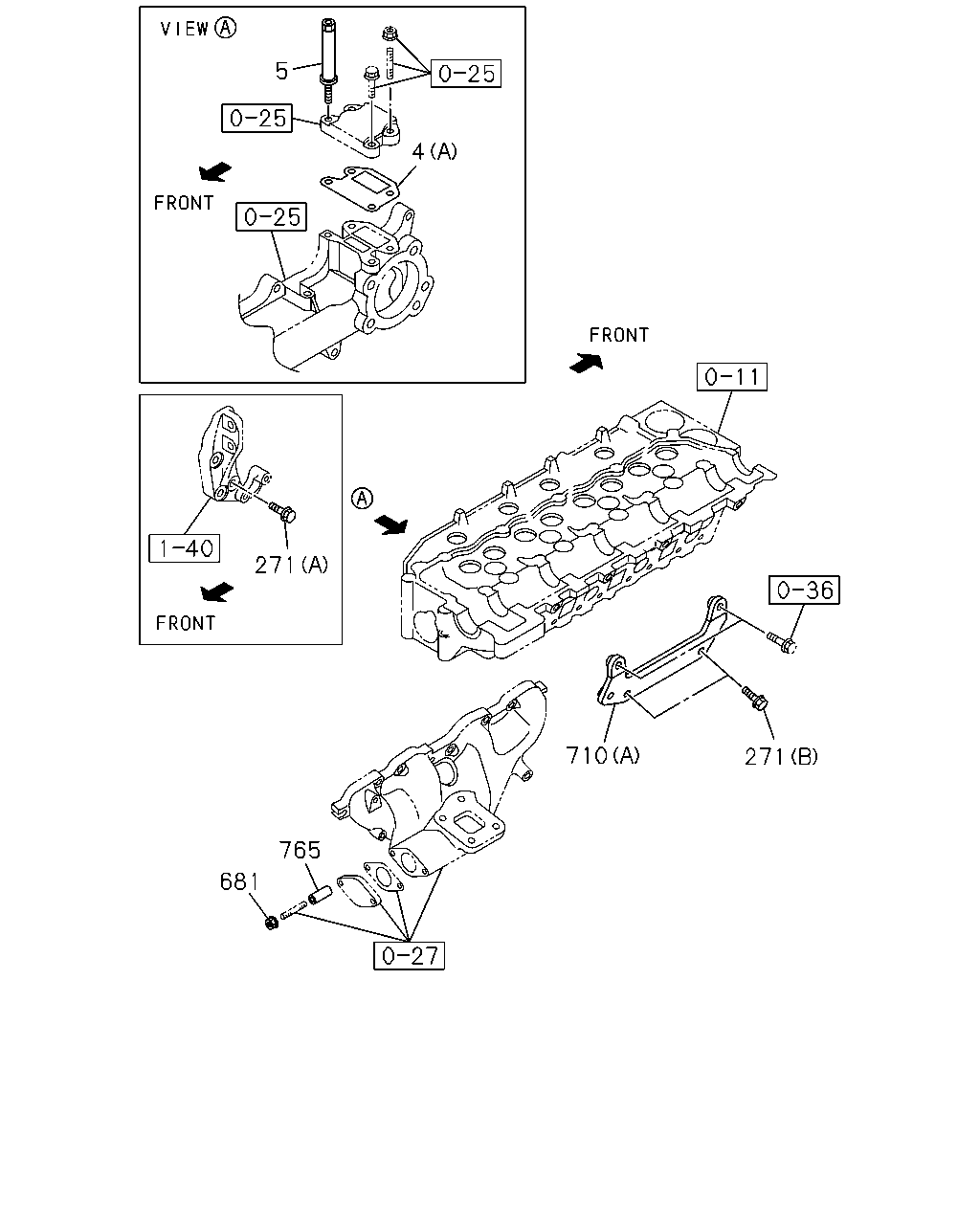

çizim 66337
5 4 271 710 271 765 681
BalonParca AdiParca NoAdetTipApplied Date A B
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97306-040-0 01 1 1111- ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.665 (B) 		8-98036-507-0 01 1 1111- ● ●
5 03.670 ADAPTER ASM
00.269 		8-97377-804-0 01 1 1111-1507 ● ●
5 03.670 ADAPTER ASM
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.269 		8-97377-804-0 01 1 1508- ●
5 03.670 ADAPTER ASM
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 00.269 		8-97377-804-0 01 1 1508- ●
5 03.670 ADAPTER ASM
00.269 		8-97377-804-0 01 1 1508- ●
271 03.675 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 1111- ● ●
271 03.675 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 1111- ● ●
681 03.671 NUT; EGR PIPE
EURO2 SPECIFICATION(NT2) 01.540 M8 FLANGE 		0-91180-208-0 02 1 1111- ● ●
710 03.337 BRACKET; EGR COOLER
EURO2 SPECIFICATION(NT2) (A) 		8-98079-255-1 01 1 1111- ● ●
710 03.337 BRACKET; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.680 (D) 		8-98025-253-2 01 1 1111- ● ●
710 03.337 BRACKET; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) 		8-98025-254-1 01 1 1111- ● ●
710 03.337 BRACKET; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) 		8-98055-940-1 01 1 1111- ● ●
765 03.670 SPACER; EGR PIPE
EURO2 SPECIFICATION(NT2) 03.613 		8-94225-562-0 02 1 1111- ● ●

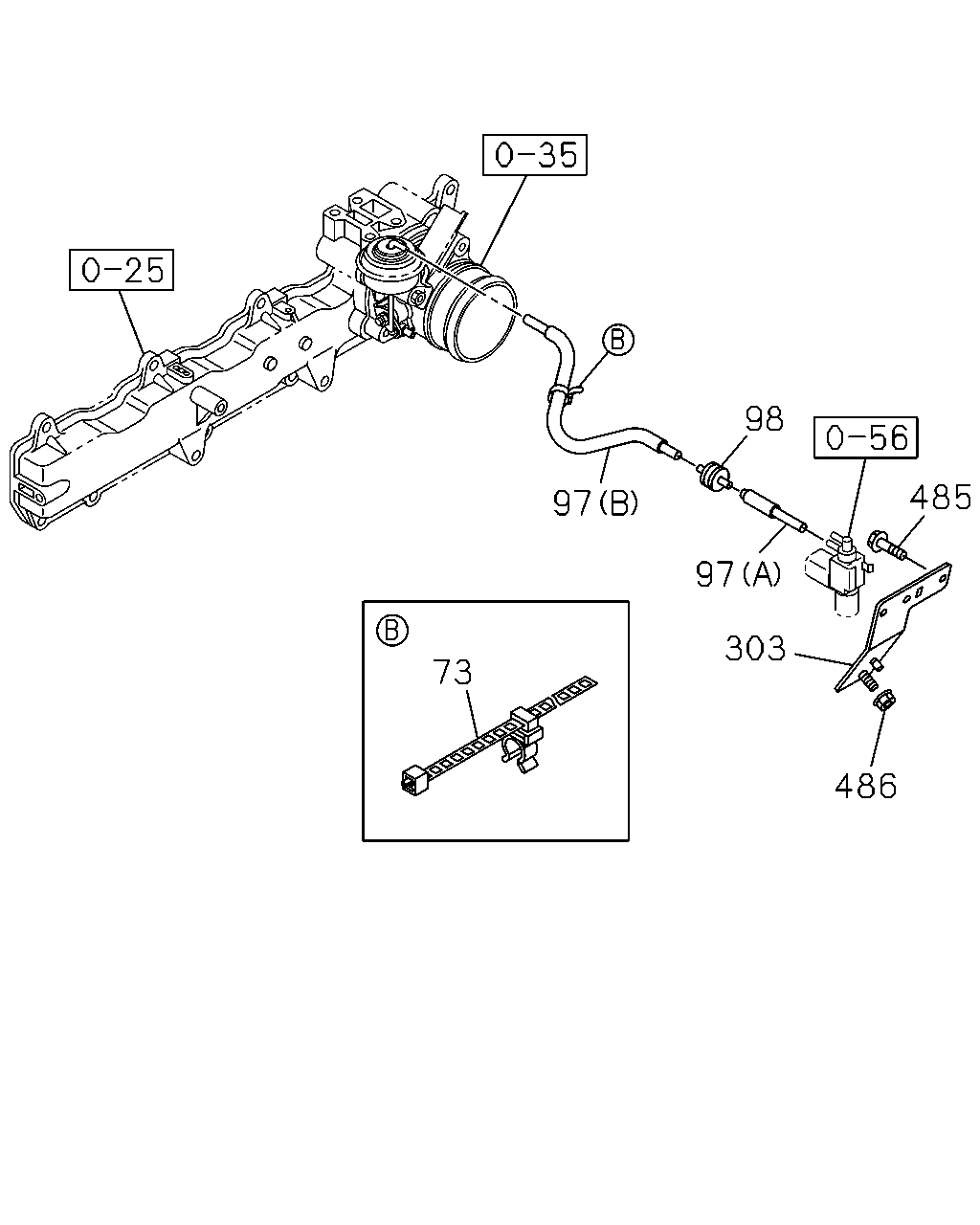

çizim 72043
98 485 97 97 303 73 486
BalonParca AdiParca NoAdetTipApplied Date A B
73 03.680 CLIP; VAC HOSE
EURO2 SPECIFICATION(NT2) L=350 		8-97373-487-0 01 1 1111- ● ●
97 03.675 HOSE; RUBBER
EURO2 SPECIFICATION(NT2) (B) 		8-98113-964-0 01 1 1111- ● ●
97 03.675 HOSE; RUBBER
EURO2 SPECIFICATION(NT2) (A) 		8-98113-965-0 01 1 1111- ● ●
98 03.670 VALVE; DELAY
EURO2 SPECIFICATION(NT2) 		8-94110-978-0 01 1 1111- ● ●
303 03.671 BRACKET; VAC SW
EURO2 SPECIFICATION(NT2) 		8-98097-124-0 01 1 1111- ● ●
485 03.671 BOLT; VSV
EURO2 SPECIFICATION(NT2) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 1111- ● ●
486 03.671 NUT; BRKT
EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1111- ● ●

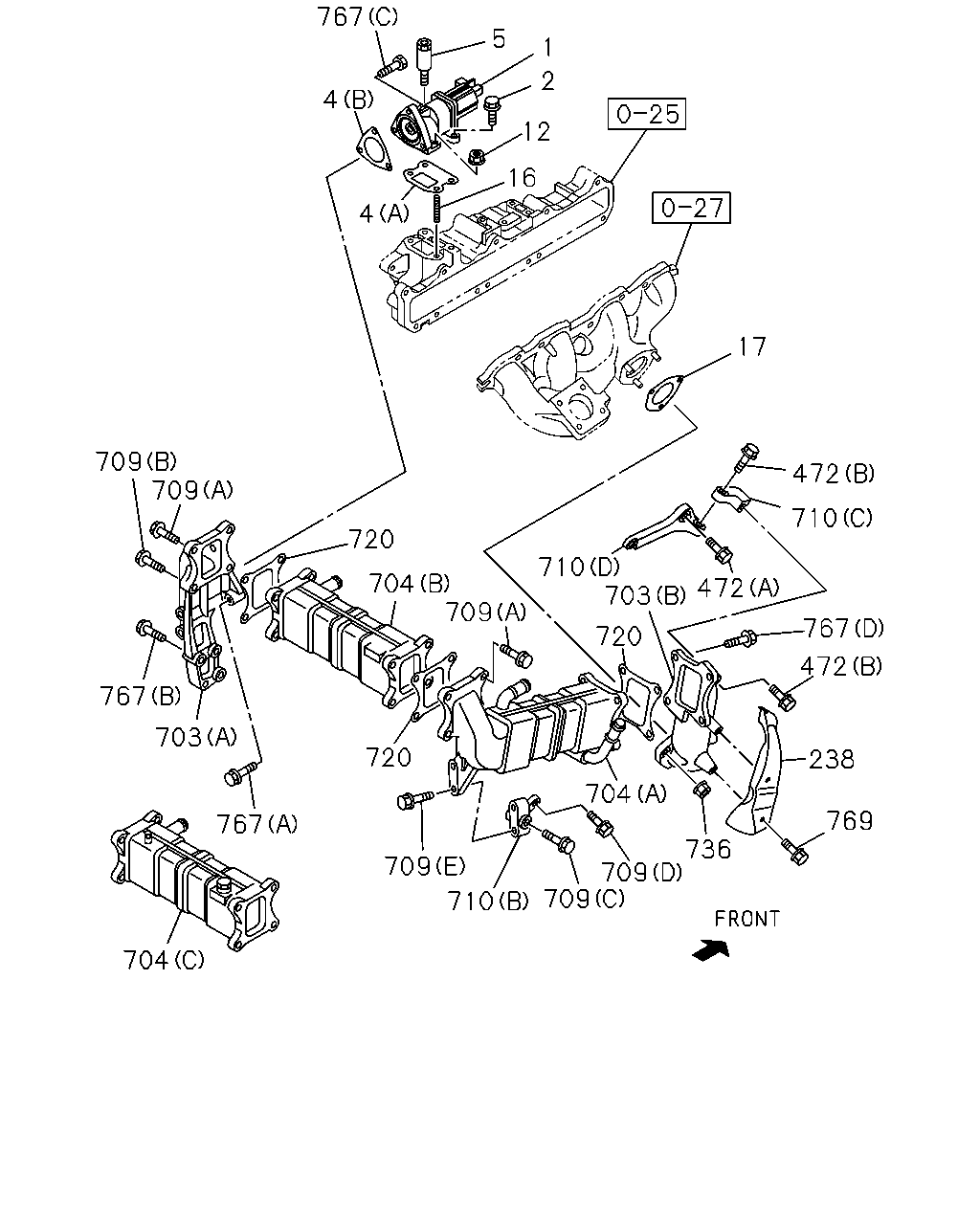

çizim 183271
767 5 1 2 4 12 16 4 17 709 709 472 710 720 710 472 703 704 709 767 720 472 767 703 720 238 704 769 767 736 709 709 709 710 704
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.670 VALVE; EGR
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 		8-98219-180-0 01 1 1508- ●
1 03.670 VALVE; EGR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 		8-98098-257-5 01 1 1111-1507 ● ●
1 03.670 VALVE; EGR
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98098-257-5 01 1 1508- ●
1 03.670 VALVE; EGR
EURO4 SPECIFICATION(NT4) 		8-98098-257-5 01 1 1508- ●
1 03.670 VALVE; EGR 8-98098-257-5 01 1 1508- ●
2 03.670 BOLT; EGR VLV
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1508- ●
2 03.670 BOLT; EGR VLV
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1111-1507 ● ●
2 03.670 BOLT; EGR VLV
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
2 03.670 BOLT; EGR VLV
EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
2 03.670 BOLT; EGR VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97306-040-0 01 1 1111- ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.665 (B) 		8-98036-507-0 01 1 1111- ● ●
5 03.670 ADAPTER ASM
00.269 		8-97377-804-0 01 1 1111-1507 ● ●
5 03.670 ADAPTER ASM
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.269 		8-97377-804-0 01 1 1508- ●
5 03.670 ADAPTER ASM
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 00.269 		8-97377-804-0 01 1 1508- ●
5 03.670 ADAPTER ASM
00.269 		8-97377-804-0 01 1 1508- ●
12 03.671 NUT; EGR VLV
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
16 03.275 STUD; EGR VLV
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.510 M8X20 L=32 		0-41010-820-0 02 1 1111- ● ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.680 ID=51.5 		8-98046-192-1 01 1 1111- ● ●
238 03.330 PROTECTOR; HEAT,EGR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 		8-98176-249-0 01 1 1111- ● ●
472 03.671 BOLT; BRKT
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.277 (A) M8X25 FLANGE 		0-28660-825-0 02 1 1111- ● ●
472 03.671 BOLT; BRKT
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.029 (B) M10X40 FLANGE 		0-28751-040-0 02 1 1111- ● ●
703 03.675 DUCT; EGR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) 		8-98115-663-0 01 1 1111- ● ●
703 03.675 DUCT; EGR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) 		8-98115-665-1 01 1 1111- ● ●
704 03.337 COOLER ASM; EGR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) 		8-98025-248-5 01 1 1111- ● ●
704 03.337 COOLER ASM; EGR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) 		8-98025-249-4 01 1 1111-1204 ● ●
704 03.337 COOLER ASM; EGR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) 		8-98212-718-0 01 1 1205- ● ●
709 03.670 BOLT; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) M8X45 FLANGE 		0-28060-845-0 01 1 1111- ● ●
709 03.670 BOLT; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.685 (C) M12X60 FLANGE 		0-28151-260-0 01 1 1111- ● ●
709 03.670 BOLT; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.277 (D) M8X25 FLANGE 		0-28660-825-0 01 1 1111- ● ●
709 03.670 BOLT; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.029 (E) M10X40 FLANGE 		0-28751-040-0 02 1 1111- ● ●
709 03.670 BOLT; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.417 (A) M8X28 FLANGE 		8-98043-528-0 07 1 1111-1111 ● ●
709 03.670 BOLT; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.680 (A) M8X30 FLANGE 		0-28660-830-0 07 1 1111- ● ●
710 03.337 BRACKET; EGR COOLER
EURO2 SPECIFICATION(NT2) (A) 		8-98079-255-1 01 1 1111- ● ●
710 03.337 BRACKET; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.680 (D) 		8-98025-253-2 01 1 1111- ● ●
710 03.337 BRACKET; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) 		8-98025-254-1 01 1 1111- ● ●
710 03.337 BRACKET; EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) 		8-98055-940-1 01 1 1111- ● ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 		8-98149-353-0 03 1 1111-1302 ● ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 		8-98200-753-0 03 1 1303- ● ●
736 03.675 NUT; DUCT,EGR VLV
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.613 M8 FLANGE 		8-97061-401-1 03 1 1111- ● ●
767 03.670 BOLT; DUCT,EGR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1111- ● ●
767 03.670 BOLT; DUCT,EGR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.685 (B) M12X50 FLANGE 		0-28151-250-0 02 1 1111- ● ●
767 03.670 BOLT; DUCT,EGR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.403 (C) M8X30 FLANGE 		0-28650-830-0 01 1 1111- ● ●
767 03.670 BOLT; DUCT,EGR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.417 (D) M8X28 FLANGE 		8-98043-528-0 04 1 1111- ● ●
769 01.750 BOLT; HEAT PROTECTOR
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.602 M6X12 W/PL WASHER 		8-98054-289-0 04 1 1111- ● ●
