0-52 — OIL AND VACUUM PIPING; ENGINE (#80660) — 65 parça

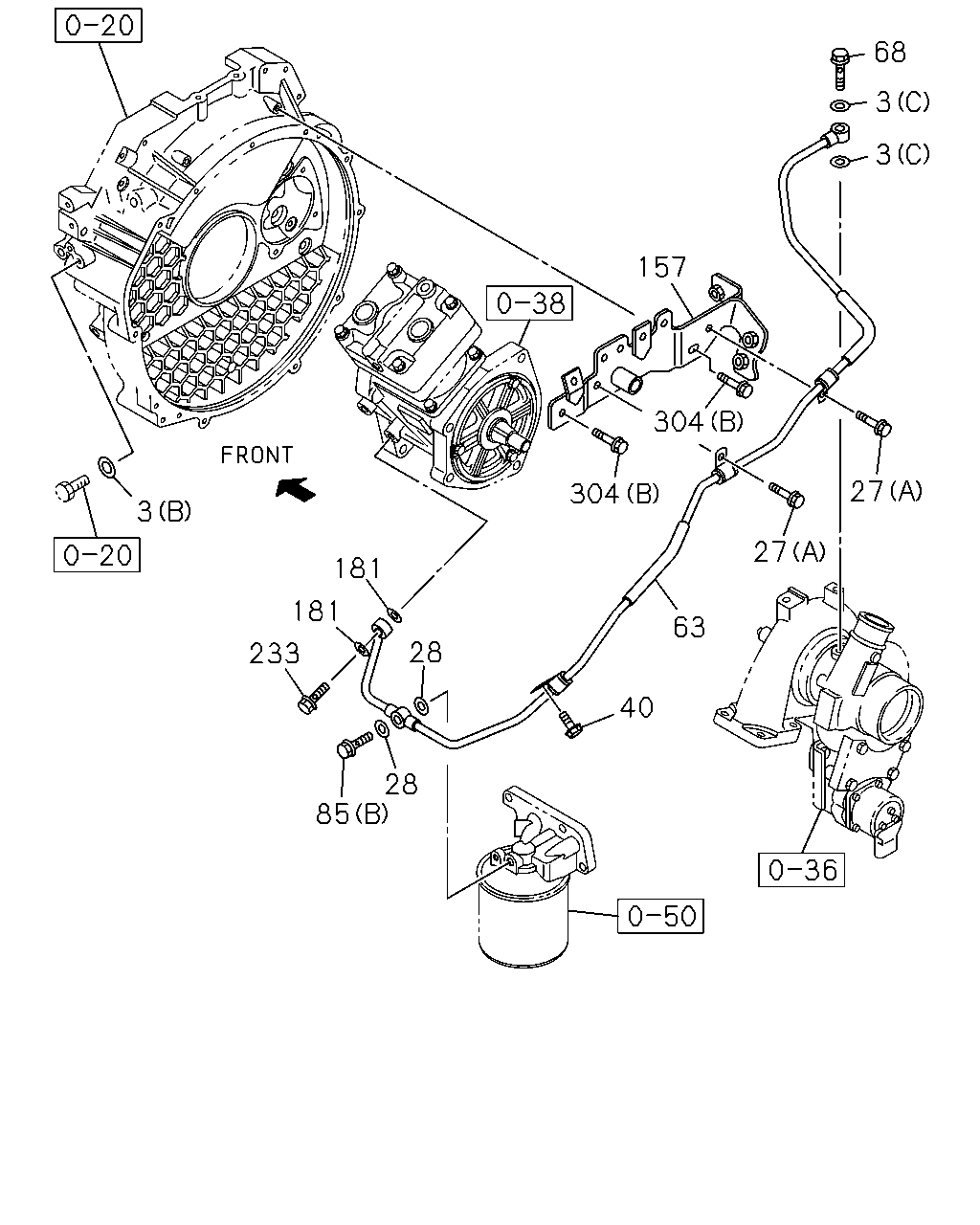

68 3 3 157 304 27 304 3 27 181 181 63 28 233 40 28 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (A) ID=12.6	8-97331-137-1	01	1	1111-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1111-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	1111-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1111-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) ID=10.2 OD=15.2	1-09630-083-0	04	1	1111-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) ID=10.2 OD=15.2	1-09630-083-0	02	1	1111-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98259-162-1	01	1	1508-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2)	8-98172-866-1	01	1	1111-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98172-865-2	01	1	1111-1507	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98172-865-2	01	1	1508-1509	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4)	8-98172-865-2	01	1	1508-1509	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98172-865-2	01	1	1508-1509		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98331-127-0	01	1	1510-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4)	8-98331-127-0	01	1	1510-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98331-127-0	01	1	1510-		●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) M12X28 FLANGE	8-97166-518-1	01	1	1111-	●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) M10X26	8-98037-825-0	01	1	1111-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX EURO2 SPECIFICATION(NT2) (A) M10X22	1-09675-028-0	01	1	1111-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	1111-	●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2)	8-98190-336-0	01	1	1111-	●	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98190-337-0	01	1	1111-	●	●
181	01.531 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) ID=10.2 OD=15.2	1-09630-083-0	02	1	1111-	●	●
233	01.531 BOLT; EYE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) M10X22	1-09675-028-0	01	1	1111-	●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1111-	●	●
304	01.540 BOLT; BRKT,OIL PIPE 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	1111-	●	●

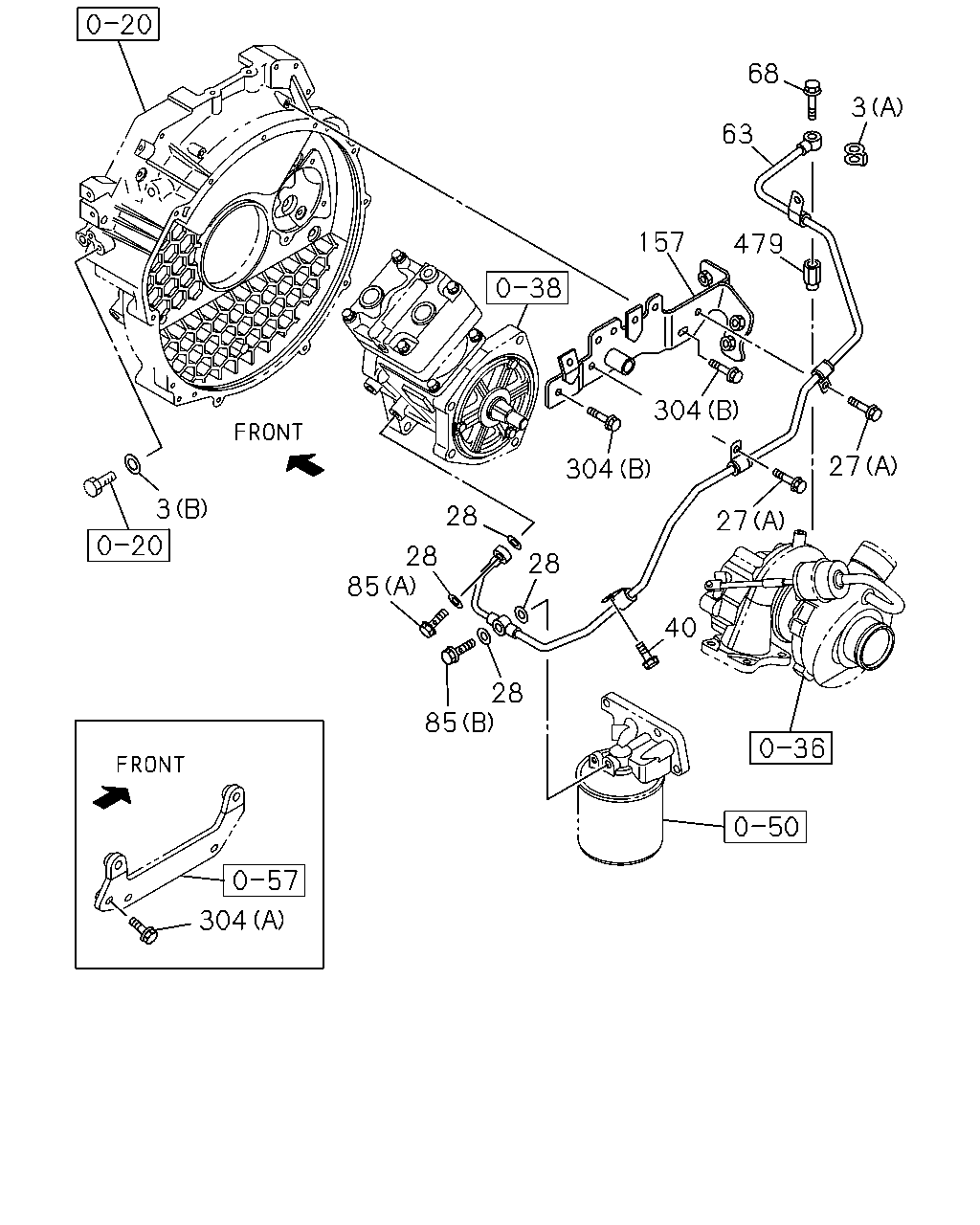

68 3 63 157 479 304 27 304 3 28 27 28 28 85 40 28 85 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (A) ID=12.6	8-97331-137-1	01	1	1111-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1111-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	1111-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1111-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) ID=10.2 OD=15.2	1-09630-083-0	04	1	1111-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) ID=10.2 OD=15.2	1-09630-083-0	02	1	1111-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98259-162-1	01	1	1508-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2)	8-98172-866-1	01	1	1111-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98172-865-2	01	1	1111-1507	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98172-865-2	01	1	1508-1509	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4)	8-98172-865-2	01	1	1508-1509	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98172-865-2	01	1	1508-1509		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98331-127-0	01	1	1510-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4)	8-98331-127-0	01	1	1510-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98331-127-0	01	1	1510-		●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) M12X28 FLANGE	8-97166-518-1	01	1	1111-	●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) M10X26	8-98037-825-0	01	1	1111-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX EURO2 SPECIFICATION(NT2) (A) M10X22	1-09675-028-0	01	1	1111-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	1111-	●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2)	8-98190-336-0	01	1	1111-	●	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98190-337-0	01	1	1111-	●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1111-	●	●
304	01.540 BOLT; BRKT,OIL PIPE 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	1111-	●	●
479	01.531 ADAPTER EURO2 SPECIFICATION(NT2) 01.800	8-94436-891-0	01	1	1111-	●	●

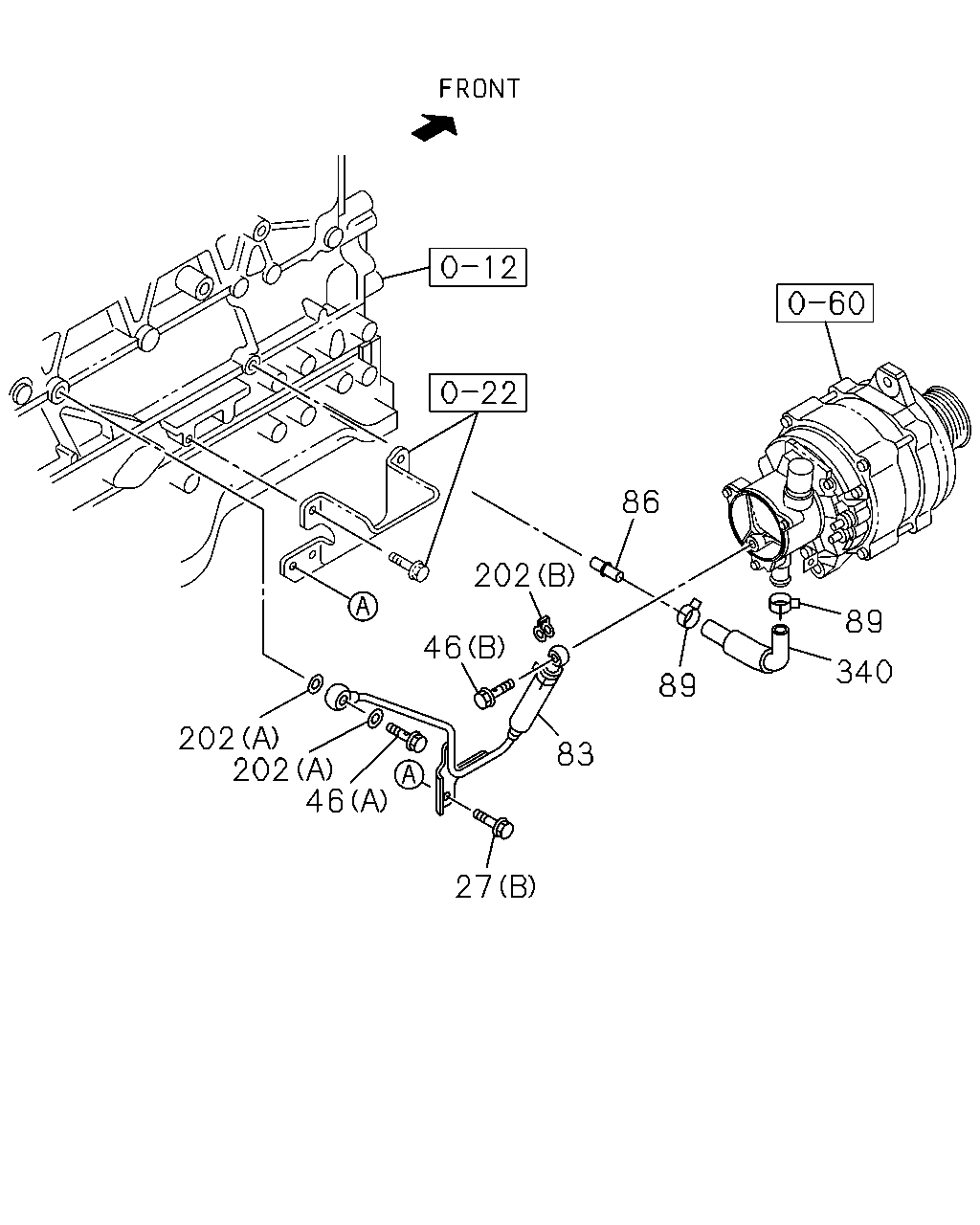

86 202 89 46 340 89 202 202 46 83 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	01.531 BOLT; OIL PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1111-	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	1111-	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU (B) M10X21 FLANGE	8-97372-239-0	01	1	1111-	●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98190-349-1	01	1	1111-	●	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	1111-	●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1111-	●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1111-	●	●
202	01.531 GASKET; OIL PIPE 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
202	01.531 GASKET; OIL PIPE (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
202	01.531 GASKET; OIL PIPE (B) ID=10.2	8-97365-390-0	01	1	1111-	●	●
340	03.280 HOSE; VAC PUMP,RETURN	8-98176-281-0	01	1	1111-	●	●
