Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#80655) — 544 parça

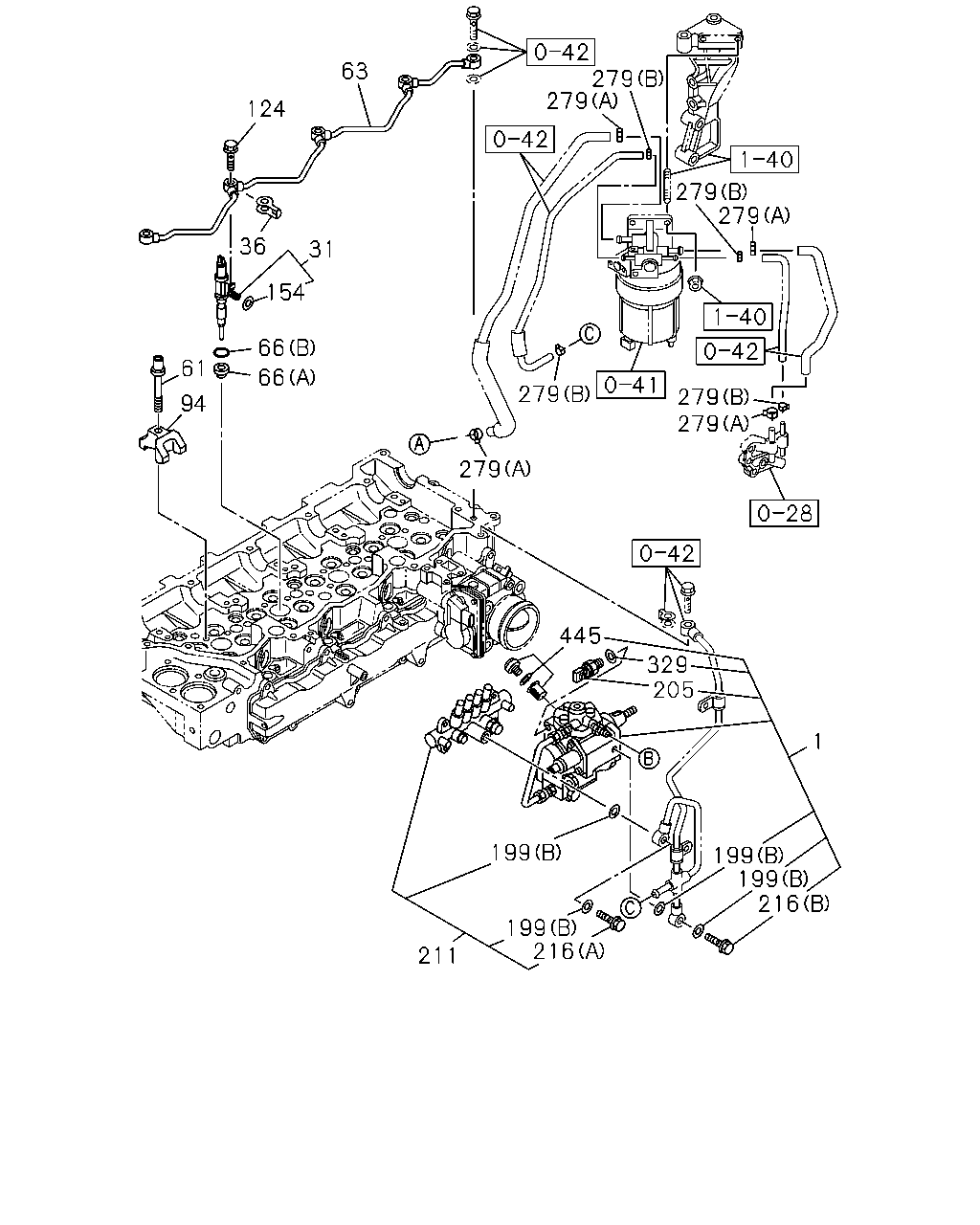

124 61 66 94 66 154 31 36 63 348 279 279 279 348 279 279 279 279 279 445 199 211 199 216 216 199 199 329 205 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-98168-006-0	01	1	1508-	●
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1111-1507	●	●
1	03.306 PUMP ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-97386-557-5	01	1	1508-	●
1	03.306 PUMP ASM; INJ EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-97386-557-5	01	1	1508-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97386-557-5	01	1	1508-		●
31	03.332 NOZZLE ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98207-435-0	04	1	1508-	●
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1111-1507	●	●
31	03.332 NOZZLE ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-97609-788-6	04	1	1508-	●
31	03.332 NOZZLE ASM; INJ EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-97609-788-6	04	1	1508-	●
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1508-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1111-	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1111-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1111-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1111-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1111-	●	●
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1111-	●	●
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1111-	●	●
154	03.332 GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-	●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1111-	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98077-001-1	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1111-1507	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1508-		●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98035-828-0	01	1	1508-	●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-1507	●	●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1508-		●
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	1111-	●	●
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	04	1	1111-	●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1111-1201	●	●
348	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-98173-967-1	01	1	1508-	●	●
348	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-98173-967-1	01	1	1111-1507	●	●
348	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98259-173-1	01	1	1508-	●
348	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98173-968-1	01	1	1111-1507	●	●
348	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98173-968-1	01	1	1508-	●
348	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (B)	8-98173-968-1	01	1	1508-	●
348	03.163 HOSE; FUEL (B)	8-98173-968-1	01	1	1508-		●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1111-	●	●

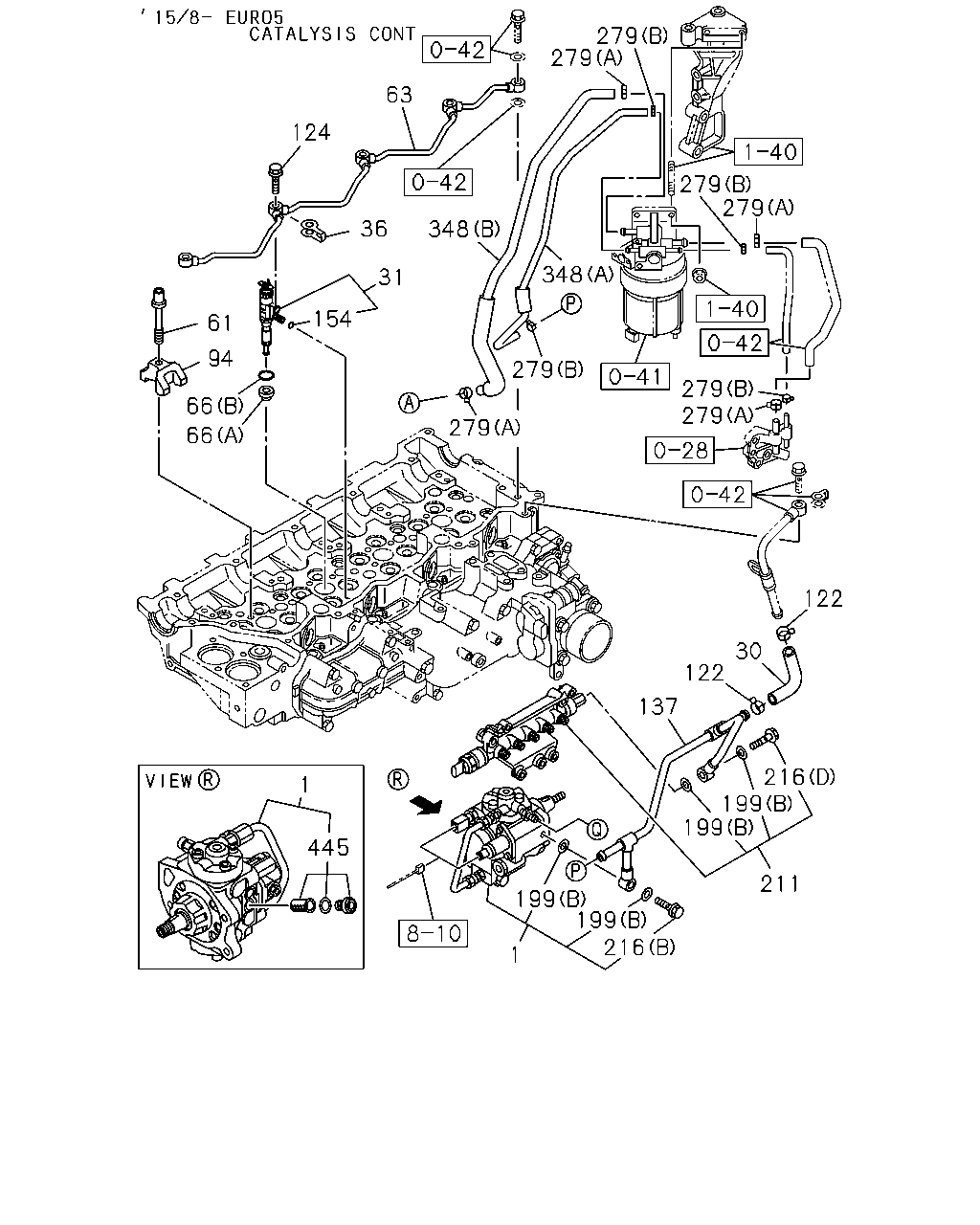

61 66 94 66 154 31 36 348 124 63 279 279 279 348 279 279 279 279 1 279 445 199 216 199 137 199 211 199 122 216 30 122 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-98168-006-0	01	1	1508-	●
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1111-1507	●	●
1	03.306 PUMP ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-97386-557-5	01	1	1508-	●
1	03.306 PUMP ASM; INJ EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-97386-557-5	01	1	1508-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97386-557-5	01	1	1508-		●
30	03.163 HOSE; RUBBER,FUEL LEAK EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98257-390-0	01	1	1508-	●
31	03.332 NOZZLE ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98207-435-0	04	1	1508-	●
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1111-1507	●	●
31	03.332 NOZZLE ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-97609-788-6	04	1	1508-	●
31	03.332 NOZZLE ASM; INJ EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-97609-788-6	04	1	1508-	●
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1508-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1111-	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1111-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1111-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1111-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1111-	●	●
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1111-	●	●
122	03.162 CLIP; LEAK OFF PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 01.153 ID=11.5	8-97375-638-0	02	1	1508-	●
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1111-	●	●
137	03.163 PIPE ASM; LEAK OFF EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98289-285-0	01	1	1508-	●
154	03.332 GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98077-001-1	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1111-1507	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1508-		●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98035-828-0	01	1	1508-	●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-1507	●	●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1508-		●
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	1111-	●	●
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	04	1	1111-	●	●
348	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-98173-967-1	01	1	1508-	●	●
348	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-98173-967-1	01	1	1111-1507	●	●
348	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98259-173-1	01	1	1508-	●
348	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98173-968-1	01	1	1111-1507	●	●
348	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98173-968-1	01	1	1508-	●
348	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (B)	8-98173-968-1	01	1	1508-	●
348	03.163 HOSE; FUEL (B)	8-98173-968-1	01	1	1508-		●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1111-	●	●

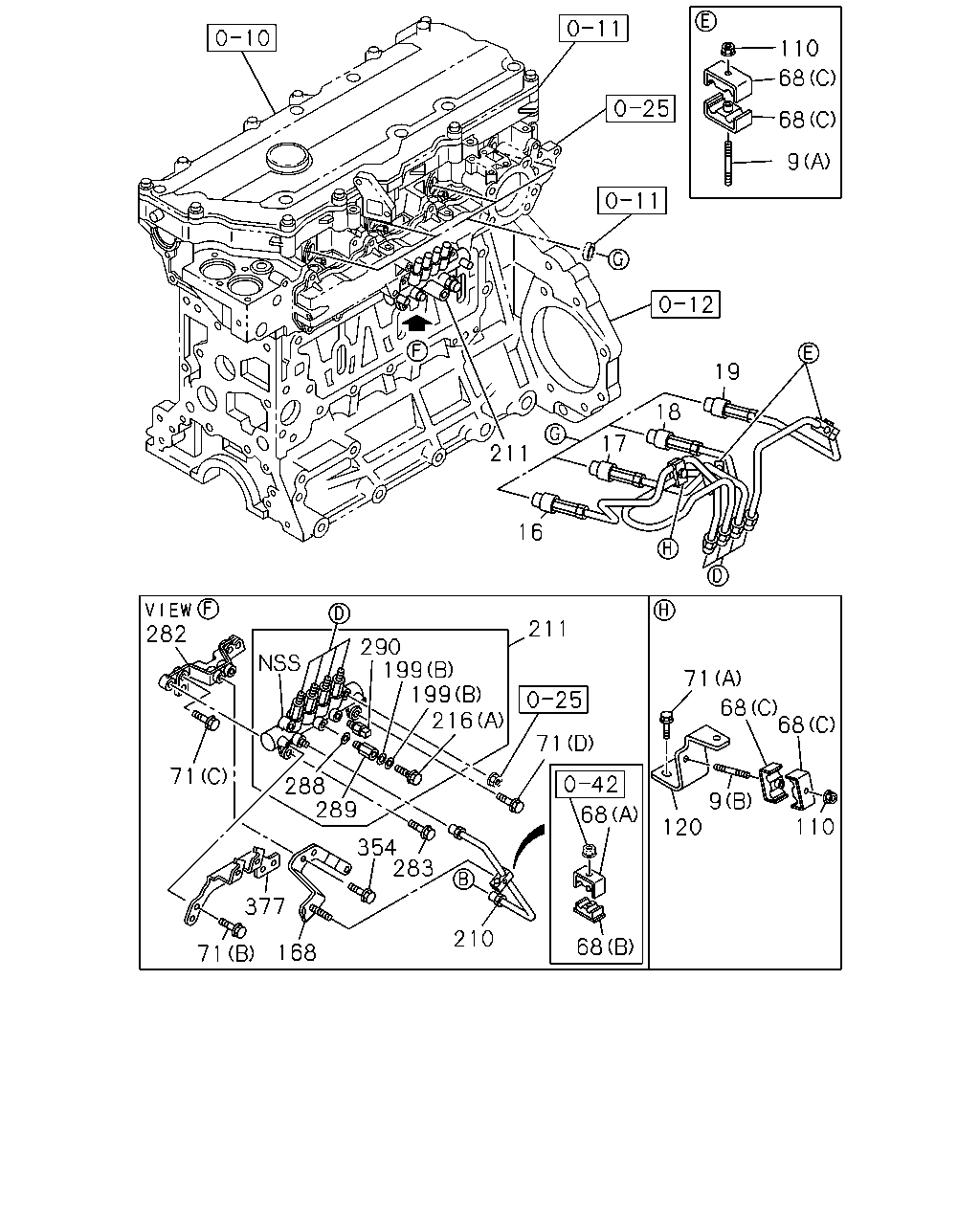

110 68 68 9 19 211 18 17 16 282 211 290 199 199 216 71 68 68 71 288 289 71 9 120 68 110 354 283 377 210 68 168 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.340 STUD; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (D) M6X40 L=50	0-41010-640-0	02	1	1508-	●
9	03.340 STUD; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 00.413 (B) M6X35 L=43	8-97203-278-0	03	1	1508-	●
9	03.340 STUD; CLIP EURO2 SPECIFICATION(NT2) 00.413 (A) M6X30 L=38	0-41010-630-0	02	1	1111-	●	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1111-1507	●	●
9	03.340 STUD; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1508-	●
9	03.340 STUD; CLIP EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1508-	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1508-		●
9	03.340 STUD; CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.413 (C) M6X30 L=38	0-41010-630-0	04	1	1111-	●	●
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-502-0	01	1	1508-	●
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98185-344-0	01	1	1111-1404	●	●
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98271-202-0	01	1	1405-1501	●	●
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98298-606-0	01	1	1502-	●	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-352-0	01	1	1111-1404	●	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-218-0	01	1	1405-1502	●	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-628-0	01	1	1503-1507	●	●
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-628-0	01	1	1508-	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4)	8-98298-628-0	01	1	1508-	●
16	03.330 PIPE; INJ NO.1	8-98298-628-0	01	1	1508-		●
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-503-0	01	1	1508-	●
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98185-345-0	01	1	1111-1404	●	●
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98271-203-0	01	1	1405-1501	●	●
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98298-607-0	01	1	1502-	●	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-353-0	01	1	1111-1404	●	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-219-0	01	1	1405-1502	●	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-629-0	01	1	1503-1507	●	●
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-629-0	01	1	1508-	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4)	8-98298-629-0	01	1	1508-	●
17	03.330 PIPE; INJ NO.2	8-98298-629-0	01	1	1508-		●
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-504-0	01	1	1508-	●
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98185-346-0	01	1	1111-1404	●	●
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98271-204-0	01	1	1405-1501	●	●
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98298-608-0	01	1	1502-	●	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-354-0	01	1	1111-1404	●	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-220-0	01	1	1405-1502	●	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-630-0	01	1	1503-1507	●	●
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-630-0	01	1	1508-	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4)	8-98298-630-0	01	1	1508-	●
18	03.330 PIPE; INJ NO.3	8-98298-630-0	01	1	1508-		●
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-505-0	01	1	1508-	●
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98185-347-0	01	1	1111-1404	●	●
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98271-205-0	01	1	1405-1501	●	●
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98298-609-0	01	1	1502-	●	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-355-0	01	1	1111-1404	●	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-221-0	01	1	1405-1502	●	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-631-0	01	1	1503-1507	●	●
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-631-0	01	1	1508-	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4)	8-98298-631-0	01	1	1508-	●
19	03.330 PIPE; INJ NO.4	8-98298-631-0	01	1	1508-		●
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A) ID=7 & 7 L=22	8-97330-118-3	05	1	1508-	●
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B) ID=7 & 7 L=22	8-97330-119-3	05	1	1508-	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (A) ID=7 & 7 L=22	8-97330-118-3	01	1	1111-	●	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1111-	●	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19	8-98039-293-0	06	1	1111-1405	●	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●	●
68	03.162 CLIP; INJ PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19	8-98039-293-0	10	1	1111-1405	●	●
68	03.162 CLIP; INJ PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-1507	●	●
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1508-	●
68	03.162 CLIP; INJ PIPE EURO4 SPECIFICATION(NT4) (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1508-	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1508-		●
71	03.162 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1508-	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1111-	●	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	1111-	●	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	1111-	●	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1111-1507	●	●
71	03.162 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-		●
71	03.162 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1111-1507	●	●
71	03.162 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1508-	●

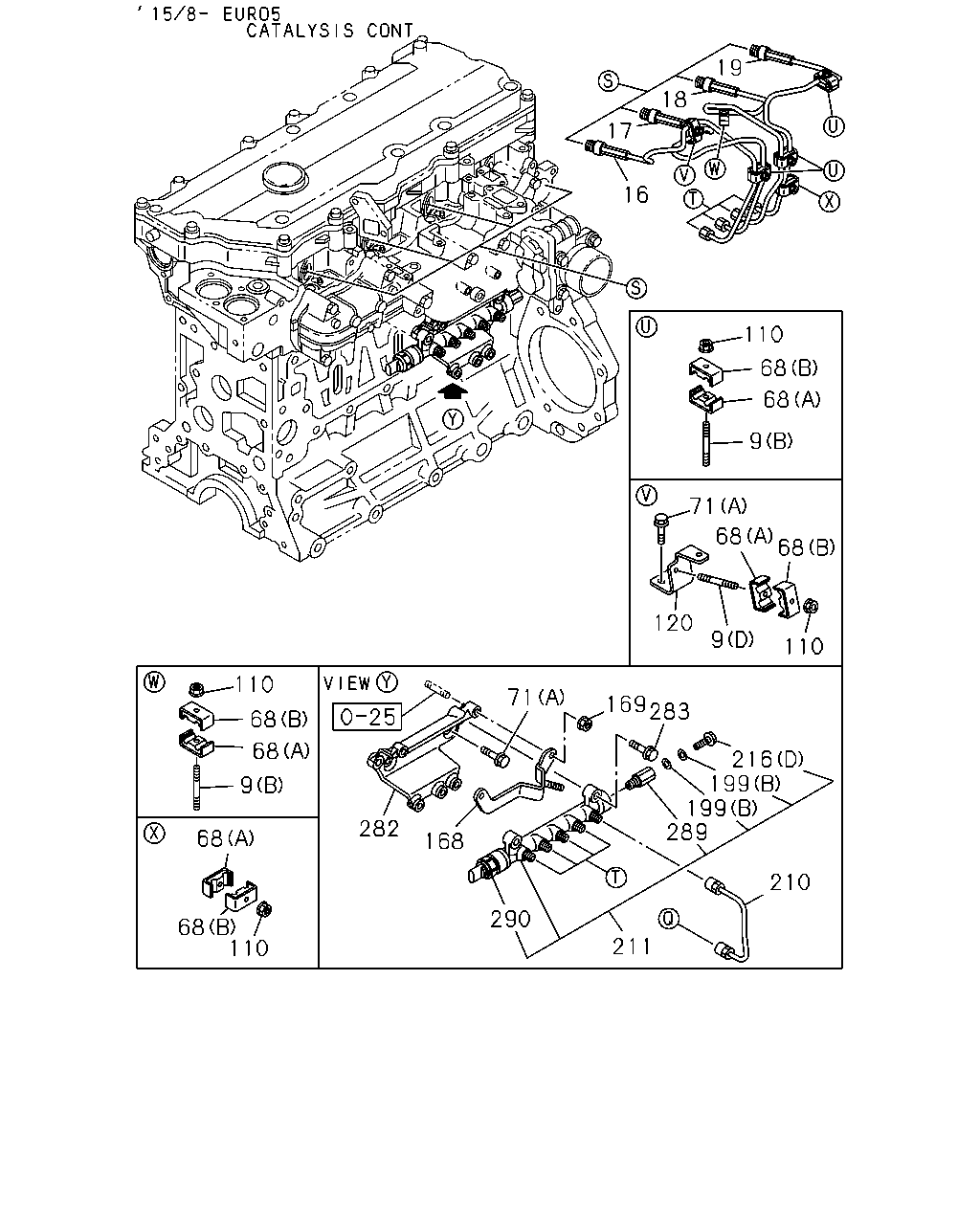

71	03.162 BOLT; BRKT EURO4 SPECIFICATION(NT4) 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1508-	●
71	03.162 BOLT; BRKT 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1508-		●
110	03.330 NUT; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 01.062 M6 FLANGE	0-91180-106-0	06	1	1508-1508	●
110	03.330 NUT; CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	05	1	1508-	●	●
110	03.330 NUT; CLIP EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	03	1	1111-	●	●
110	03.330 NUT; CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	05	1	1111-1507	●	●
120	03.330 BRACKET; INJ PIPE	8-98041-601-0	01	1	1111-	●	●
168	03.890 BRACKET; FUEL PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98273-168-0	01	1	1508-1508	●
168	03.890 BRACKET; FUEL PIPE EURO2 SPECIFICATION(NT2)	8-98072-403-0	01	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-	●	●
210	03.330 PIPE; INJ,C/R EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-506-1	01	1	1508-	●
210	03.330 PIPE; INJ,C/R EURO5 SPECIFICATION(NT5)	8-98087-940-0	01	1	1111-1507	●	●
210	03.330 PIPE; INJ,C/R EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98087-940-0	01	1	1508-	●
210	03.330 PIPE; INJ,C/R	8-98087-940-0	01	1	1508-		●
210	03.330 PIPE; INJ,C/R EURO2 SPECIFICATION(NT2)	8-97376-779-0	01	1	1111-	●	●
210	03.330 PIPE; INJ,C/R EURO4 SPECIFICATION(NT4)	8-98172-184-0	01	1	1111-	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98077-001-1	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1111-1507	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1508-		●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98035-828-0	01	1	1508-	●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-1507	●	●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1508-		●
282	03.163 BRACKET; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98200-778-0	01	1	1508-	●
282	03.163 BRACKET; COMMON RAIL EURO2 SPECIFICATION(NT2)	8-98157-115-0	01	1	1111-	●	●
282	03.163 BRACKET; COMMON RAIL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98106-661-1	01	1	1111-1507	●	●
282	03.163 BRACKET; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98106-661-1	01	1	1508-	●
282	03.163 BRACKET; COMMON RAIL EURO4 SPECIFICATION(NT4)	8-98106-661-1	01	1	1508-	●
282	03.163 BRACKET; COMMON RAIL	8-98106-661-1	01	1	1508-		●
283	03.330 BOLT; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	1508-	●
283	03.330 BOLT; COMMON RAIL EURO2 SPECIFICATION(NT2) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1111-	●	●
283	03.330 BOLT; COMMON RAIL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1111-1507	●	●
283	03.330 BOLT; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1508-	●
283	03.330 BOLT; COMMON RAIL EURO4 SPECIFICATION(NT4) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1508-	●
283	03.330 BOLT; COMMON RAIL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1508-		●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1111-1507	●	●
288	03.331 GASKET EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) ID=11 OD=16.3	1-15641-046-0	01	1	1508-	●
288	03.331 GASKET EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) ID=11 OD=16.3	1-15641-046-0	01	1	1508-	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1508-		●
289	03.331 LIMITER; FUEL PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98138-695-0	01	1	1508-	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1111-1507	●	●
289	03.331 LIMITER; FUEL PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98032-549-0	01	1	1508-	●
289	03.331 LIMITER; FUEL PRESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98032-549-0	01	1	1508-	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1508-		●
290	03.331 SENSOR; PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98138-736-0	01	1	1508-	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1111-1507	●	●
290	03.331 SENSOR; PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98119-790-0	01	1	1508-	●
290	03.331 SENSOR; PRESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98119-790-0	01	1	1508-	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1508-		●
354	03.163 BOLT; FUEL PIPE EURO2 SPECIFICATION(NT2) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1111-	●	●
377	03.332 BRACKET; HARNESS EURO2 SPECIFICATION(NT2)	8-98172-648-0	01	1	1111-	●	●

279 279 279 279 279 279 279 279 63 124 31 154 36 66 66 94 61 445 329 205 1 199 199 216 216 199 199 211

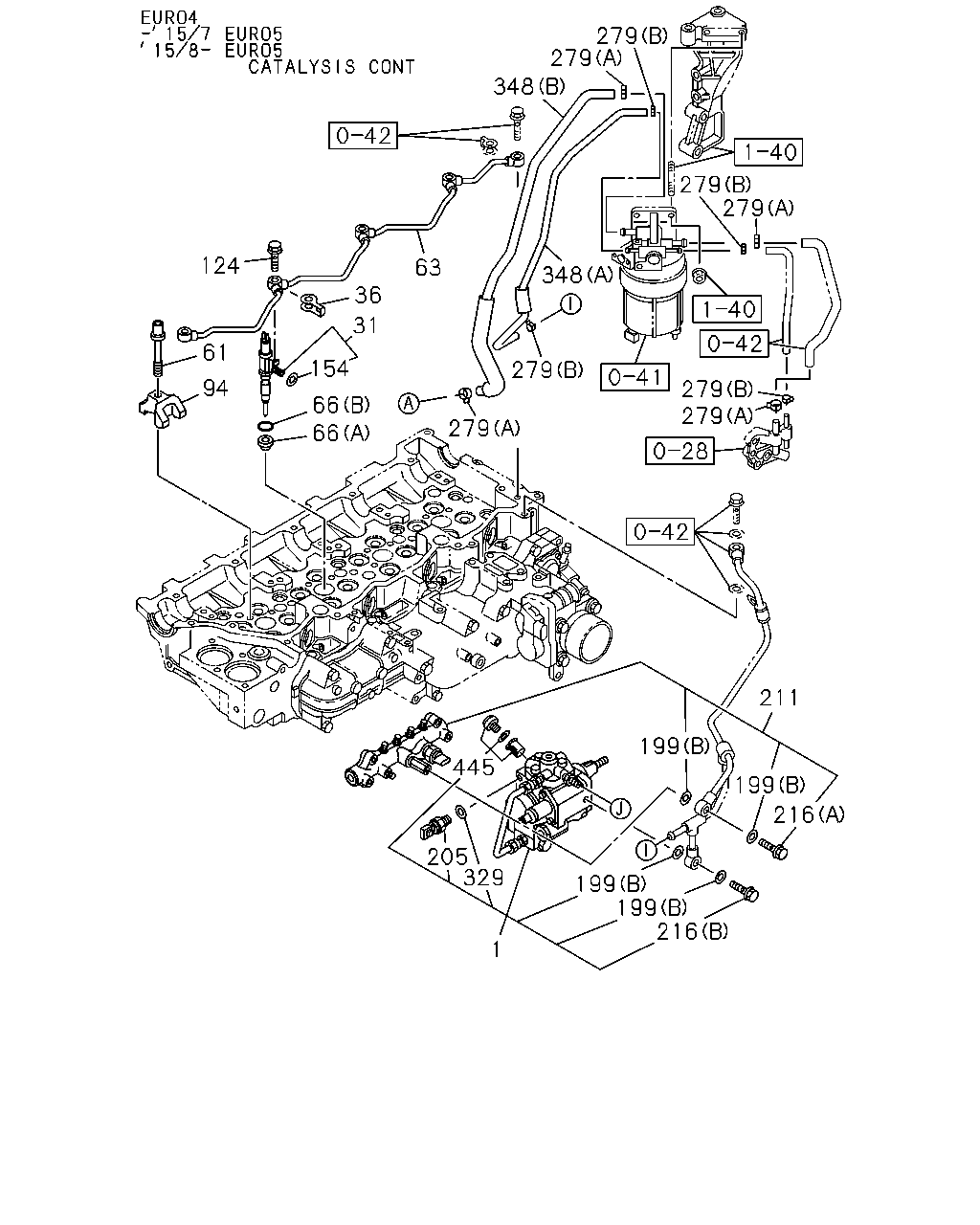

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

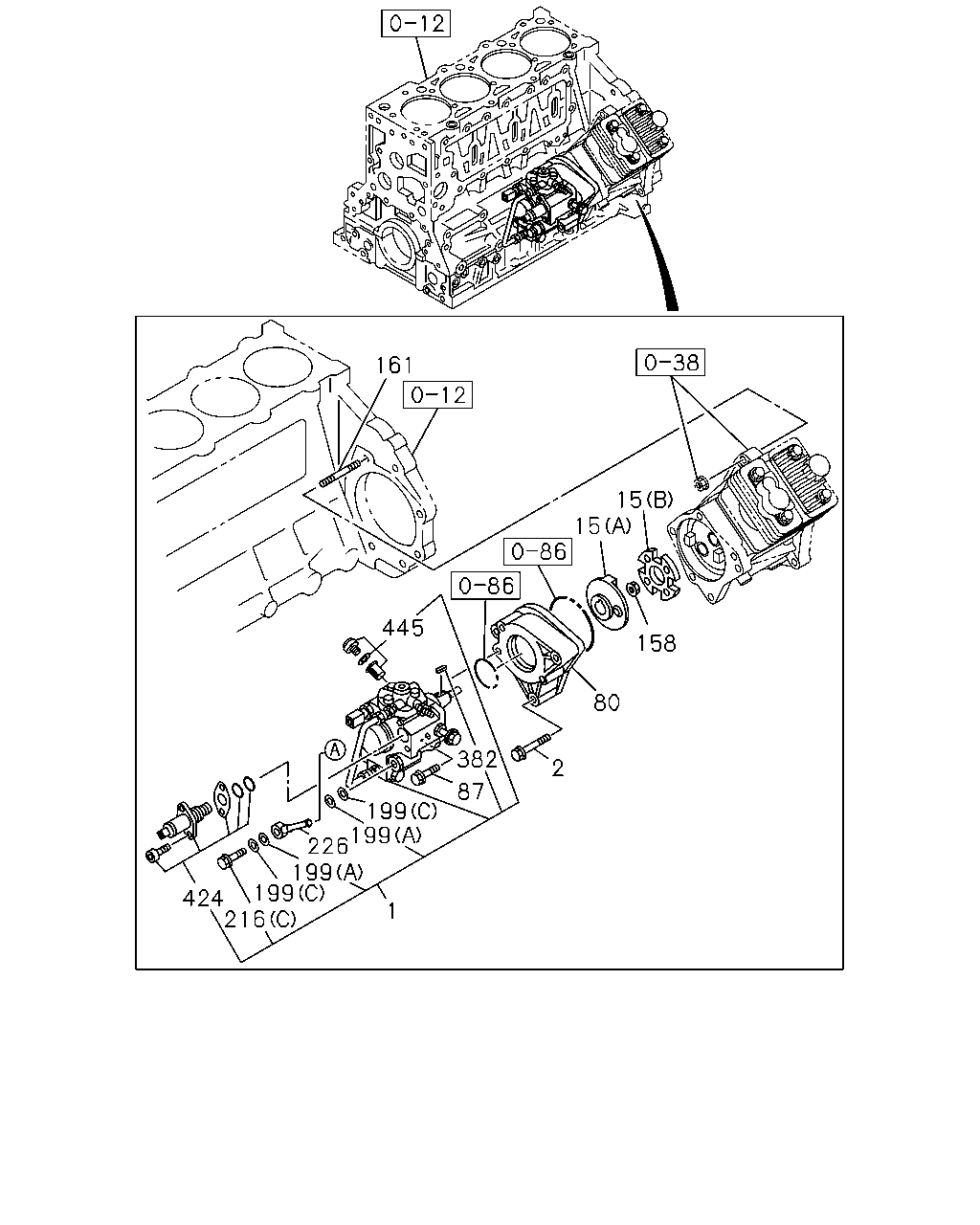

1	03.306 PUMP ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-98168-006-0	01	1	1508-	●
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1111-1507	●	●
1	03.306 PUMP ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-97386-557-5	01	1	1508-	●
1	03.306 PUMP ASM; INJ EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-97386-557-5	01	1	1508-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97386-557-5	01	1	1508-		●
31	03.332 NOZZLE ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98207-435-0	04	1	1508-	●
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1111-1507	●	●
31	03.332 NOZZLE ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-97609-788-6	04	1	1508-	●
31	03.332 NOZZLE ASM; INJ EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-97609-788-6	04	1	1508-	●
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1508-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1111-	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1111-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1111-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1111-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1111-	●	●
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1111-	●	●
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1111-	●	●
154	03.332 GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-	●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1111-	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98077-001-1	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1111-1507	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1508-		●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98035-828-0	01	1	1508-	●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-1507	●	●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1508-		●
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	1111-	●	●
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	04	1	1111-	●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1111-1201	●	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1111-	●	●

16 17 18 19 211 211 388 392 216 199 199 290 169 71 283 210 282 110 68 68 9 71 68 68 9 120 110 288 289

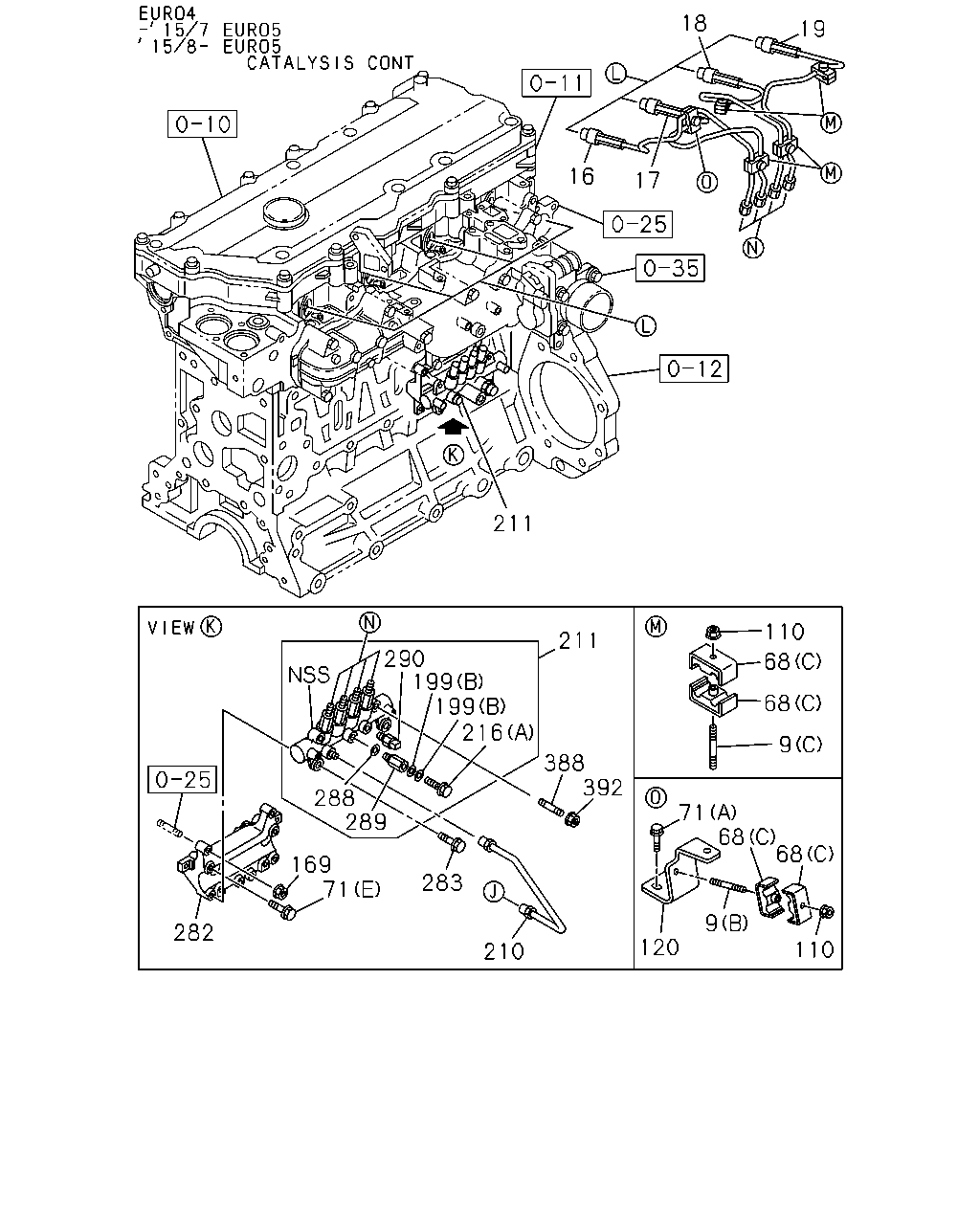

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.340 STUD; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (D) M6X40 L=50	0-41010-640-0	02	1	1508-	●
9	03.340 STUD; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 00.413 (B) M6X35 L=43	8-97203-278-0	03	1	1508-	●
9	03.340 STUD; CLIP EURO2 SPECIFICATION(NT2) 00.413 (A) M6X30 L=38	0-41010-630-0	02	1	1111-	●	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1111-1507	●	●
9	03.340 STUD; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1508-	●
9	03.340 STUD; CLIP EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1508-	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1508-		●
9	03.340 STUD; CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.413 (C) M6X30 L=38	0-41010-630-0	04	1	1111-	●	●
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-502-0	01	1	1508-	●
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98185-344-0	01	1	1111-1404	●	●
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98271-202-0	01	1	1405-1501	●	●
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98298-606-0	01	1	1502-	●	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-352-0	01	1	1111-1404	●	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-218-0	01	1	1405-1502	●	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-628-0	01	1	1503-1507	●	●
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-628-0	01	1	1508-	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4)	8-98298-628-0	01	1	1508-	●
16	03.330 PIPE; INJ NO.1	8-98298-628-0	01	1	1508-		●
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-503-0	01	1	1508-	●
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98185-345-0	01	1	1111-1404	●	●
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98271-203-0	01	1	1405-1501	●	●
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98298-607-0	01	1	1502-	●	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-353-0	01	1	1111-1404	●	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-219-0	01	1	1405-1502	●	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-629-0	01	1	1503-1507	●	●
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-629-0	01	1	1508-	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4)	8-98298-629-0	01	1	1508-	●
17	03.330 PIPE; INJ NO.2	8-98298-629-0	01	1	1508-		●
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-504-0	01	1	1508-	●
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98185-346-0	01	1	1111-1404	●	●
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98271-204-0	01	1	1405-1501	●	●
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98298-608-0	01	1	1502-	●	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-354-0	01	1	1111-1404	●	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-220-0	01	1	1405-1502	●	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-630-0	01	1	1503-1507	●	●
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-630-0	01	1	1508-	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4)	8-98298-630-0	01	1	1508-	●
18	03.330 PIPE; INJ NO.3	8-98298-630-0	01	1	1508-		●
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-505-0	01	1	1508-	●
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98185-347-0	01	1	1111-1404	●	●
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98271-205-0	01	1	1405-1501	●	●
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98298-609-0	01	1	1502-	●	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-355-0	01	1	1111-1404	●	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-221-0	01	1	1405-1502	●	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-631-0	01	1	1503-1507	●	●
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-631-0	01	1	1508-	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4)	8-98298-631-0	01	1	1508-	●
19	03.330 PIPE; INJ NO.4	8-98298-631-0	01	1	1508-		●
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A) ID=7 & 7 L=22	8-97330-118-3	05	1	1508-	●
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B) ID=7 & 7 L=22	8-97330-119-3	05	1	1508-	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (A) ID=7 & 7 L=22	8-97330-118-3	01	1	1111-	●	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1111-	●	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19	8-98039-293-0	06	1	1111-1405	●	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●	●
68	03.162 CLIP; INJ PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19	8-98039-293-0	10	1	1111-1405	●	●
68	03.162 CLIP; INJ PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-1507	●	●
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1508-	●
68	03.162 CLIP; INJ PIPE EURO4 SPECIFICATION(NT4) (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1508-	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1508-		●
71	03.162 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1508-	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1111-	●	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	1111-	●	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	1111-	●	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1111-1507	●	●
71	03.162 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-		●
71	03.162 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1111-1507	●	●
71	03.162 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1508-	●
71	03.162 BOLT; BRKT EURO4 SPECIFICATION(NT4) 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1508-	●
71	03.162 BOLT; BRKT 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1508-		●
110	03.330 NUT; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 01.062 M6 FLANGE	0-91180-106-0	06	1	1508-1508	●
110	03.330 NUT; CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	05	1	1508-	●	●
110	03.330 NUT; CLIP EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	03	1	1111-	●	●
110	03.330 NUT; CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	05	1	1111-1507	●	●
120	03.330 BRACKET; INJ PIPE	8-98041-601-0	01	1	1111-	●	●
169	03.890 NUT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-	●	●
210	03.330 PIPE; INJ,C/R EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-506-1	01	1	1508-	●
210	03.330 PIPE; INJ,C/R EURO5 SPECIFICATION(NT5)	8-98087-940-0	01	1	1111-1507	●	●
210	03.330 PIPE; INJ,C/R EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98087-940-0	01	1	1508-	●
210	03.330 PIPE; INJ,C/R	8-98087-940-0	01	1	1508-		●
210	03.330 PIPE; INJ,C/R EURO2 SPECIFICATION(NT2)	8-97376-779-0	01	1	1111-	●	●
210	03.330 PIPE; INJ,C/R EURO4 SPECIFICATION(NT4)	8-98172-184-0	01	1	1111-	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98077-001-1	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1111-1507	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1508-		●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98035-828-0	01	1	1508-	●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-1507	●	●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1508-		●
282	03.163 BRACKET; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98200-778-0	01	1	1508-	●
282	03.163 BRACKET; COMMON RAIL EURO2 SPECIFICATION(NT2)	8-98157-115-0	01	1	1111-	●	●
282	03.163 BRACKET; COMMON RAIL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98106-661-1	01	1	1111-1507	●	●
282	03.163 BRACKET; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98106-661-1	01	1	1508-	●
282	03.163 BRACKET; COMMON RAIL EURO4 SPECIFICATION(NT4)	8-98106-661-1	01	1	1508-	●
282	03.163 BRACKET; COMMON RAIL	8-98106-661-1	01	1	1508-		●
283	03.330 BOLT; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	1508-	●
283	03.330 BOLT; COMMON RAIL EURO2 SPECIFICATION(NT2) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1111-	●	●
283	03.330 BOLT; COMMON RAIL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1111-1507	●	●
283	03.330 BOLT; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1508-	●
283	03.330 BOLT; COMMON RAIL EURO4 SPECIFICATION(NT4) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1508-	●
283	03.330 BOLT; COMMON RAIL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1508-		●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1111-1507	●	●
288	03.331 GASKET EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) ID=11 OD=16.3	1-15641-046-0	01	1	1508-	●
288	03.331 GASKET EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) ID=11 OD=16.3	1-15641-046-0	01	1	1508-	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1508-		●
289	03.331 LIMITER; FUEL PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98138-695-0	01	1	1508-	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1111-1507	●	●
289	03.331 LIMITER; FUEL PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98032-549-0	01	1	1508-	●
289	03.331 LIMITER; FUEL PRESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98032-549-0	01	1	1508-	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1508-		●
290	03.331 SENSOR; PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98138-736-0	01	1	1508-	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1111-1507	●	●
290	03.331 SENSOR; PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98119-790-0	01	1	1508-	●
290	03.331 SENSOR; PRESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98119-790-0	01	1	1508-	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1508-		●
388	03.332 STUD; RAIL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.278 M8X35 L=53	0-49140-835-0	02	1	1111-1507	●	●
388	03.332 STUD; RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.278 M8X35 L=53	0-49140-835-0	02	1	1508-	●
388	03.332 STUD; RAIL EURO4 SPECIFICATION(NT4) 03.278 M8X35 L=53	0-49140-835-0	02	1	1508-	●
388	03.332 STUD; RAIL 03.278 M8X35 L=53	0-49140-835-0	02	1	1508-		●
392	03.330 NUT; RAIL ASM EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-1507	●	●
392	03.330 NUT; RAIL ASM EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●
392	03.330 NUT; RAIL ASM EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●
392	03.330 NUT; RAIL ASM 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-		●

161 15 15 158 80 2 1 382 87 199 199 226 199 199 216 424 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-98168-006-0	01	1	1508-	●
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1111-1507	●	●
1	03.306 PUMP ASM; INJ EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-97386-557-5	01	1	1508-	●
1	03.306 PUMP ASM; INJ EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-97386-557-5	01	1	1508-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97386-557-5	01	1	1508-		●
2	03.330 BOLT; INJ PUMP 00.685 M10X60 FLANGE	0-28051-060-0	03	1	1111-	●	●
15	03.340 COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	1111-	●	●
15	03.340 COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	1111-	●	●
80	03.306 BRACKET; PUMP	8-98061-699-0	01	1	1111-	●	●
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	1111-	●	●
158	03.330 NUT; INJ PUMP 07.529 M14 FLANGE	0-91180-114-0	01	1	1111-	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-	●	●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98035-828-0	01	1	1508-	●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-1507	●	●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1508-		●
226	03.163 PIPE; FUEL	8-98185-140-0	01	1	1111-	●	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1111-1201	●	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1202-	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1111-	●	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1111-	●	●

16 17 18 19 110 68 68 9 71 68 68 110 9 120 110 68 68 9 68 68 110 282 168 71 169 283 290 211 289 210 199 216 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.340 STUD; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (D) M6X40 L=50	0-41010-640-0	02	1	1508-	●
9	03.340 STUD; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 00.413 (B) M6X35 L=43	8-97203-278-0	03	1	1508-	●
9	03.340 STUD; CLIP EURO2 SPECIFICATION(NT2) 00.413 (A) M6X30 L=38	0-41010-630-0	02	1	1111-	●	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1111-1507	●	●
9	03.340 STUD; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1508-	●
9	03.340 STUD; CLIP EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1508-	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1508-		●
9	03.340 STUD; CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.413 (C) M6X30 L=38	0-41010-630-0	04	1	1111-	●	●
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-502-0	01	1	1508-	●
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98185-344-0	01	1	1111-1404	●	●
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98271-202-0	01	1	1405-1501	●	●
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98298-606-0	01	1	1502-	●	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-352-0	01	1	1111-1404	●	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-218-0	01	1	1405-1502	●	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-628-0	01	1	1503-1507	●	●
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-628-0	01	1	1508-	●
16	03.330 PIPE; INJ NO.1 EURO4 SPECIFICATION(NT4)	8-98298-628-0	01	1	1508-	●
16	03.330 PIPE; INJ NO.1	8-98298-628-0	01	1	1508-		●
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-503-0	01	1	1508-	●
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98185-345-0	01	1	1111-1404	●	●
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98271-203-0	01	1	1405-1501	●	●
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98298-607-0	01	1	1502-	●	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-353-0	01	1	1111-1404	●	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-219-0	01	1	1405-1502	●	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-629-0	01	1	1503-1507	●	●
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-629-0	01	1	1508-	●
17	03.330 PIPE; INJ NO.2 EURO4 SPECIFICATION(NT4)	8-98298-629-0	01	1	1508-	●
17	03.330 PIPE; INJ NO.2	8-98298-629-0	01	1	1508-		●
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-504-0	01	1	1508-	●
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98185-346-0	01	1	1111-1404	●	●
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98271-204-0	01	1	1405-1501	●	●
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98298-608-0	01	1	1502-	●	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-354-0	01	1	1111-1404	●	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-220-0	01	1	1405-1502	●	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-630-0	01	1	1503-1507	●	●
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-630-0	01	1	1508-	●
18	03.330 PIPE; INJ NO.3 EURO4 SPECIFICATION(NT4)	8-98298-630-0	01	1	1508-	●
18	03.330 PIPE; INJ NO.3	8-98298-630-0	01	1	1508-		●
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-505-0	01	1	1508-	●
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98185-347-0	01	1	1111-1404	●	●
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98271-205-0	01	1	1405-1501	●	●
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98298-609-0	01	1	1502-	●	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98185-355-0	01	1	1111-1404	●	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98271-221-0	01	1	1405-1502	●	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98298-631-0	01	1	1503-1507	●	●
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98298-631-0	01	1	1508-	●
19	03.330 PIPE; INJ NO.4 EURO4 SPECIFICATION(NT4)	8-98298-631-0	01	1	1508-	●
19	03.330 PIPE; INJ NO.4	8-98298-631-0	01	1	1508-		●
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A) ID=7 & 7 L=22	8-97330-118-3	05	1	1508-	●
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B) ID=7 & 7 L=22	8-97330-119-3	05	1	1508-	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (A) ID=7 & 7 L=22	8-97330-118-3	01	1	1111-	●	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1111-	●	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19	8-98039-293-0	06	1	1111-1405	●	●
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●	●
68	03.162 CLIP; INJ PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19	8-98039-293-0	10	1	1111-1405	●	●
68	03.162 CLIP; INJ PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-1507	●	●
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1508-	●
68	03.162 CLIP; INJ PIPE EURO4 SPECIFICATION(NT4) (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1508-	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1508-		●
71	03.162 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1508-	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1111-	●	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	1111-	●	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	1111-	●	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1111-1507	●	●
71	03.162 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-	●
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-		●
71	03.162 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1111-1507	●	●
71	03.162 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1508-	●
71	03.162 BOLT; BRKT EURO4 SPECIFICATION(NT4) 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1508-	●
71	03.162 BOLT; BRKT 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1508-		●
110	03.330 NUT; CLIP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 01.062 M6 FLANGE	0-91180-106-0	06	1	1508-1508	●
110	03.330 NUT; CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	05	1	1508-	●	●
110	03.330 NUT; CLIP EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	03	1	1111-	●	●
110	03.330 NUT; CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	05	1	1111-1507	●	●
120	03.330 BRACKET; INJ PIPE	8-98041-601-0	01	1	1111-	●	●
168	03.890 BRACKET; FUEL PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98273-168-0	01	1	1508-1508	●
168	03.890 BRACKET; FUEL PIPE EURO2 SPECIFICATION(NT2)	8-98072-403-0	01	1	1111-	●	●
169	03.890 NUT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-	●	●
210	03.330 PIPE; INJ,C/R EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98242-506-1	01	1	1508-	●
210	03.330 PIPE; INJ,C/R EURO5 SPECIFICATION(NT5)	8-98087-940-0	01	1	1111-1507	●	●
210	03.330 PIPE; INJ,C/R EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98087-940-0	01	1	1508-	●
210	03.330 PIPE; INJ,C/R	8-98087-940-0	01	1	1508-		●
210	03.330 PIPE; INJ,C/R EURO2 SPECIFICATION(NT2)	8-97376-779-0	01	1	1111-	●	●
210	03.330 PIPE; INJ,C/R EURO4 SPECIFICATION(NT4)	8-98172-184-0	01	1	1111-	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98077-001-1	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1111-1507	●	●
211	03.331 RAIL ASM; COMMON EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98011-888-2	01	1	1508-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1508-		●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98035-828-0	01	1	1508-	●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-1507	●	●
216	03.162 BOLT; EYE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (A)	8-98043-033-0	01	1	1508-	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1508-		●
282	03.163 BRACKET; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98200-778-0	01	1	1508-	●
282	03.163 BRACKET; COMMON RAIL EURO2 SPECIFICATION(NT2)	8-98157-115-0	01	1	1111-	●	●
282	03.163 BRACKET; COMMON RAIL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98106-661-1	01	1	1111-1507	●	●
282	03.163 BRACKET; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98106-661-1	01	1	1508-	●
282	03.163 BRACKET; COMMON RAIL EURO4 SPECIFICATION(NT4)	8-98106-661-1	01	1	1508-	●
282	03.163 BRACKET; COMMON RAIL	8-98106-661-1	01	1	1508-		●
283	03.330 BOLT; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	1508-	●
283	03.330 BOLT; COMMON RAIL EURO2 SPECIFICATION(NT2) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1111-	●	●
283	03.330 BOLT; COMMON RAIL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1111-1507	●	●
283	03.330 BOLT; COMMON RAIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1508-	●
283	03.330 BOLT; COMMON RAIL EURO4 SPECIFICATION(NT4) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1508-	●
283	03.330 BOLT; COMMON RAIL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1508-		●
289	03.331 LIMITER; FUEL PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98138-695-0	01	1	1508-	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1111-1507	●	●
289	03.331 LIMITER; FUEL PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98032-549-0	01	1	1508-	●
289	03.331 LIMITER; FUEL PRESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98032-549-0	01	1	1508-	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1508-		●
290	03.331 SENSOR; PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98138-736-0	01	1	1508-	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1111-1507	●	●
290	03.331 SENSOR; PRESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98119-790-0	01	1	1508-	●
290	03.331 SENSOR; PRESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98119-790-0	01	1	1508-	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1508-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
