◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#80649) — 19 parça

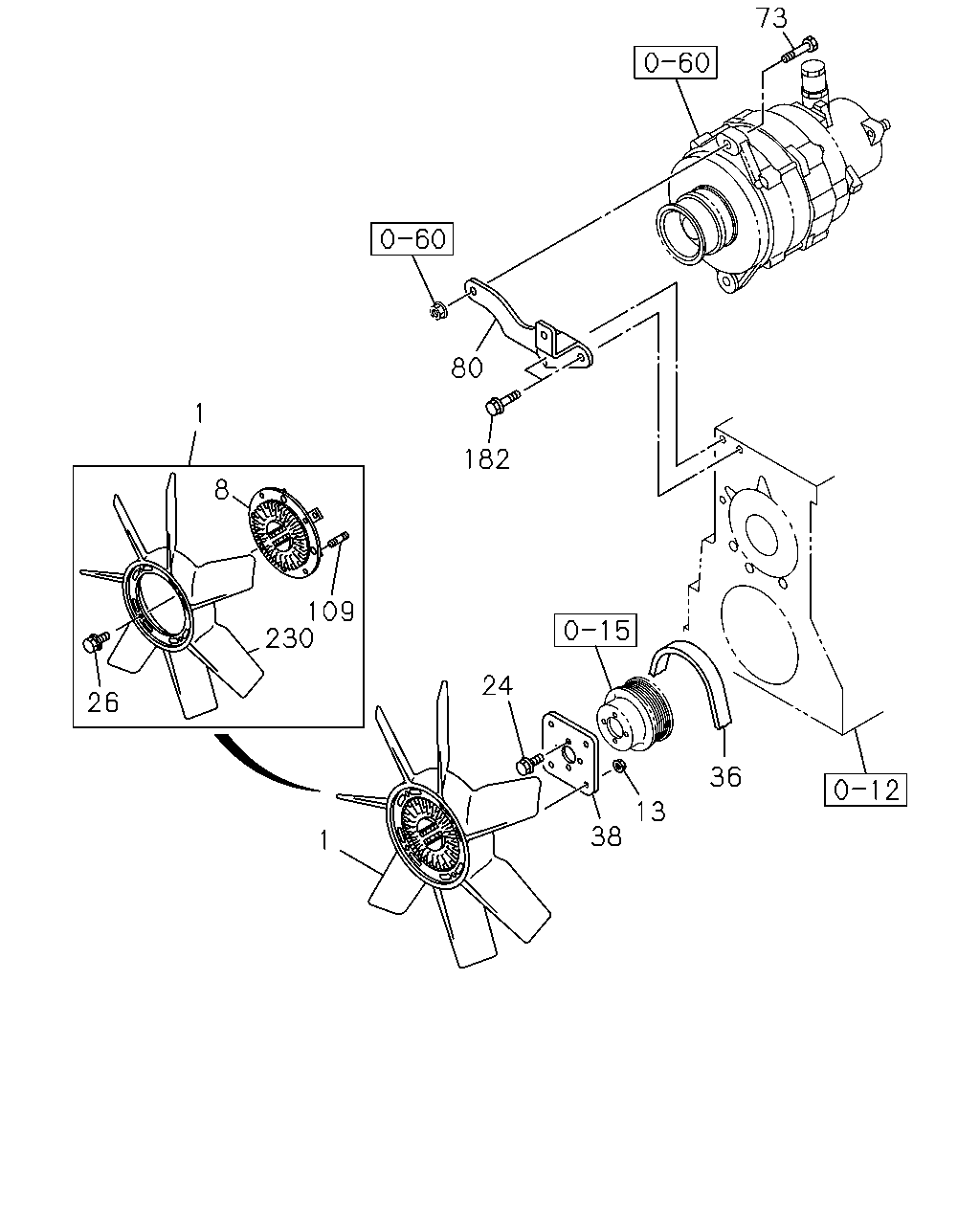

çizim 60678
73 80 1 182 8 109 230 24 26 36 13 38 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.064 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1111- ● ●
8 01.064 CLUTCH; COOLING FAN 8-98019-743-0 01 1 1111- ● ●
13 01.062 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 1111- ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 1111- ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 1111- ● ●
36 01.066 BELT; COOLING FAN
L=1146 MITSUBOSHI 		1-13671-522-0 01 1 1111- ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 1111- ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1111- ● ●
80 02.317 PLATE; ADJ 8-98176-242-1 01 1 1111- ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 1111- ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1111- ● ●
230 01.055 FAN; COOLING 8-98190-058-0 01 1 1111- ● ●
çizim 61155
147 147 144 36
BalonParca AdiParca NoAdetTipApplied Date A B
36 01.066 BELT; COOLING FAN
L=1146 MITSUBOSHI 		1-13671-522-0 01 1 1111- ● ●
144 01.060 TENSIONER; DRIVE BELT
09.180 1-GROOVE 		8-98031-811-1 01 1 1111- ● ●
147 01.060 BOLT; BELT TENSIONER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) KD PREPARATORY PACK<6HF> 03.417 M10X20 FLANGE 		0-28151-020-0 03 1 1508- ●
147 01.060 BOLT; BELT TENSIONER
03.417 M10X20 FLANGE 		0-28151-020-0 02 1 1111-1507 ● ●
147 01.060 BOLT; BELT TENSIONER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) KD PREPARATORY PACK<6HF> 03.417 M10X20 FLANGE 		0-28151-020-0 02 1 1508- ●
147 01.060 BOLT; BELT TENSIONER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) KD PREPARATORY PACK<6HF> 03.417 M10X20 FLANGE 		0-28151-020-0 02 1 1508- ●
147 01.060 BOLT; BELT TENSIONER
KD PREPARATORY PACK<6HF> 03.417 M10X20 FLANGE 		0-28151-020-0 02 1 1508- ●
