0-32 — WATER PIPING; ENGINE (#80648) — 77 parça

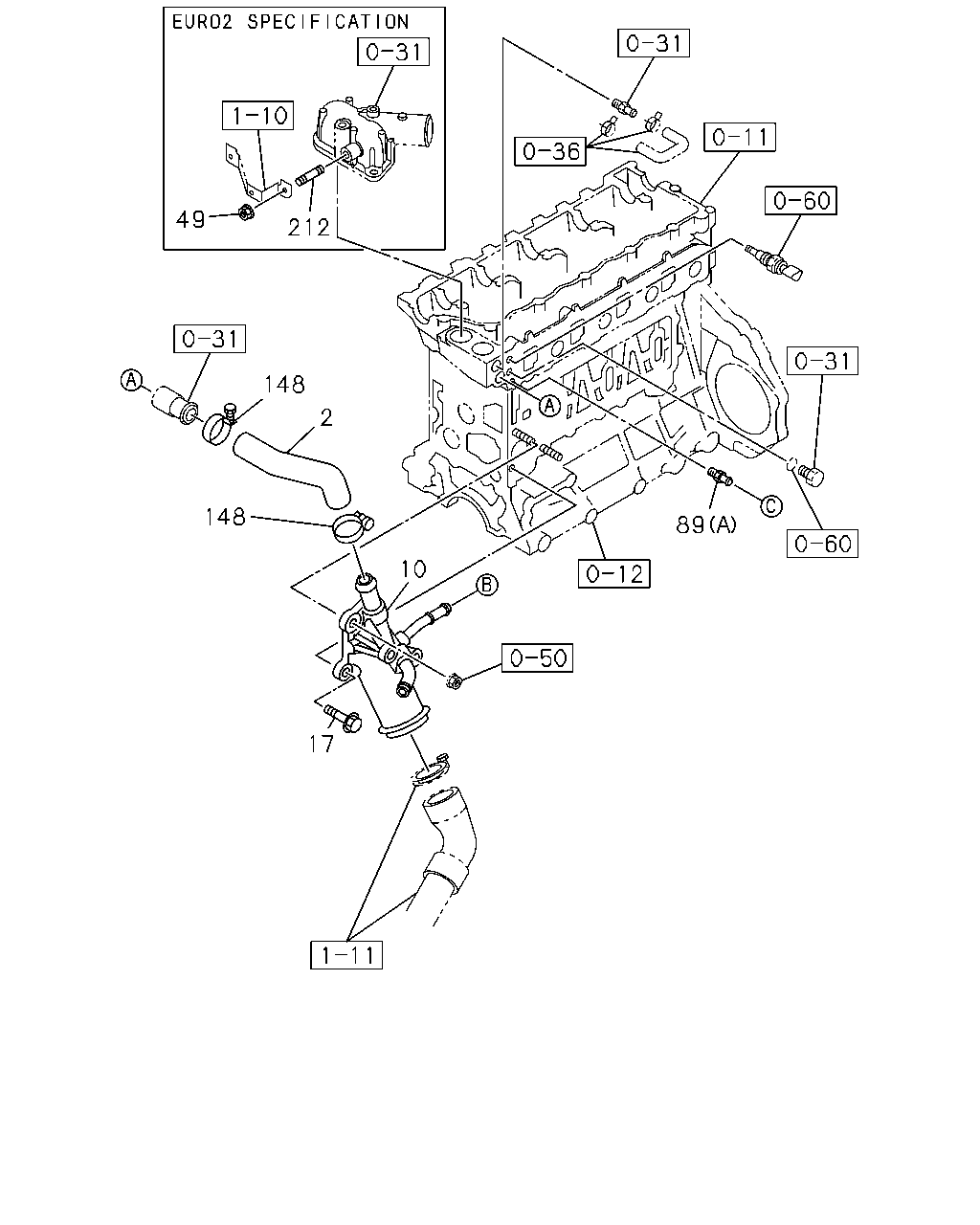

çizim 44442
49 212 31 148 2 148 89 10 17
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.097 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 1111- ● ●
10 01.153 PIPE; SUCTION 8-98166-995-0 01 1 1111- ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 1111- ● ●
31 01.159 BOLT; CLIP
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1111- ● ●
31 01.159 BOLT; CLIP
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.277 (A) M8X40 FLANGE 		0-28050-840-0 02 1 1111- ● ●
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
89 04.867 PIPE; WATER,AIR CMPR,IN
EURO2 SPECIFICATION(NT2) (B) 		8-97376-783-1 01 1 1111- ● ●
89 04.867 PIPE; WATER,AIR CMPR,IN
01.153 (A) 		8-97358-699-0 01 1 1111- ● ●
89 04.867 PIPE; WATER,AIR CMPR,IN
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) 		8-98095-668-0 01 1 1111- ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 1111- ● ●
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 1111- ● ●

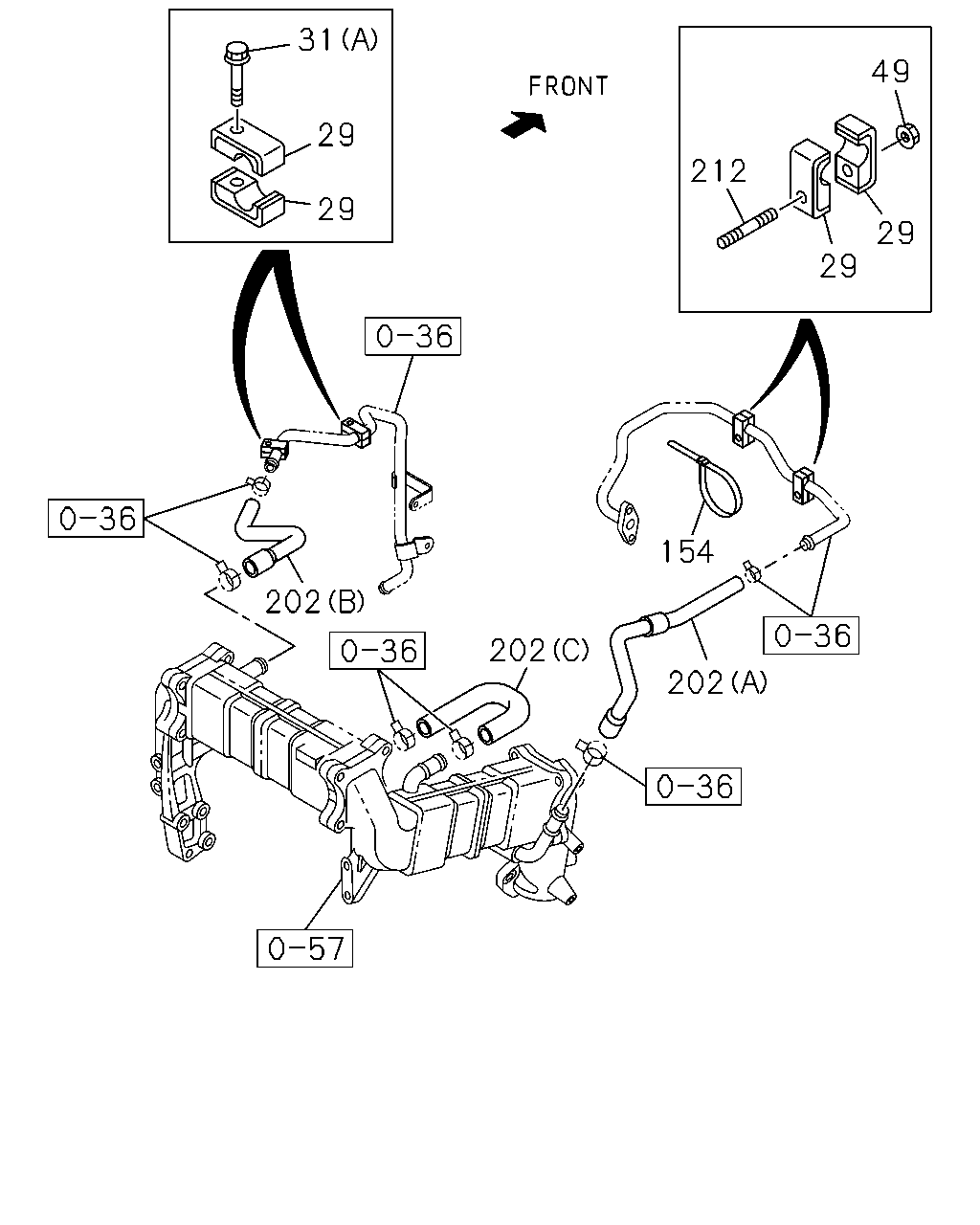

çizim 60525
31 29 29 212 49 29 29 154 202 202 202
BalonParca AdiParca NoAdetTipApplied Date A B
29 01.166 CLIP; PIPE
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) ID=17 L=17 		1-09701-284-0 08 1 1111- ● ●
31 01.159 BOLT; CLIP
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1111- ● ●
31 01.159 BOLT; CLIP
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.277 (A) M8X40 FLANGE 		0-28050-840-0 02 1 1111- ● ●
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
154 01.153 CLIP; WATER HOSE
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.559 L=170.3 		1-09987-182-0 01 1 1111- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B) 		8-98208-201-1 01 1 1508- ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) 		8-98028-169-2 01 1 1111- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) 		8-98028-170-0 01 1 1111-1507 ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98028-170-0 01 1 1508- ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (B) 		8-98028-170-0 01 1 1508- ●
202 01.240 HOSE; RUBBER,EGR COOLER
(B) 		8-98028-170-0 01 1 1508- ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) 		8-98028-171-0 01 1 1111- ● ●
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 1111- ● ●

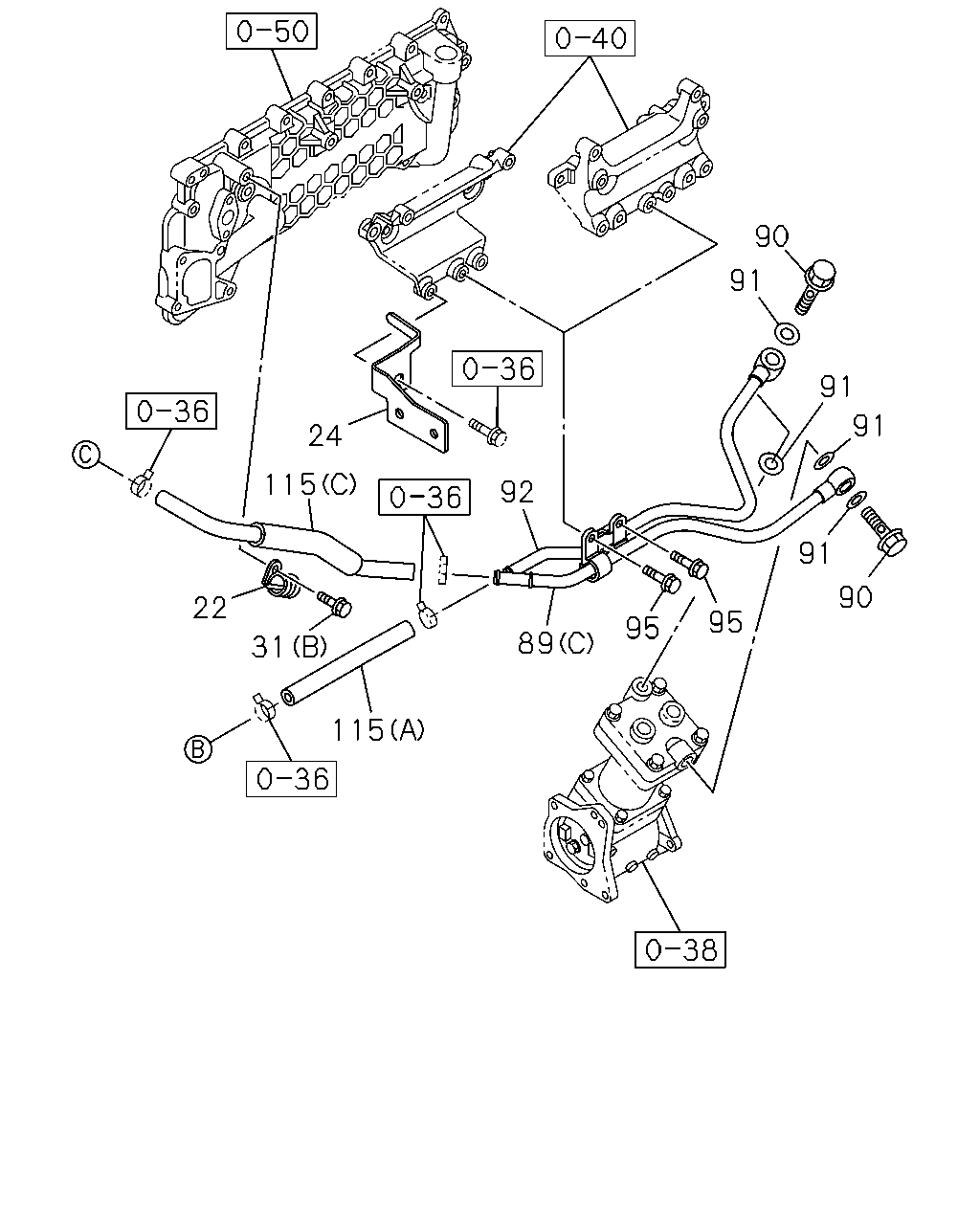

çizim 61024
24 115 22 31 115 89 92 90 91 91 91 91 90 95 95
BalonParca AdiParca NoAdetTipApplied Date A B
22 01.153 CLIP; WATER HOSE
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 02.343 ID=25 H=30 L=35 		1-09700-875-0 01 1 1508- ●
22 01.153 CLIP; WATER HOSE
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.152 L=36 		8-94224-891-1 01 1 1111-1507 ● ●
22 01.153 CLIP; WATER HOSE
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.152 L=36 		8-94224-891-1 01 1 1508- ●
22 01.153 CLIP; WATER HOSE
EURO4 SPECIFICATION(NT4) 01.152 L=36 		8-94224-891-1 01 1 1508- ●
22 01.153 CLIP; WATER HOSE
01.152 L=36 		8-94224-891-1 01 1 1508- ●
24 01.166 BRACKET; WATER PIPE
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 		8-98288-952-0 01 1 1508- ●
24 01.166 BRACKET; WATER PIPE
EURO2 SPECIFICATION(NT2) 		8-97379-140-0 01 1 1111- ● ●
31 01.159 BOLT; CLIP
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1111- ● ●
31 01.159 BOLT; CLIP
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.277 (A) M8X40 FLANGE 		0-28050-840-0 02 1 1111- ● ●
89 04.867 PIPE; WATER,AIR CMPR,IN
EURO2 SPECIFICATION(NT2) (B) 		8-97376-783-1 01 1 1111- ● ●
89 04.867 PIPE; WATER,AIR CMPR,IN
01.153 (A) 		8-97358-699-0 01 1 1111- ● ●
89 04.867 PIPE; WATER,AIR CMPR,IN
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) 		8-98095-668-0 01 1 1111- ● ●
90 04.866 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 02 1 1111- ● ●
91 04.866 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.163 ID=14.2 OD=19.2 		1-09630-085-0 04 1 1111-1312 ● ●
91 04.866 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 ID=14.2 OD=19.2 		8-98251-345-0 04 1 1401- ● ●
92 04.867 PIPE; WATER,AIR CMPR,OUT
EURO2 SPECIFICATION(NT2) 		8-97376-784-0 01 1 1111- ● ●
92 04.867 PIPE; WATER,AIR CMPR,OUT
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 		8-98132-662-0 01 1 1111- ● ●
95 01.240 BOLT; CLIP
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1111- ● ●
115 01.855 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A) L=130 		8-98136-884-0 01 1 1508- ●
115 01.855 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B) 		8-98200-802-1 01 1 1508- ●
115 01.855 HOSE; RUBBER
EURO2 SPECIFICATION(NT2) (B) 		8-98009-361-0 01 1 1111- ● ●
115 01.855 HOSE; RUBBER
01.097 (A) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 1111-1507 ● ●
115 01.855 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.097 (A) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 1508- ●
115 01.855 HOSE; RUBBER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 01.097 (A) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 1508- ●
115 01.855 HOSE; RUBBER
01.097 (A) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 1508- ●
115 01.855 HOSE; RUBBER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) 		8-98095-678-3 01 1 1111-1507 ● ●
115 01.855 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98095-678-3 01 1 1508- ●
115 01.855 HOSE; RUBBER
EURO4 SPECIFICATION(NT4) (C) 		8-98095-678-3 01 1 1508- ●
115 01.855 HOSE; RUBBER
(C) 		8-98095-678-3 01 1 1508- ●

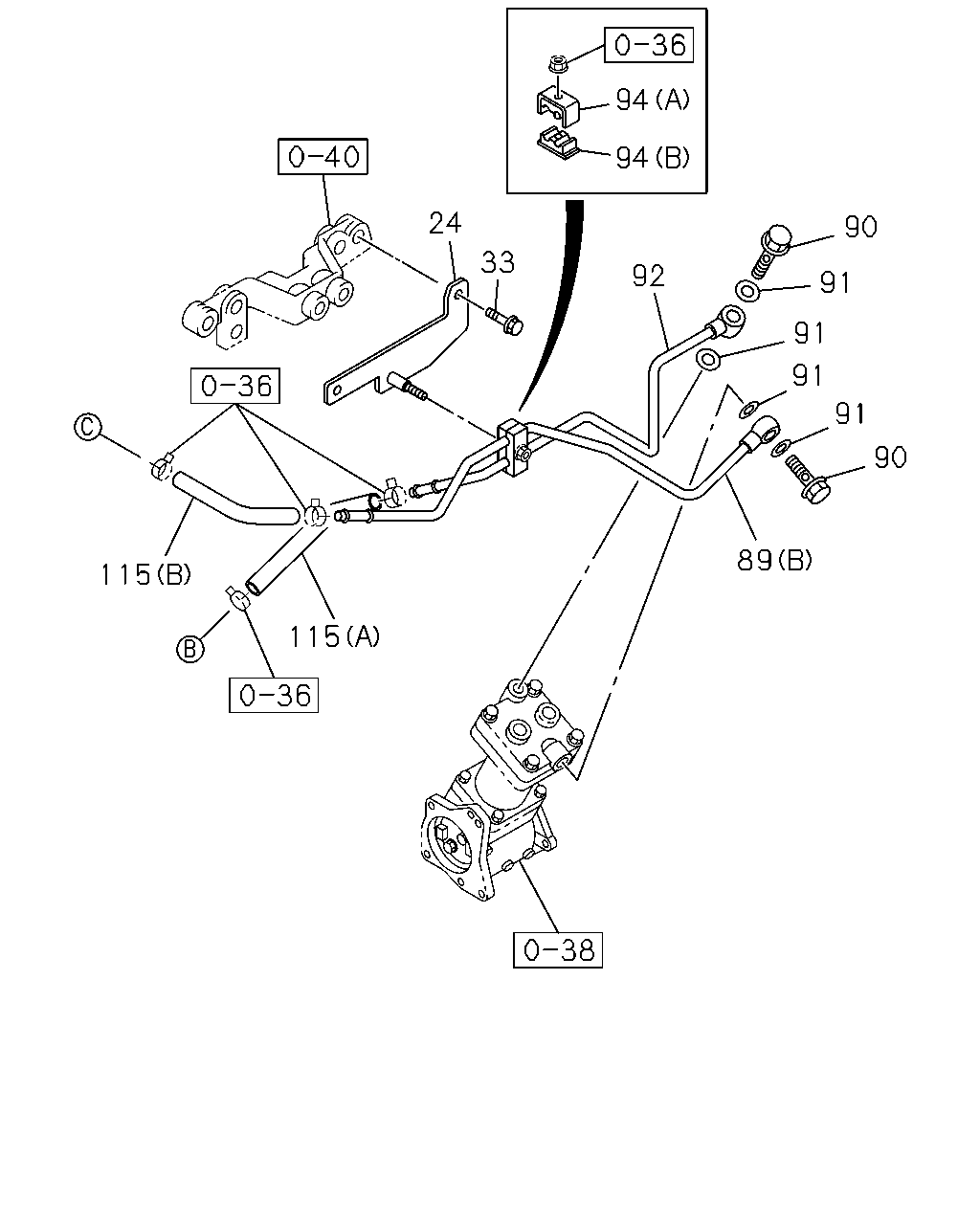

çizim 61059
94 94 24 90 33 92 91 91 91 91 90 89 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
24 01.166 BRACKET; WATER PIPE
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 		8-98288-952-0 01 1 1508- ●
24 01.166 BRACKET; WATER PIPE
EURO2 SPECIFICATION(NT2) 		8-97379-140-0 01 1 1111- ● ●
33 01.166 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 1111- ● ●
89 04.867 PIPE; WATER,AIR CMPR,IN
EURO2 SPECIFICATION(NT2) (B) 		8-97376-783-1 01 1 1111- ● ●
89 04.867 PIPE; WATER,AIR CMPR,IN
01.153 (A) 		8-97358-699-0 01 1 1111- ● ●
89 04.867 PIPE; WATER,AIR CMPR,IN
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) 		8-98095-668-0 01 1 1111- ● ●
90 04.866 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 02 1 1111- ● ●
91 04.866 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.163 ID=14.2 OD=19.2 		1-09630-085-0 04 1 1111-1312 ● ●
91 04.866 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 ID=14.2 OD=19.2 		8-98251-345-0 04 1 1401- ● ●
92 04.867 PIPE; WATER,AIR CMPR,OUT
EURO2 SPECIFICATION(NT2) 		8-97376-784-0 01 1 1111- ● ●
92 04.867 PIPE; WATER,AIR CMPR,OUT
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 		8-98132-662-0 01 1 1111- ● ●
94 01.153 CLIP; WATER PIPE
EURO2 SPECIFICATION(NT2) 03.162 (B) ID=9 & 9 L=25 		1-09701-180-0 01 1 1111- ● ●
94 01.153 CLIP; WATER PIPE
EURO2 SPECIFICATION(NT2) 03.162 (A) ID=9 & 9 L=25 		8-94393-280-3 01 1 1111- ● ●
115 01.855 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A) L=130 		8-98136-884-0 01 1 1508- ●
115 01.855 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B) 		8-98200-802-1 01 1 1508- ●
115 01.855 HOSE; RUBBER
EURO2 SPECIFICATION(NT2) (B) 		8-98009-361-0 01 1 1111- ● ●
115 01.855 HOSE; RUBBER
01.097 (A) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 1111-1507 ● ●
115 01.855 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.097 (A) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 1508- ●
115 01.855 HOSE; RUBBER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 01.097 (A) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 1508- ●
115 01.855 HOSE; RUBBER
01.097 (A) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 1508- ●
115 01.855 HOSE; RUBBER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) 		8-98095-678-3 01 1 1111-1507 ● ●
115 01.855 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98095-678-3 01 1 1508- ●
115 01.855 HOSE; RUBBER
EURO4 SPECIFICATION(NT4) (C) 		8-98095-678-3 01 1 1508- ●
115 01.855 HOSE; RUBBER
(C) 		8-98095-678-3 01 1 1508- ●
