0-28 — VENTILATION SYSTEM (#80645) — 88 parça

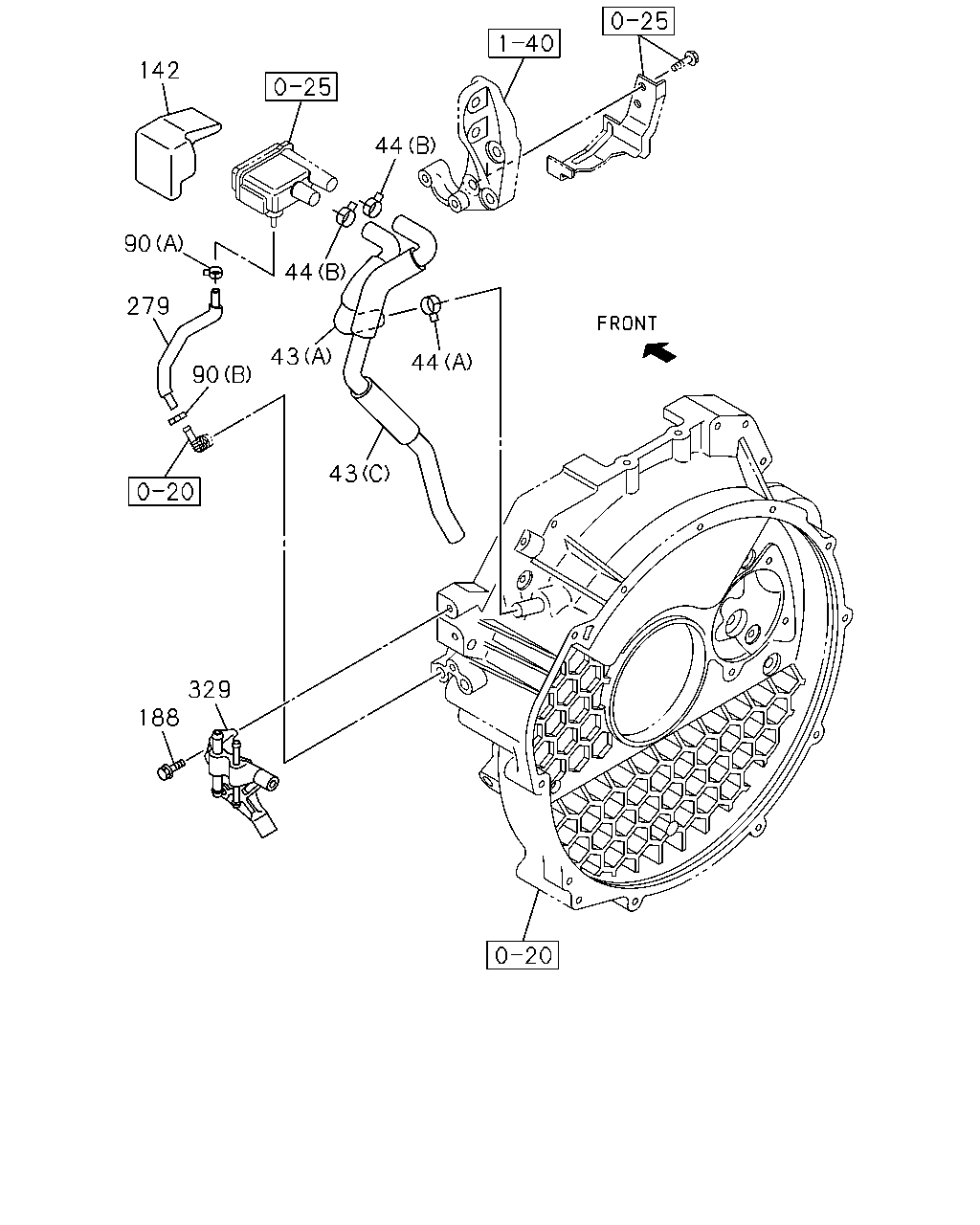

142 44 90 44 279 43 44 90 43 329 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	03.278 HOSE; PCV EURO2 SPECIFICATION(NT2) (A)	8-97149-012-3	01	1	1111-	●	●
43	03.278 HOSE; PCV EURO2 SPECIFICATION(NT2) EXC. FRIGID ZONE(YL3) (B)	8-98173-075-0	01	1	1111-	●	●
43	03.278 HOSE; PCV EURO2 SPECIFICATION(NT2) FRIGID ZONE(YL3) (C)	8-98027-841-0	01	1	1111-	●	●
44	03.278 CLIP; HOSE,PCV EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. FRIGID ZONE(YL3) 02.483 (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1111-	●	●
44	03.278 CLIP; HOSE,PCV EURO2 SPECIFICATION(NT2) 06.672 (A) ID=21	8-94242-034-0	01	1	1111-	●	●
44	03.278 CLIP; HOSE,PCV EURO2 SPECIFICATION(NT2) 01.252 (B) ID=22.7	8-94466-382-0	02	1	1111-	●	●
90	03.358 CLIP; RUBBER HOSE EURO2 SPECIFICATION(NT2) 03.163 (A) ID=11	8-94238-570-0	01	1	1111-	●	●
90	03.358 CLIP; RUBBER HOSE EURO2 SPECIFICATION(NT2) 01.097 (B) ID=11	8-94238-925-0	01	1	1111-	●	●
142	01.745 COVER; PCV EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3)	8-98153-109-0	01	1	1111-	●	●
142	01.745 COVER; PCV EURO2 SPECIFICATION(NT2) FRIGID ZONE(YL3) 01.208	8-98024-528-0	01	1	1111-	●	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-		●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-		●
188	01.780 BOLT; BRKT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1111-1507	●	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1111-1507	●	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 00.206 M8X30 FLANGE	0-28050-830-0	04	1	1508-	●
279	03.278 HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION(NT2)	8-98173-074-0	01	1	1111-	●	●
329	01.750 BRACKET; VENTILATOR	8-98171-059-0	01	1	1111-	●	●

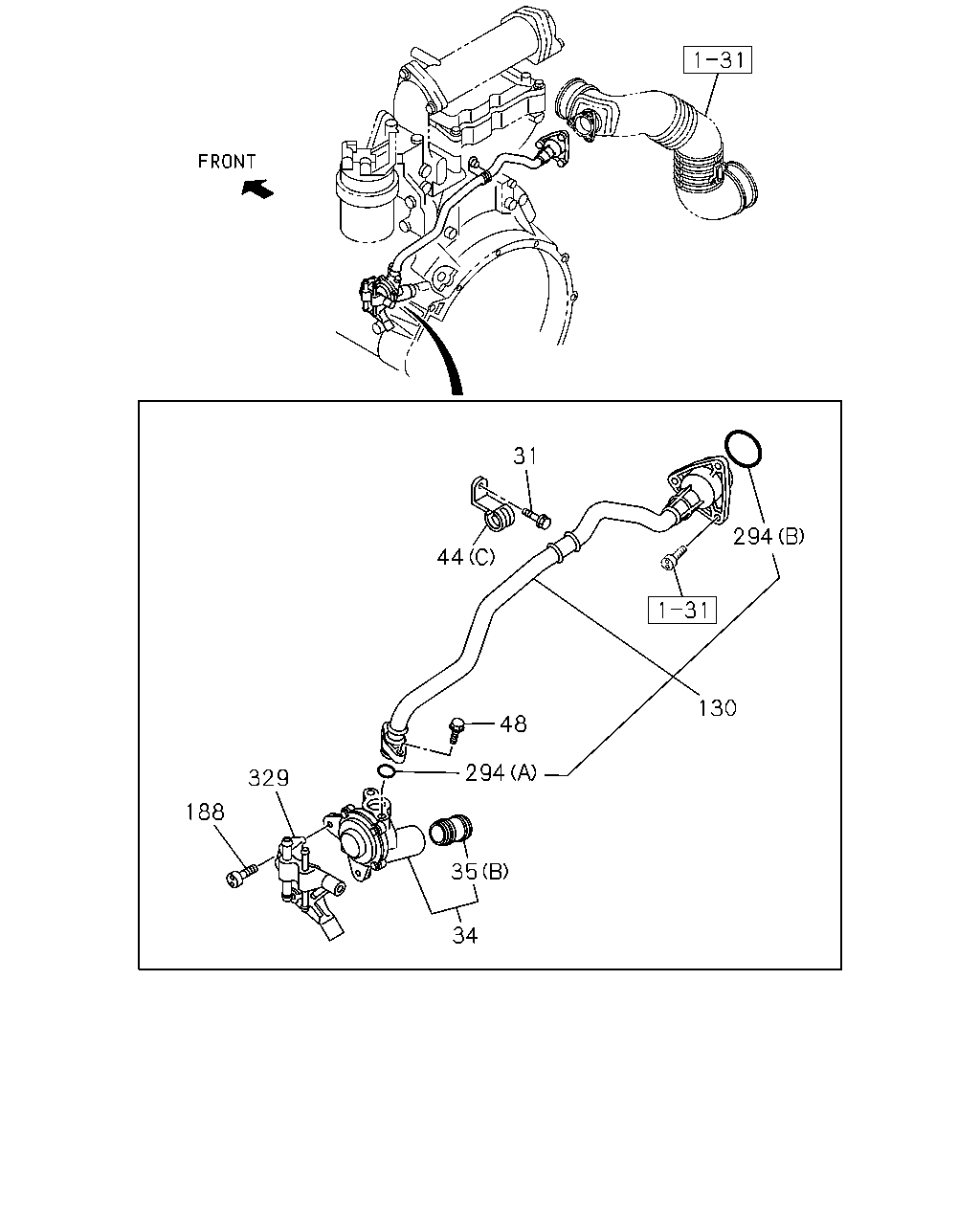

31 294 44 130 48 294 329 188 35 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	03.417 BOLT; HOSE CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. FRIGID ZONE(YL3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
34	03.415 VENTILATOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98036-808-1	01	1	1111-1310	●	●
34	03.415 VENTILATOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98245-392-0	01	1	1311-	●	●
35	03.415 GASKET; VENTILATOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 01.550 (A) ID=17.8	1-09623-588-0	01	1	1111-	●	●
35	03.415 GASKET; VENTILATOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98038-692-0	01	1	1111-	●	●
44	03.278 CLIP; HOSE,PCV EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. FRIGID ZONE(YL3) 02.483 (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1111-	●	●
44	03.278 CLIP; HOSE,PCV EURO2 SPECIFICATION(NT2) 06.672 (A) ID=21	8-94242-034-0	01	1	1111-	●	●
44	03.278 CLIP; HOSE,PCV EURO2 SPECIFICATION(NT2) 01.252 (B) ID=22.7	8-94466-382-0	02	1	1111-	●	●
48	03.278 BOLT; PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1111-	●	●
48	03.278 BOLT; PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. FRIGID ZONE(YL3) 00.386 M6X20 FLANGE	0-28050-620-0	02	1	1111-	●	●
130	03.278 PIPE; PCV EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. FRIGID ZONE(YL3)	8-98036-533-1	01	1	1111-	●	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-		●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-		●
188	01.780 BOLT; BRKT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1111-1507	●	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1111-1507	●	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 00.206 M8X30 FLANGE	0-28050-830-0	04	1	1508-	●
294	03.278 GASKET; PCV EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. FRIGID ZONE(YL3) 01.550 (A) ID=17.8	1-09623-588-0	01	1	1111-	●	●
294	03.278 GASKET; PCV EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1111-	●	●
329	01.750 BRACKET; VENTILATOR	8-98171-059-0	01	1	1111-	●	●

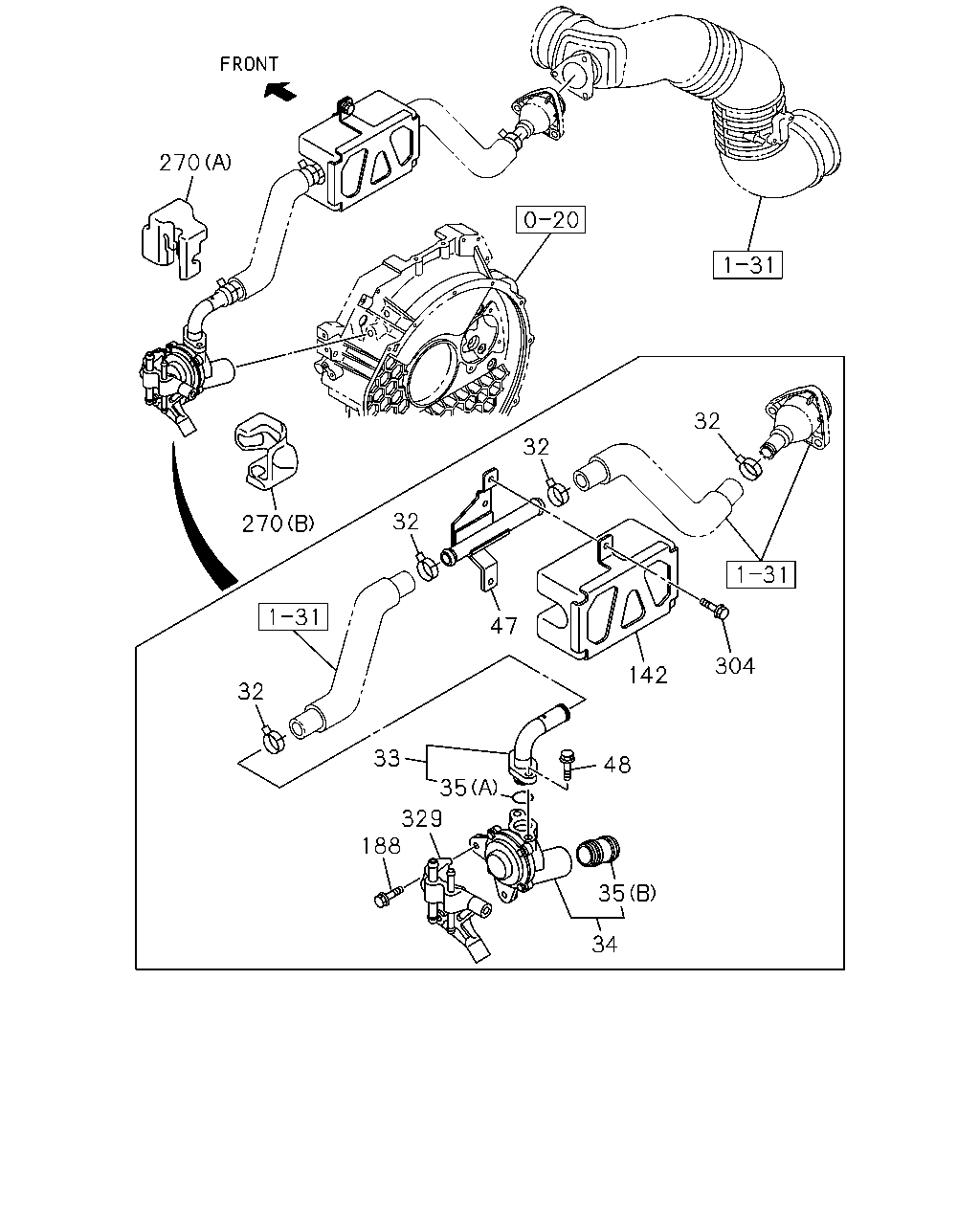

270 32 32 32 270 47 304 142 32 33 48 35 329 188 35 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	03.417 CLIP; VENT HOSE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 08.846 ID=21.7	8-97203-074-0	04	1	1111-	●	●
33	03.278 PIPE; VENTILATOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3)	8-98075-640-1	01	1	1111-	●	●
34	03.415 VENTILATOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98036-808-1	01	1	1111-1310	●	●
34	03.415 VENTILATOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98245-392-0	01	1	1311-	●	●
35	03.415 GASKET; VENTILATOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 01.550 (A) ID=17.8	1-09623-588-0	01	1	1111-	●	●
35	03.415 GASKET; VENTILATOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98038-692-0	01	1	1111-	●	●
47	03.278 PIPE ASM; PCV EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3)	8-98153-108-0	01	1	1111-	●	●
48	03.278 BOLT; PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1111-	●	●
48	03.278 BOLT; PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. FRIGID ZONE(YL3) 00.386 M6X20 FLANGE	0-28050-620-0	02	1	1111-	●	●
142	01.745 COVER; PCV EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3)	8-98153-109-0	01	1	1111-	●	●
142	01.745 COVER; PCV EURO2 SPECIFICATION(NT2) FRIGID ZONE(YL3) 01.208	8-98024-528-0	01	1	1111-	●	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-		●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-		●
188	01.780 BOLT; BRKT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1111-1507	●	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1111-1507	●	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 00.206 M8X30 FLANGE	0-28050-830-0	04	1	1508-	●
270	01.750 COVER; VENTILATOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) (A)	8-98152-829-0	01	1	1111-	●	●
270	01.750 COVER; VENTILATOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) (B)	8-98152-830-0	01	1	1111-	●	●
304	03.275 BOLT; COVER EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
304	03.275 BOLT; COVER EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 01.758 M8X20 HEX SOCKET	0-58330-820-0	02	1	1111-	●	●
329	01.750 BRACKET; VENTILATOR	8-98171-059-0	01	1	1111-	●	●

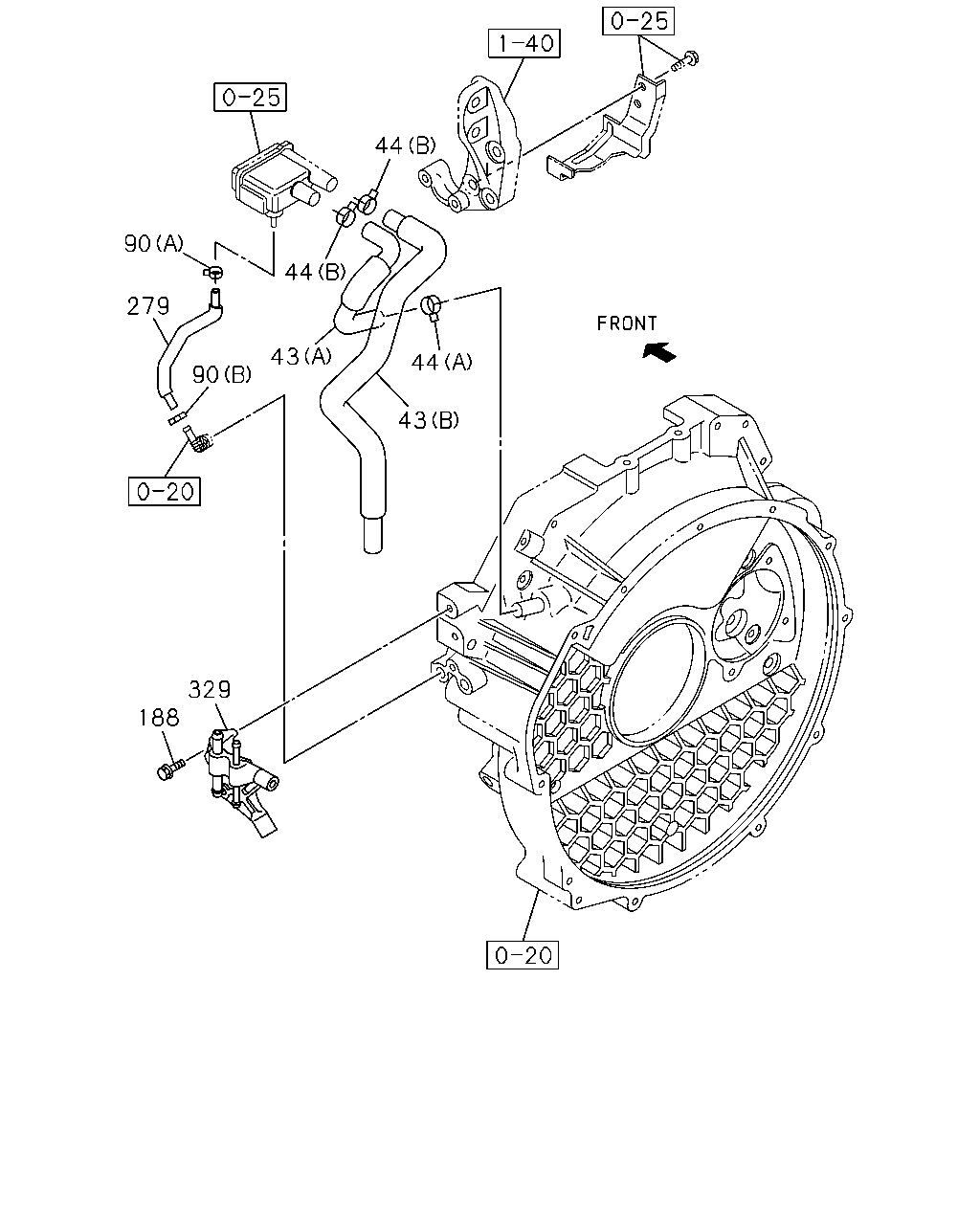

44 90 44 279 43 44 90 43 329 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	03.278 HOSE; PCV EURO2 SPECIFICATION(NT2) (A)	8-97149-012-3	01	1	1111-	●	●
43	03.278 HOSE; PCV EURO2 SPECIFICATION(NT2) EXC. FRIGID ZONE(YL3) (B)	8-98173-075-0	01	1	1111-	●	●
43	03.278 HOSE; PCV EURO2 SPECIFICATION(NT2) FRIGID ZONE(YL3) (C)	8-98027-841-0	01	1	1111-	●	●
44	03.278 CLIP; HOSE,PCV EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. FRIGID ZONE(YL3) 02.483 (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1111-	●	●
44	03.278 CLIP; HOSE,PCV EURO2 SPECIFICATION(NT2) 06.672 (A) ID=21	8-94242-034-0	01	1	1111-	●	●
44	03.278 CLIP; HOSE,PCV EURO2 SPECIFICATION(NT2) 01.252 (B) ID=22.7	8-94466-382-0	02	1	1111-	●	●
90	03.358 CLIP; RUBBER HOSE EURO2 SPECIFICATION(NT2) 03.163 (A) ID=11	8-94238-570-0	01	1	1111-	●	●
90	03.358 CLIP; RUBBER HOSE EURO2 SPECIFICATION(NT2) 01.097 (B) ID=11	8-94238-925-0	01	1	1111-	●	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-		●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1508-		●
188	01.780 BOLT; BRKT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1111-1507	●	●
188	01.780 BOLT; BRKT EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1111-1507	●	●
188	01.780 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 00.206 M8X30 FLANGE	0-28050-830-0	04	1	1508-	●
279	03.278 HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION(NT2)	8-98173-074-0	01	1	1111-	●	●
329	01.750 BRACKET; VENTILATOR	8-98171-059-0	01	1	1111-	●	●
