0-25 — INLET MANIFOLD (#80643) — 85 parça

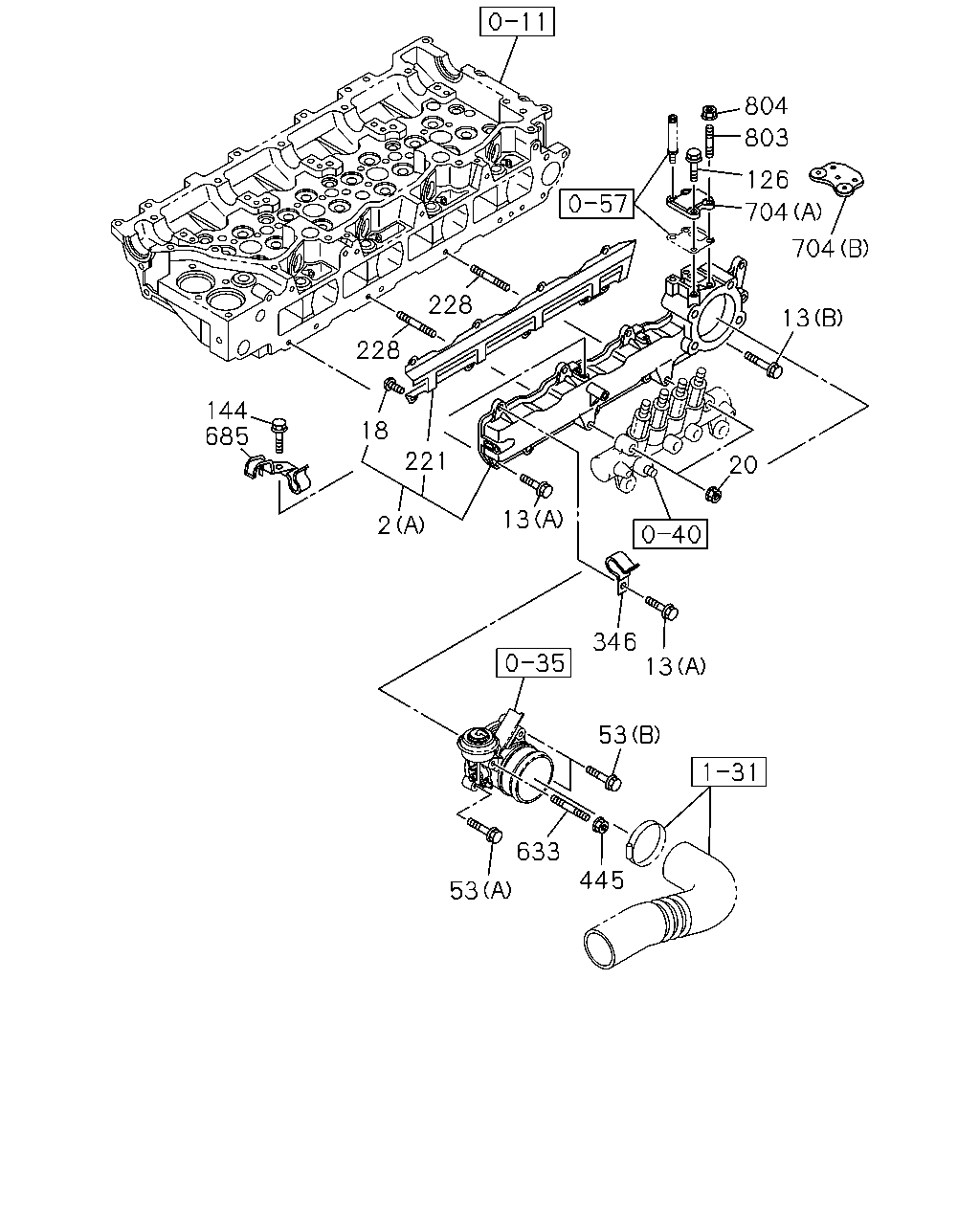

445 633 53 53 13 346 13 221 18 228 228 2 685 144 20 13 704 704 126 803 804

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (A)	8-97387-038-0	01	1	1111-1409	●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (D)	8-97387-039-0	01	1	1410-	●	●
2	03.407 COVER; INL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98085-730-1	01	1	1111-	●	●
2	03.407 COVER; INL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C)	8-98115-667-1	01	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO2 SPECIFICATION(NT2) 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO2 SPECIFICATION(NT2) 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (E) M8X25 FLANGE	0-28050-825-0	02	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.686 (D) M8X60 FLANGE	0-28050-860-0	05	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.780 (C) M8X120 FLANGE	0-28055-812-0	03	1	1111-	●	●
18	03.403 SCREW; PLATE,INL CVR EURO2 SPECIFICATION(NT2) 02.525 M6X10	9-03490-610-0	09	1	1111-1409	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2) 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	1111-	●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 (B) M8X70 FLANGE	0-28050-870-0	02	1	1111-	●	●
126	03.275 BOLT; COVER EURO2 SPECIFICATION(NT2) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
144	03.275 BOLT; BRKT FIX EURO2 SPECIFICATION(NT2) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
221	03.403 PLATE; INL COVER EURO2 SPECIFICATION(NT2)	8-97379-202-0	01	1	1111-1409	●	●
228	03.407 STUD; INL COVER EURO2 SPECIFICATION(NT2) 03.275 M8X117 L=128	8-97111-477-0	02	1	1111-	●	●
228	03.407 STUD; INL COVER EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.342 M8X126 L=137	8-97378-069-0	02	1	1111-	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1111-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
633	03.275 STUD; THROTTLE BODY EURO2 SPECIFICATION(NT2) M8X71 L=83	9-09830-212-0	01	1	1111-	●	●
633	03.275 STUD; THROTTLE BODY EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) M8X71 L=83	9-09830-212-0	02	1	1111-	●	●
685	03.265 BRACKET; HARNESS EURO2 SPECIFICATION(NT2)	8-97331-921-1	01	1	1111-	●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) 03.407 (A)	8-98062-651-1	01	1	1111-1408	●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (B)	8-98260-138-0	01	1	1409-	●	●
803	03.275 STUD; COVER EURO2 SPECIFICATION(NT2) 02.510 M8X20 L=32	0-41010-820-0	02	1	1111-	●	●
804	03.275 NUT; COVER EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●

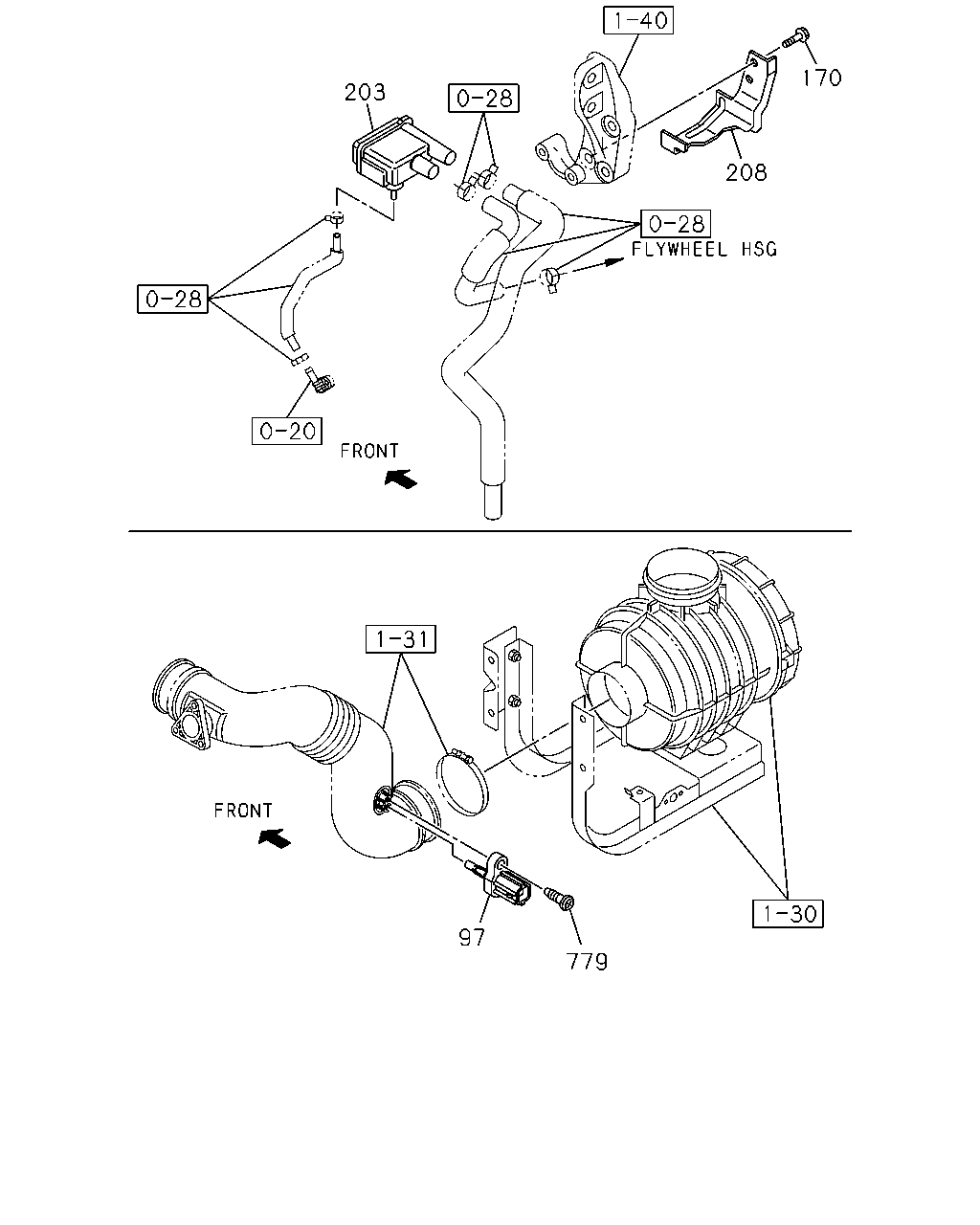

97 779 203 208 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE EURO2 SPECIFICATION(NT2)	8-98065-377-0	01	1	1111-	●	●
170	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1111-	●	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV EURO2 SPECIFICATION(NT2)	8-97088-685-1	01	1	1111-	●	●
208	01.750 BRACKET; CATCH TANK,OIL EURO2 SPECIFICATION(NT2)	8-98172-871-0	01	1	1111-	●	●
779	03.682 BOLT; SENSOR EURO2 SPECIFICATION(NT2) 03.164 M5X14 W/LK WASHER	0-36220-514-0	01	1	1111-	●	●

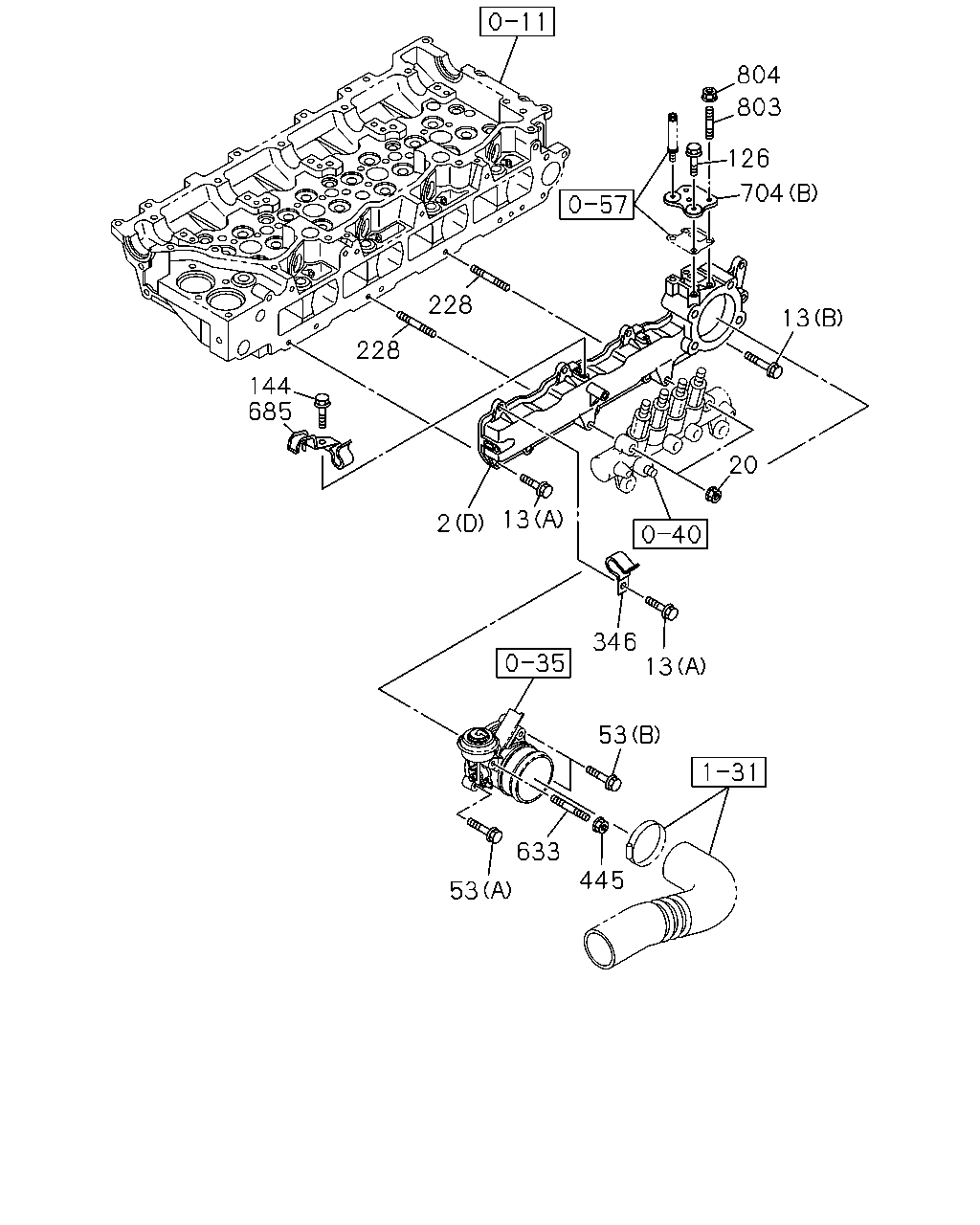

20 13 704 126 803 804 228 228 685 144 2 13 346 13 53 445 633 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (A)	8-97387-038-0	01	1	1111-1409	●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (D)	8-97387-039-0	01	1	1410-	●	●
2	03.407 COVER; INL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98085-730-1	01	1	1111-	●	●
2	03.407 COVER; INL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C)	8-98115-667-1	01	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO2 SPECIFICATION(NT2) 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO2 SPECIFICATION(NT2) 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (E) M8X25 FLANGE	0-28050-825-0	02	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.686 (D) M8X60 FLANGE	0-28050-860-0	05	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.780 (C) M8X120 FLANGE	0-28055-812-0	03	1	1111-	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2) 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	1111-	●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 (B) M8X70 FLANGE	0-28050-870-0	02	1	1111-	●	●
126	03.275 BOLT; COVER EURO2 SPECIFICATION(NT2) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
144	03.275 BOLT; BRKT FIX EURO2 SPECIFICATION(NT2) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
228	03.407 STUD; INL COVER EURO2 SPECIFICATION(NT2) 03.275 M8X117 L=128	8-97111-477-0	02	1	1111-	●	●
228	03.407 STUD; INL COVER EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.342 M8X126 L=137	8-97378-069-0	02	1	1111-	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1111-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
633	03.275 STUD; THROTTLE BODY EURO2 SPECIFICATION(NT2) M8X71 L=83	9-09830-212-0	01	1	1111-	●	●
633	03.275 STUD; THROTTLE BODY EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) M8X71 L=83	9-09830-212-0	02	1	1111-	●	●
685	03.265 BRACKET; HARNESS EURO2 SPECIFICATION(NT2)	8-97331-921-1	01	1	1111-	●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) 03.407 (A)	8-98062-651-1	01	1	1111-1408	●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (B)	8-98260-138-0	01	1	1409-	●	●
803	03.275 STUD; COVER EURO2 SPECIFICATION(NT2) 02.510 M8X20 L=32	0-41010-820-0	02	1	1111-	●	●
804	03.275 NUT; COVER EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●

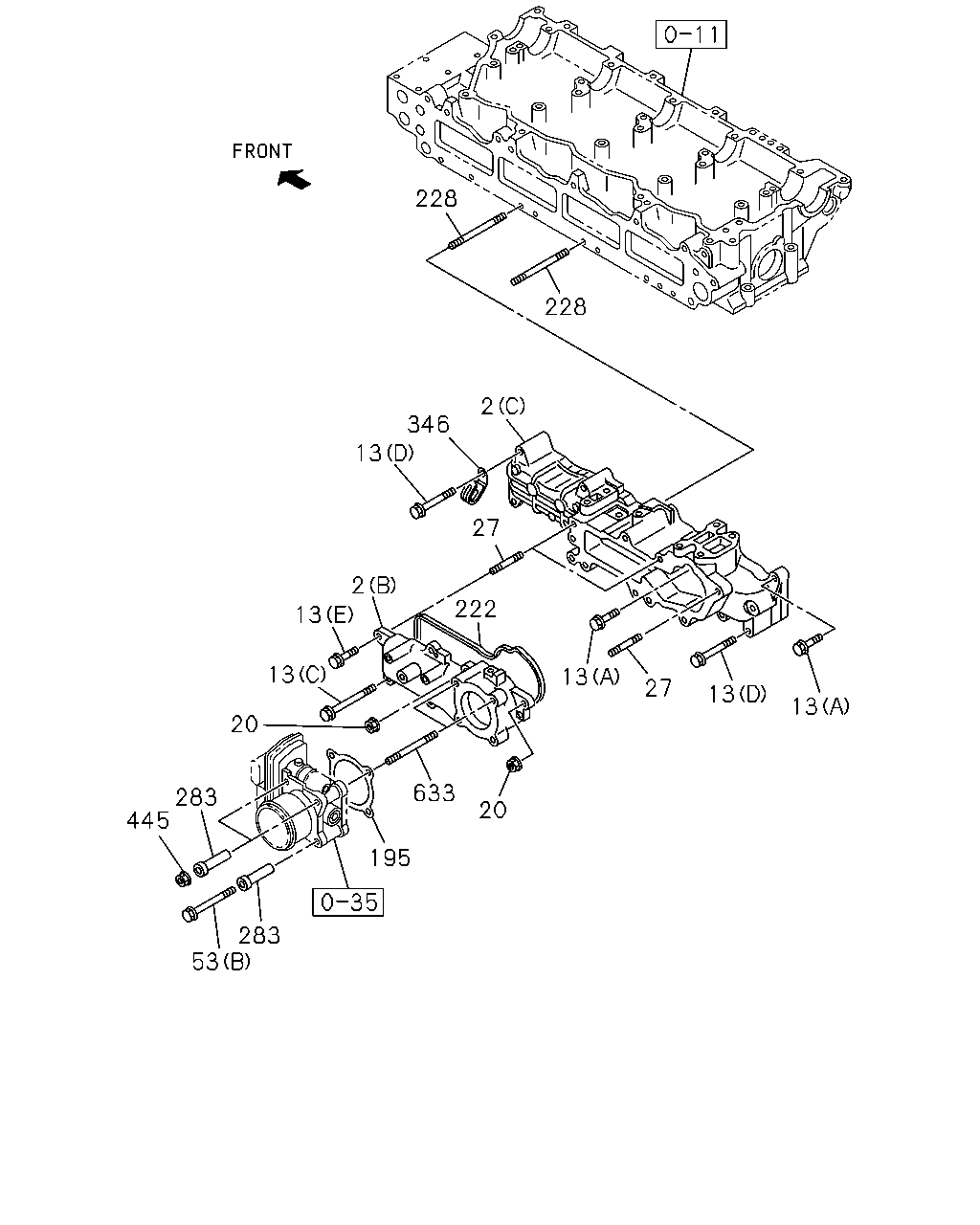

2 346 13 2 13 222 27 13 27 13 13 195 633 228 228 20 13 20 283 445 283 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (A)	8-97387-038-0	01	1	1111-1409	●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (D)	8-97387-039-0	01	1	1410-	●	●
2	03.407 COVER; INL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98085-730-1	01	1	1111-	●	●
2	03.407 COVER; INL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C)	8-98115-667-1	01	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO2 SPECIFICATION(NT2) 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO2 SPECIFICATION(NT2) 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (E) M8X25 FLANGE	0-28050-825-0	02	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.686 (D) M8X60 FLANGE	0-28050-860-0	05	1	1111-	●	●
13	03.275 BOLT; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.780 (C) M8X120 FLANGE	0-28055-812-0	03	1	1111-	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
27	03.275 STUD; INL MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) M8X25 L=37	0-41010-825-0	02	1	1111-	●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2) 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	1111-	●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.206 (B) M8X70 FLANGE	0-28050-870-0	02	1	1111-	●	●
195	03.729 GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98032-612-0	01	1	1111-	●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.275	8-98032-611-0	01	1	1111-	●	●
228	03.407 STUD; INL COVER EURO2 SPECIFICATION(NT2) 03.275 M8X117 L=128	8-97111-477-0	02	1	1111-	●	●
228	03.407 STUD; INL COVER EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.342 M8X126 L=137	8-97378-069-0	02	1	1111-	●	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) L=58	8-97387-995-1	04	1	1111-	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1111-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
633	03.275 STUD; THROTTLE BODY EURO2 SPECIFICATION(NT2) M8X71 L=83	9-09830-212-0	01	1	1111-	●	●
633	03.275 STUD; THROTTLE BODY EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) M8X71 L=83	9-09830-212-0	02	1	1111-	●	●
