0-13 — OIL PAN AND LEVEL GAUGE (#80638) — 84 parça

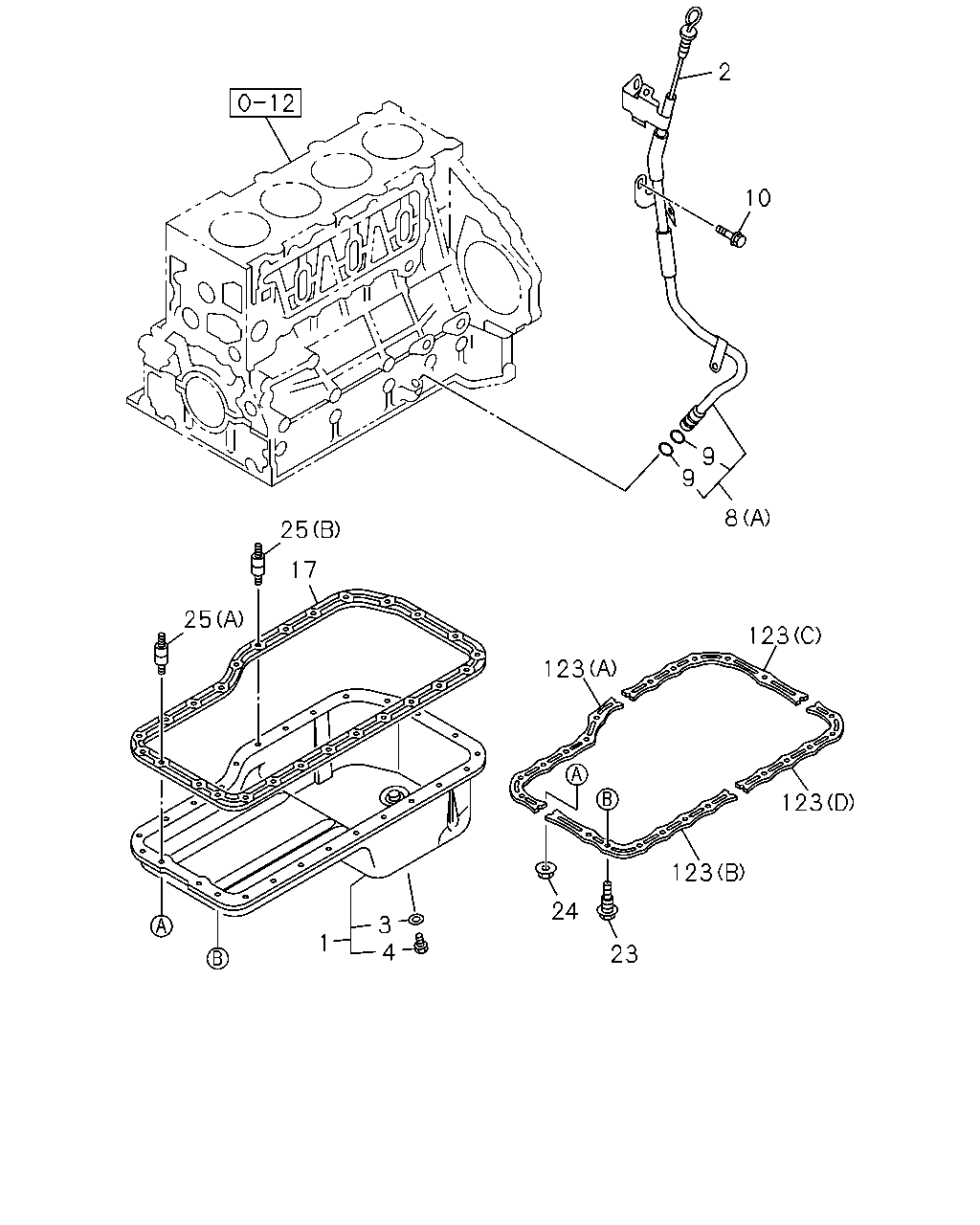

2 10 9 9 8 123 123 123 123 23 24 4 3 1 25 17 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-97385-243-1	01	1	1508-	●
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2)	8-98124-513-0	01	1	1111-1312	●	●
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98124-513-1	01	1	1401-	●	●
1	01.426 PAN ASM; OIL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-97386-772-0	01	1	1111-1312	●	●
1	01.426 PAN ASM; OIL EURO5 SPECIFICATION(NT5)	8-97386-772-0	01	1	1401-1507	●	●
1	01.426 PAN ASM; OIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-97386-772-0	01	1	1508-	●
1	01.426 PAN ASM; OIL	8-97386-772-0	01	1	1508-		●
2	01.516 GAUGE; OIL LEVEL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98175-893-0	01	1	1508-	●
2	01.516 GAUGE; OIL LEVEL EURO2 SPECIFICATION(NT2)	8-98183-344-0	01	1	1111-	●	●
2	01.516 GAUGE; OIL LEVEL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98197-673-0	01	1	1111-1507	●	●
2	01.516 GAUGE; OIL LEVEL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98197-673-0	01	1	1508-	●
2	01.516 GAUGE; OIL LEVEL EURO4 SPECIFICATION(NT4)	8-98197-673-0	01	1	1508-	●
2	01.516 GAUGE; OIL LEVEL	8-98197-673-0	01	1	1508-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1111-	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1111-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98289-137-0	01	1	1508-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO2 SPECIFICATION(NT2) (A)	8-98172-651-1	01	1	1111-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98173-957-0	01	1	1111-1507	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98173-957-0	01	1	1508-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO4 SPECIFICATION(NT4) (B)	8-98173-957-0	01	1	1508-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98173-957-0	01	1	1508-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU EURO2 SPECIFICATION(NT2) ID=11	1-09623-469-0	02	1	1111-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) ID=11	1-09623-469-0	02	1	1111-	●	●
10	01.516 BOLT; GUIDE TUBE EURO2 SPECIFICATION(NT2) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1111-	●	●
10	01.516 BOLT; GUIDE TUBE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1111-	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1111-	●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1111-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1111-	●	●
25	01.453 STUD; OIL PAN (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1111-	●	●
25	01.453 STUD; OIL PAN 01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1111-	●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	1111-	●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	1111-	●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	1111-	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	1111-	●	●

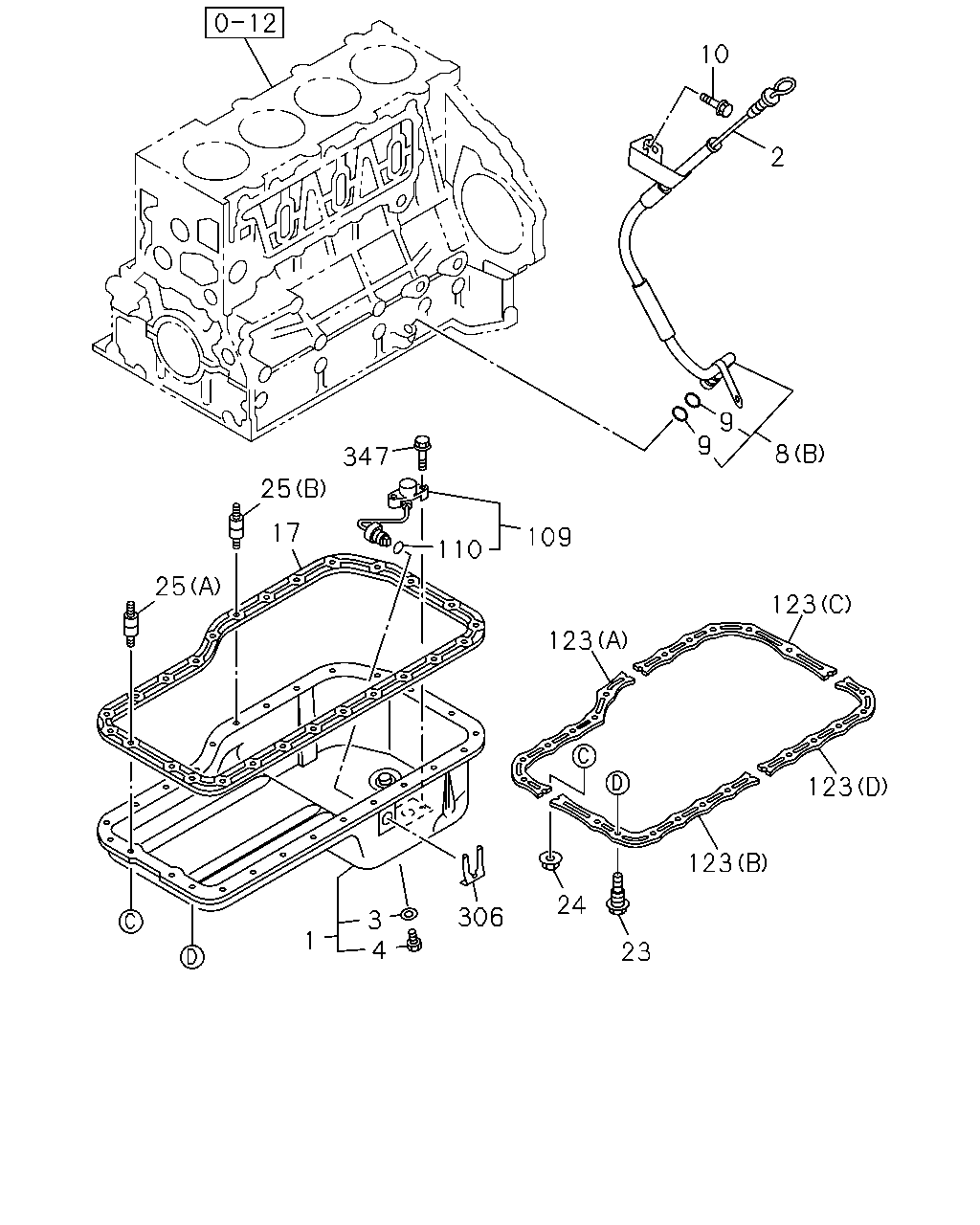

10 2 9 9 8 123 123 123 123 109 23 24 306 110 347 25 17 25 3 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-97385-243-1	01	1	1508-	●
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2)	8-98124-513-0	01	1	1111-1312	●	●
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98124-513-1	01	1	1401-	●	●
1	01.426 PAN ASM; OIL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-97386-772-0	01	1	1111-1312	●	●
1	01.426 PAN ASM; OIL EURO5 SPECIFICATION(NT5)	8-97386-772-0	01	1	1401-1507	●	●
1	01.426 PAN ASM; OIL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-97386-772-0	01	1	1508-	●
1	01.426 PAN ASM; OIL	8-97386-772-0	01	1	1508-		●
2	01.516 GAUGE; OIL LEVEL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98175-893-0	01	1	1508-	●
2	01.516 GAUGE; OIL LEVEL EURO2 SPECIFICATION(NT2)	8-98183-344-0	01	1	1111-	●	●
2	01.516 GAUGE; OIL LEVEL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98197-673-0	01	1	1111-1507	●	●
2	01.516 GAUGE; OIL LEVEL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98197-673-0	01	1	1508-	●
2	01.516 GAUGE; OIL LEVEL EURO4 SPECIFICATION(NT4)	8-98197-673-0	01	1	1508-	●
2	01.516 GAUGE; OIL LEVEL	8-98197-673-0	01	1	1508-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1111-	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1111-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98289-137-0	01	1	1508-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO2 SPECIFICATION(NT2) (A)	8-98172-651-1	01	1	1111-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98173-957-0	01	1	1111-1507	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98173-957-0	01	1	1508-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO4 SPECIFICATION(NT4) (B)	8-98173-957-0	01	1	1508-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98173-957-0	01	1	1508-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU EURO2 SPECIFICATION(NT2) ID=11	1-09623-469-0	02	1	1111-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) ID=11	1-09623-469-0	02	1	1111-	●	●
10	01.516 BOLT; GUIDE TUBE EURO2 SPECIFICATION(NT2) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1111-	●	●
10	01.516 BOLT; GUIDE TUBE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1111-	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1111-	●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1111-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1111-	●	●
25	01.453 STUD; OIL PAN (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1111-	●	●
25	01.453 STUD; OIL PAN 01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1111-	●	●
109	01.516 SWITCH; OIL LEVEL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-97328-993-1	01	1	1111-1312	●	●
109	01.516 SWITCH; OIL LEVEL EURO5 SPECIFICATION(NT5)	8-97328-993-1	01	1	1401-1507	●	●
109	01.516 SWITCH; OIL LEVEL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-97328-993-1	01	1	1508-	●
109	01.516 SWITCH; OIL LEVEL	8-97328-993-1	01	1	1508-		●
110	01.456 GASKET; SW,OIL LEVEL EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98048-191-0	01	1	1111-1312	●	●
110	01.456 GASKET; SW,OIL LEVEL EURO5 SPECIFICATION(NT5)	8-98048-191-0	01	1	1401-1507	●	●
110	01.456 GASKET; SW,OIL LEVEL EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98048-191-0	01	1	1508-	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1508-		●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	1111-	●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	1111-	●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	1111-	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	1111-	●	●
306	01.516 CLIP; CONNECTOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-97229-219-0	01	1	1111-1312	●	●
306	01.516 CLIP; CONNECTOR EURO5 SPECIFICATION(NT5)	8-97229-219-0	01	1	1401-1507	●	●
306	01.516 CLIP; CONNECTOR EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-97229-219-0	01	1	1508-	●
306	01.516 CLIP; CONNECTOR	8-97229-219-0	01	1	1508-		●
347	01.516 BOLT; OIL LEVEL SW EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.685 M6X25 FLANGE	0-28650-625-0	02	1	1111-1312	●	●
347	01.516 BOLT; OIL LEVEL SW EURO5 SPECIFICATION(NT5) 00.685 M6X25 FLANGE	0-28650-625-0	02	1	1401-1507	●	●
347	01.516 BOLT; OIL LEVEL SW EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.685 M6X25 FLANGE	0-28650-625-0	02	1	1508-	●
347	01.516 BOLT; OIL LEVEL SW 00.685 M6X25 FLANGE	0-28650-625-0	02	1	1508-		●
