Isuzu WW
▶
TRUCKS
▶
NP
▶
51387 - NP/NQR AIR BRAKE LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

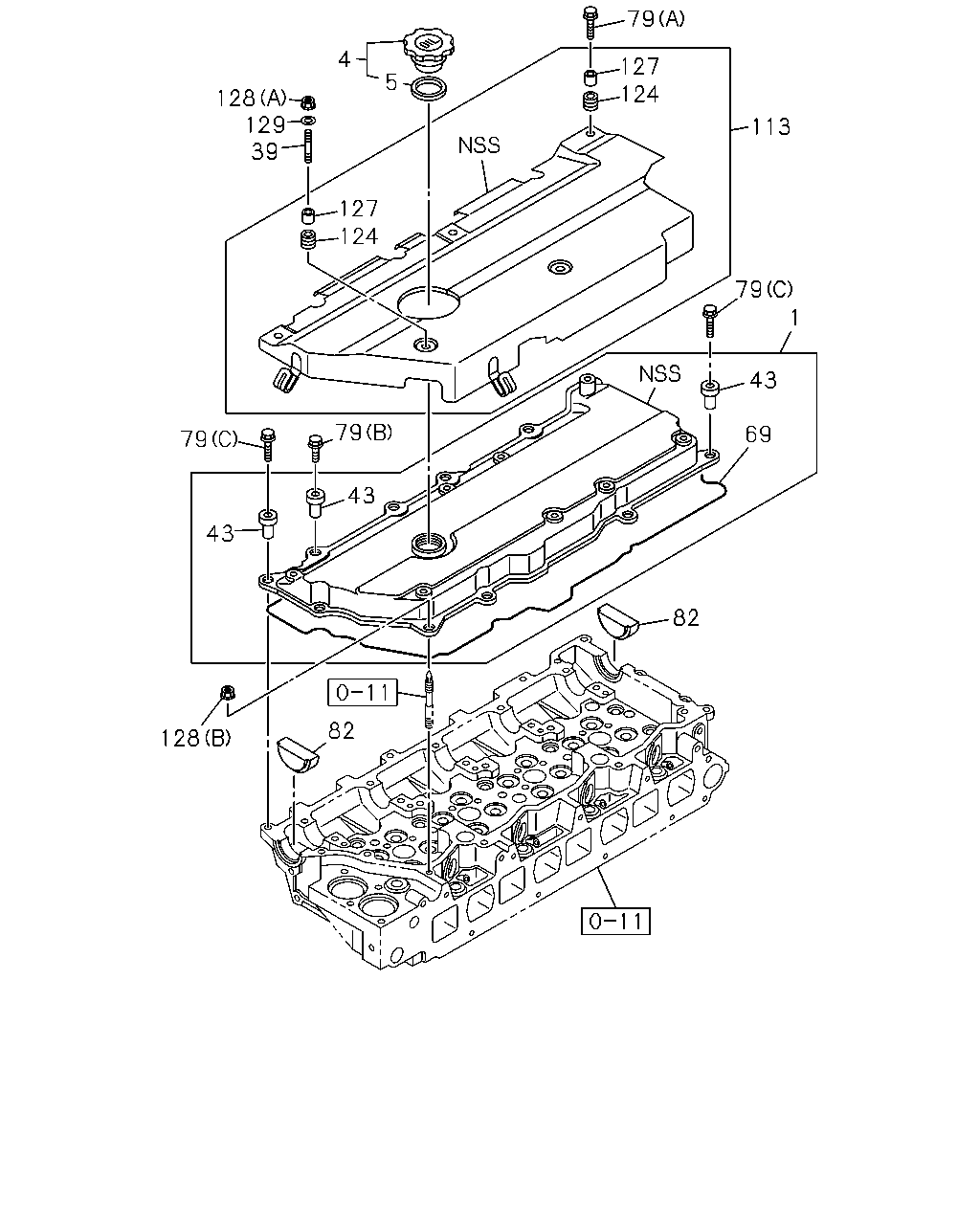

0-10 — CYLINDER HEAD COVER
(#80635) — 20 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
69
43
1
79
113
124
127
79
4
5
127
124
39
129
128
79
79
43
43
128
82
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
00.386 COVER; CYL HD
8-97331-361-2
01
1
1111-
●
●
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1111-
●
●
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
1111-
●
●
39
00.413 STUD; COVER,HD
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.275 M6X25 L=34
0-41010-625-0
02
1
1111-
●
●
43
00.413 RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
1111-
●
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-359-1
01
1
1111-
●
●
79
00.293 BOLT; COVER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 00.413 (B) M6X20
8-97127-607-0
02
1
1508-
●
79
00.293 BOLT; COVER
01.060 (B) M8X35 FLANGE
0-28650-835-0
02
1
1111-
●
●
79
00.293 BOLT; COVER
01.097 (C) M8X65 FLANGE
1-09044-072-1
07
1
1111-
●
●
79
00.293 BOLT; COVER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.413 (A) M6X20
8-97127-607-0
03
1
1111-1507
●
●
79
00.293 BOLT; COVER
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.413 (A) M6X20
8-97127-607-0
03
1
1508-
●
79
00.293 BOLT; COVER
EURO4 SPECIFICATION(NT4) 00.413 (A) M6X20
8-97127-607-0
03
1
1508-
●
79
00.293 BOLT; COVER
00.413 (A) M6X20
8-97127-607-0
03
1
1508-
●
82
00.386 PLUG; CYL HD COVER
8-98163-813-0
02
1
1111-
●
●
113
00.386 COVER; CYL HEAD COVER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)
8-98115-676-0
01
1
1111-
●
●
124
00.413 RUBBER; MTG,COVER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)
8-97226-908-0
05
1
1111-
●
●
127
00.386 RETAINER; COVER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)
8-97092-314-0
05
1
1111-
●
●
128
00.413 NUT; COVER,CYL HEAD COVER
01.062 (B) M8 FLANGE
0-91180-108-0
02
1
1111-
●
●
128
00.413 NUT; COVER,CYL HEAD COVER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.062 (A) M6 FLANGE
0-91180-106-0
02
1
1111-
●
●
129
00.413 WASHER; COVER,CYL HEAD COVER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) ID=6.4 OD=18
0-91610-706-0
02
1
1111-
●
●
