0-05 — ENGINE GASKET KIT (#80634) — 108 parça

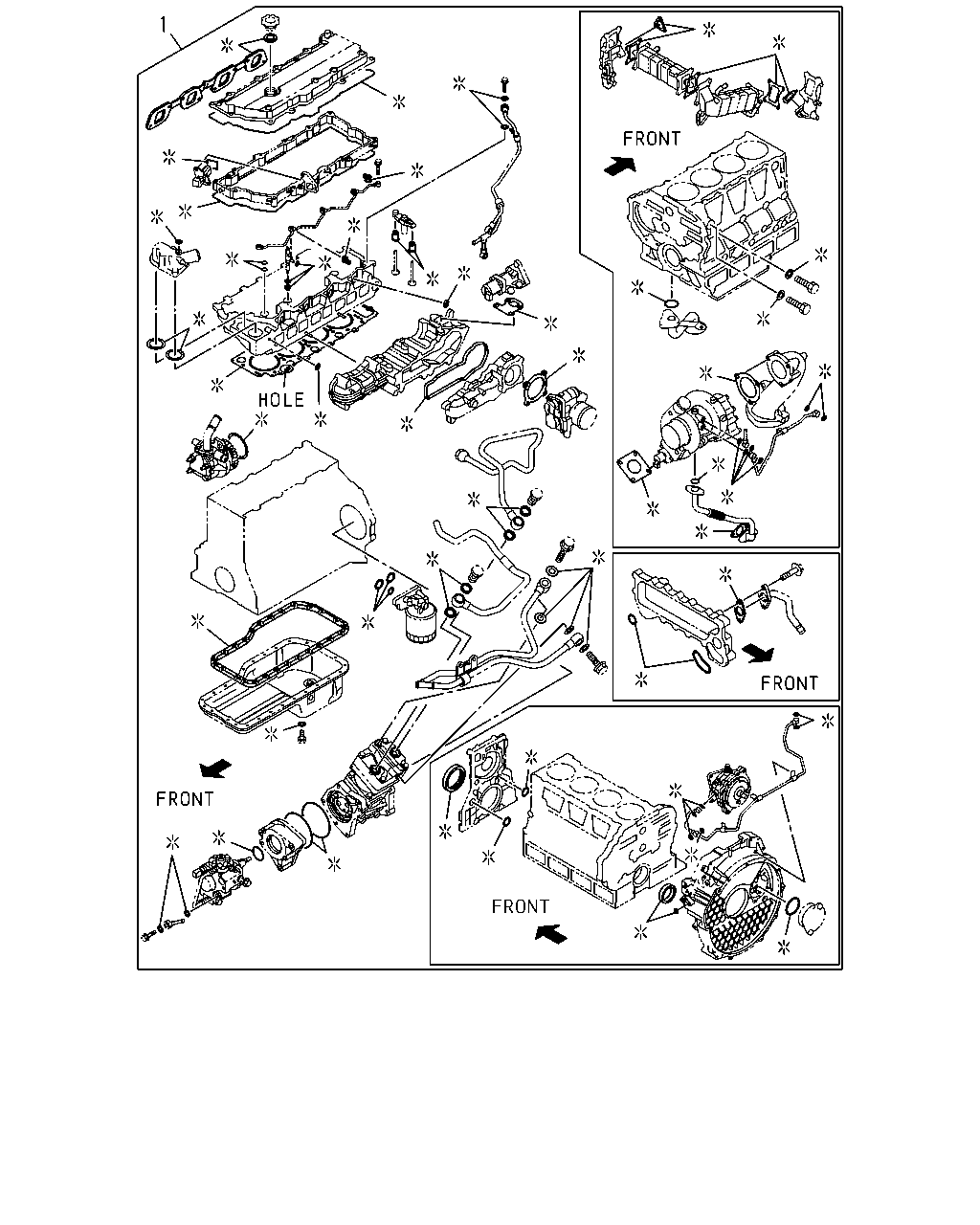

çizim 14710
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) T=1.475 NON-HOLE 		5-87817-939-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) T=1.525 1-HOLE 		5-87817-940-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) T=1.575 2-HOLE 		5-87817-941-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87816-071-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-180-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-771-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-960-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87816-072-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-181-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-772-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-961-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87816-073-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-182-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-773-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-962-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87816-077-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87817-186-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87817-777-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87817-966-0 01 1 1506-1507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) T=1.475 NON-HOLE 		5-87817-966-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-966-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-966-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87816-078-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87817-187-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87817-778-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87817-967-0 01 1 1506-1507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) T=1.525 1-HOLE 		5-87817-967-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-967-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-967-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87816-079-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87817-188-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87817-779-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87817-968-0 01 1 1506-1507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) T=1.575 2-HOLE 		5-87817-968-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-968-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-968-0 01 1 1508- ●

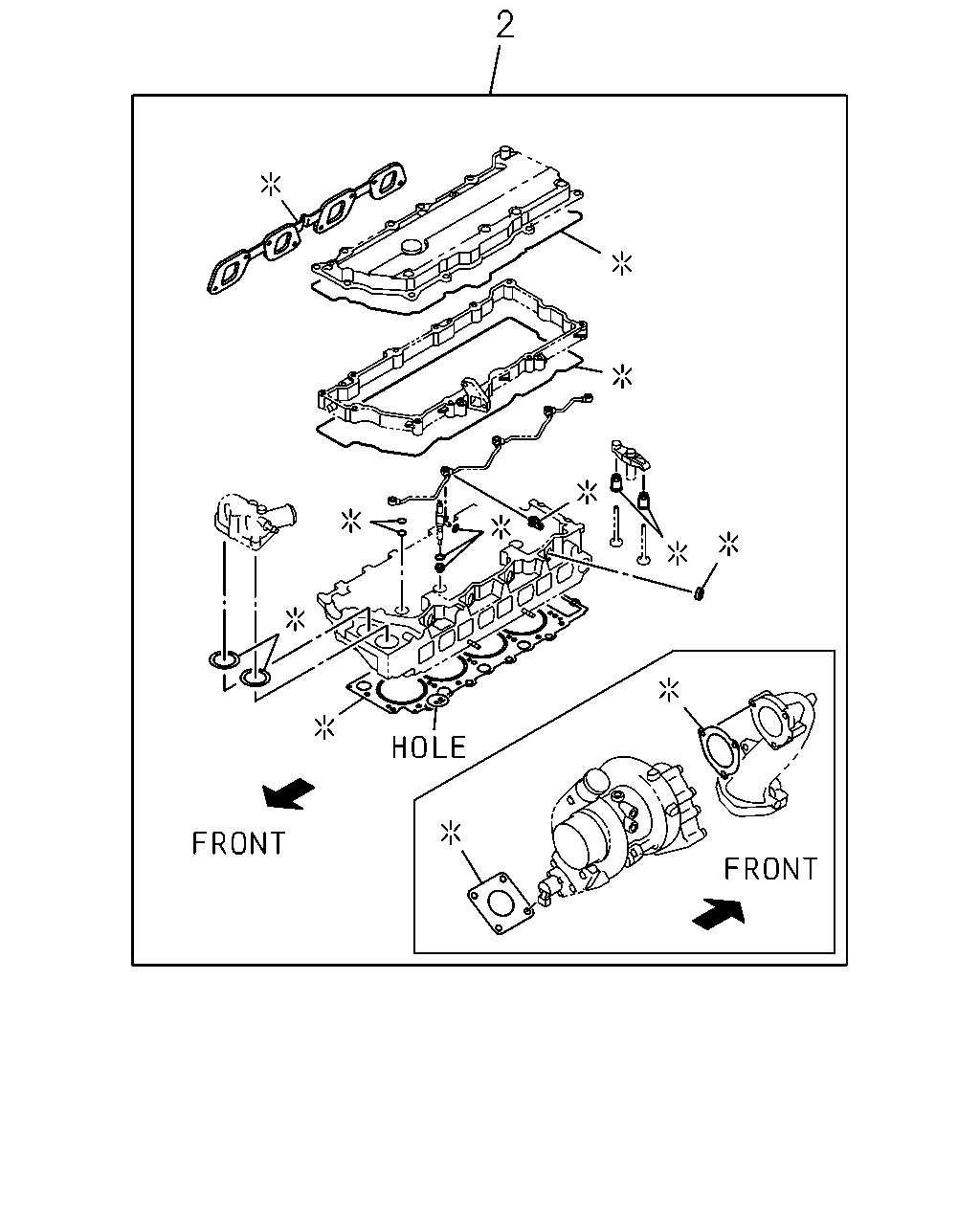

çizim 15041
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87816-080-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-738-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-987-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87816-081-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-739-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-988-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87816-082-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-740-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-989-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87815-526-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87817-702-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87817-921-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87815-527-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87817-703-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87817-922-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87815-528-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87817-704-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87817-923-0 01 1 1506- ● ●

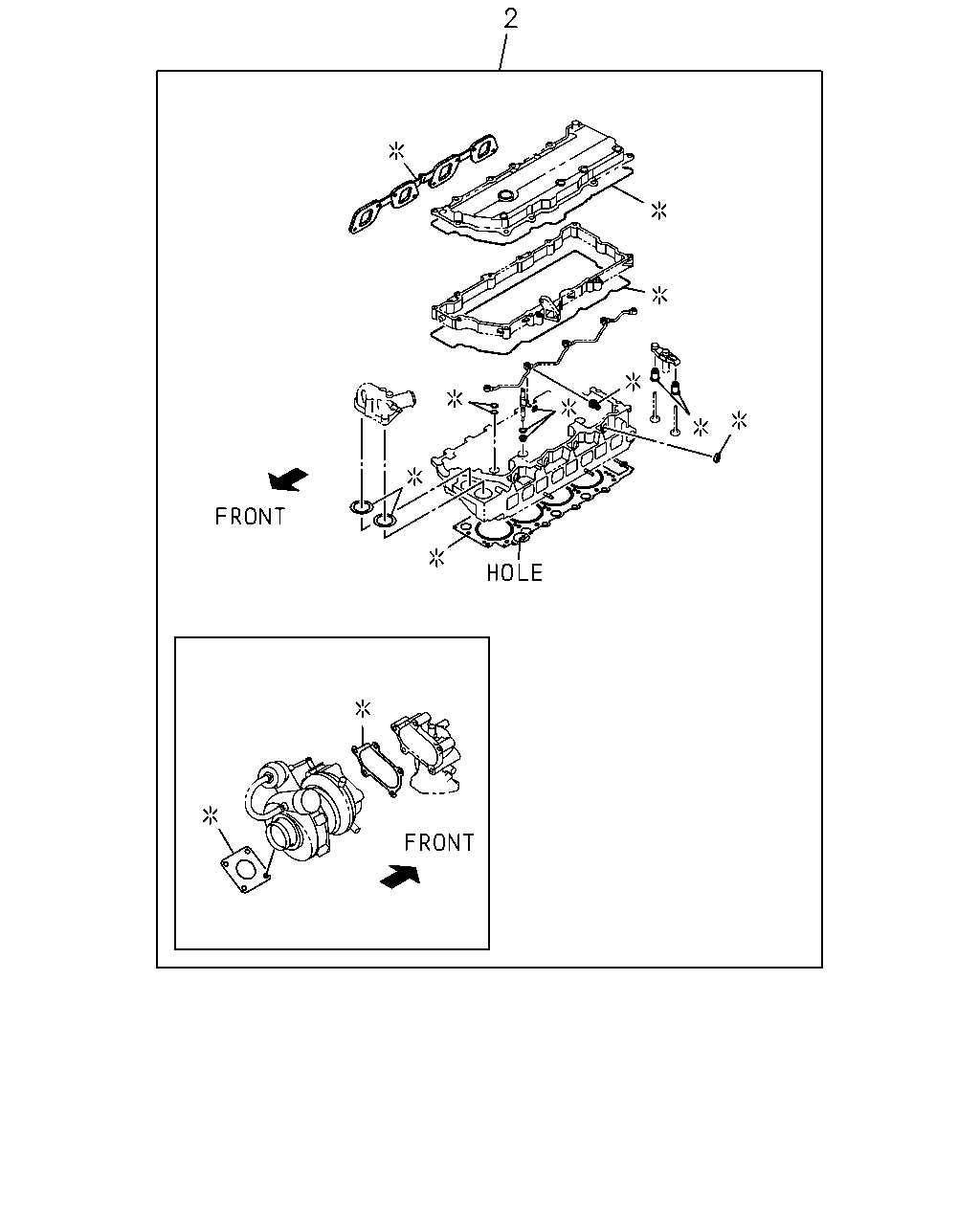

çizim 183247
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87816-080-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-738-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-987-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87816-081-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-739-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-988-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87816-082-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-740-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-989-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87815-526-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87817-702-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87817-921-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87815-527-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87817-703-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87817-922-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87815-528-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87817-704-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87817-923-0 01 1 1506- ● ●

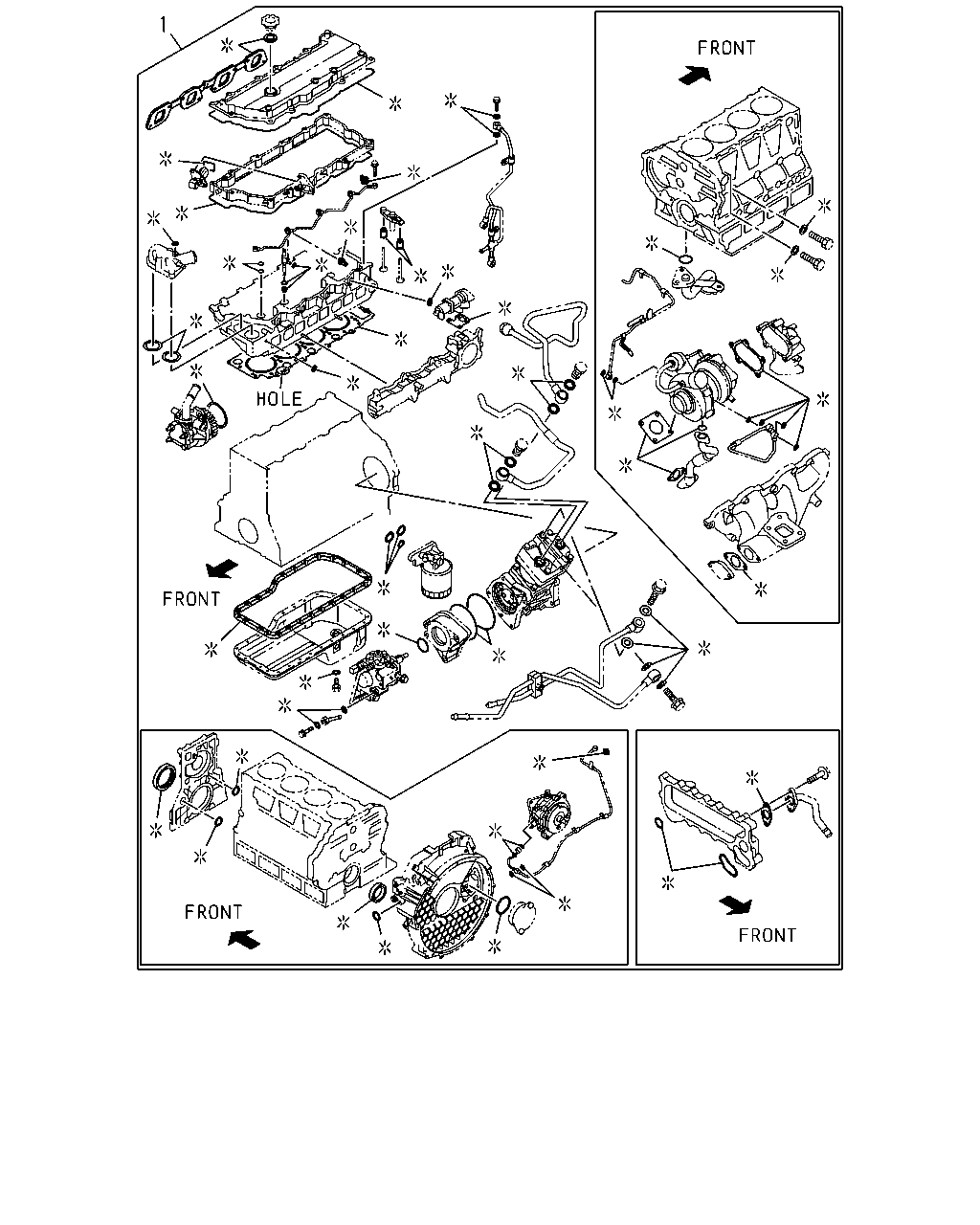

çizim 183251
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) T=1.475 NON-HOLE 		5-87817-939-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) T=1.525 1-HOLE 		5-87817-940-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) T=1.575 2-HOLE 		5-87817-941-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87816-071-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-180-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-771-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-960-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87816-072-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-181-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-772-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-961-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87816-073-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-182-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-773-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-962-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87816-077-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87817-186-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87817-777-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.475 NON-HOLE 		5-87817-966-0 01 1 1506-1507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) T=1.475 NON-HOLE 		5-87817-966-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-966-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-966-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87816-078-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87817-187-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87817-778-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.525 1-HOLE 		5-87817-967-0 01 1 1506-1507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) T=1.525 1-HOLE 		5-87817-967-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-967-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-967-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87816-079-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87817-188-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87817-779-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) T=1.575 2-HOLE 		5-87817-968-0 01 1 1506-1507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) T=1.575 2-HOLE 		5-87817-968-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-968-0 01 1 1508- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-968-0 01 1 1508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
