9-31 — REAR BODY; FLOOR AND FENDER (#80630) — 74 parça

23 81 64 52 1 71 53 53 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6)	8-97162-720-0	02	1	1111-1604
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6)	8-98253-302-0	02	1	1605-
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED(RS6)	8-97179-829-0	02	1	1111-
23	17.405 NUT; ANGLE RR BODY FLAT BED(RS6) 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	05	1	1111-
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED(RS6) M8X60 W/LK WASHER	0-50740-860-0	08	1	1111-
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED(RS6) 01.062 M8 FLANGE	0-91180-108-0	16	1	1111-
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED(RS6) 03.706 ID=8.4 OD=26	0-91614-808-0	08	1	1111-
71	08.212 STAY; RR FENDER RR BODY FLAT BED(RS6)	8-97179-830-1	08	1	1111-
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) PABCO	8-98089-976-2	01	1	1111-

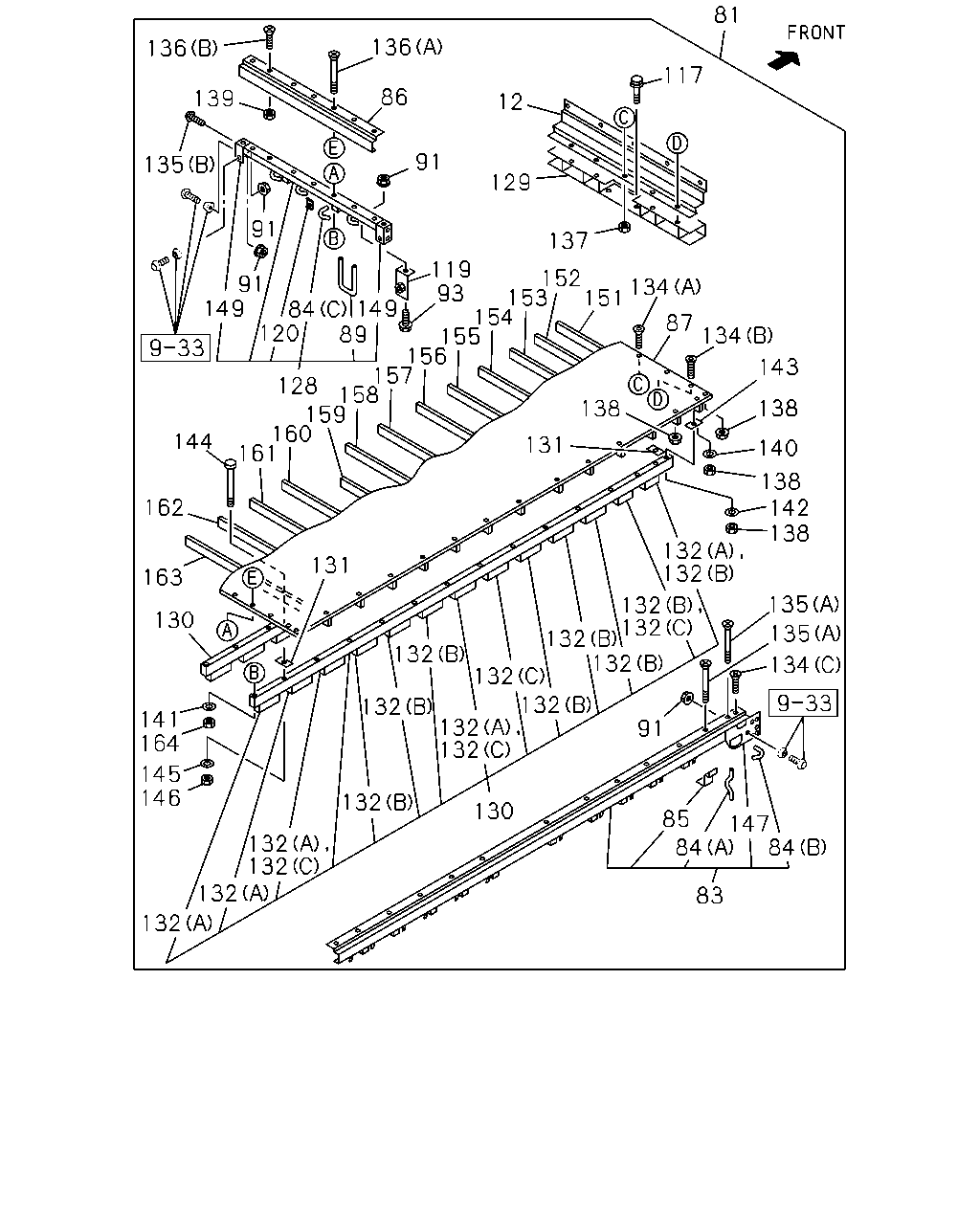

81 136 136 117 86 139 12 91 135 129 91 137 119 93 152 153 151 154 155 156 157 158 159 160 161 91 149 134 120 89 87 134 143 128 138 138 144 131 140 138 142 138 162 132 132 131 163 135 132 132 132 132 130 135 132 134 132 132 132 132 132 141 164 91 145 146 132 130 85 84 147 84 132 132 132 83 132 84 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	17.405 ANGLE; SETTING,RR BODY RR BODY FLAT BED(RS6) PABCO	8-98045-235-0	01	1	1111-
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) PABCO	8-98089-976-2	01	1	1111-
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) PABCO	8-98045-231-0	01	1	1111-
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) PABCO	8-98045-232-0	01	1	1111-
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) (A) SIDE PABCO	5-87580-069-0	24	1	1111-
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) (B) SIDE PABCO	5-87580-070-0	02	1	1111-
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) (C) REAR PABCO	5-87580-077-0	03	1	1111-
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED(RS6) PABCO	5-87580-068-0	22	1	1111-
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) PABCO	8-98045-233-0	01	1	1111-
87	17.400 BOARD; FLOOR RR BODY FLAT BED(RS6) PABCO	5-87580-105-0	01	1	1111-
89	17.400 STEP; RR RR BODY FLAT BED(RS6) PABCO	5-87580-142-0	01	1	1111-
91	17.447 NUT; BRKT RR BODY FLAT BED(RS6) 01.062 M6 FLANGE	0-91180-106-0	06	1	1111-
93	17.447 BOLT; BRKT RR BODY FLAT BED(RS6) 09.242 M6X16 FLANGE	0-28050-616-0	06	1	1111-
117	17.400 BOLT; SILL RR BODY FLAT BED(RS6) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	1111-
119	02.662 BRACKET; COMB LAMP RR BODY FLAT BED(RS6) PABCO	8-98045-126-0	01	1	1111-
119	02.662 BRACKET; COMB LAMP RR BODY FLAT BED(RS6) PABCO	8-98045-127-0	01	1	1111-
120	07.800 BRACKET; NUMBER PLATE RR BODY FLAT BED(RS6) PABCO	5-87580-080-0	02	1	1111-
128	17.208 BOLSTER; RR END,RR BODY RR BODY FLAT BED(RS6) PABCO	8-98045-234-0	01	1	1111-
129	17.400 SUPPORT; GUARD FRAME RR BODY FLAT BED(RS6) PABCO	8-98045-101-0	02	1	1111-
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) PABCO	5-87580-110-1	01	1	1111-1208
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) PABCO	5-87580-178-0	01	1	1209-
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) PABCO	5-87580-111-1	01	1	1111-1208
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) PABCO	5-87580-179-0	01	1	1209-
131	07.800 PLATE; BOLSTER,RR BODY RR BODY FLAT BED(RS6) PABCO	5-87580-103-0	26	1	1111-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (B) L=280 PABCO	5-87580-041-0	14	1	1111-1208
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (B) L=280 PABCO	5-87580-154-0	14	1	1209-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (C) L=250 PABCO	5-87580-042-0	02	1	1111-1208
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (C) L=250 PABCO	5-87580-155-0	02	1	1209-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (A) L=210 PABCO	5-87580-082-0	10	1	1111-1208
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (A) L=210 PABCO	5-87580-158-0	10	1	1209-
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) (A) M8X32 PABCO	8-98045-186-0	03	1	1111-
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) (B) M8X34 PABCO	8-98045-187-0	04	1	1111-
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) (C) M8X30 PABCO	8-98045-189-0	02	1	1111-
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8X124 PABCO	8-98045-173-0	24	1	1111-
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) 17.185 (B) M8X20 PABCO	8-98045-181-0	04	1	1111-
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) (A) M10X220 PABCO	8-98045-172-0	02	1	1111-
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) (B) M8X30 PABCO	8-98045-189-0	07	1	1111-
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	07	1	1111-
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	24	1	1111-
139	17.447 NUT; BOARD,RR RR BODY FLAT BED(RS6) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	02	1	1111-
140	17.447 WASHER; PL,BOARD,SIDE RR BODY FLAT BED(RS6) 03.706 ID=8.4 OD=26	0-91614-808-0	04	1	1111-
141	17.447 WASHER; PL,RR FRAME RR BODY FLAT BED(RS6) 01.270 ID=10.5	0-91610-710-0	02	1	1111-
142	17.447 WASHER; PL,SILL RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	02	1	1111-
143	17.447 SHIM; SUPPORT,GUARD FRAME RR BODY FLAT BED(RS6) PABCO	8-98045-210-0	02	1	1111-
144	17.447 BOLT; BOLSTER TO SILL RR BODY FLAT BED(RS6) M10X194 PABCO	5-87580-047-0	26	1	1111-
145	17.447 WASHER; PL,BOLSTER TO SILL RR BODY FLAT BED(RS6) 01.270 ID=10.5	0-91610-710-0	26	1	1111-
146	17.447 NUT; BOLSTER TO SILL RR BODY FLAT BED(RS6) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	26	1	1111-
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 PABCO	5-87580-066-0	01	1	1111-
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 PABCO	5-87580-067-0	01	1	1111-
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) PABCO	5-87580-075-1	01	1	1111-
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) PABCO	5-87580-076-1	01	1	1111-
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-106-0	01	1	1111-
152	17.208 BOLSTER; NO 2,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-107-0	01	1	1111-
153	17.208 BOLSTER; NO 3,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-106-0	01	1	1111-
154	17.208 BOLSTER; NO 4,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-107-0	01	1	1111-
155	17.208 BOLSTER; NO 5,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-106-0	01	1	1111-
156	17.208 BOLSTER; NO 6,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-106-0	01	1	1111-
157	17.208 BOLSTER; NO 7,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-107-0	01	1	1111-
158	17.208 BOLSTER; NO 8,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-108-0	01	1	1111-
159	17.208 BOLSTER; NO 9,RR BODY RR BODY FLAT BED(RS6) L=980 PABCO	5-87580-109-0	01	1	1111-
160	17.208 BOLSTER; NO 10,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-108-0	01	1	1111-
161	17.208 BOLSTER; NO 11,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-106-0	01	1	1111-
162	17.208 BOLSTER; NO 12,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-106-0	01	1	1111-
163	17.208 BOLSTER; NO 13,RR BODY RR BODY FLAT BED(RS6) L=2055 PABCO	5-87580-106-0	01	1	1111-
164	17.447 NUT; SILL,RR BODY RR BODY FLAT BED(RS6) 03.704 M10 LOCK NUT	0-91370-010-0	02	1	1111-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
