◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#8063) — 73 parça

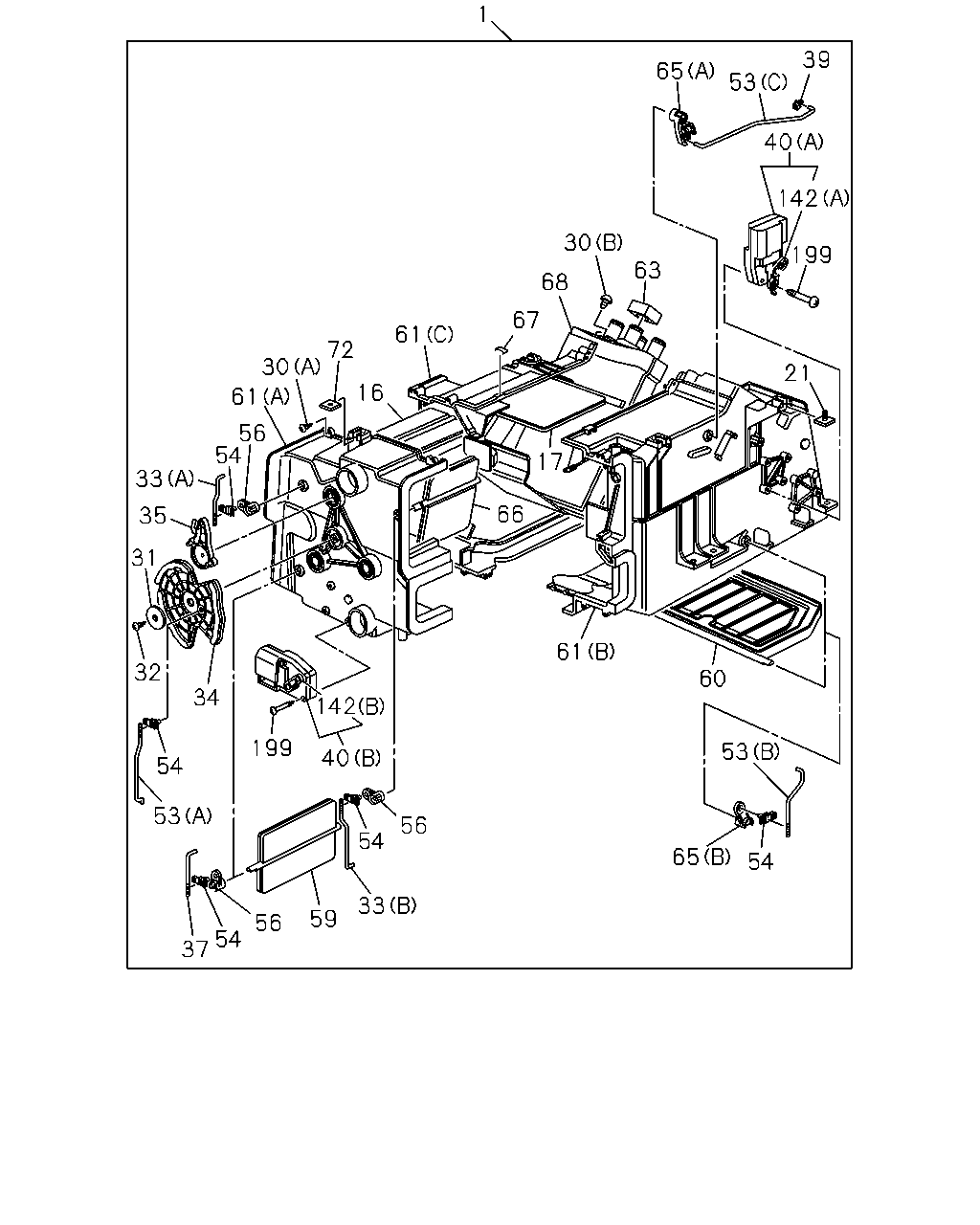

çizim 11866
1 39 65 53 40 142 30 199 63 68 67 61 72 30 21 16 61 56 54 17 33 66 35 31 61 32 60 34 53 199 40 54 53 56 54 65 54 33 59 56 54 37 142
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT 1-83511-129-7 01 1 0005-0011 ● ● ●
1 HEATER UNIT 1-83511-129-8 01 1 0012-0109 ● ● ● ●
1 HEATER UNIT 1-83511-175-1 01 1 0110- ● ● ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0005-0011 ● ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0012- ● ● ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0005-0011 ● ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0012- ● ● ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-1 02 1 0005-0011 ● ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0012- ● ● ● ●
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0211- ● ● ● ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0005-0011 ● ● ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0012- ● ● ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0005-0011 ● ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0012- ● ● ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0005-0011 ● ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0012- ● ● ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0005-0011 ● ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0012- ● ● ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0005-0011 ● ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0012- ● ● ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0005-0011 ● ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0012- ● ● ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0005-0011 ● ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0012- ● ● ● ●
37 ROD; LEVER 1-83579-620-1 01 1 0005-0011 ● ● ●
37 ROD; LEVER 1-83579-620-1 01 1 0012- ● ● ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0005-0011 ● ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0012- ● ● ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-0 01 1 0005-0011 ● ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 0012- ● ● ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-0 01 1 0005-0011 ● ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0012- ● ● ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0005-0011 ● ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0012- ● ● ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0005-0011 ● ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0012- ● ● ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0005-0011 ● ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0012- ● ● ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0005-0011 ● ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0012- ● ● ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0005-0011 ● ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0012- ● ● ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0005-0011 ● ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0012- ● ● ● ●
60 DOOR; MIX,HTR UNIT 1-83579-629-0 01 1 0005-0011 ● ● ●
60 DOOR; MIX,HTR UNIT 1-83579-629-0 01 1 0012-0109 ● ● ● ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0110- ● ● ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0005-0011 ● ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0012- ● ● ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0005-0011 ● ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0012- ● ● ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0005-0011 ● ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0012- ● ● ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 0005-0011 ● ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 0012- ● ● ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0005-0011 ● ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0012- ● ● ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0005-0011 ● ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0012- ● ● ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 0005-0011 ● ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 0012- ● ● ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0005-0011 ● ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0012- ● ● ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 0005-0011 ● ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 0012- ● ● ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-1 02 1 0005-0011 ● ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0012- ● ● ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 0005-0011 ● ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 0012- ● ● ● ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0005-0011 ● ● ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0012- ● ● ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0005-0011 ● ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0012- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
