◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51386 - NQR AIR BRAKE RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#80610) — 166 parça

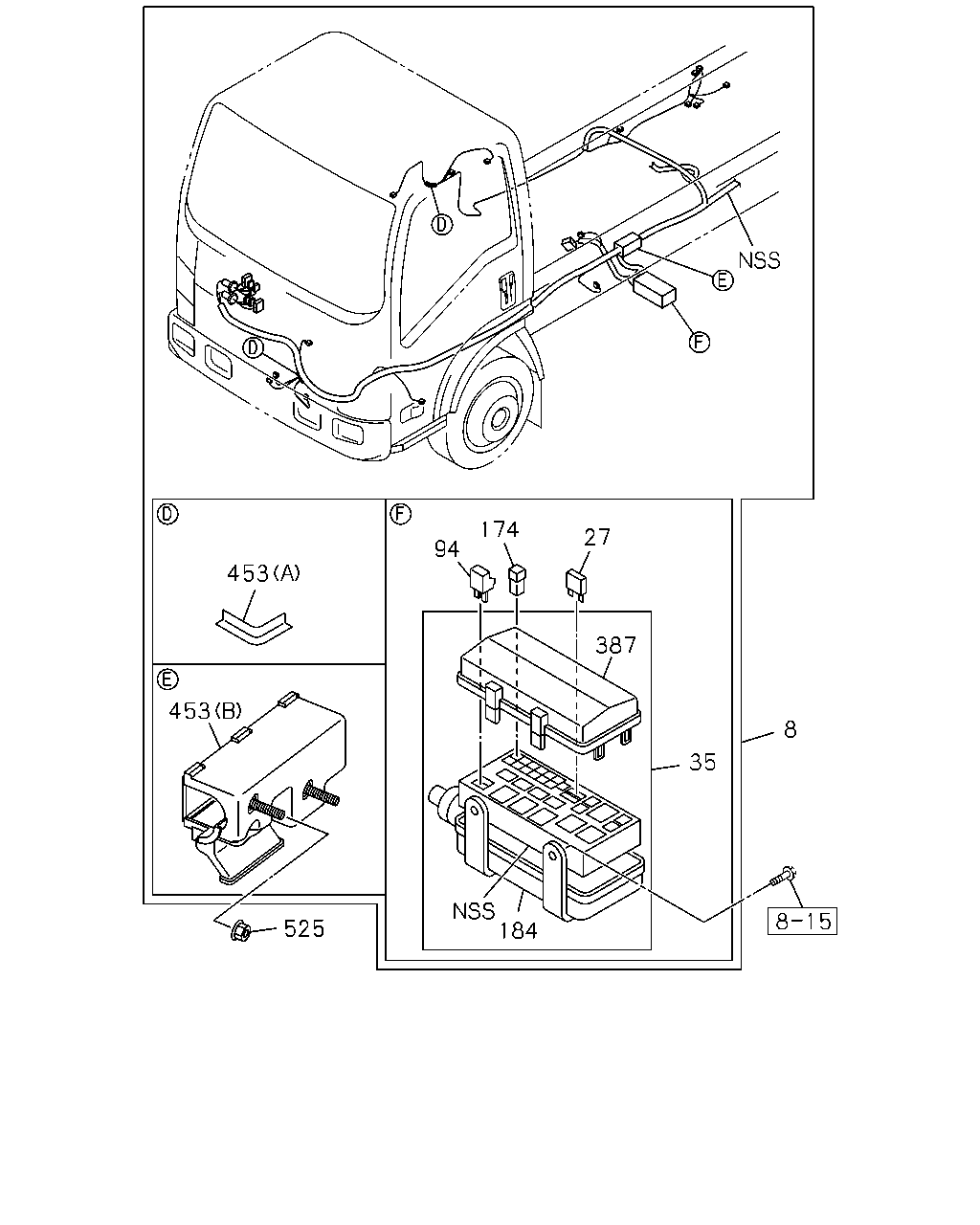

çizim 136206
174 27 94 453 387 453 8 35 184 525
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-711-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-686-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-712-1 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-687-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-713-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-688-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-714-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-689-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-708-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-693-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-715-1 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-690-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-716-1 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-691-0 01 1 1410-
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1111-
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1111-
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1111-
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1111-
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1111-
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1111-
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1111-
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1111-
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1111-
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1111-
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1111-
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 03 1 1111-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1111-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1111-
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111-

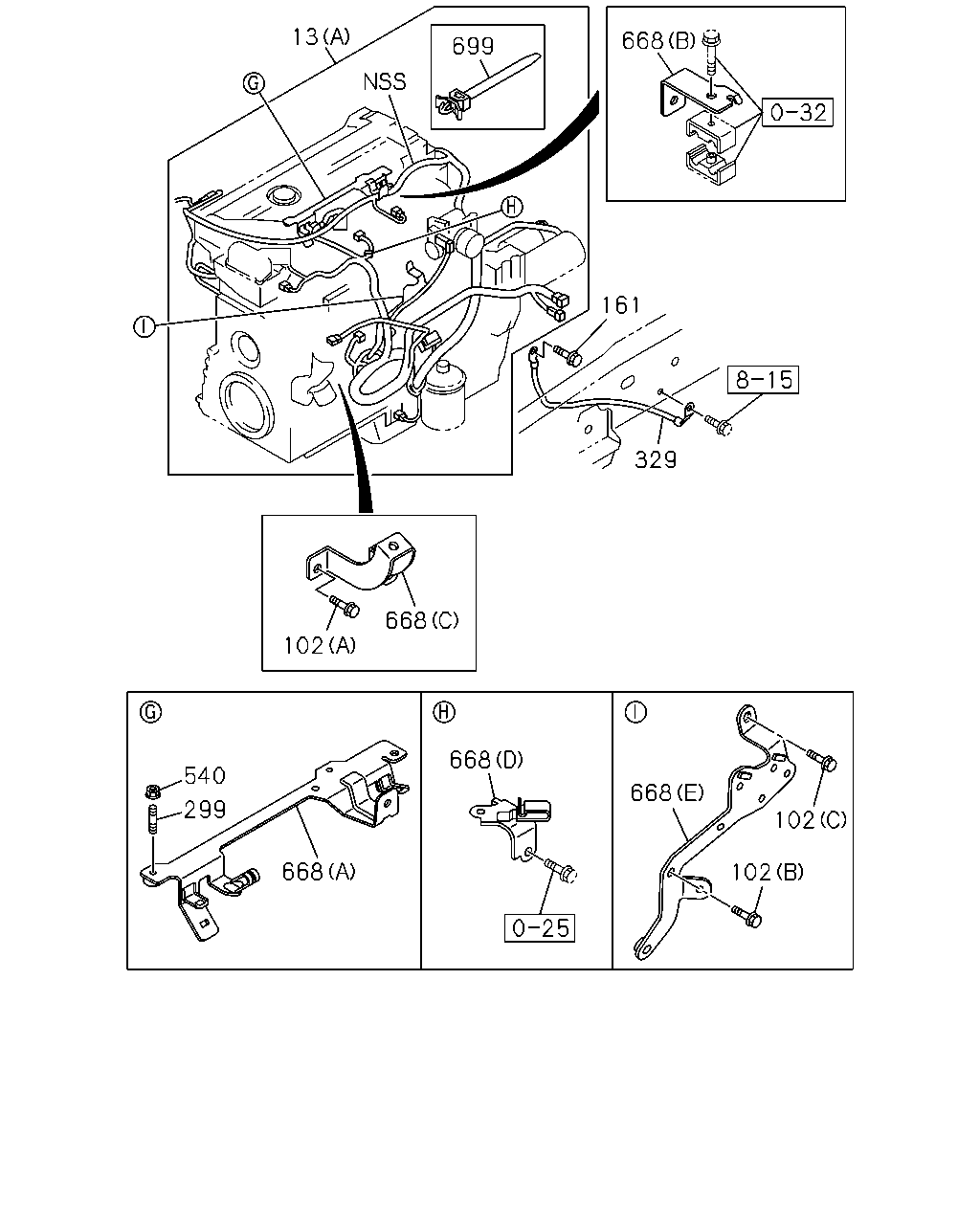

çizim 136468
102 102 668 668 668 299 540 102 668 329 161 668 699 13
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG
EURO2 SPECIFICATION(NT2) (A) 		8-98171-252-4 01 1 1111-
13 02.525 HARNESS; ENG
EURO3 SPECIFICATION(NT3) (A) 		8-98172-178-4 01 1 1111-
13 02.525 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1111-
13 02.525 HARNESS; ENG
EURO4 SPECIFICATION(NT4) (A) 		8-98173-500-7 01 1 1111-1312
13 02.525 HARNESS; ENG
EURO4 SPECIFICATION(NT4) (A) 		8-98255-386-0 01 1 1401-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.029 (A) M10X16 FLANGE 		0-28151-016-0 02 1 1111-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
EURO4 SPECIFICATION(NT4) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1111-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
EURO4 SPECIFICATION(NT4) 00.724 (C) M8X16 FLANGE 		0-28060-816-0 01 1 1111-
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1111-
299 02.559 STUD; BRKT
EURO2 SPECIFICATION(NT2) 01.062 M6X18 L=27 		0-41010-618-0 02 1 1111-
299 02.559 STUD; BRKT
EURO3 SPECIFICATION(NT3) 01.652 M6X20 L=28 		0-41010-620-0 02 1 1111-
329 02.480 CABLE; ENG TO FRAME 8-98102-465-0 01 1 1111-
540 02.483 NUT; BRKT FIX
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1111-
668 02.559 BRACKET; HARNESS
EURO3 SPECIFICATION(NT3) (B) 		8-98001-095-0 01 1 1111-
668 02.559 BRACKET; HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98061-805-2 01 1 1111-
668 02.559 BRACKET; HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98172-859-1 01 1 1111-
668 02.559 BRACKET; HARNESS
EURO4 SPECIFICATION(NT4) (D) 		8-98061-780-0 01 1 1111-
668 02.559 BRACKET; HARNESS
EURO4 SPECIFICATION(NT4) (E) 		8-98172-873-1 01 1 1111-
699 02.559 CLIP; ENG HARNESS
EURO4 SPECIFICATION(NT4) L=146.2 		8-98052-677-0 01 1 1111-1312
699 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) L=146.2 		8-98052-677-0 02 1 1111-

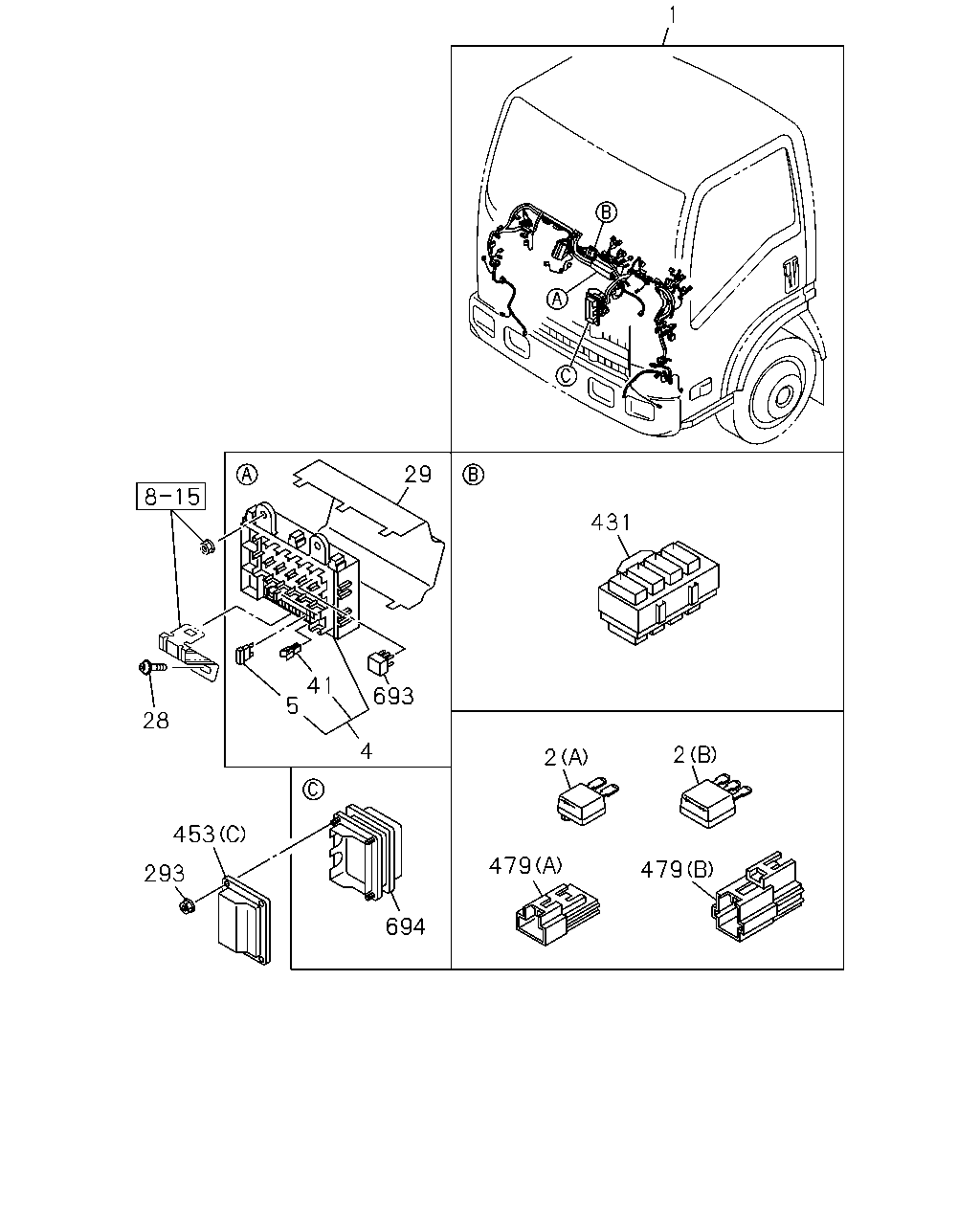

çizim 136498
1 29 431 41 5 693 28 4 2 2 453 479 479 293 694
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. CHILE EQUIPMENT(KE1) 		8-98182-158-1 01 1 1111-1112
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-158-1 01 1 1201-1205
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-961-0 01 1 1206-1305
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) EXC. CHILE EQUIPMENT(KE1) 		8-98210-961-0 01 1 1306-
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-98182-157-1 01 1 1111-1112
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-157-1 01 1 1201-1205
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-960-0 01 1 1206-1305
1 02.480 HARNESS; CAB
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-98210-960-0 01 1 1306-
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1111-
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1111-
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1111-
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1111-
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1111-
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1111-
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1111-1212
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1111-
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1111-
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1111-
431 02.530 CONNECTOR; JOINT 8-98046-206-0 01 1 1111-
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 03 1 1111-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1111-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1111-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 1111-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 1111-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1111-
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1111-

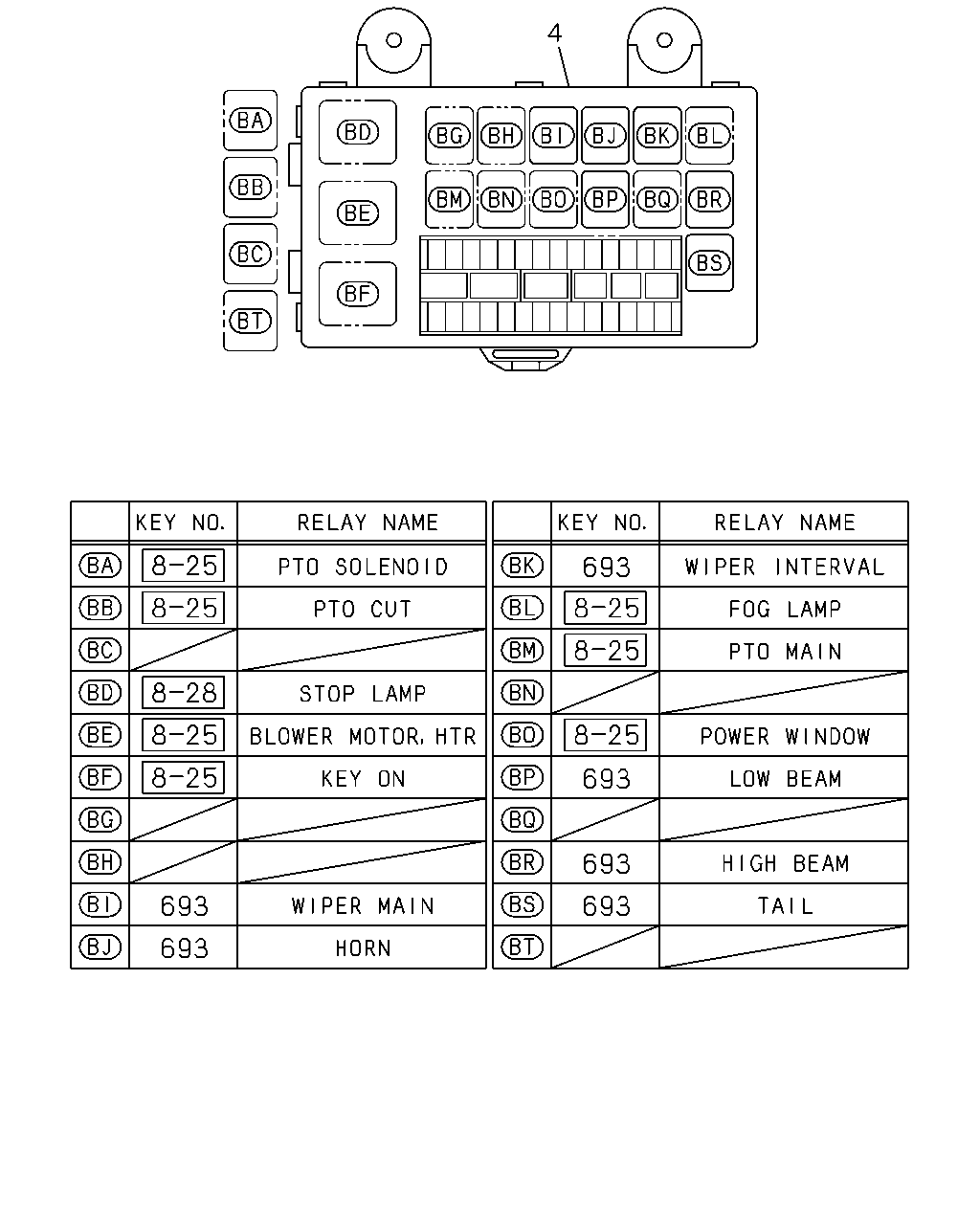

çizim 136602
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1111-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1111-

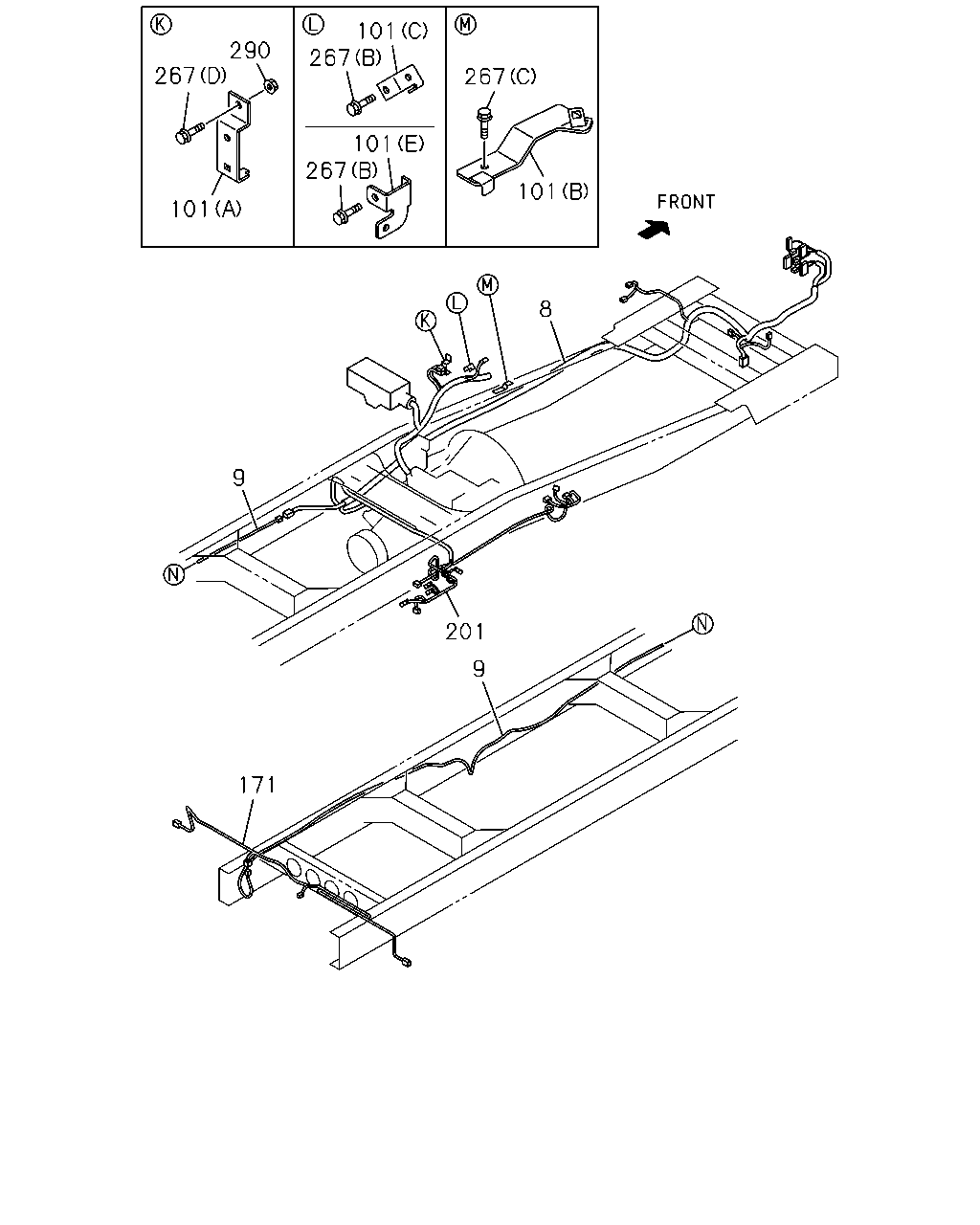

çizim 136950
101 267 290 267 267 101 267 101 101 8 9 201 9 171
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-711-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-686-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-712-1 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-687-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-713-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-688-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-714-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-689-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-708-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-693-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-715-1 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-690-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-716-1 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-691-0 01 1 1410-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-798-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-797-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-796-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-795-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-802-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-801-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-800-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-799-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-806-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-805-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-804-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-803-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-809-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-808-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-807-3 01 1 1111-
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98182-052-1 01 1 1111-
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98196-416-0 01 1 1111-
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98196-428-0 01 1 1111-1111
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) 		8-98208-521-0 01 1 1112-1507
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (E) 		8-98208-521-0 01 1 1508-
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98052-805-0 01 1 1111-
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 1111-1507
171 02.596 HARNESS; CABLE,TAIL LAMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 		8-98156-028-0 01 1 1508-
201 02.480 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98198-761-2 01 1 1111-
267 02.483 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1111-
267 02.483 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1111-1507
267 02.483 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1508-
267 02.483 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 03.275 (D) M8X25 FLANGE 		0-28050-825-0 01 1 1111-1301
267 02.483 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1111-
290 02.483 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1111-

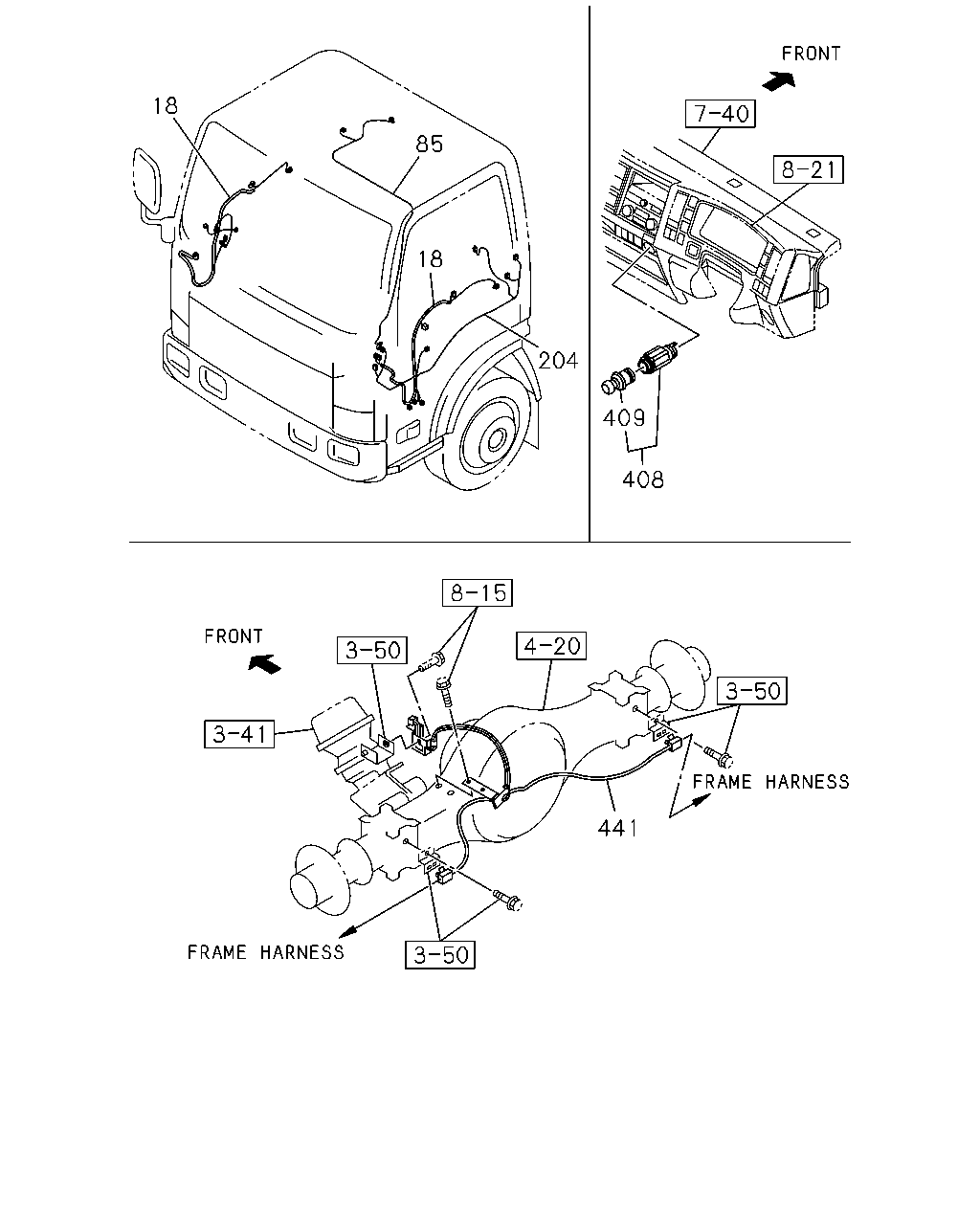

çizim 183121
18 85 18 204 409 408 441
BalonParca AdiParca NoAdetTipApplied Date
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98046-746-5 01 1 1111-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98077-596-3 01 1 1111-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-076-2 01 1 1111-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-084-3 01 1 1111-
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98046-744-2 01 1 1111-
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98046-749-2 01 1 1111-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> 		8-98071-075-2 01 1 1111-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> 		8-98071-083-2 01 1 1111-
85 06.495 HARNESS; ROOM LAMP 8-98047-149-3 01 1 1111-
204 02.559 HARNESS; CABLE,FLOOR 8-98070-787-4 01 1 1111-
408 02.575 SOCKET ASM; ACCESSORY
ASH TRAY & CIGAR LIGHTER DELETE<8PC> 		8-98169-757-0 01 1 1111-
409 02.530 CAP; ACCESSORY SOCKET
ASH TRAY & CIGAR LIGHTER DELETE<8PC> 		8-98183-771-0 01 1 1111-
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-121-2 01 1 1111-

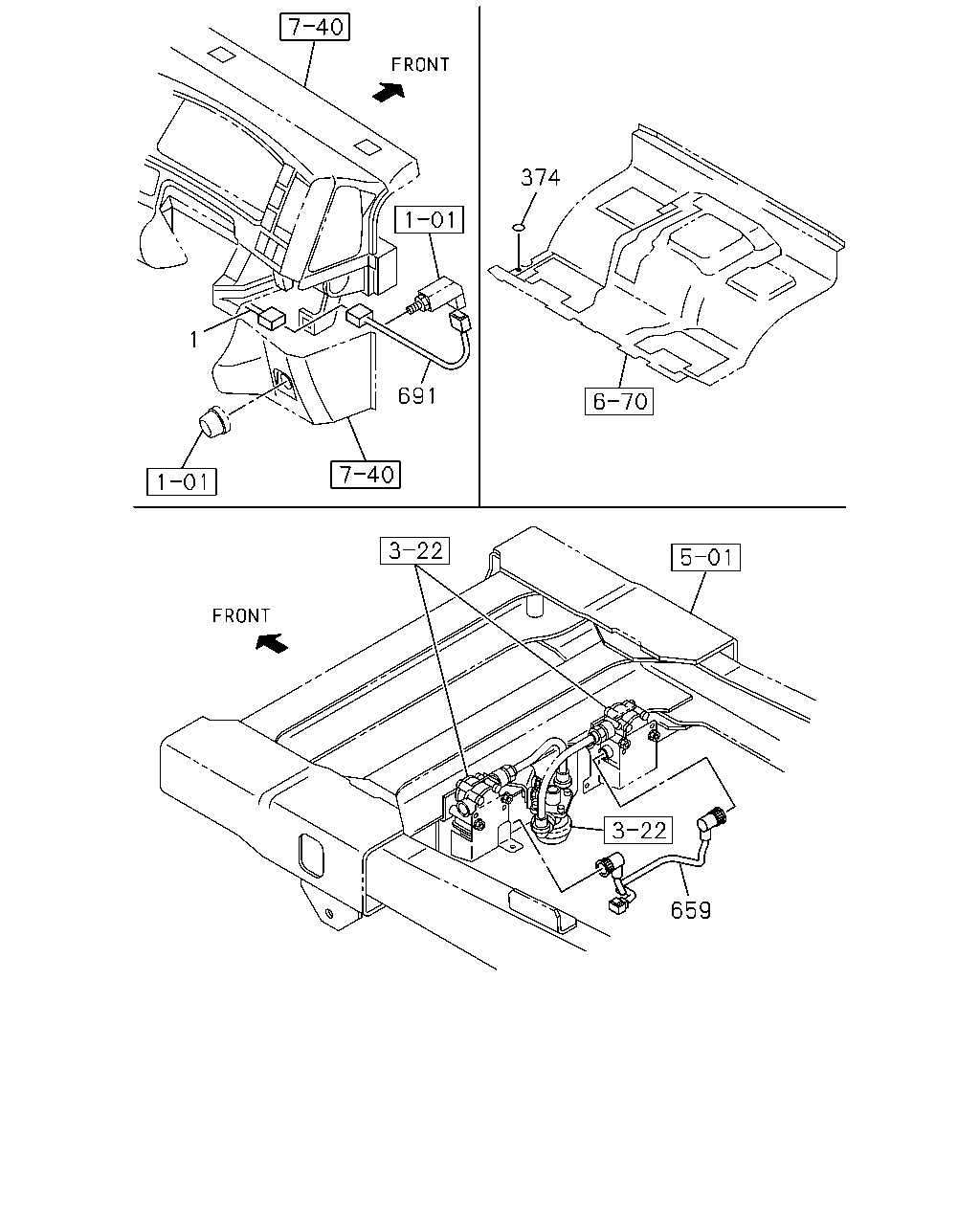

çizim 183127
374 1 691 659
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. CHILE EQUIPMENT(KE1) 		8-98182-158-1 01 1 1111-1112
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-158-1 01 1 1201-1205
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-961-0 01 1 1206-1305
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) EXC. CHILE EQUIPMENT(KE1) 		8-98210-961-0 01 1 1306-
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-98182-157-1 01 1 1111-1112
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-157-1 01 1 1201-1205
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-960-0 01 1 1206-1305
1 02.480 HARNESS; CAB
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-98210-960-0 01 1 1306-
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 1111-
659 02.480 HARNESS; EXT,BRAKE VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-762-2 01 1 1111-
691 02.480 HARNESS; IDLE CONT 8-98049-014-2 01 1 1111-

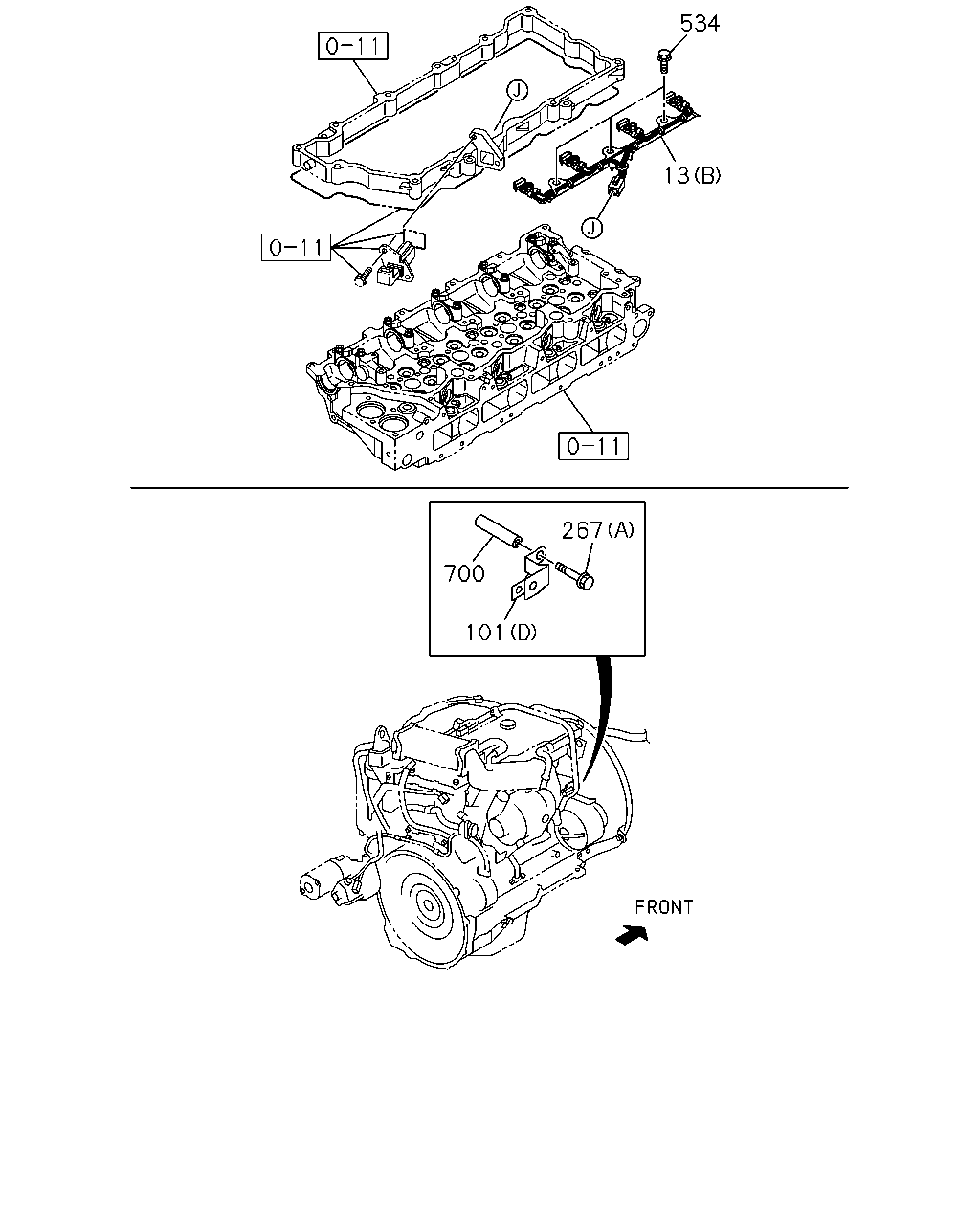

çizim 183155
534 13 267 700 101
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG
EURO2 SPECIFICATION(NT2) (A) 		8-98171-252-4 01 1 1111-
13 02.525 HARNESS; ENG
EURO3 SPECIFICATION(NT3) (A) 		8-98172-178-4 01 1 1111-
13 02.525 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1111-
13 02.525 HARNESS; ENG
EURO4 SPECIFICATION(NT4) (A) 		8-98173-500-7 01 1 1111-1312
13 02.525 HARNESS; ENG
EURO4 SPECIFICATION(NT4) (A) 		8-98255-386-0 01 1 1401-
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98182-052-1 01 1 1111-
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98196-416-0 01 1 1111-
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98196-428-0 01 1 1111-1111
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) 		8-98208-521-0 01 1 1112-1507
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (E) 		8-98208-521-0 01 1 1508-
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98052-805-0 01 1 1111-
267 02.483 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1111-
267 02.483 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1111-1507
267 02.483 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1508-
267 02.483 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 03.275 (D) M8X25 FLANGE 		0-28050-825-0 01 1 1111-1301
267 02.483 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1111-
534 02.483 BOLT
00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1111-
700 02.483 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1111-

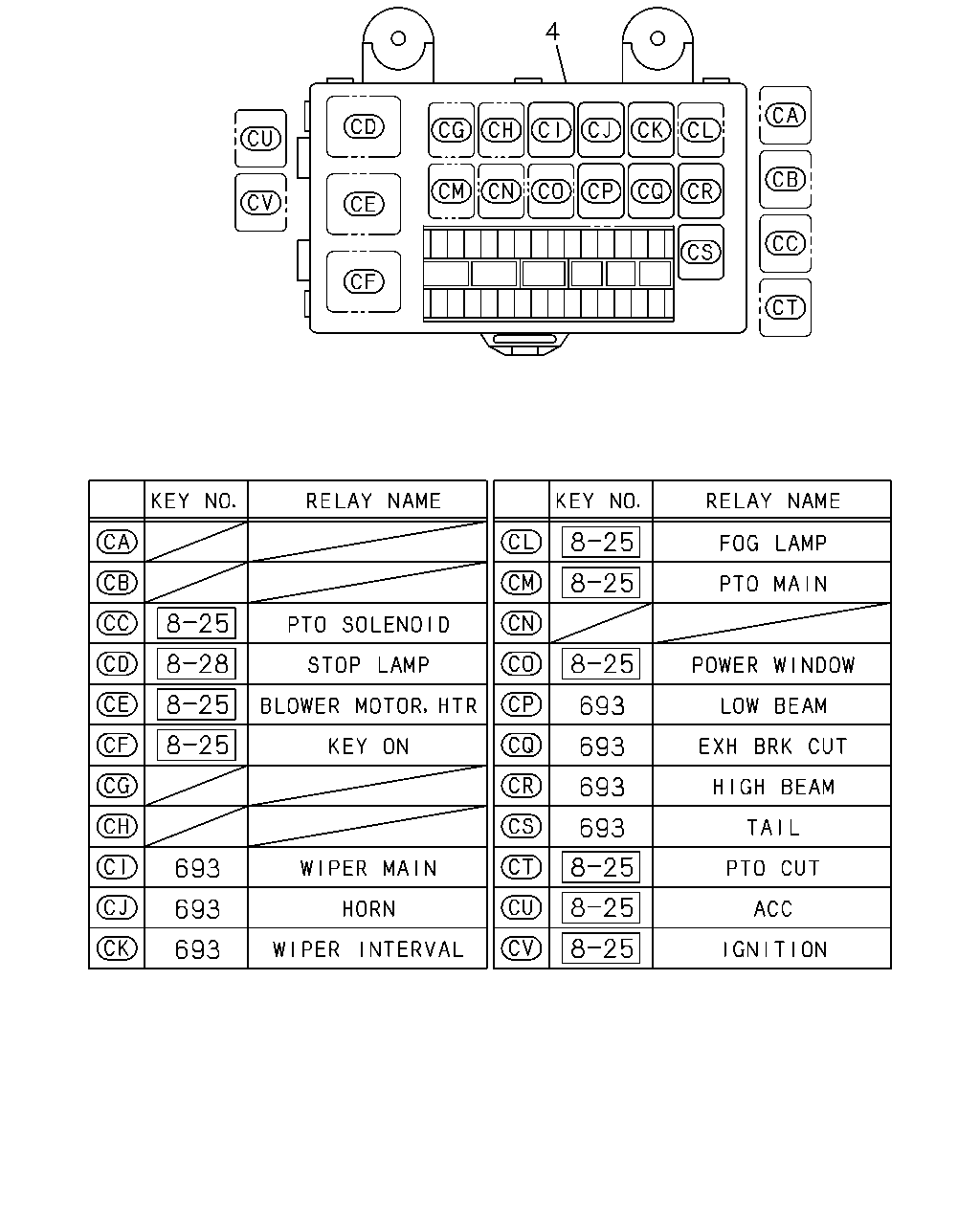

çizim 284240
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1111-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1111-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
