Isuzu WW
▶
TRUCKS
▶
NQR
▶
51386 - NQR AIR BRAKE RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#80606) — 20 parça
◀

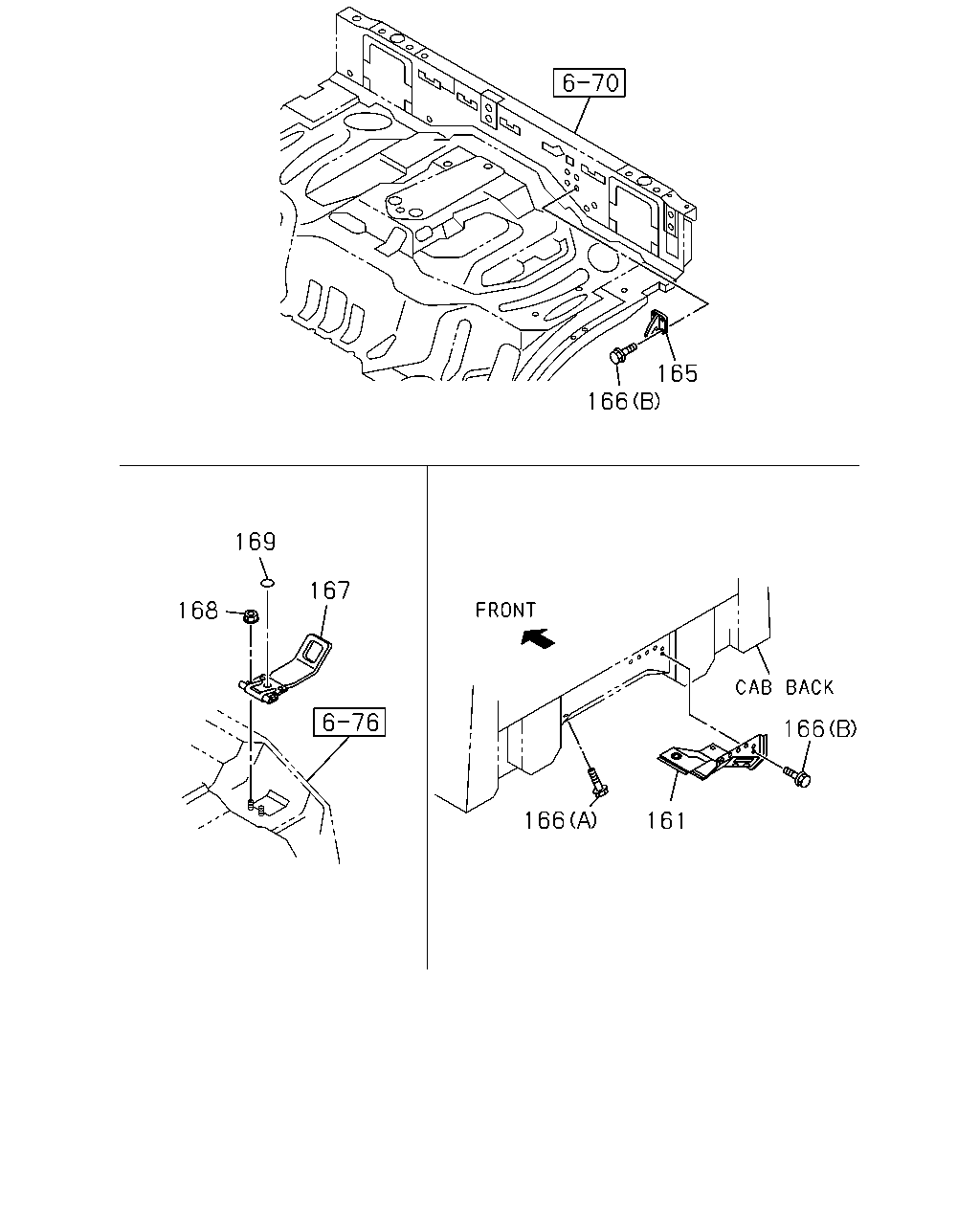

[760A] SEAT BELT ANCHOR (7 parça)

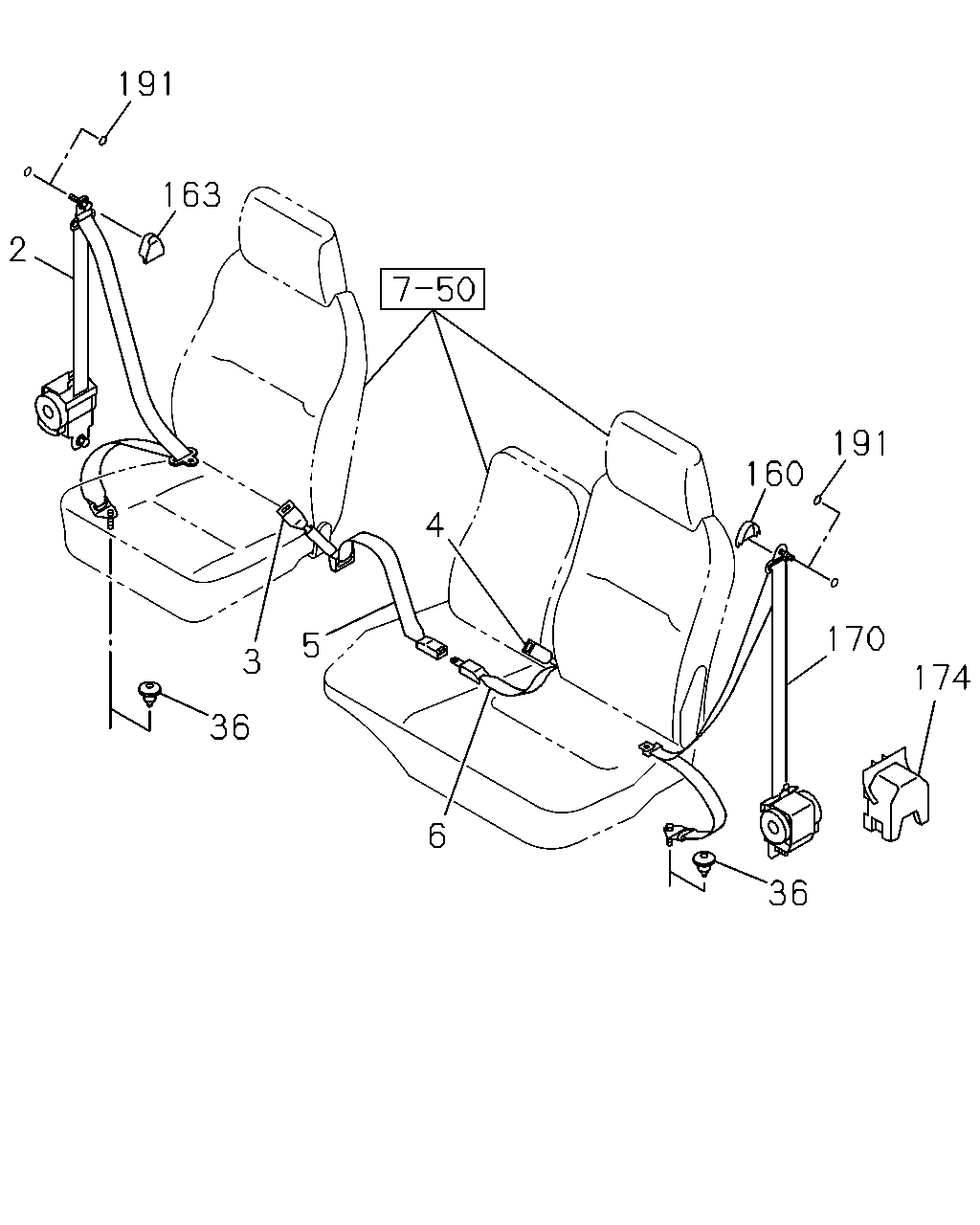

[760A] SEAT BELT (13 parça)
▶
165
166
169
167
168
166
166
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
161
16.714 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 16.545
8-98015-216-2
01
1
1111-
165
16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA>
8-98040-143-0
01
1
1111-
166
16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE
0-28650-825-0
09
1
1111-
166
16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE
0-28050-820-0
02
1
1111-
167
16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA>
8-97589-140-0
01
1
1111-
168
16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE
0-91180-108-0
02
1
1111-
169
16.650 SEAL
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.545 OD=32 BLACK
8-98031-126-0
02
1
1111-
191
163
2
191
160
4
170
5
3
174
36
6
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY
8-97405-180-7
01
1
1111-1406
2
16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY
8-97428-457-1
01
1
1407-
3
16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY
8-97405-175-2
01
1
1111-
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY
8-97405-178-0
01
1
1111-
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY
8-97405-182-1
01
1
1111-
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY
8-97411-507-2
01
1
1111-
36
09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.714 OD=22
9-61168-535-0
02
1
1111-
160
16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY
8-97405-991-0
01
1
1111-
163
16.714 COVER; ADJUSTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY
8-97405-991-0
01
1
1111-
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY
8-97405-180-7
01
1
1111-1406
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY
8-97428-457-1
01
1
1407-
174
16.714 COVER; RETRACTOR,SEAT BELT
8-98039-376-1
01
1
1111-
191
16.650 SEAL; SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.592 OD=36 WHITE
1-76778-007-0
02
1
1111-
