7-50 — FRONT SEAT (#80605) — 92 parça

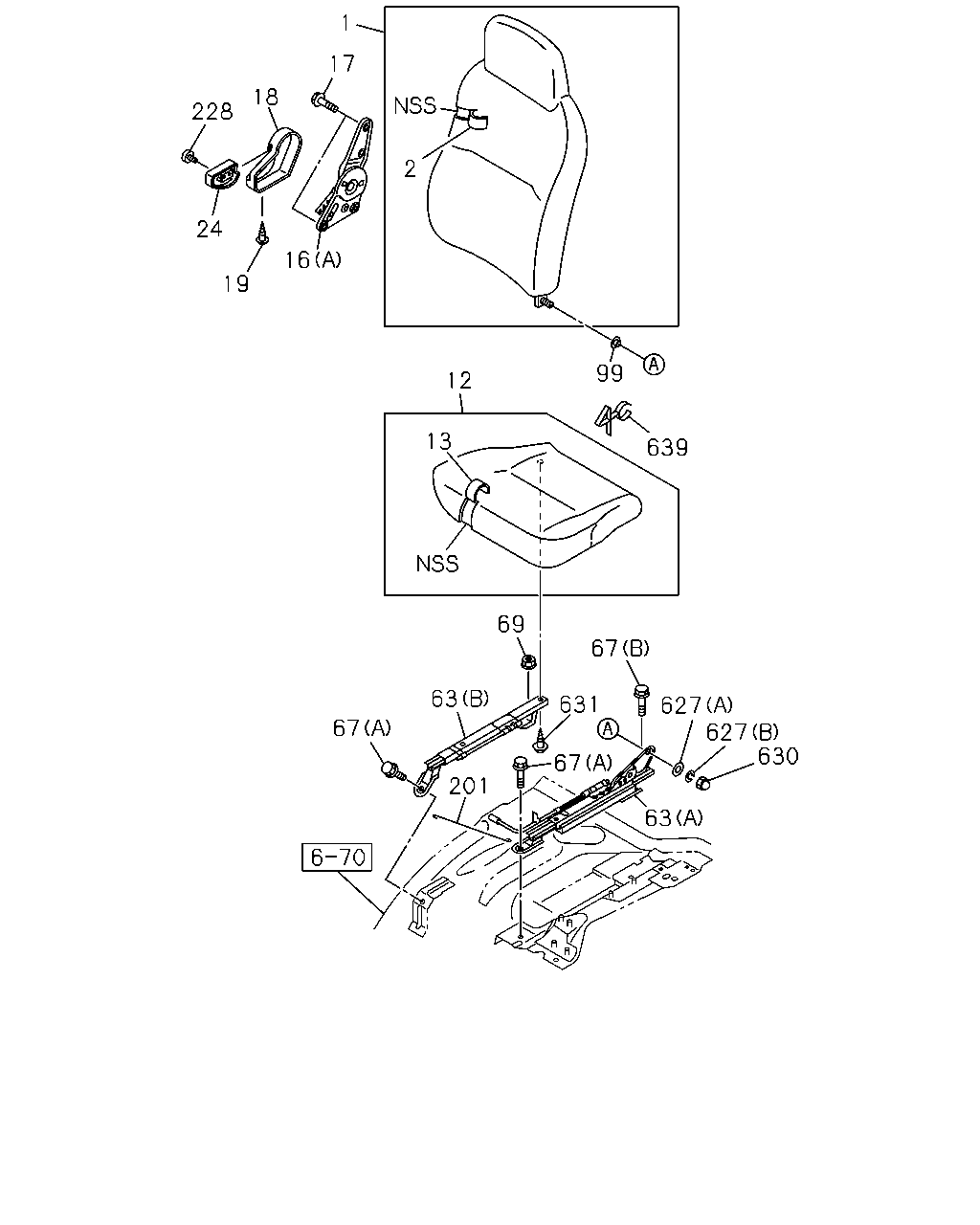

1 17 18 228 2 24 16 19 99 12 13 639 69 67 63 631 627 627 630 67 67 201 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-142-7	01	1	1111-
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-312-7	01	1	1111-
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-235-1	01	1	1111-
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-234-1	01	1	1111-
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-910-2	01	1	1111-
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-318-2	01	1	1111-
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-254-0	01	1	1111-
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-253-0	01	1	1111-
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-143-4	01	1	1111-
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	1111-
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-322-4	01	1	1111-
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-1	01	1	1111-
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-247-1	01	1	1111-
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-240-1	01	1	1111-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-144-2	01	1	1111-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	1111-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-328-2	01	1	1111-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-1	01	1	1111-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-267-1	01	1	1111-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-259-1	01	1	1111-
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1111-
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-274-3	01	1	1111-
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1111-
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A)	8-98003-087-1	01	1	1111-
17	16.682 BOLT; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	1111-
17	16.682 BOLT; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M10X20	8-98062-661-0	04	1	1111-
18	16.682 COVER; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	1111-
18	16.682 COVER; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> GRAY	8-97409-332-0	01	1	1111-
19	16.686 SCREW; COVER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	1111-
19	16.686 SCREW; COVER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M5	8-98062-663-0	01	1	1111-
24	16.682 KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	1111-
24	16.682 KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> GRAY	8-97409-333-0	01	1	1111-
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97382-800-2	01	1	1111-
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A)	8-97382-800-2	01	1	1111-
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-97382-801-1	01	1	1111-
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (B)	8-97382-801-1	01	1	1111-
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1111-
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1111-
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	1111-
99	16.716 BUSHING; SEAT BACK VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	1111-
99	16.716 BUSHING; SEAT BACK VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>	8-98112-751-0	01	1	1111-
201	16.682 CABLE; ADJ VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA>	8-98003-086-1	01	1	1111-
201	16.682 CABLE; ADJ VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>	8-98003-086-1	01	1	1111-
228	16.714 SCREW; KNOB VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	1111-
228	16.714 SCREW; KNOB VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M4	8-98062-662-0	01	1	1111-
627	16.682 WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	1111-
627	16.682 WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A)	8-98063-223-0	01	1	1111-
627	16.682 WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	1111-
627	16.682 WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (B)	8-98063-224-0	01	1	1111-
630	16.682 NUT; CAP VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	1111-
630	16.682 NUT; CAP VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M8	8-98063-225-0	01	1	1111-
631	16.682 BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	1111-
631	16.682 BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M8X25 W/LK WASHER	8-98062-658-0	02	1	1111-
631	16.682 BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	1111-
631	16.682 BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M8X32 W/LK WASHER	8-98062-659-0	02	1	1111-
639	16.679 CLIP; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG>	8-98097-693-0	01	1	1111-

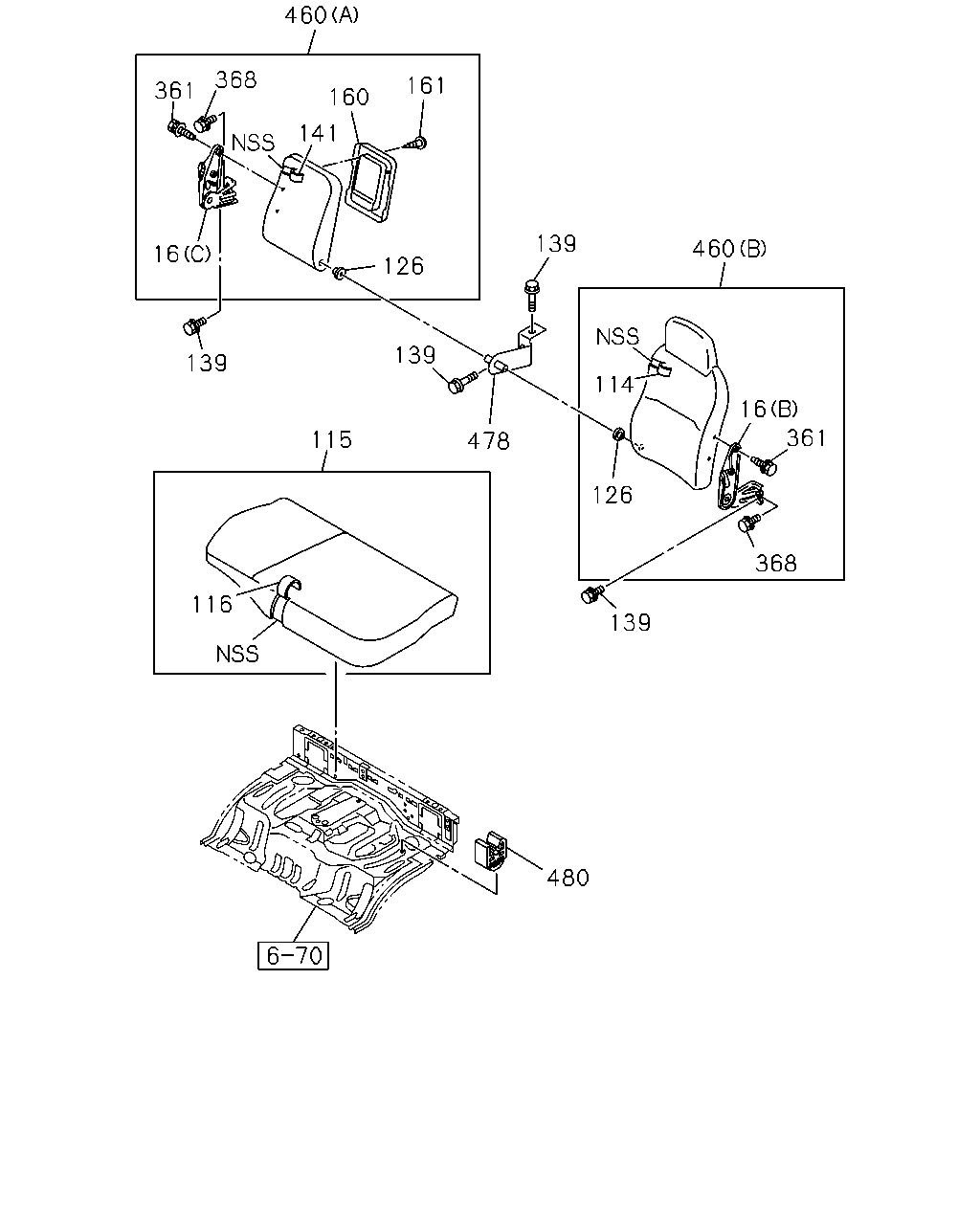

460 368 161 361 160 141 139 460 16 126 139 139 114 16 361 115 478 126 368 116 139 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1111-
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-274-3	01	1	1111-
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1111-
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A)	8-98003-087-1	01	1	1111-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-276-1	01	1	1111-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-720-0	01	1	1111-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-291-0	01	1	1111-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-292-0	01	1	1111-
115	16.720 CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97405-346-5	01	1	1111-
115	16.720 CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-705-2	01	1	1111-
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-321-2	01	1	1111-
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-320-2	01	1	1111-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-290-3	01	1	1111-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-734-1	01	1	1111-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-341-1	01	1	1111-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-340-1	01	1	1111-
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	1111-
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1111-
141	16.724 COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-336-2	01	1	1111-
141	16.724 COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-726-0	01	1	1111-
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-305-1	01	1	1111-
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-306-0	01	1	1111-
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	01	1	1111-
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	1111-
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	1111-
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1111-
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97405-334-4	01	1	1111-
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97405-337-4	01	1	1111-
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97418-691-0	01	1	1111-
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-697-2	01	1	1111-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-278-0	01	1	1111-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-299-1	01	1	1111-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-279-0	01	1	1111-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-300-1	01	1	1111-
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	1111-
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1111-
