7-40 — INSTRUMENT PANEL AND BOX (#80601) — 135 parça

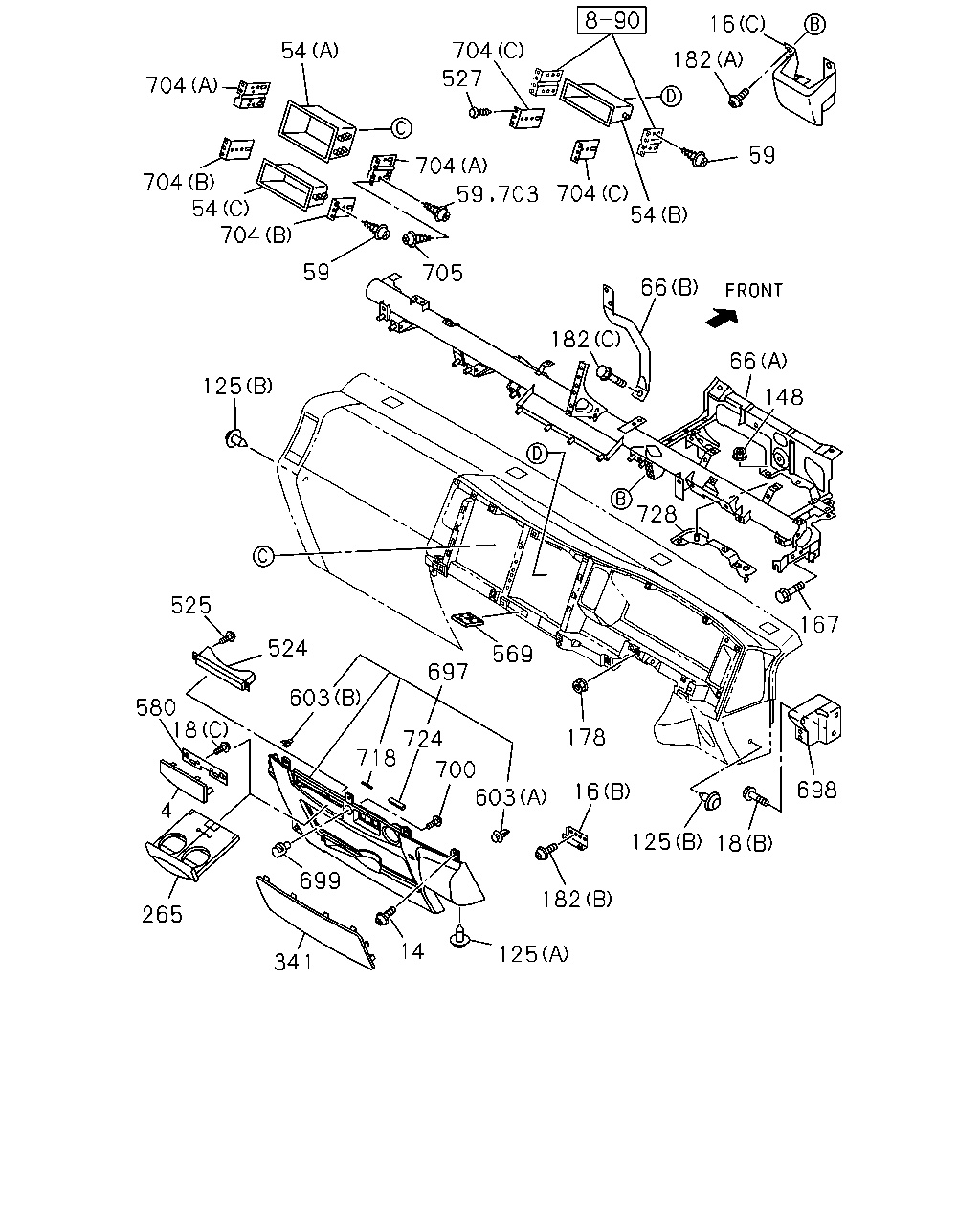

çizim 183148
16 182 59 54 704 703 59 704 704 527 705 59 704 704 54 704 54 66 182 66 148 167 728 125 525 524 603 697 569 178 698 125 18 16 182 125 14 699 341 265 4 18 580 718 700 603 724
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1111-
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1111-1212
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1111-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1111-
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1111-
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1111-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1111-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1111-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1111-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1111-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1111-
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1111-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1111-
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1111-
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 1111-
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98106-831-3 01 1 1111-1204
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98199-358-1 01 1 1205-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1111-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1111-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1111-
148 16.080 NUT; INST PANEL BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1111-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1111-
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 03 1 1111-
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1111-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1111-1212
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1111-
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1111-
341 16.110 LID; FUSE BOX
02.483 GRAY 		8-97406-265-3 01 1 1111-1205
341 16.110 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206-
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1111-
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1111-1212
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1111-
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1111-
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1111-
603 16.090 CLIP; COVER
ECE R29<EFE> 16.085 (B) 		8-98021-271-0 03 1 1111-
603 16.090 CLIP; COVER
ECE R29<EFE> (C) 		8-98152-030-0 02 1 1111-
603 16.090 CLIP; COVER
ECE R29<EFE> (D) 		8-98152-031-0 02 1 1111-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1111-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1111-
603 16.090 CLIP; COVER
EXC. ECE R29<EFE> 16.085 (B) 		8-98021-271-0 05 1 1111-
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 1111-1205
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206-
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1111-
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1111-
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1111-
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1111-1212
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1111-
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1111-
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1111-
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 1111-
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 08 1 1111-1212
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1111-1212
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206-
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1111-
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1111-
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1111-
728 16.085 BRACKET; INST PNL LWR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98180-518-0 01 1 1111-

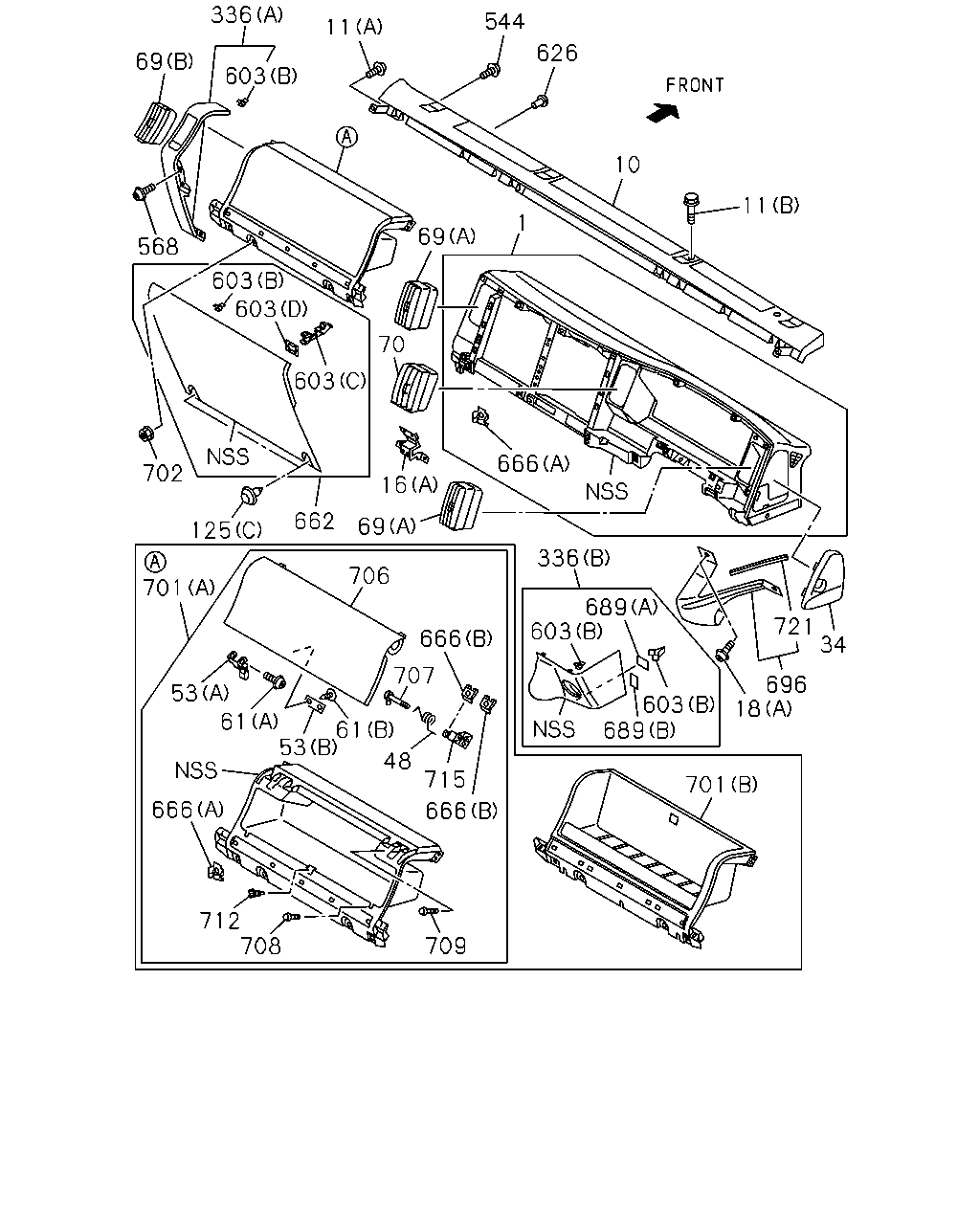

çizim 183150
689 603 18 696 34 721 336 666 16 69 662 125 701 702 603 603 603 69 1 10 11 11 544 626 336 603 69 568 706 666 707 603 689 701 715 666 48 61 53 61 666 53 712 708 709 70
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 1111-
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1111-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1111-
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1111-1212
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1111-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1111-
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1111-
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1111-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1111-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1111-
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1111-
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1111-1311
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406-
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1111-1311
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406-
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1111-1405
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1111-1405
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1111-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1111-
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1111-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1111-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1111-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1111-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97405-257-6 01 1 1111-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1111-
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1111-1212
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1111-1212
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
603 16.090 CLIP; COVER
ECE R29<EFE> 16.085 (B) 		8-98021-271-0 03 1 1111-
603 16.090 CLIP; COVER
ECE R29<EFE> (C) 		8-98152-030-0 02 1 1111-
603 16.090 CLIP; COVER
ECE R29<EFE> (D) 		8-98152-031-0 02 1 1111-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1111-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1111-
603 16.090 CLIP; COVER
EXC. ECE R29<EFE> 16.085 (B) 		8-98021-271-0 05 1 1111-
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1111-
662 16.081 COVER; LWR,INST PANEL
ECE R29<EFE> GRAY 		8-97418-533-2 01 1 1111-
662 16.081 COVER; LWR,INST PANEL
EXC. ECE R29<EFE> GRAY 		8-97405-258-2 01 1 1111-
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98037-629-0 02 1 1111-
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98038-450-0 04 1 1111-1311
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M5 		8-97926-400-0 04 1 1312-
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1111-
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1111-
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1111-
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 1111-1211
696 16.085 BRACKET; KNEE 8-98199-366-0 01 1 1212-
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97415-542-6 01 1 1111-1405
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97429-702-1 01 1 1406-
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1111-
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1111-
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1111-1405
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1111-1311
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312-
708 16.100 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1111-
709 16.085 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1111-
712 16.110 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1111-
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1111-1311
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312-
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1111-1311
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312-
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 1111-1211
721 16.650 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212-

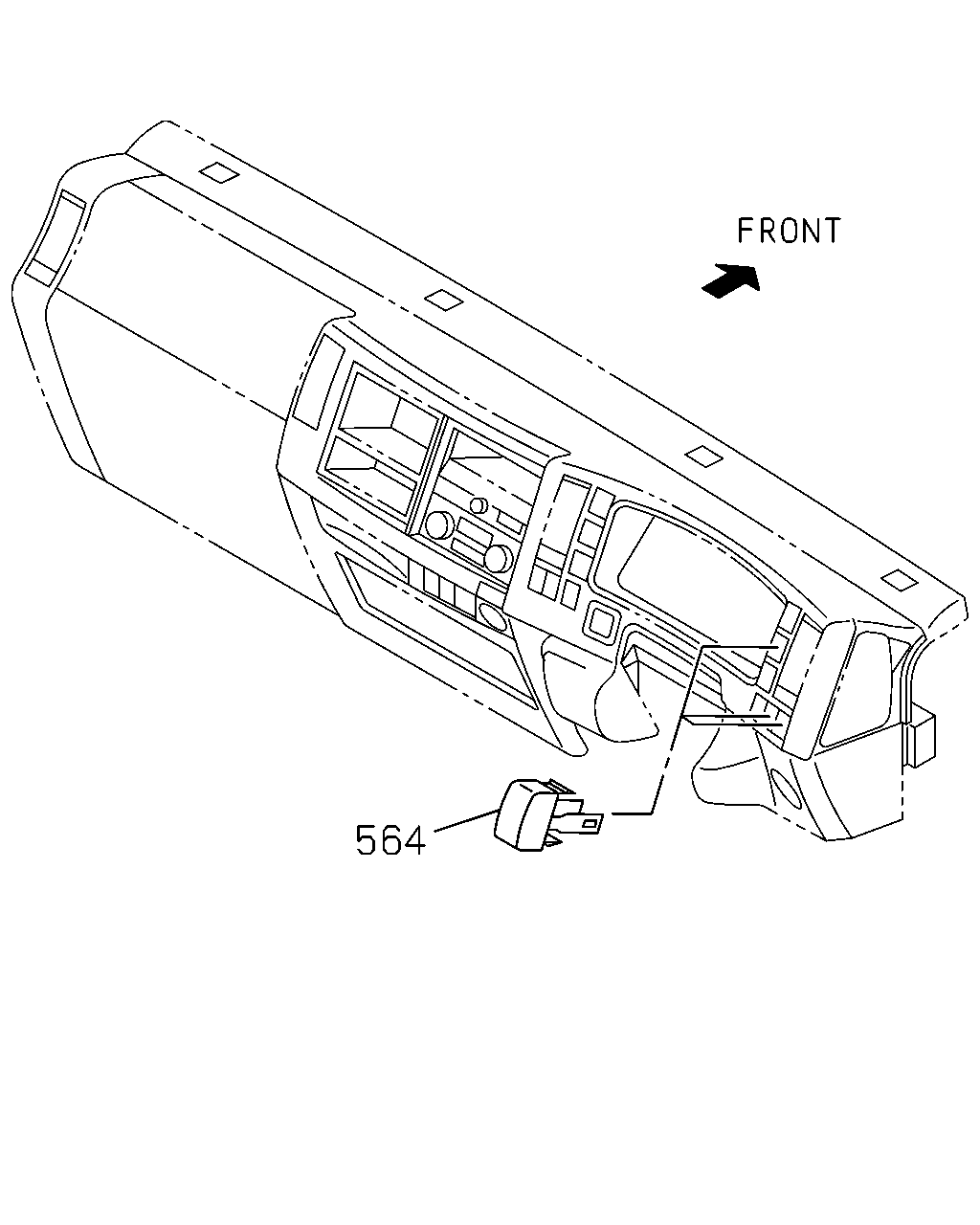

çizim 183153
564
BalonParca AdiParca NoAdetTipApplied Date
564 16.081 COVER; SW 8-98025-954-1 03 1 1111-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
