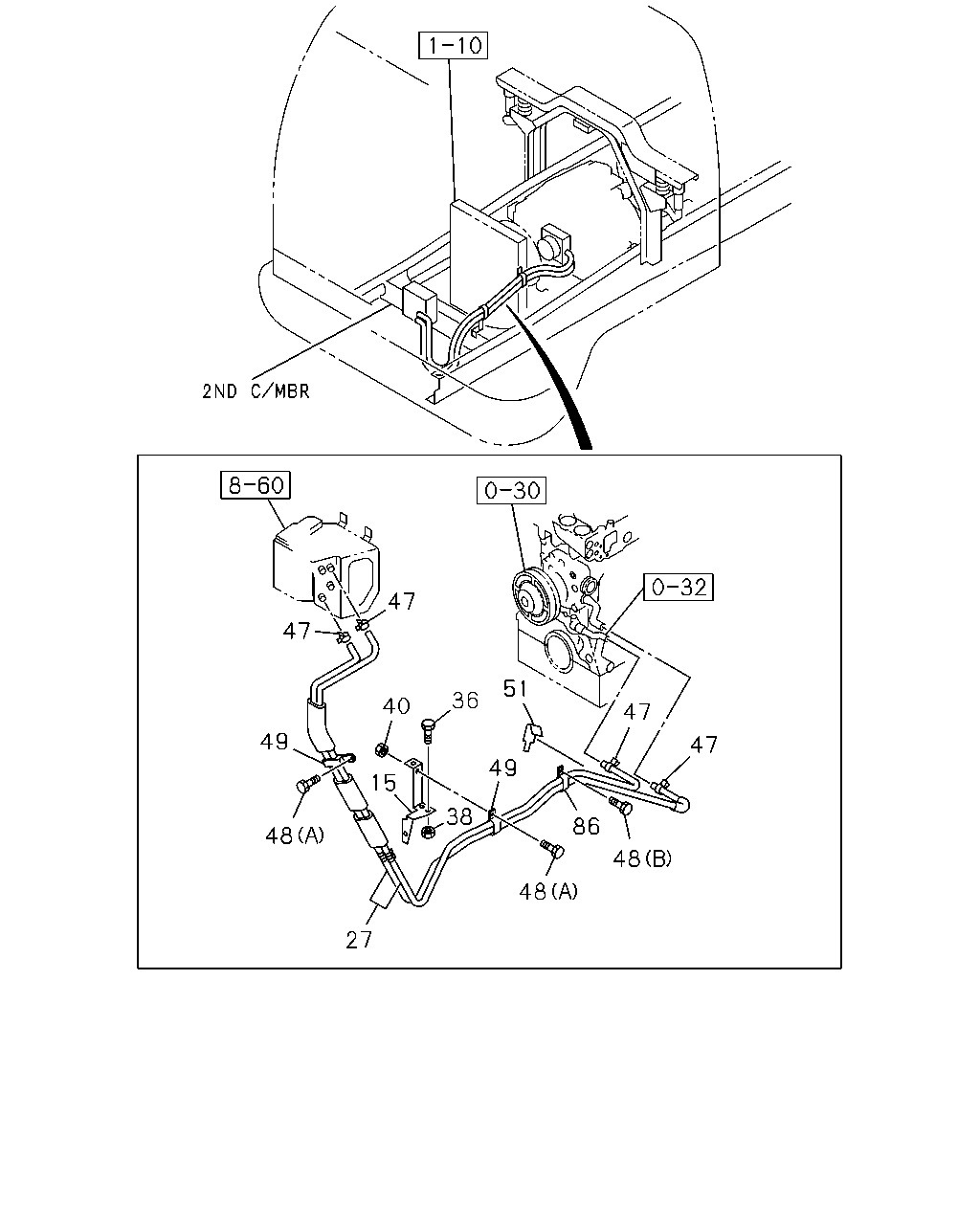

8-45 — HEATER PIPING (#8060) — 112 parça

47 47 51 36 47 40 49 47 49 15 38 86 48 48 48 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	BRACKET; WATER HOSE	1-83571-844-1	01	1	0005-0011	●	●	●
15	BRACKET; WATER HOSE	1-83571-844-1	01	1	0012-0104	●	●	●	●
15	BRACKET; WATER HOSE	1-83573-070-1	01	1	0105-	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L)	1-83565-726-0	01	1	0005-0210	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1 TCS ENG(80L)	1-83565-798-0	01	1	0303-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L)	1-83565-652-1	01	1	0005-0011	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L)	1-83565-652-1	01	1	0012-0210	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L)	1-83565-791-0	01	1	0211-	●	●	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0011	●	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0012-0512	●	●	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0011	●	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0602	●	●	●	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
40	NUT; CLIP 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
40	NUT; CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0303-0602	●
40	NUT; CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-	●
40	NUT; CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0005-0011	●	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0012-0210	●	●	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	0211-0602	●	●	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-94382-401-0	04	1	0005-0011	●	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-94382-401-0	04	1	0012-0611	●	●	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	0612-	●	●	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28680-820-0	02	1	0211-0302	●	●	●	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512	●	●	●	●
48	BOLT; CLIP FIX 6HK1 TCS ENG(80L) (B) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
48	BOLT; CLIP FIX 6HK1 TCS ENG(80L) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0005-0210	●
48	BOLT; CLIP FIX 6HK1 TCS ENG(80L) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0303-	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L) (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L) (B) M8X20 FLANGE	0-28680-820-0	03	1	0211-0512	●	●	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L) (B) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28680-820-0	04	1	0012-0210				●
49	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) ID=24X2 L=25	1-09700-710-0	01	1	0005-0210	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	02	1	0211-0302	●	●	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	02	1	0303-	●	●	●	●
49	CLIP; WATER HOSE,HTR 6HK1 TCS ENG(80L) ID=24X2 L=25	1-09700-710-0	02	1	0303-	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	02	1	0005-0210	●	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) ID=24X2 L=25	1-09700-710-0	02	1	0005-0210	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	02	1	0005-0210		●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) ID=24X2 L=25	1-09700-710-0	03	1	0211-	●	●	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	04	1	0012-0210				●
51	CLIP; WATER HOSE,HTR 6HK1 TCS ENG(80L) L=170	1-83574-139-0	02	1	0303-1205	●
51	CLIP; WATER HOSE,HTR 6HK1 TCS ENG(80L) L=170	8-98166-021-0	02	1	1206-	●
51	CLIP; WATER HOSE,HTR L=170	1-83574-139-0	01	1	0005-0011	●	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) L=170	1-83574-139-0	01	1	0005-0011	●
51	CLIP; WATER HOSE,HTR L=170	1-83574-139-0	01	1	0012-0210	●	●	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) L=170	1-83574-139-0	01	1	0012-0210	●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) L=170	1-83574-139-0	01	1	0211-1205	●	●	●	●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) L=170	8-98166-021-0	01	1	1206-	●	●	●	●
86	CLIP; HTR HOSE 6HE1 TC ENG(57L)	1-83571-049-1	01	1	0005-0210	●
86	CLIP; HTR HOSE 6HK1 TCS ENG(80L)	1-83571-049-1	01	1	0303-	●

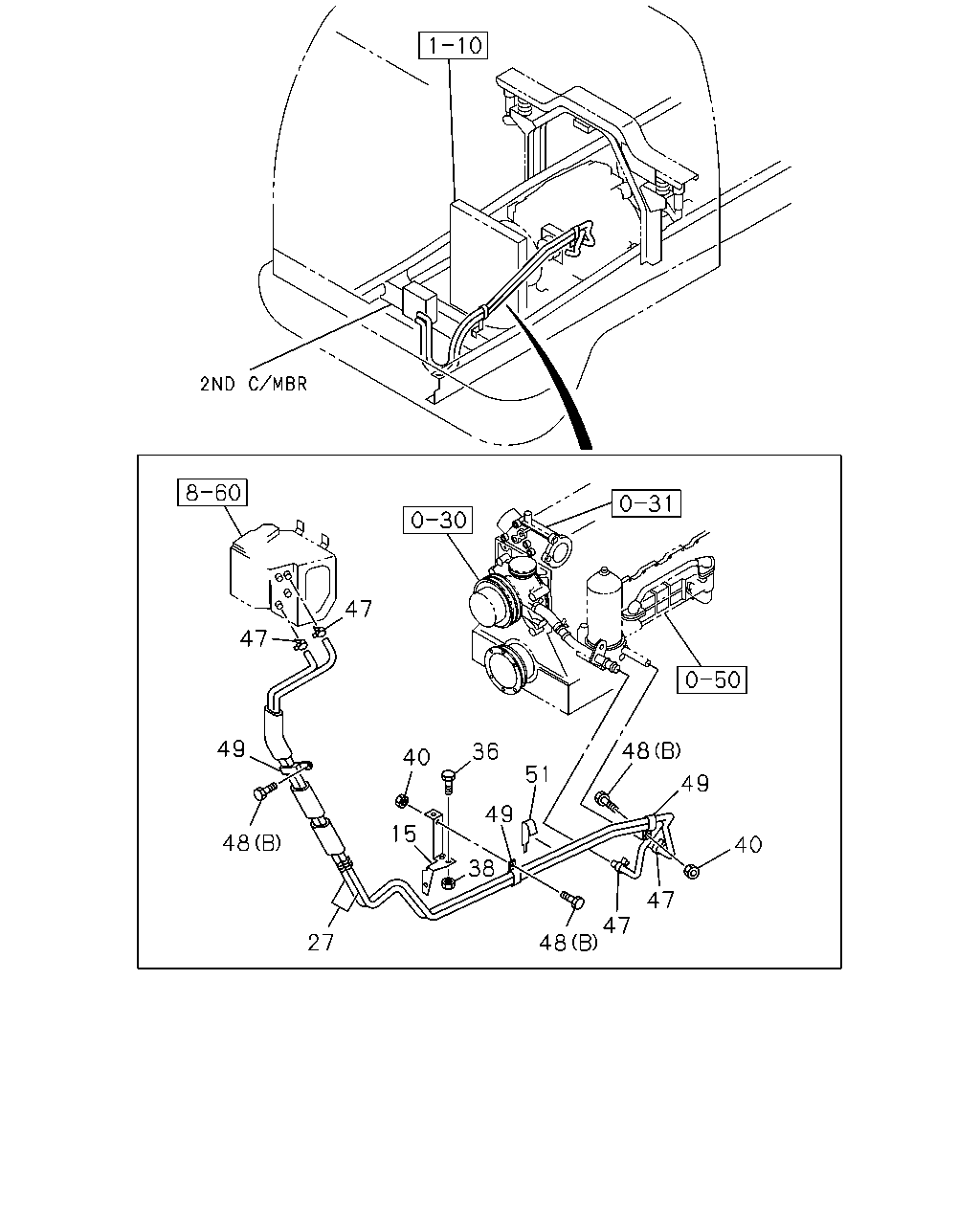

47 47 48 49 36 40 51 49 49 15 48 40 38 47 47 48 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	BRACKET; WATER HOSE	1-83571-844-1	01	1	0005-0011	●	●	●
15	BRACKET; WATER HOSE	1-83571-844-1	01	1	0012-0104	●	●	●	●
15	BRACKET; WATER HOSE	1-83573-070-1	01	1	0105-	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L)	1-83565-726-0	01	1	0005-0210	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1 TCS ENG(80L)	1-83565-798-0	01	1	0303-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L)	1-83565-652-1	01	1	0005-0011	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L)	1-83565-652-1	01	1	0012-0210	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L)	1-83565-791-0	01	1	0211-	●	●	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0011	●	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0012-0512	●	●	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0011	●	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0602	●	●	●	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
40	NUT; CLIP 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
40	NUT; CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0303-0602	●
40	NUT; CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-	●
40	NUT; CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0005-0011	●	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0012-0210	●	●	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	0211-0602	●	●	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-94382-401-0	04	1	0005-0011	●	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-94382-401-0	04	1	0012-0611	●	●	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	0612-	●	●	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28680-820-0	02	1	0211-0302	●	●	●	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512	●	●	●	●
48	BOLT; CLIP FIX 6HK1 TCS ENG(80L) (B) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
48	BOLT; CLIP FIX 6HK1 TCS ENG(80L) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0005-0210	●
48	BOLT; CLIP FIX 6HK1 TCS ENG(80L) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0303-	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L) (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L) (B) M8X20 FLANGE	0-28680-820-0	03	1	0211-0512	●	●	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L) (B) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28680-820-0	04	1	0012-0210				●
49	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) ID=24X2 L=25	1-09700-710-0	01	1	0005-0210	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	02	1	0211-0302	●	●	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	02	1	0303-	●	●	●	●
49	CLIP; WATER HOSE,HTR 6HK1 TCS ENG(80L) ID=24X2 L=25	1-09700-710-0	02	1	0303-	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	02	1	0005-0210	●	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) ID=24X2 L=25	1-09700-710-0	02	1	0005-0210	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	02	1	0005-0210		●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) ID=24X2 L=25	1-09700-710-0	03	1	0211-	●	●	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	04	1	0012-0210				●
51	CLIP; WATER HOSE,HTR 6HK1 TCS ENG(80L) L=170	1-83574-139-0	02	1	0303-1205	●
51	CLIP; WATER HOSE,HTR 6HK1 TCS ENG(80L) L=170	8-98166-021-0	02	1	1206-	●
51	CLIP; WATER HOSE,HTR L=170	1-83574-139-0	01	1	0005-0011	●	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) L=170	1-83574-139-0	01	1	0005-0011	●
51	CLIP; WATER HOSE,HTR L=170	1-83574-139-0	01	1	0012-0210	●	●	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) L=170	1-83574-139-0	01	1	0012-0210	●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) L=170	1-83574-139-0	01	1	0211-1205	●	●	●	●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) L=170	8-98166-021-0	01	1	1206-	●	●	●	●
