Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#806) — 193 parça

228 227 226 242 130 131 227 128 76 1 92 1 92 33 91 79 127 128 33 91 76 79 218 79 33 33 91 76 225 75 3 100 92 98 33 2 79 103 104 98 175 102 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT FRONT AXLE F049(FS4) EXC. THAILAND EQUIPMENT(PM9)	1-79938-629-3	01	1	9202-	●	●
1	GUARD; MUD,FRT FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9)	1-79938-686-1	01	1	9202-	●	●
1	GUARD; MUD,FRT THAILAND EQUIPMENT(PM9)	1-79938-731-0	01	1	9311-	●	●
1	GUARD; MUD,FRT THAILAND EQUIPMENT(PM9)	1-79938-730-0	01	1	9311-	●	●
1	GUARD; MUD,FRT EXC. THAILAND EQUIPMENT(PM9)	1-79938-630-3	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-825-0	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-1	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	02	1	9308-	●	●
3	GUARD; MUD,RR	1-79938-775-0	01	1	9202-	●	●
3	GUARD; MUD,RR	1-79938-711-1	01	1	9202-	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	9202-	●	●
33	BOLT; MUD COVER FRONT AXLE F049(FS4) M6X16 W/LK&PL WASHER	1-09980-492-0	08	1	9202-9205	●	●
33	BOLT; MUD COVER FRONT AXLE F063(FS7) M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	9202-9205	●	●
33	BOLT; MUD COVER THAILAND EQUIPMENT(PM9) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9311-	●	●
75	RIVET; MUD COVER THAILAND EQUIPMENT(PM9) D6X16 PUSH RIVET	1-09983-105-0	06	1	9311-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9202-	●	●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-824-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (B)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (B)	1-79930-986-0	02	1	9308-9401	●	●
79	RETAINER; MUD COVER (B)	1-79931-131-0	02	1	9402-	●	●
79	RETAINER; MUD COVER FRONT AXLE F049(FS4) EXC. THAILAND EQUIPMENT(PM9) (A) 260+125	1-79930-501-1	02	1	9202-	●	●
79	RETAINER; MUD COVER FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9) (A) 260+125	1-79930-501-1	01	1	9202-	●	●
79	RETAINER; MUD COVER FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9) (A) 225X30	1-79930-619-0	01	1	9202-	●	●
79	RETAINER; MUD COVER THAILAND EQUIPMENT(PM9) (A)	1-79930-656-0	02	1	9311-	●	●
79	RETAINER; MUD COVER THAILAND EQUIPMENT(PM9) (C)	1-79930-984-0	01	1	9311-	●	●
79	RETAINER; MUD COVER THAILAND EQUIPMENT(PM9) (C)	1-79930-985-0	01	1	9311-	●	●
91	COVER; MUD,FRT FRONT AXLE F049(FS4) EXC. THAILAND EQUIPMENT(PM9) 160X350	1-79930-503-1	02	1	9202-	●	●
91	COVER; MUD,FRT FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9) 160X350	1-79930-503-1	01	1	9202-	●	●
91	COVER; MUD,FRT FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9) 160X280	1-79930-618-0	01	1	9202-	●	●
91	COVER; MUD,FRT THAILAND EQUIPMENT(PM9) (A)	1-79930-653-1	02	1	9311-	●	●
91	COVER; MUD,FRT THAILAND EQUIPMENT(PM9) (B)	1-79930-658-2	02	1	9311-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	10	1	9202-	●	●
98	BOLT; STAY TO BRKT M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●
98	BOLT; STAY TO BRKT M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28010-830-0	01	1	9202-9204	●	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28080-830-0	01	1	9205-	●	●
98	BOLT; STAY TO BRKT M10X25	0-28011-025-0	04	1	9202-9204	●	●
98	BOLT; STAY TO BRKT M10X25 FLANGE	0-28081-025-0	04	1	9205-	●	●
100	STAY; UPR,MUD GUARD	1-53497-332-1	01	1	9202-	●	●
102	STAY; LWR,MUD GUARD EXC. VERTICAL TAIL PIPE<NC4>	1-53497-360-1	01	1	9206-	●	●
102	STAY; LWR,MUD GUARD	1-53497-377-0	01	1	9202-9205		●
102	STAY; LWR,MUD GUARD VERTICAL TAIL PIPE<NC4>	1-53497-377-1	01	1	9206-		●
103	BRACKET ASM; RR MUD FLAP	1-53497-380-1	01	1	9202-	●	●
104	BOLT; BRKT M10X25	0-28011-025-0	02	1	9202-9204	●	●
104	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9205-	●	●
127	APRON; FRT	1-79938-623-3	01	1	9202-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-623-3	01	1	9202-		●
127	APRON; FRT	1-79938-621-3	01	1	9202-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-621-3	01	1	9202-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-416-1	01	1	9202-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-032-1	01	1	9202-		●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
130	PANEL; SHUTTER NOISE	1-79938-734-1	01	1	9202-9410	●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-734-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE	1-79938-734-1	01	1	9411-	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-734-1	01	1	9411-		●
130	PANEL; SHUTTER NOISE	1-79938-740-1	01	1	9202-9410	●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-740-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE	1-79938-740-1	01	1	9411-	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-740-1	01	1	9411-		●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-036-2	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-036-2	01	1	9411-		●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-387-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-387-1	01	1	9411-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
175	NUT; STAY FIX M8	9-09110-408-0	01	1	9202-	●	●
218	FASTENER; RUBBER FRONT AXLE F049(FS4) EXC. THAILAND EQUIPMENT(PM9)	1-09470-001-0	08	1	9206-	●	●
218	FASTENER; RUBBER FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9)	1-09470-001-0	07	1	9206-	●	●
218	FASTENER; RUBBER THAILAND EQUIPMENT(PM9)	1-09470-001-0	10	1	9311-	●	●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9202-9304	●	●
225	NUT; MUD GUARD M8	9-09110-408-0	04	1	9305-	●	●
226	SUPPORT; SEAL,MUD GUARD	1-79938-733-1	01	1	9202-	●	●
226	SUPPORT; SEAL,MUD GUARD	1-79938-768-1	01	1	9202-	●	●
227	SEAL; MUD GUARD (B) L=342	1-79938-765-0	02	1	9202-	●	●
227	SEAL; MUD GUARD (A) L=285	1-79938-739-0	01	1	9202-	●	●
227	SEAL; MUD GUARD (A)	1-79938-675-1	01	1	9202-	●	●
228	FASTENER; MUD GUARD SEAL	5-09989-002-0	14	1	9202-	●	●
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	9202-	●	●

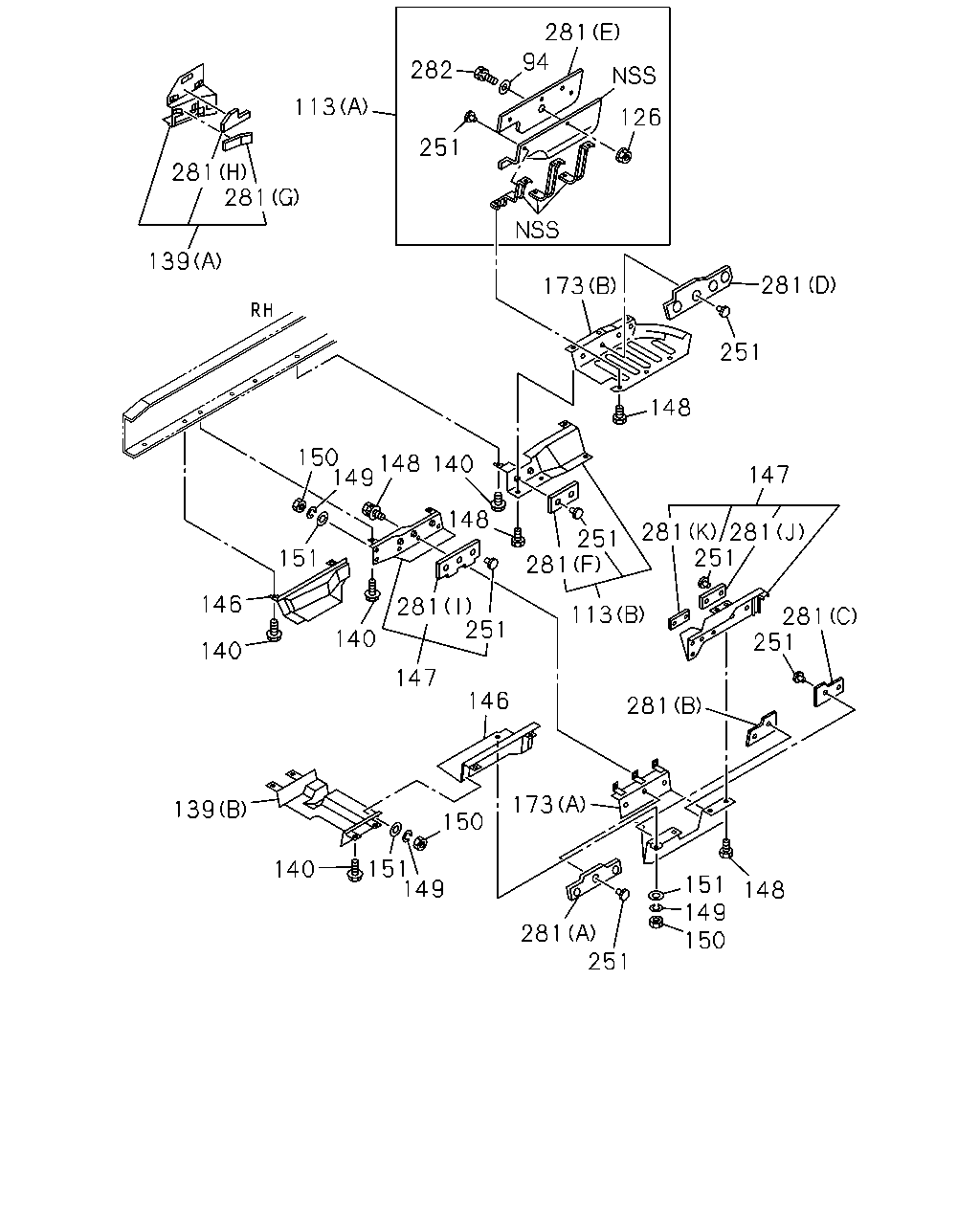

281 94 282 113 126 251 281 281 139 281 173 251 148 150 148 149 140 147 148 281 251 251 281 151 146 281 251 113 281 251 140 140 147 146 281 173 139 150 151 149 140 151 149 150 148 281 251 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
94	RETAINER; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3)	1-53192-511-0	01	1	9202-		●
113	PANEL; SIDE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-506-0	01	1	9202-		●
113	PANEL; SIDE AUSTRALIA EQUIPMENT(RR3) (B)	1-53192-504-1	01	1	9202-		●
126	NUT; PANEL AUSTRALIA EQUIPMENT(RR3) M10	9-09114-030-0	01	1	9202-		●
139	PANEL; SIDE AUSTRALIA EQUIPMENT(RR3) (B)	1-53192-089-1	01	1	9202-		●
139	PANEL; SIDE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-493-0	01	1	9202-		●
140	BOLT; SIDE PANEL EXC. THAILAND EQUIPMENT(PM9) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
140	BOLT; SIDE PANEL EXC. THAILAND EQUIPMENT(PM9) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
140	BOLT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
140	BOLT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
140	BOLT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	08	1	9202-9312		●
140	BOLT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	03	1	9401-		●
140	BOLT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28280-825-0	04	1	9202-		●
140	BOLT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) M8X18	1-09030-034-1	04	1	9202-9312		●
140	BOLT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	05	1	9401-		●
140	BOLT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) ANTI NOISE EQUIPMENT ECE<SLK> M8X18	1-09030-034-1	04	1	9401-		●
146	PANEL; SIDE,UNDER,FRT AUSTRALIA EQUIPMENT(RR3)	1-53192-213-0	01	1	9202-		●
146	PANEL; SIDE,UNDER,FRT AUSTRALIA EQUIPMENT(RR3)	1-53191-948-2	01	1	9202-		●
147	PANEL; SIDE,UNDER,RR AUSTRALIA EQUIPMENT(RR3)	1-53191-876-5	01	1	9202-		●
147	PANEL; SIDE,UNDER,RR AUSTRALIA EQUIPMENT(RR3)	1-53191-872-3	01	1	9202-		●
148	BOLT; PANEL TO PANEL AUSTRALIA EQUIPMENT(RR3) M8X22 W/LK&PL WASHER	1-09030-084-0	15	1	9202-9312		●
148	BOLT; PANEL TO PANEL AUSTRALIA EQUIPMENT(RR3) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9401-		●
148	BOLT; PANEL TO PANEL AUSTRALIA EQUIPMENT(RR3) M8X22 W/LK&PL WASHER	1-09030-084-0	13	1	9401-9404		●
148	BOLT; PANEL TO PANEL AUSTRALIA EQUIPMENT(RR3) M8X22 W/LK&PL WASHER	1-09030-084-0	07	1	9405-		●
149	WASHER; LK,SIDE PANEL AUSTRALIA EQUIPMENT(RR3) ID=8.2	9-09150-508-0	03	1	9202-9312		●
149	WASHER; LK,SIDE PANEL AUSTRALIA EQUIPMENT(RR3) ID=8.2	9-09150-508-0	01	1	9401-9404		●
149	WASHER; LK,SIDE PANEL AUSTRALIA EQUIPMENT(RR3) ID=8.2	9-09150-508-0	02	1	9401-		●
150	NUT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	03	1	9202-9312		●
150	NUT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	01	1	9401-9404		●
150	NUT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9401-		●
151	WASHER; PL,SIDE PANEL AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=22	9-09160-708-0	03	1	9202-9312		●
151	WASHER; PL,SIDE PANEL AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=22	9-09160-708-0	01	1	9401-9404		●
151	WASHER; PL,SIDE PANEL AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=22	9-09160-708-0	02	1	9401-		●
173	COVER; TRANS SIDE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-433-0	01	1	9202-9404		●
173	COVER; TRANS SIDE AUSTRALIA EQUIPMENT(RR3) (B)	1-53192-500-1	01	1	9202-		●
251	CLIP; NOISE INSULATOR AUSTRALIA EQUIPMENT(RR3)	8-94279-048-0	17	1	9202-9404		●
251	CLIP; NOISE INSULATOR AUSTRALIA EQUIPMENT(RR3)	8-94279-048-0	10	1	9405-		●
281	INSULATOR; NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53446-526-0	01	1	9202-		●
281	INSULATOR; NOISE AUSTRALIA EQUIPMENT(RR3) (B)	1-53446-527-1	01	1	9202-		●
281	INSULATOR; NOISE AUSTRALIA EQUIPMENT(RR3) (C)	1-53446-528-1	01	1	9202-		●
281	INSULATOR; NOISE AUSTRALIA EQUIPMENT(RR3) (D)	1-53446-531-2	01	1	9202-		●
281	INSULATOR; NOISE AUSTRALIA EQUIPMENT(RR3) (J)	1-53446-472-0	01	1	9202-		●
281	INSULATOR; NOISE AUSTRALIA EQUIPMENT(RR3) (K)	1-53446-473-0	01	1	9202-		●
281	INSULATOR; NOISE AUSTRALIA EQUIPMENT(RR3) (E)	1-53446-557-0	01	1	9202-		●
281	INSULATOR; NOISE AUSTRALIA EQUIPMENT(RR3) (I)	1-53446-474-1	01	1	9202-		●
281	INSULATOR; NOISE AUSTRALIA EQUIPMENT(RR3) (F)	1-53446-529-0	01	1	9202-		●
281	INSULATOR; NOISE AUSTRALIA EQUIPMENT(RR3) (H)	1-53446-640-0	01	1	9202-		●
281	INSULATOR; NOISE AUSTRALIA EQUIPMENT(RR3) (G)	1-53446-641-0	01	1	9202-		●
282	BOLT; NOISE INSULATOR AUSTRALIA EQUIPMENT(RR3) M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9202-9204		●
282	BOLT; NOISE INSULATOR AUSTRALIA EQUIPMENT(RR3) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-		●

131 130 228 227 76 226 242 128 127 227 128 1 3 76 76 76 92 76 91 2 79 79 33 218 92 33 33 92 1 33 91 76 79 79 230 33 91 33 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT FRONT AXLE F049(FS4) EXC. THAILAND EQUIPMENT(PM9)	1-79938-629-3	01	1	9202-	●	●
1	GUARD; MUD,FRT FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9)	1-79938-686-1	01	1	9202-	●	●
1	GUARD; MUD,FRT THAILAND EQUIPMENT(PM9)	1-79938-731-0	01	1	9311-	●	●
1	GUARD; MUD,FRT THAILAND EQUIPMENT(PM9)	1-79938-730-0	01	1	9311-	●	●
1	GUARD; MUD,FRT EXC. THAILAND EQUIPMENT(PM9)	1-79938-630-3	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-825-0	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-1	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	02	1	9308-	●	●
3	GUARD; MUD,RR	1-79938-775-0	01	1	9202-	●	●
3	GUARD; MUD,RR	1-79938-711-1	01	1	9202-	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	9202-	●	●
33	BOLT; MUD COVER FRONT AXLE F049(FS4) M6X16 W/LK&PL WASHER	1-09980-492-0	08	1	9202-9205	●	●
33	BOLT; MUD COVER FRONT AXLE F063(FS7) M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	9202-9205	●	●
33	BOLT; MUD COVER THAILAND EQUIPMENT(PM9) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9311-	●	●
75	RIVET; MUD COVER THAILAND EQUIPMENT(PM9) D6X16 PUSH RIVET	1-09983-105-0	06	1	9311-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9202-	●	●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-824-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (B)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (B)	1-79930-986-0	02	1	9308-9401	●	●
79	RETAINER; MUD COVER (B)	1-79931-131-0	02	1	9402-	●	●
79	RETAINER; MUD COVER FRONT AXLE F049(FS4) EXC. THAILAND EQUIPMENT(PM9) (A) 260+125	1-79930-501-1	02	1	9202-	●	●
79	RETAINER; MUD COVER FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9) (A) 260+125	1-79930-501-1	01	1	9202-	●	●
79	RETAINER; MUD COVER FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9) (A) 225X30	1-79930-619-0	01	1	9202-	●	●
79	RETAINER; MUD COVER THAILAND EQUIPMENT(PM9) (A)	1-79930-656-0	02	1	9311-	●	●
79	RETAINER; MUD COVER THAILAND EQUIPMENT(PM9) (C)	1-79930-984-0	01	1	9311-	●	●
79	RETAINER; MUD COVER THAILAND EQUIPMENT(PM9) (C)	1-79930-985-0	01	1	9311-	●	●
91	COVER; MUD,FRT FRONT AXLE F049(FS4) EXC. THAILAND EQUIPMENT(PM9) 160X350	1-79930-503-1	02	1	9202-	●	●
91	COVER; MUD,FRT FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9) 160X350	1-79930-503-1	01	1	9202-	●	●
91	COVER; MUD,FRT FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9) 160X280	1-79930-618-0	01	1	9202-	●	●
91	COVER; MUD,FRT THAILAND EQUIPMENT(PM9) (A)	1-79930-653-1	02	1	9311-	●	●
91	COVER; MUD,FRT THAILAND EQUIPMENT(PM9) (B)	1-79930-658-2	02	1	9311-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	10	1	9202-	●	●
127	APRON; FRT	1-79938-623-3	01	1	9202-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-623-3	01	1	9202-		●
127	APRON; FRT	1-79938-621-3	01	1	9202-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-621-3	01	1	9202-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-416-1	01	1	9202-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-032-1	01	1	9202-		●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
130	PANEL; SHUTTER NOISE	1-79938-734-1	01	1	9202-9410	●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-734-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE	1-79938-734-1	01	1	9411-	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-734-1	01	1	9411-		●
130	PANEL; SHUTTER NOISE	1-79938-740-1	01	1	9202-9410	●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-740-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE	1-79938-740-1	01	1	9411-	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-740-1	01	1	9411-		●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-036-2	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-036-2	01	1	9411-		●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-387-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-387-1	01	1	9411-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
218	FASTENER; RUBBER FRONT AXLE F049(FS4) EXC. THAILAND EQUIPMENT(PM9)	1-09470-001-0	08	1	9206-	●	●
218	FASTENER; RUBBER FRONT AXLE F063(FS7) EXC. THAILAND EQUIPMENT(PM9)	1-09470-001-0	07	1	9206-	●	●
218	FASTENER; RUBBER THAILAND EQUIPMENT(PM9)	1-09470-001-0	10	1	9311-	●	●
226	SUPPORT; SEAL,MUD GUARD	1-79938-733-1	01	1	9202-	●	●
226	SUPPORT; SEAL,MUD GUARD	1-79938-768-1	01	1	9202-	●	●
227	SEAL; MUD GUARD (B) L=342	1-79938-765-0	02	1	9202-	●	●
227	SEAL; MUD GUARD (A) L=285	1-79938-739-0	01	1	9202-	●	●
227	SEAL; MUD GUARD (A)	1-79938-675-1	01	1	9202-	●	●
228	FASTENER; MUD GUARD SEAL	5-09989-002-0	14	1	9202-	●	●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	08	1	9202-	●	●
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
