51386 - NQR AIR BRAKE RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

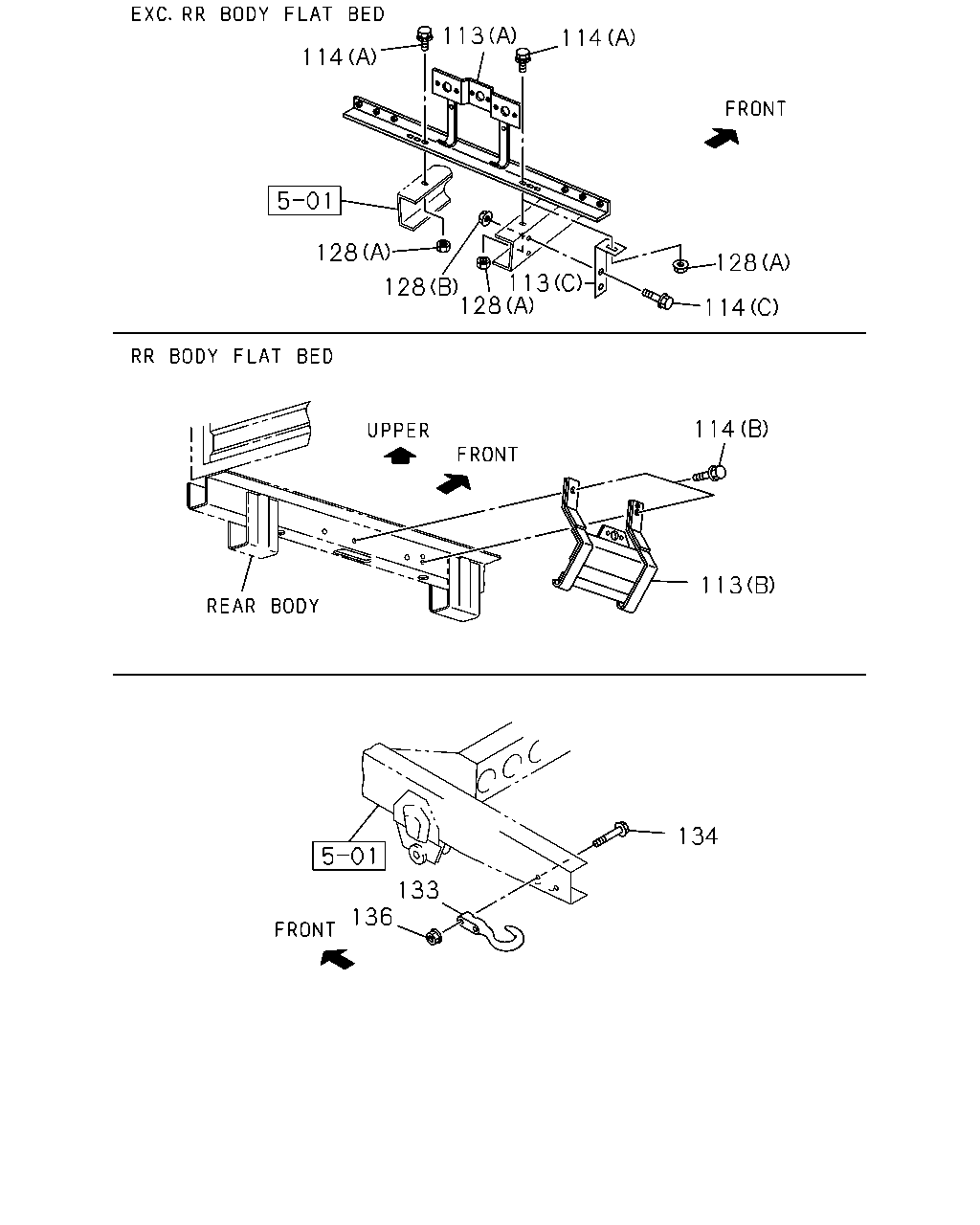

6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#80596) — 18 parça
113
114
114
128
128
128
113
128
114
114
113
134
133
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
113
07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) (B)
8-97077-573-2
01
1
1111-
113
07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED(RS6) (C)
8-98091-681-0
02
1
1111-
113
07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) (A)
8-98029-390-3
01
1
1111-
114
07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED(RS6) 00.685 (B) M6X25 FLANGE
0-28650-625-0
02
1
1111-
114
07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED(RS6) 07.833 (C) M10X25 FLANGE
0-28661-025-0
04
1
1111-
114
07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE
0-28650-840-0
02
1
1111-1509
114
07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE
0-28650-840-0
02
1
1510-1510
114
07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE
0-28650-840-0
02
1
1510-1510
114
07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE
0-28650-840-0
02
1
1510-
128
02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED(RS6) 03.162 (B) M10 FLANGE
0-91180-110-0
04
1
1111-
128
02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1111-1509
128
02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1510-1510
128
02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1510-1510
128
02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1510-
133
07.112 HOOK
EXC. MINI BUS CHASSIS(V4B) 07.068
8-97387-665-0
01
1
1111-
134
07.068 BOLT; HOOK
IDENTIFICATION LABEL FOR KD<6UT> EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50
0-10856-450-0
02
1
1111-
134
07.068 BOLT; HOOK
EXC. MINI BUS CHASSIS(V4B),IDENTIFICATION LABEL FOR KD<6UT> M14X60
0-10861-460-0
02
1
1111-
136
07.068 NUT; HOOK
EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE
0-91180-214-0
02
1
1111-
