8-40 — HEATER SYSTEM (#8059) — 65 parça

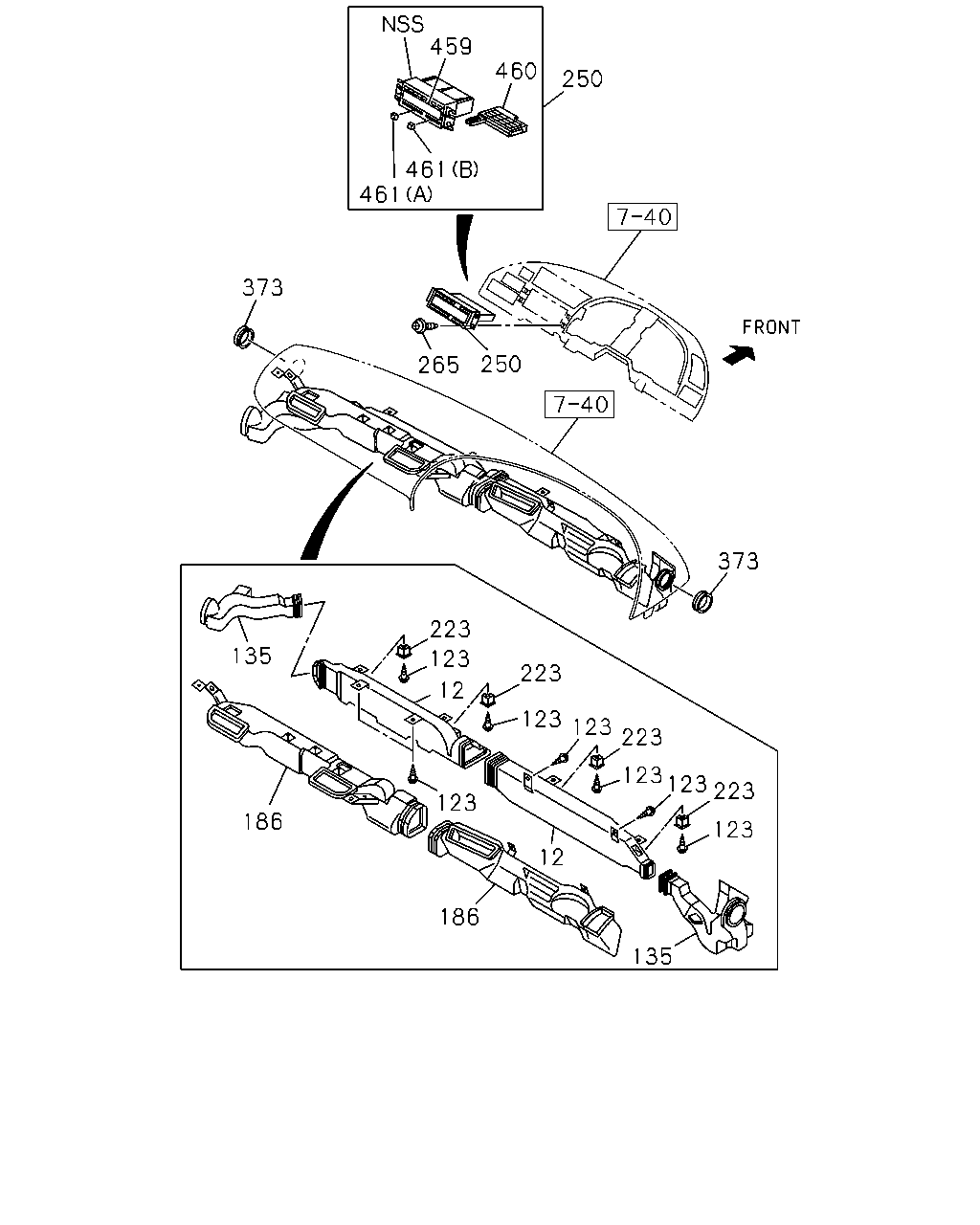

459 460 250 461 461 373 250 265 373 223 135 123 223 12 123 123 223 123 123 223 123 186 123 12 186 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	NOZZLE; DEFROSTER	1-76378-321-6	01	1	0005-0011	●	●	●
12	NOZZLE; DEFROSTER	1-76378-321-6	01	1	0012-	●	●	●	●
12	NOZZLE; DEFROSTER	1-76377-172-6	01	1	0005-0011	●	●	●
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	0012-	●	●	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	10	1	0005-0011	●	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	10	1	0012-	●	●	●	●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0005-0011	●	●	●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0012-	●	●	●	●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0005-0011	●	●	●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0012-	●	●	●	●
186	DUCT; VENTILATOR	1-76378-418-0	01	1	0005-0011	●	●	●
186	DUCT; VENTILATOR	1-76378-418-0	01	1	0012-	●	●	●	●
186	DUCT; VENTILATOR	1-76377-173-6	01	1	0005-0011	●	●	●
186	DUCT; VENTILATOR	1-76377-173-6	01	1	0012-0710	●	●	●	●
186	DUCT; VENTILATOR	1-76377-246-0	01	1	0711-	●	●	●	●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0005-0011	●	●	●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0012-	●	●	●	●
250	CONTROL ASM; A/C	1-83543-050-0	01	1	0005-0011	●	●	●
250	CONTROL ASM; A/C	1-83543-050-0	01	1	0012-	●	●	●	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0011	●	●	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0012-0604	●	●	●	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-	●	●	●	●
373	RUBBER; JOINT	1-76378-291-0	02	1	0005-0011	●	●	●
373	RUBBER; JOINT	1-76378-291-0	02	1	0012-	●	●	●	●
459	PANEL; CONTROL ASM,A/C	1-83549-013-0	01	1	0005-0011	●	●	●
459	PANEL; CONTROL ASM,A/C	1-83549-013-0	01	1	0012-	●	●	●	●
460	SWITCH; CONTROL ASM,A/C	1-82489-006-0	01	1	0005-0011	●	●	●
460	SWITCH; CONTROL ASM,A/C	1-82489-006-0	01	1	0012-	●	●	●	●
461	KNOB; CONTROL ASM,A/C (A)	1-83549-015-0	01	1	0005-0011	●	●	●
461	KNOB; CONTROL ASM,A/C (A)	1-83549-015-0	01	1	0012-	●	●	●	●
461	KNOB; CONTROL ASM,A/C (B)	1-83549-016-0	01	1	0005-0011	●	●	●
461	KNOB; CONTROL ASM,A/C (B)	1-83549-016-0	01	1	0012-	●	●	●	●

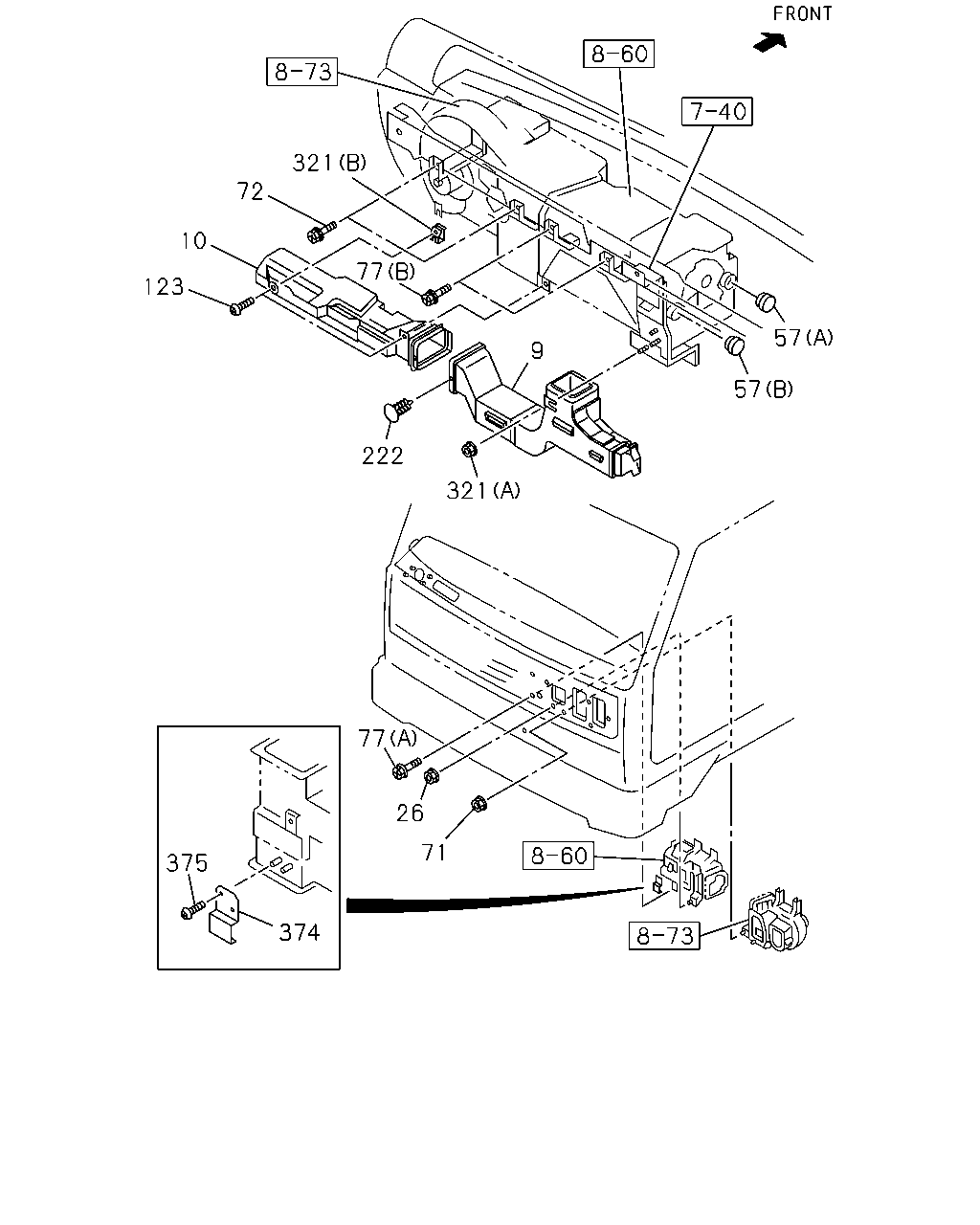

321 72 10 77 123 57 9 57 222 321 77 26 71 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	DUCT; HTR AIR,FOOT CENTER	1-76378-409-0	01	1	0005-0006	●	●	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-426-1	01	1	0007-0011	●	●	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-426-2	01	1	0012-	●	●	●	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	0005-0011	●	●	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	0012-	●	●	●	●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0011	●	●	●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0012-	●	●	●	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	0005-0011	●	●	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	0012-	●	●	●	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	0005-0011	●	●	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	0012-	●	●	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0005-0011	●	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0012-	●	●	●	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0011	●	●	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0012-	●	●	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	0005-0011	●	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0012-	●	●	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0011	●	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0012-	●	●	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	10	1	0005-0011	●	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	10	1	0012-	●	●	●	●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	0005-0011	●	●	●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	0012-	●	●	●	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	01	1	0005-0011	●	●	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	01	1	0012-0602	●	●	●	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	0005-0011	●	●	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	0012-0409	●	●	●	●
321	NUT; DUCT FIX (B) M5	1-09984-196-0	01	1	0410-	●	●	●	●
374	HOLDER; DUCT	1-76398-012-1	01	1	0005-0011	●	●	●
374	HOLDER; DUCT	1-76398-012-1	01	1	0012-	●	●	●	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	0005-0011	●	●	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	0012-	●	●	●	●
