Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#8058) — 211 parça

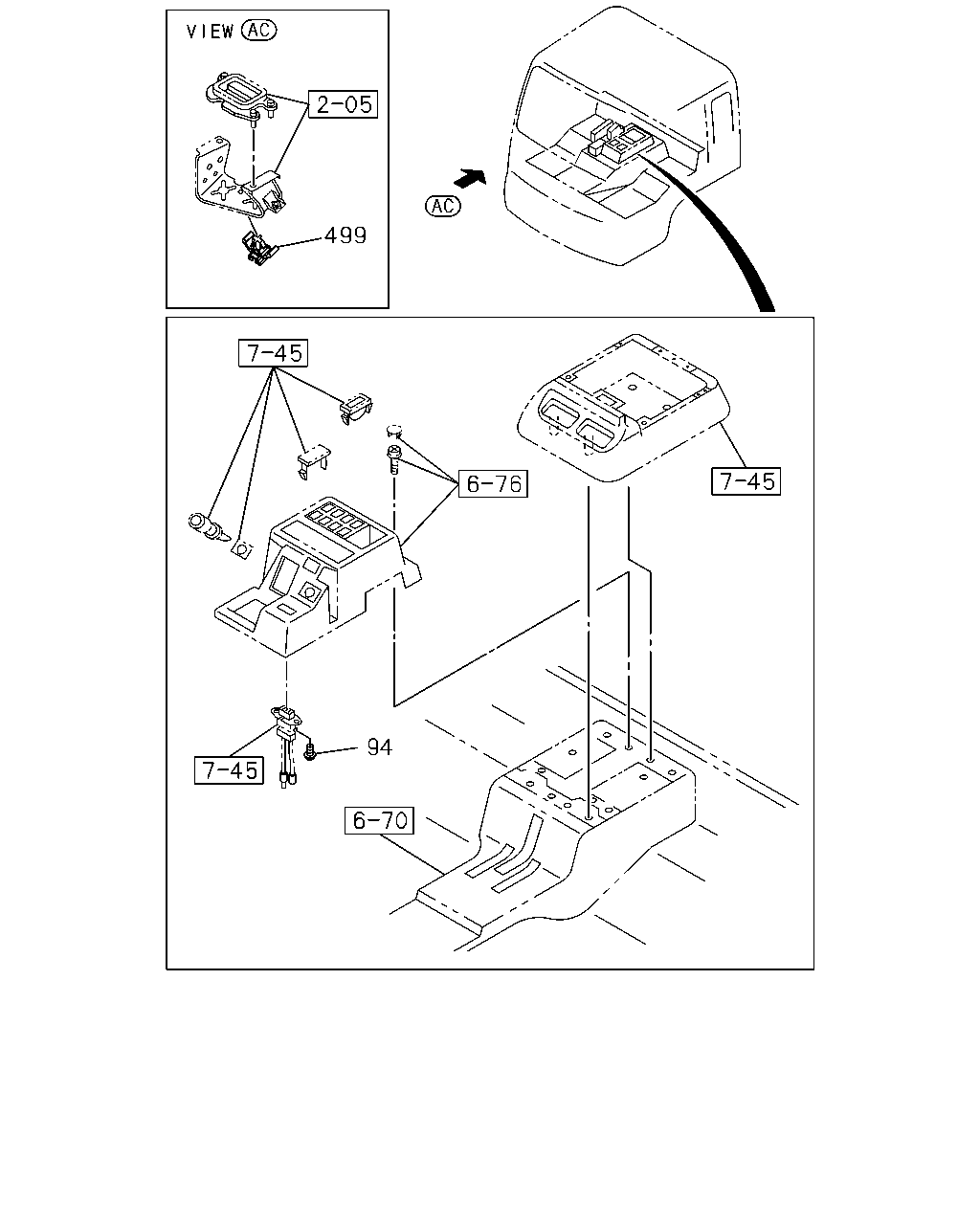

499 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0005-0011	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0012-0310	●	●	●	●
499	CLIP; SWITCH OD=9 H=6	1-09709-178-0	01	1	0304-	●	●	●	●

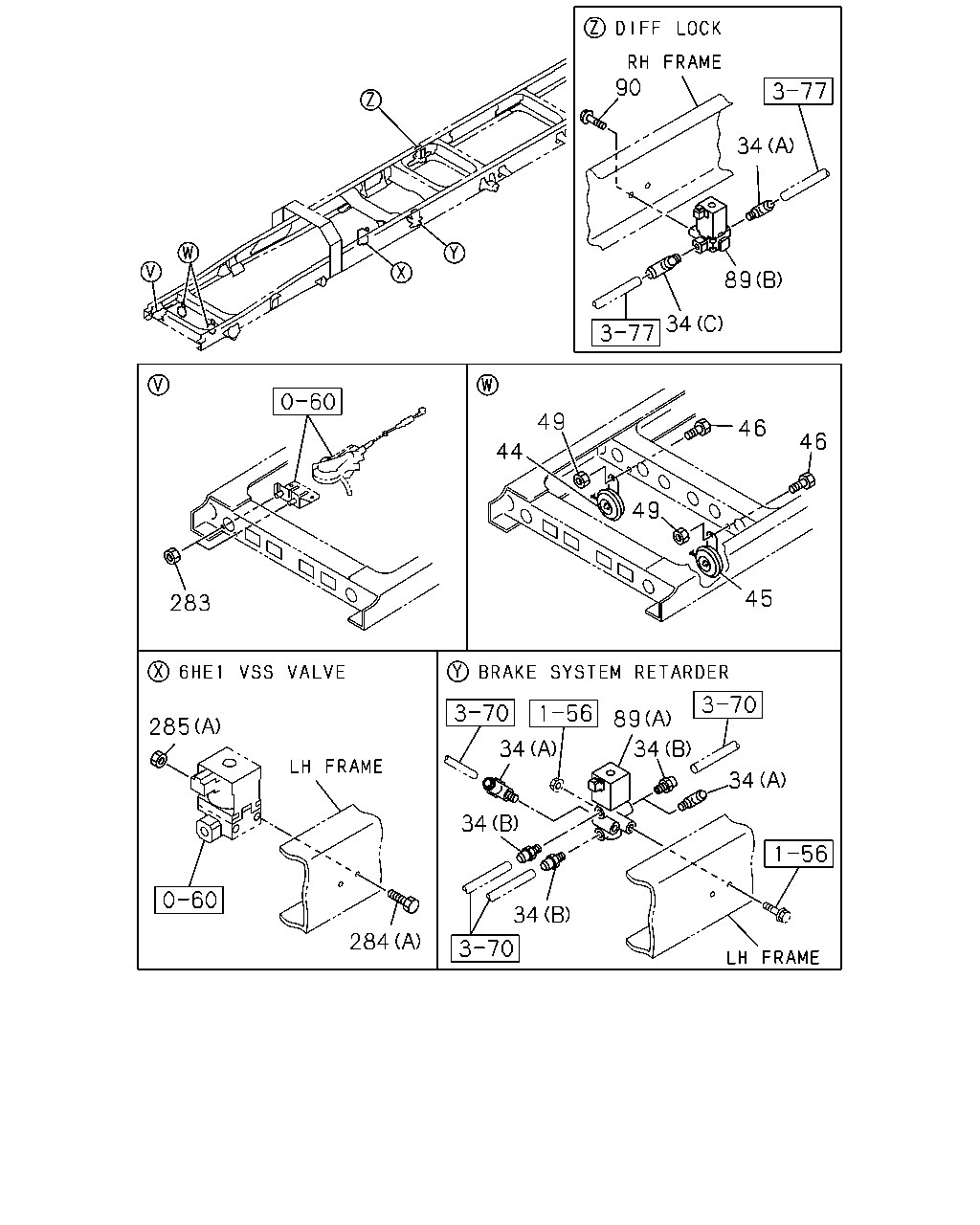

90 34 89 34 49 46 46 44 49 45 283 89 285 34 34 34 34 34 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0011	●		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0011		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0012-0104	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0012-0104		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0210	●			●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0210		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0211-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	03	1	0005-0011	●		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	03	1	0012-0104	●		●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	03	1	0105-0210	●			●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN12X2 & R1/4 3WAY	1-09661-071-0	01	1	0005-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0105-0210			●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0105-0210			●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	0005-0011	●	●	●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	0012-0210	●	●	●	●
44	HORN; HIGH NOTE	1-83410-065-0	01	1	0211-0405	●	●	●	●
44	HORN; HIGH NOTE EXC. AIR HORN<WB8>	1-83410-065-1	01	1	0406-	●	●	●	●
45	HORN; LOW NOTE	1-83410-058-1	01	1	0005-0011	●	●	●
45	HORN; LOW NOTE	1-83410-058-1	01	1	0012-0210	●	●	●	●
45	HORN; LOW NOTE	1-83410-064-0	01	1	0211-0405	●	●	●	●
45	HORN; LOW NOTE EXC. AIR HORN<WB8>	1-83410-064-1	01	1	0406-	●	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0005-0011	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0012-0405	●	●	●	●
46	BOLT; HORN TO BODY EXC. AIR HORN<WB8> M8X25 FLANGE	0-28680-825-0	02	1	0406-0512	●	●	●	●
46	BOLT; HORN TO BODY EXC. AIR HORN<WB8> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0005-0011	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0012-	●	●	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-597-5	01	1	0005-0011	●		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-597-5	01	1	0012-0210	●		●	●
89	VALVE; MAG,DIFF LOCK 6SD1 TCN ENG(31L) (C)	1-82563-871-2	03	1	0211-	●	●	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-602-6	01	1	0005-		●
90	BOLT; MAG VLV M8X30 FLANGE	0-28080-830-0	02	1	0005-0512		●
90	BOLT; MAG VLV M8X30 FLANGE	0-28050-830-0	02	1	0601-		●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0011	●	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0210	●	●	●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) (A) M8X35 FLANGE	0-28680-835-0	02	1	0005-0210	●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (C) M8X25 FLANGE	0-28680-825-0	03	1	0211-0512	●	●	●	●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (C) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●	●	●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (B) M6X50 FLANGE	0-28080-650-0	02	1	0211-0512	●	●	●	●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-	●	●	●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) (A) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (A) M8 FLANGE	0-91150-108-0	03	1	0211-0602	●	●	●	●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (A) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (B) M6 FLANGE	0-91150-106-0	02	1	0211-0602	●	●	●	●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (B) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●	●

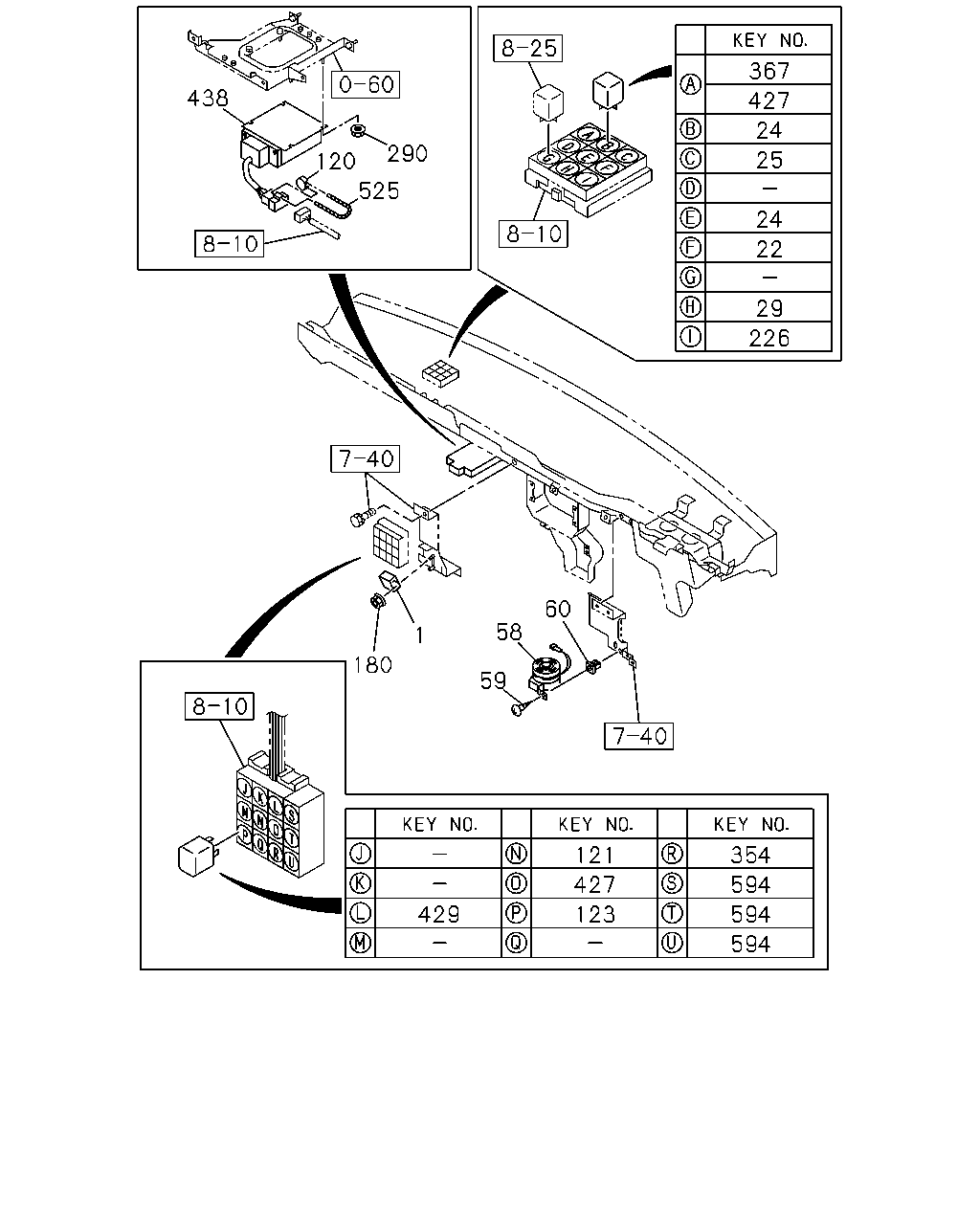

367 438 427 24 290 25 120 525 24 22 29 226 60 58 1 180 59 121 354 427 594 429 123 594 594

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	UNIT; FLASHER	1-83470-060-0	01	1	0005-0011	●	●
1	UNIT; FLASHER	1-83470-060-1	01	1	0012-	●	●		●
1	UNIT; FLASHER	1-83470-062-1	01	1	0005-			●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0005-0011	●	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0012-0111	●	●	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-	●	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405	●	●	●	●
29	RELAY; HORN EXC. AIR HORN<WB8> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0005-0011	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0012-0210	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-075-0	01	1	0211-0612	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-859-0	01	1	0701-	●	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0005-0011	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0005-0011	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0012-0210	●	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0012-0210	●	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0211-	●	●	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0005-0604			●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-			●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0005-			●
120	SEAL 6HK1 TCS ENG(80L)	1-15739-002-0	02	1	0303-0407	●
120	SEAL 6HK1 TCS ENG(80L)	1-15739-008-0	02	1	0408-	●
120	SEAL	1-15739-002-0	01	1	0005-0011	●	●	●
120	SEAL	1-15739-002-0	01	1	0012-0211	●	●	●	●
120	SEAL 6SD1 TCN ENG(31L)	1-15739-002-0	01	1	0212-0407	●	●	●	●
120	SEAL 6SD1 TCN ENG(31L)	1-15739-008-0	01	1	0408-	●	●	●	●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
121	RELAY; PARKING BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
123	RELAY; HTR 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
123	RELAY; HTR 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
123	RELAY; HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0005-0011	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0012-0602	●	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
290	NUT M6 FLANGE	0-91150-106-0	04	1	0005-0011	●	●	●
290	NUT M6 FLANGE	0-91150-106-0	04	1	0012-0602	●	●	●	●
290	NUT M6 FLANGE	0-91180-106-0	04	1	0603-	●	●	●	●
354	RELAY; BRAKE FLUID CHECK 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
354	RELAY; BRAKE FLUID CHECK 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
354	RELAY; BRAKE FLUID CHECK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
367	RELAY; NEUTRAL A/T<X9D> 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●	●
367	RELAY; NEUTRAL A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0210	●	●
367	RELAY; NEUTRAL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-	●	●	●	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 12.5A MITUBA	8-97062-815-1	02	1	0005-0011	●		●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 12.5A MITUBA	8-97062-815-1	02	1	0012-0111	●		●	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-0210	●		●	●
429	RELAY; POWER CUT 6HE1 TC ENG(57L) 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●
429	RELAY; POWER CUT 6HE1 TC ENG(57L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0210	●
429	RELAY; POWER CUT 6HK1 TCS ENG(80L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0303-	●
438	UNIT; SPD CONTROL	1-82540-066-0	01	1	0005-0011	●	●	●
438	UNIT; SPD CONTROL	1-82540-066-0	01	1	0012-0210	●	●	●	●
525	WIRE; CONTROL UNIT	9-81325-446-0	01	1	0005-0011	●	●	●
525	WIRE; CONTROL UNIT	9-81325-446-0	01	1	0012-0210	●	●	●	●
594	RELAY; A/T A/T<X9D> 24V 12.5A MITUBA	8-97062-815-1	03	1	0005-0111	●	●
594	RELAY; A/T A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	03	1	0112-	●	●

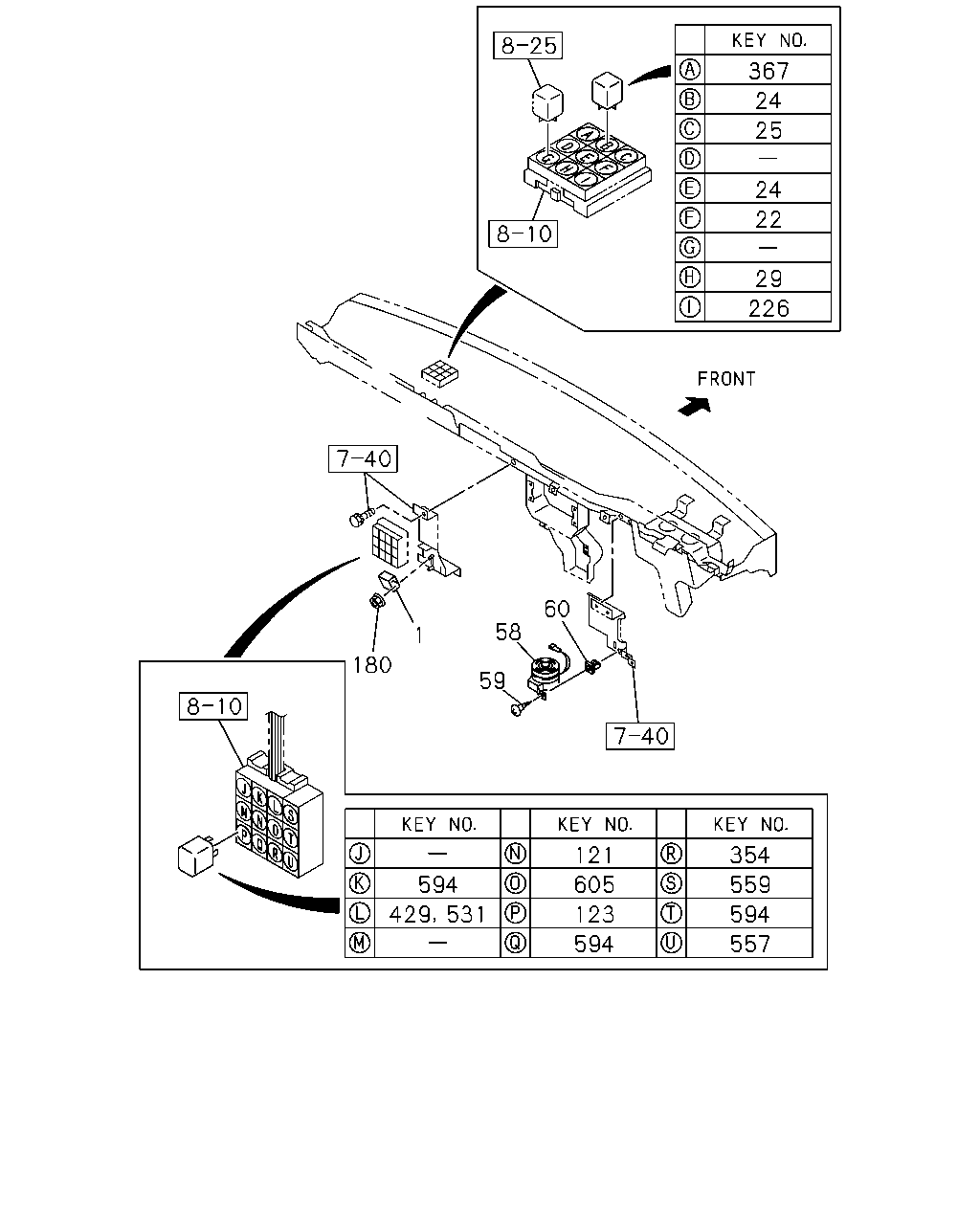

367 24 25 24 22 29 226 60 58 1 180 59 354 121 594 605 559 531 594 429 123 594 557

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	UNIT; FLASHER	1-83470-060-0	01	1	0005-0011	●	●
1	UNIT; FLASHER	1-83470-060-1	01	1	0012-	●	●		●
1	UNIT; FLASHER	1-83470-062-1	01	1	0005-			●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0005-0011	●	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0012-0111	●	●	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-	●	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405	●	●	●	●
29	RELAY; HORN EXC. AIR HORN<WB8> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0005-0011	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0012-0210	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-075-0	01	1	0211-0612	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-859-0	01	1	0701-	●	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0005-0011	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0005-0011	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0012-0210	●	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0012-0210	●	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0211-	●	●	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0005-0604			●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-			●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0005-			●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
121	RELAY; PARKING BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
123	RELAY; HTR 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
123	RELAY; HTR 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
123	RELAY; HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0005-0011	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0012-0602	●	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
354	RELAY; BRAKE FLUID CHECK 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0011	●	●	●
354	RELAY; BRAKE FLUID CHECK 24V 12.5A MITUBA	8-97062-815-1	01	1	0012-0111	●	●	●	●
354	RELAY; BRAKE FLUID CHECK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●
367	RELAY; NEUTRAL A/T<X9D> 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●	●
367	RELAY; NEUTRAL A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0210	●	●
367	RELAY; NEUTRAL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-	●	●	●	●
429	RELAY; POWER CUT 6HE1 TC ENG(57L) 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●
429	RELAY; POWER CUT 6HE1 TC ENG(57L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0210	●
429	RELAY; POWER CUT 6HK1 TCS ENG(80L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0303-	●
531	RELAY; MAIN 6SD1 TCN ENG(31L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-	●	●	●	●
557	RELAY; WASHER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-	●	●	●	●
559	RELAY; MAG VLV 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-	●	●	●	●
594	RELAY; A/T A/T<X9D> 24V 12.5A MITUBA	8-97062-815-1	03	1	0005-0111	●	●
594	RELAY; A/T A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	03	1	0112-	●	●
605	RELAY; PCV 6SD1 TCN ENG(31L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-	●	●	●	●

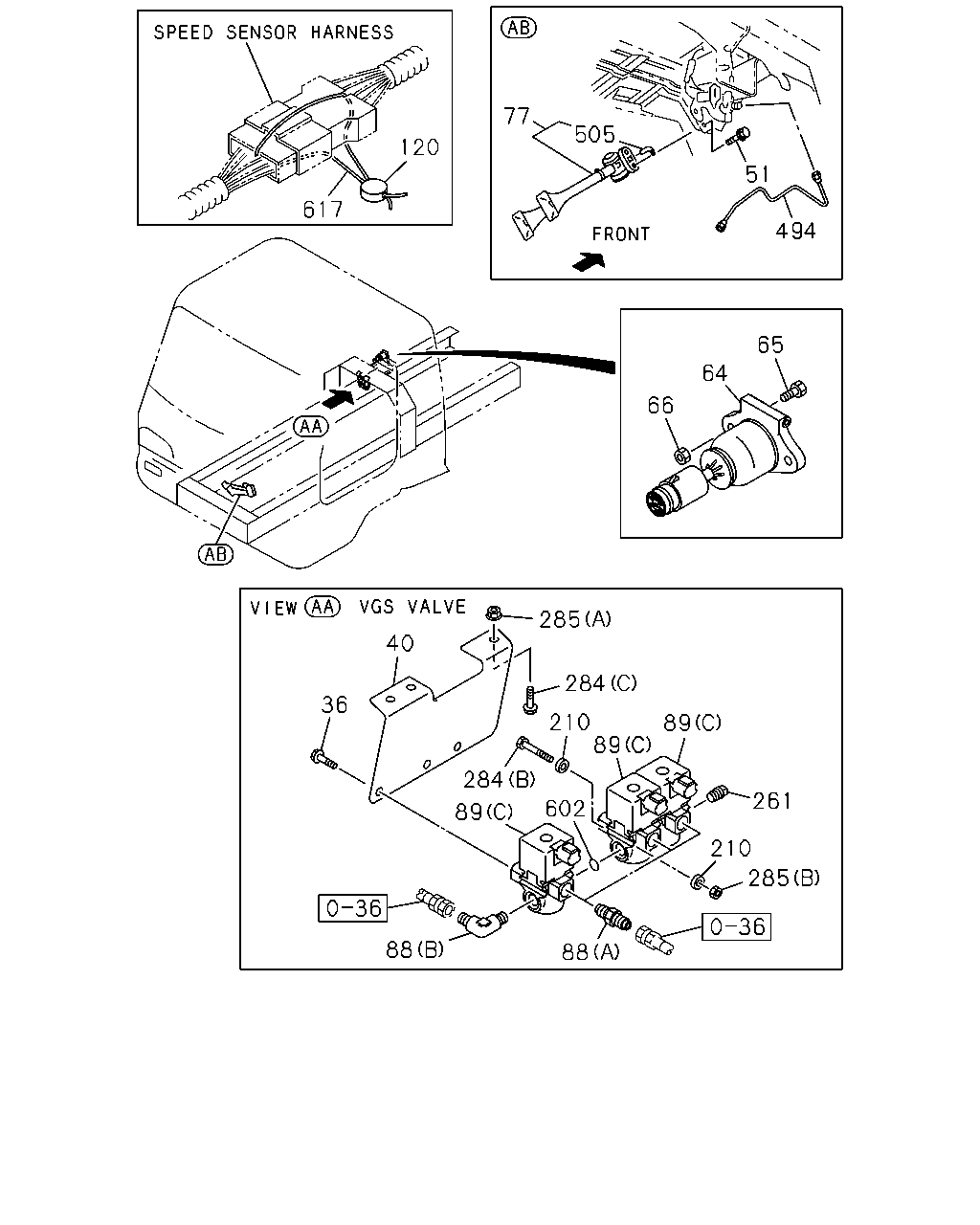

77 505 120 51 617 494 65 64 66 285 40 284 36 210 89 89 284 261 602 89 210 285 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	03	1	0211-0512	●	●	●	●
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●	●
40	BRACKET; MAG VLV 6SD1 TCN ENG(31L)	1-82569-326-0	01	1	0211-	●	●	●	●
51	BOLT; HORN TO BRKT AIR HORN<WB8> M8X20 FLANGE	0-28680-820-0	02	1	0406-0512	●	●	●	●
51	BOLT; HORN TO BRKT AIR HORN<WB8> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
64	SOCKET; TRAILER 7P	1-82523-014-0	01	1	0005-			●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28680-825-0	02	1	0005-0512			●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
66	NUT; SOCKET FIX M8 FLANGE	0-91150-108-0	02	1	0005-0602			●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	0603-			●
77	HORN ASM AIR HORN<WB8>	1-83430-041-2	01	1	0406-	●	●	●	●
88	CONNECTOR; MAG VLV 6SD1 TCN ENG(31L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0211-	●	●	●	●
88	CONNECTOR; MAG VLV 6SD1 TCN ENG(31L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-	●	●	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-597-5	01	1	0005-0011	●		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-597-5	01	1	0012-0210	●		●	●
89	VALVE; MAG,DIFF LOCK 6SD1 TCN ENG(31L) (C)	1-82563-871-2	03	1	0211-	●	●	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-602-6	01	1	0005-		●
120	SEAL 6HK1 TCS ENG(80L)	1-15739-002-0	02	1	0303-0407	●
120	SEAL 6HK1 TCS ENG(80L)	1-15739-008-0	02	1	0408-	●
120	SEAL	1-15739-002-0	01	1	0005-0011	●	●	●
120	SEAL	1-15739-002-0	01	1	0012-0211	●	●	●	●
120	SEAL 6SD1 TCN ENG(31L)	1-15739-002-0	01	1	0212-0407	●	●	●	●
120	SEAL 6SD1 TCN ENG(31L)	1-15739-008-0	01	1	0408-	●	●	●	●
210	WASHER; PL,BRKT 6SD1 TCN ENG(31L)	1-82569-266-0	04	1	0211-	●	●	●	●
261	PLUG; MAG VLV 6SD1 TCN ENG(31L) PT1/4	9-99204-513-0	01	1	0211-	●	●	●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) (A) M8X35 FLANGE	0-28680-835-0	02	1	0005-0210	●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (C) M8X25 FLANGE	0-28680-825-0	03	1	0211-0512	●	●	●	●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (C) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●	●	●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (B) M6X50 FLANGE	0-28080-650-0	02	1	0211-0512	●	●	●	●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-	●	●	●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) (A) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (A) M8 FLANGE	0-91150-108-0	03	1	0211-0602	●	●	●	●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (A) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (B) M6 FLANGE	0-91150-106-0	02	1	0211-0602	●	●	●	●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (B) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●	●
494	PIPE; AIR,UNION TO HORN AIR HORN<WB8>	1-49115-750-0	01	1	0406-	●	●	●	●
505	JOINT; AIR HORN AIR HORN<WB8>	1-83439-006-0	01	1	0406-	●	●	●	●
602	GASKET; MAG VLV 6SD1 TCN ENG(31L) ID=16.8	9-09565-117-0	02	1	0211-	●	●	●	●
617	WIRE; RACK SENSOR 6HK1 TCS ENG(80L)	9-81325-446-0	02	1	0303-	●
617	WIRE; RACK SENSOR	9-81325-446-0	01	1	0211-0211	●	●	●	●
617	WIRE; RACK SENSOR 6SD1 TCN ENG(31L)	9-81325-446-0	01	1	0212-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
