◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51386 - NQR AIR BRAKE RHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#80570) — 150 parça

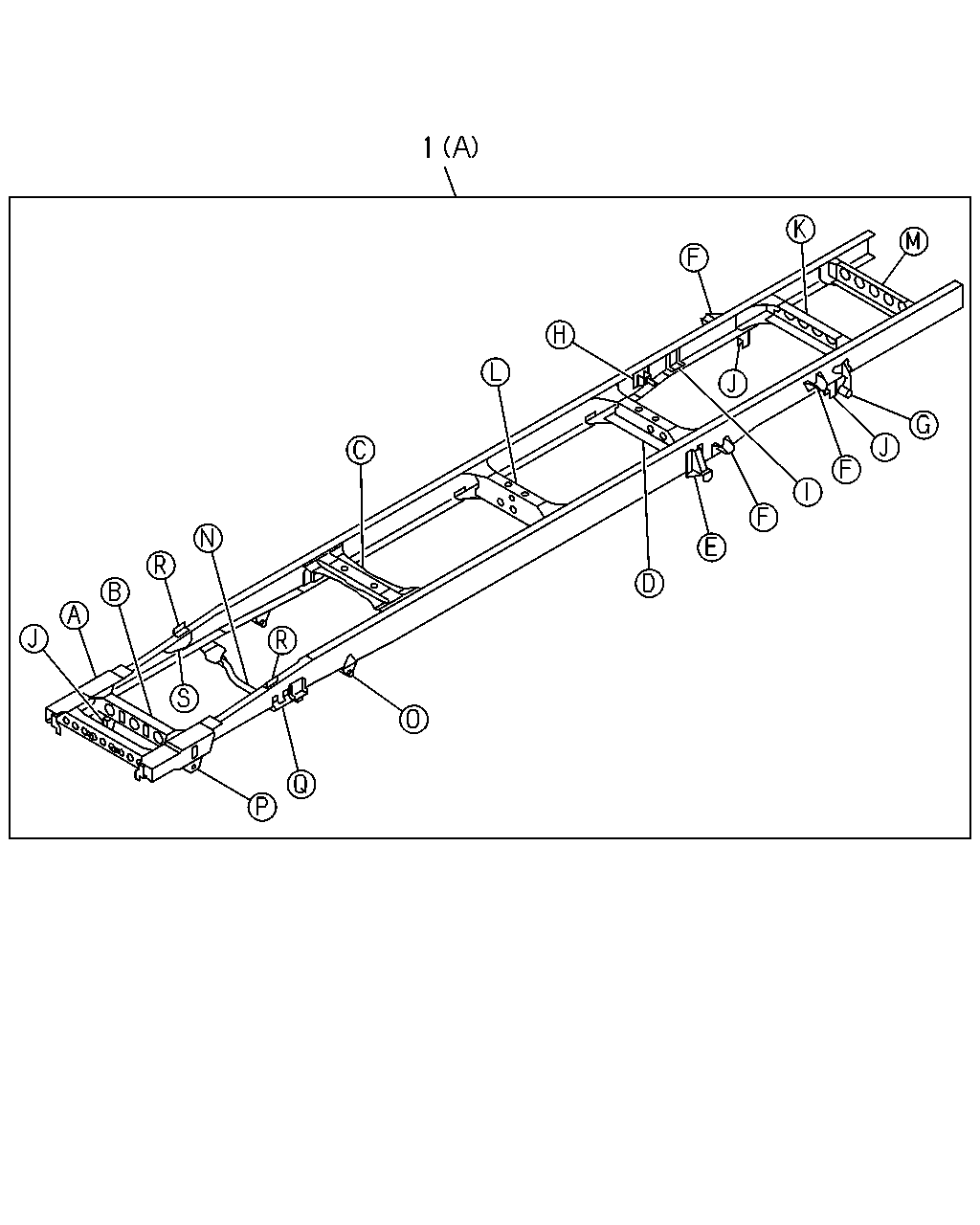

çizim 125209
1
BalonParca AdiParca NoAdetTipApplied Date
1 07.003 FRAME ASM
WHEEL BASE 4400MM(44W) (A) 		8-98201-318-2 01 1 1111-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98181-438-3 01 1 1111-1408
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (A) 		8-98181-438-3 01 1 1409-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (A) 		8-98181-438-3 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98181-442-2 01 1 1111-1305
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98181-442-2 01 1 1306-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98181-442-2 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98181-441-3 01 1 1111-1408
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (A) 		8-98181-441-3 01 1 1409-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (A) 		8-98181-441-3 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) 		8-98181-448-2 01 1 1111-1305
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) 		8-98181-448-2 01 1 1306-1408
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) 		8-98181-448-2 01 1 1409-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. FRONT STABILIZER SHAFT<F59> (B) 		8-98181-448-2 01 1 1409-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) 		8-98181-448-2 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. FRONT STABILIZER SHAFT<F59> (B) 		8-98181-448-2 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) 		8-98181-447-3 01 1 1111-1408
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (B) 		8-98181-447-3 01 1 1409-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (B) 		8-98181-447-3 01 1 1508-

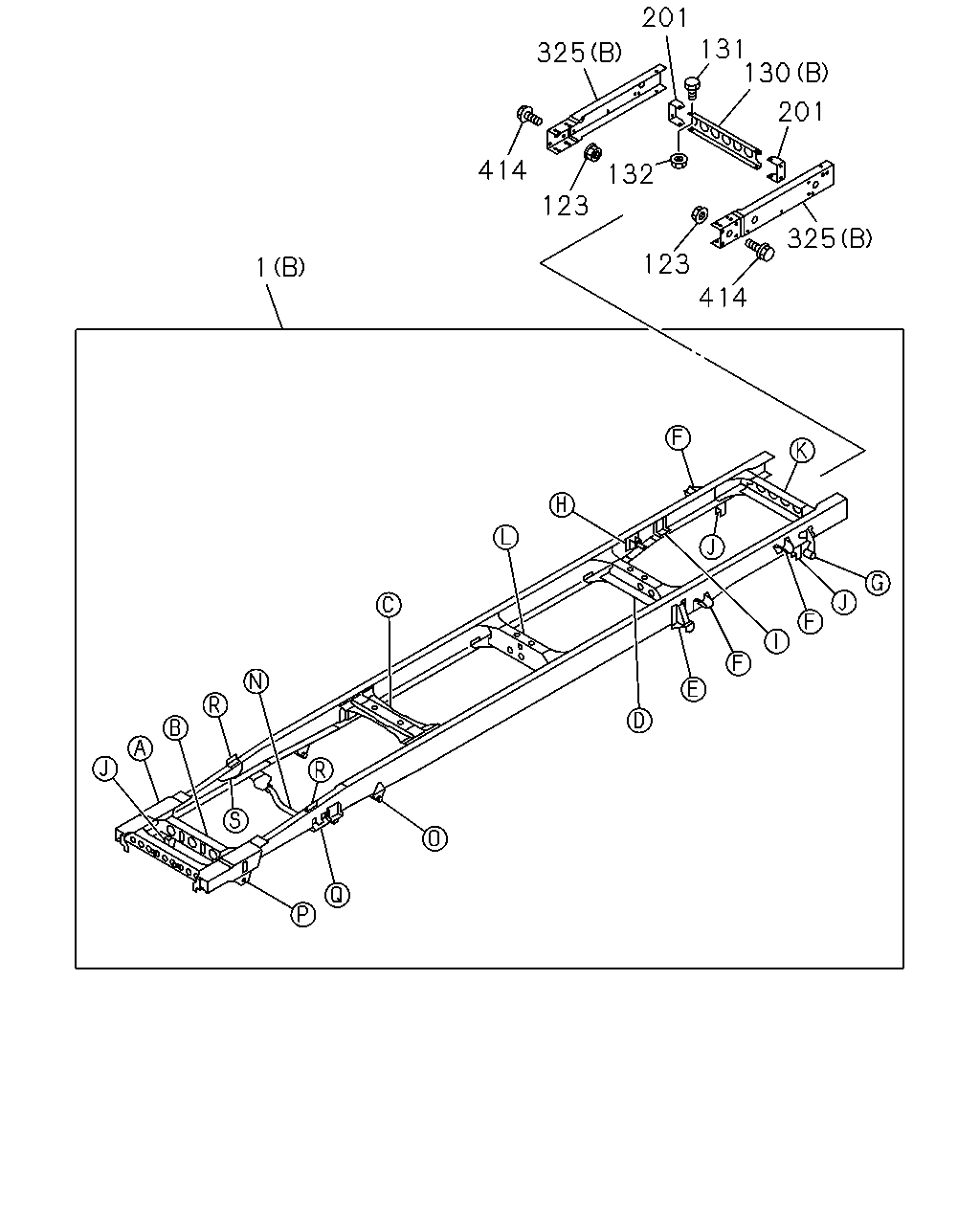

çizim 125358
325 414 123 123 132 130 131 201 201 325 414 1
BalonParca AdiParca NoAdetTipApplied Date
1 07.003 FRAME ASM
WHEEL BASE 4400MM(44W) (A) 		8-98201-318-2 01 1 1111-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98181-438-3 01 1 1111-1408
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (A) 		8-98181-438-3 01 1 1409-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (A) 		8-98181-438-3 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98181-442-2 01 1 1111-1305
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98181-442-2 01 1 1306-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98181-442-2 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98181-441-3 01 1 1111-1408
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (A) 		8-98181-441-3 01 1 1409-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (A) 		8-98181-441-3 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) 		8-98181-448-2 01 1 1111-1305
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) 		8-98181-448-2 01 1 1306-1408
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) 		8-98181-448-2 01 1 1409-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. FRONT STABILIZER SHAFT<F59> (B) 		8-98181-448-2 01 1 1409-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) 		8-98181-448-2 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. FRONT STABILIZER SHAFT<F59> (B) 		8-98181-448-2 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) 		8-98181-447-3 01 1 1111-1408
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (B) 		8-98181-447-3 01 1 1409-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (B) 		8-98181-447-3 01 1 1508-
123 07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12 		8-97360-126-0 04 1 1111-1201
123 07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12 		8-97360-126-0 16 1 1202-
123 07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12 		8-97360-126-0 12 1 1111-1201
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 1111-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 1111-
131 07.014 BOLT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1111-
132 07.014 NUT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1111-
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 1111-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 1111-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-752-3 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-753-3 01 1 1111-
414 07.011 BOLT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 1111-
414 07.011 BOLT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M12X40 FLANGE 		0-28661-240-0 04 1 1111-
çizim 125482
376 376 376 376 376 376 376 376 376 376 376 376 176 176 296 118 67
BalonParca AdiParca NoAdetTipApplied Date
67 07.011 NUT; C/MBR
WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE 		0-91180-210-0 17 1 1111-
67 07.011 NUT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.085 M10 FLANGE 		0-91180-210-0 18 1 1111-
118 07.529 NUT; STOPPER
EXC. MINI BUS CHASSIS(V4B) M8 LOCK NUT 		0-91370-008-0 02 1 1111-1305
118 07.529 NUT; STOPPER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8 LOCK NUT 		0-91370-008-0 02 1 1306-1507
118 07.529 NUT; STOPPER
WHEEL BASE 4400MM(44W) M8 LOCK NUT 		0-91370-008-0 02 1 1306-1507
118 07.529 NUT; STOPPER
M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) M8 LOCK NUT 		0-91370-008-0 02 1 1508-
118 07.529 NUT; STOPPER
M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> M8 LOCK NUT 		0-91370-008-0 02 1 1508-
176 04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 1111-
176 04.085 BOLT; C/MBR,ENG MTG
00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 1111-
296 07.039 BOLT; 3RD C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1111-
376 07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END 		9-06750-824-0 AR 1 1111-
376 07.039 RIVET; FRAME
(B) D10X24 TAPER END 		9-06751-024-0 AR 1 1111-
376 07.039 RIVET; FRAME
(C) D10X26 TAPER END 		9-06751-026-0 AR 1 1111-
376 07.039 RIVET; FRAME
(D) D10X28 TAPER END 		9-06751-028-0 AR 1 1111-
376 07.039 RIVET; FRAME
(E) D10X30 TAPER END 		9-06751-030-0 AR 1 1111-
376 07.039 RIVET; FRAME
(F) D10X32 TAPER END 		9-06751-032-0 AR 1 1111-
376 07.039 RIVET; FRAME
(G) D10X36 TAPER END 		9-06751-036-0 AR 1 1111-
376 07.039 RIVET; FRAME
(H) D11X26 TAPER END 		9-06751-126-0 AR 1 1111-
376 07.039 RIVET; FRAME
(I) D11X30 TAPER END 		9-06751-130-0 AR 1 1111-
376 07.039 RIVET; FRAME
07.105 (J) D12X30 TAPER END 		9-06751-230-0 AR 1 1111-
376 07.039 RIVET; FRAME
07.428 (K) D12X36 TAPER END 		9-06751-236-0 AR 1 1111-
376 07.039 RIVET; FRAME
07.112 (L) D12X40 TAPER END 		9-06751-240-0 AR 1 1111-

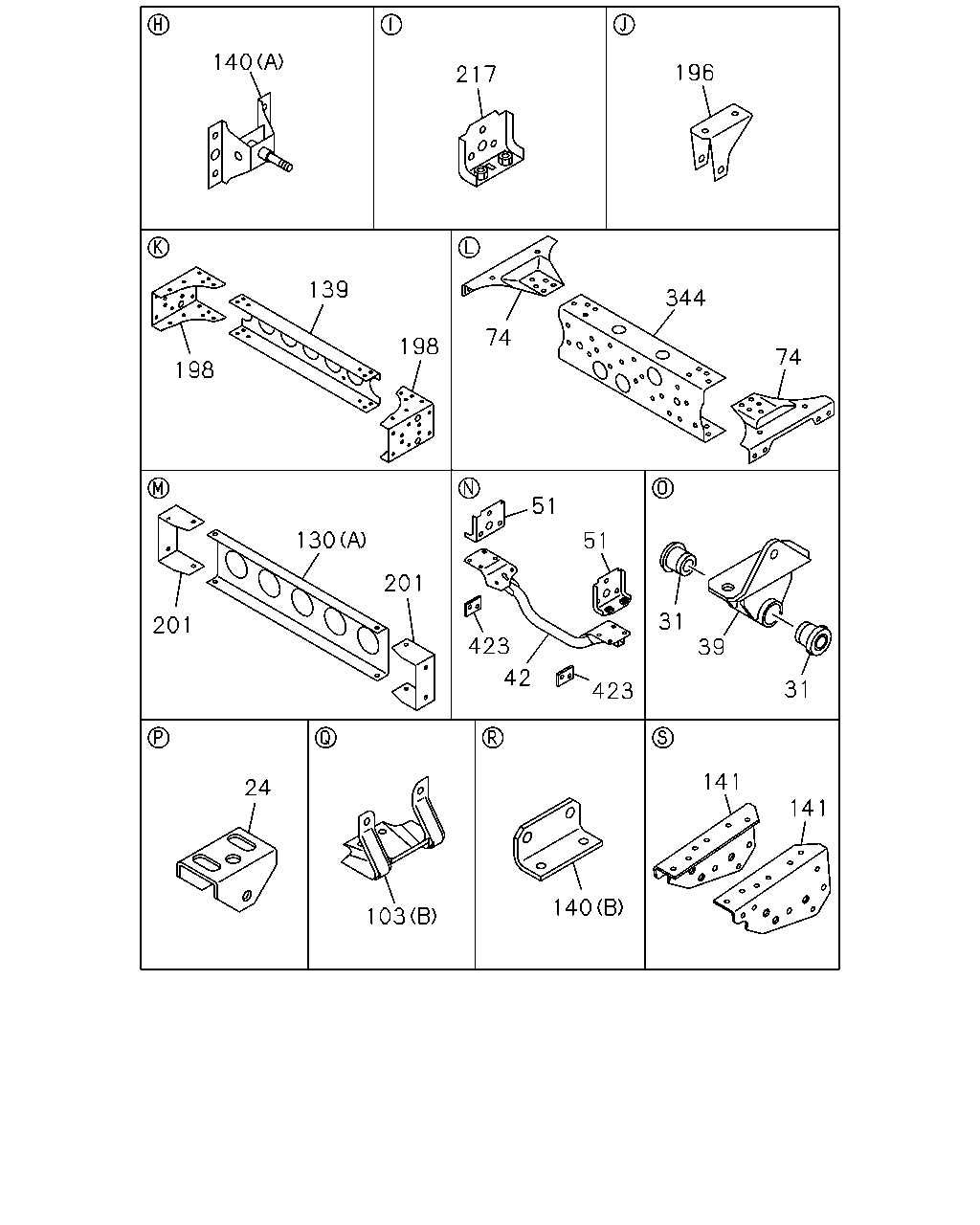

çizim 125549
140 217 196 344 74 74 139 198 198 31 39 31 51 51 423 42 423 141 141 140 103 24 201 130 201
BalonParca AdiParca NoAdetTipApplied Date
24 07.105 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 1111-
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 1111-
39 07.112 BRACKET; FRT SPR,RR 8-98014-125-0 02 1 1111-
42 07.011 MEMBER; CROSS,ENG MTG 8-98032-389-0 01 1 1111-
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-98034-961-0 02 1 1111-
74 07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-583-0 02 1 1111-
74 07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-584-0 02 1 1111-
103 07.420 STOPPER; SUB SPR
EXC. MINI BUS CHASSIS(V4B) (A) 		8-97223-748-0 04 1 1111-1305
103 07.420 STOPPER; SUB SPR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-97223-748-0 04 1 1306-1507
103 07.420 STOPPER; SUB SPR
WHEEL BASE 4400MM(44W) (A) 		8-97223-748-0 04 1 1306-1507
103 07.420 STOPPER; SUB SPR
M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (A) 		8-97223-748-0 04 1 1508-
103 07.420 STOPPER; SUB SPR
M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97223-748-0 04 1 1508-
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 1111-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 1111-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 1111-
139 07.012 MEMBER; CROSS,6TH 8-97107-384-0 01 1 1111-
140 07.112 BRACKET; S/ABS,RR
(A) 		8-98184-110-0 02 1 1111-1412
140 07.112 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 1501-
140 07.112 BRACKET; S/ABS,RR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 07.395 (B) 		8-97302-511-0 02 1 1111-
140 07.112 BRACKET; S/ABS,RR
WHEEL BASE 4400MM(44W) 07.395 (B) 		8-97302-511-0 02 1 1111-
141 07.112 STIFFENER
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98064-354-2 01 1 1111-
141 07.112 STIFFENER
WHEEL BASE 4400MM(44W) 		8-98064-354-2 01 1 1111-
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98033-523-0 04 1 1111-
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 4400MM(44W) 		8-98033-523-0 04 1 1111-
198 07.039 GUSSET; 6TH C/MBR
EXC. MINI BUS CHASSIS(V4B) 		8-98092-777-1 01 1 1111-1305
198 07.039 GUSSET; 6TH C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98092-777-1 01 1 1306-1507
198 07.039 GUSSET; 6TH C/MBR
WHEEL BASE 4400MM(44W) 		8-98092-777-1 01 1 1306-1507
198 07.039 GUSSET; 6TH C/MBR
M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) 		8-98092-777-1 01 1 1508-
198 07.039 GUSSET; 6TH C/MBR
M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> 		8-98092-777-1 01 1 1508-
198 07.039 GUSSET; 6TH C/MBR
EXC. MINI BUS CHASSIS(V4B) 		8-98092-778-1 01 1 1111-1305
198 07.039 GUSSET; 6TH C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98092-778-1 01 1 1306-1507
198 07.039 GUSSET; 6TH C/MBR
WHEEL BASE 4400MM(44W) 		8-98092-778-1 01 1 1306-1507
198 07.039 GUSSET; 6TH C/MBR
M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) 		8-98092-778-1 01 1 1508-
198 07.039 GUSSET; 6TH C/MBR
M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> 		8-98092-778-1 01 1 1508-
198 07.039 GUSSET; 6TH C/MBR
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98014-079-1 02 1 1111-1305
198 07.039 GUSSET; 6TH C/MBR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98014-079-1 02 1 1306-
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 1111-
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 1111-
344 07.012 MEMBER; CROSS,4TH 8-97175-993-3 01 1 1111-
423 07.039 PATCH
EXC. MINI BUS CHASSIS(V4B) 		8-98163-494-0 02 1 1111-1305
423 07.039 PATCH
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98163-494-0 02 1 1306-1507
423 07.039 PATCH
WHEEL BASE 4400MM(44W) 		8-98163-494-0 02 1 1306-1507
423 07.039 PATCH
M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) 		8-98163-494-0 02 1 1508-
423 07.039 PATCH
M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> 		8-98163-494-0 02 1 1508-

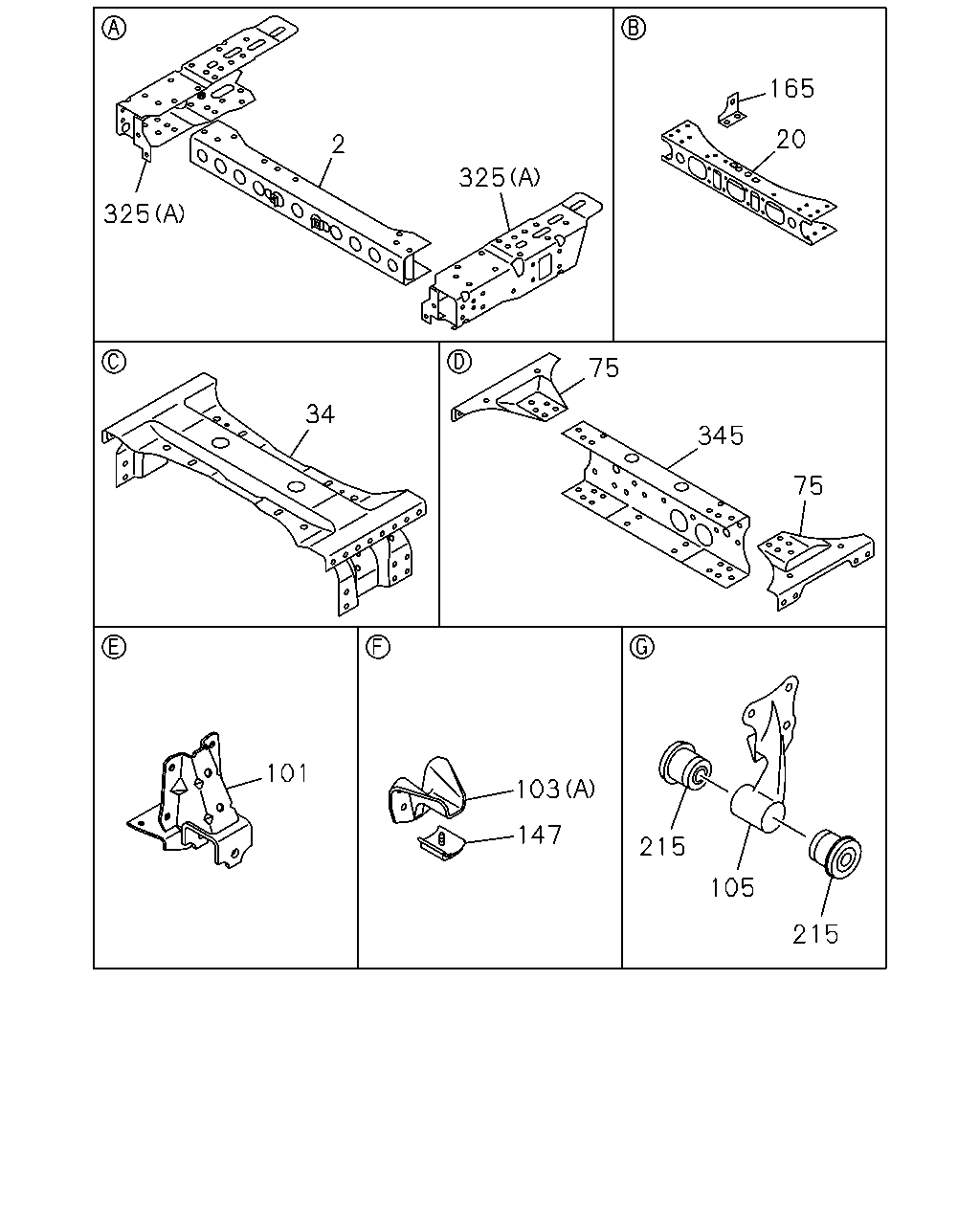

çizim 125580
165 20 2 325 325 75 34 345 75 101 103 147 215 105 215
BalonParca AdiParca NoAdetTipApplied Date
2 07.010 MEMBER; CROSS,1ST 8-97387-866-5 01 1 1111-
20 07.012 MEMBER; CROSS,2ND 8-98014-074-7 01 1 1111-
34 07.012 MEMBER; CROSS,3RD
WHEEL BASE 4400MM(44W) 		8-98072-038-1 01 1 1111-
34 07.012 MEMBER; CROSS,3RD
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 		8-98074-639-4 01 1 1111-
75 07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 1111-
75 07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 1111-
101 07.112 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 1111-1111
101 07.112 BRACKET; RR SPR,FRT 8-98202-857-0 02 1 1112-
103 07.420 STOPPER; SUB SPR
EXC. MINI BUS CHASSIS(V4B) (A) 		8-97223-748-0 04 1 1111-1305
103 07.420 STOPPER; SUB SPR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-97223-748-0 04 1 1306-1507
103 07.420 STOPPER; SUB SPR
WHEEL BASE 4400MM(44W) (A) 		8-97223-748-0 04 1 1306-1507
103 07.420 STOPPER; SUB SPR
M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) (A) 		8-97223-748-0 04 1 1508-
103 07.420 STOPPER; SUB SPR
M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97223-748-0 04 1 1508-
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 1111-
105 07.112 BRACKET; RR SPR,RR 8-98032-488-0 01 1 1111-
105 07.112 BRACKET; RR SPR,RR 8-98032-489-0 01 1 1111-
147 07.535 RUBBER; SUB SPRING
EXC. MINI BUS CHASSIS(V4B) 		8-97254-387-0 04 1 1111-1305
147 07.535 RUBBER; SUB SPRING
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97254-387-0 04 1 1306-1507
147 07.535 RUBBER; SUB SPRING
WHEEL BASE 4400MM(44W) 		8-97254-387-0 04 1 1306-1507
147 07.535 RUBBER; SUB SPRING
M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUSCHASSIS VAR.2(6GQ) 		8-97254-387-0 04 1 1508-
147 07.535 RUBBER; SUB SPRING
M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> 		8-97254-387-0 04 1 1508-
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 1111-
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 1111-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 1111-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-752-3 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-753-3 01 1 1111-
345 07.012 MEMBER; CROSS,5TH 8-97175-993-3 01 1 1111-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
