8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#8057) — 184 parça

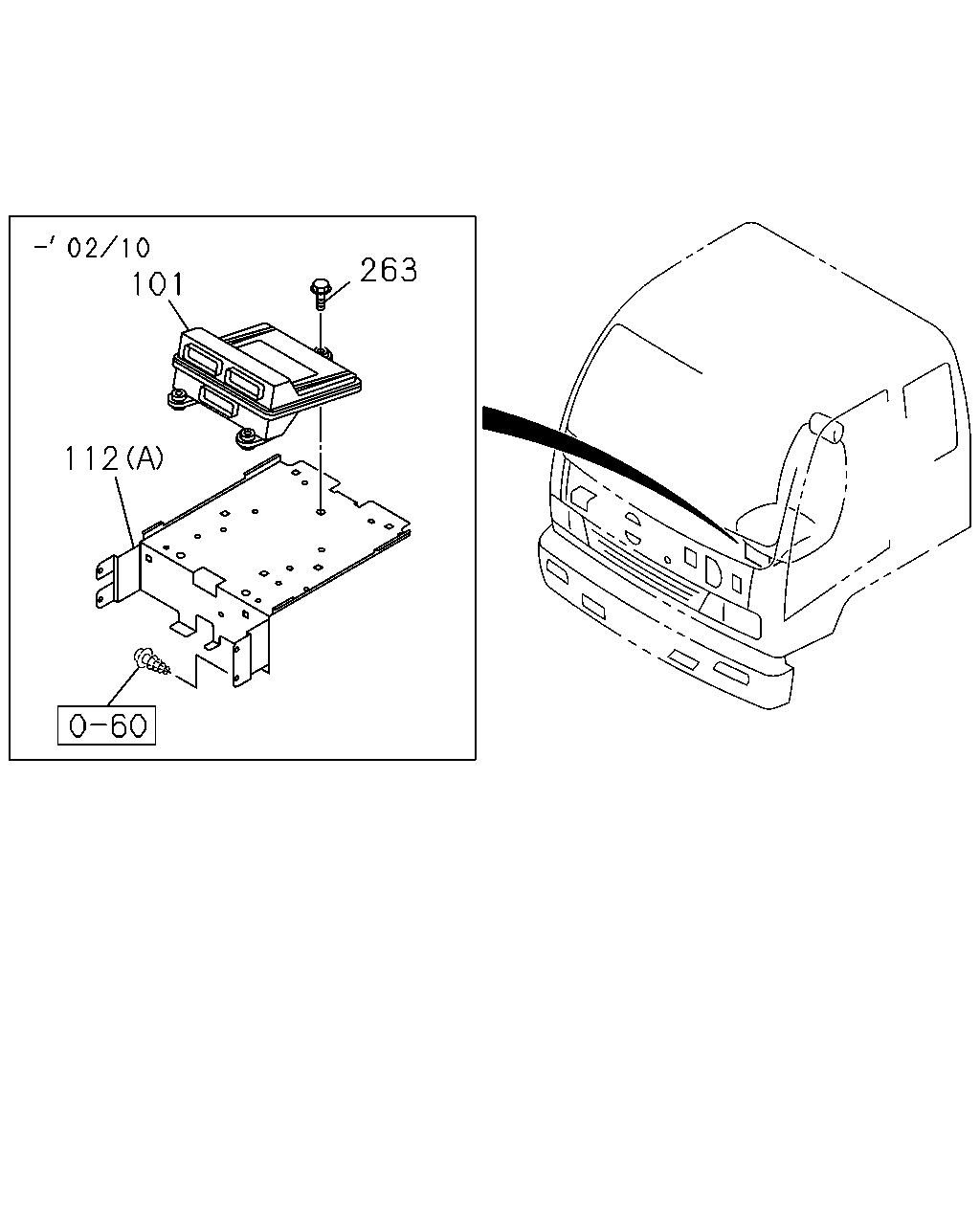

çizim 5836
101 263 112
BalonParca AdiParca NoAdetTipApplied Date A B C D
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80110-623-0 01 1 0005-0005 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80110-747-0 01 1 0006-0008 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80110-755-0 01 1 0009-0208 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80111-016-0 01 1 0209-0210 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3060P A/T(Y4G) 		1-80110-877-0 01 1 0211-0405 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3060P A/T(Y4G) 		1-80111-118-0 01 1 0406- ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80110-613-0 01 1 0005-0005 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80110-746-0 01 1 0006-0008 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80110-754-0 01 1 0009-0208 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80111-015-0 01 1 0209-0210 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80110-878-0 01 1 0211-0405 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80111-119-0 01 1 0406- ●
112 BRACKET; CONT UNIT
A/T<X9D> (A) 		1-75557-465-4 01 1 0005-0210 ● ●
112 BRACKET; CONT UNIT
6SD1 TCN ENG(31L) (C) 		1-75558-566-0 02 1 0211- ● ● ● ●
112 BRACKET; CONT UNIT
(B) 		1-75558-614-2 01 1 0211- ● ● ● ●
263 BOLT; CONT UNIT
A/T<X9D> M6X40 LK&PL WASHER 		8-94279-215-0 03 1 0005-0210 ● ●

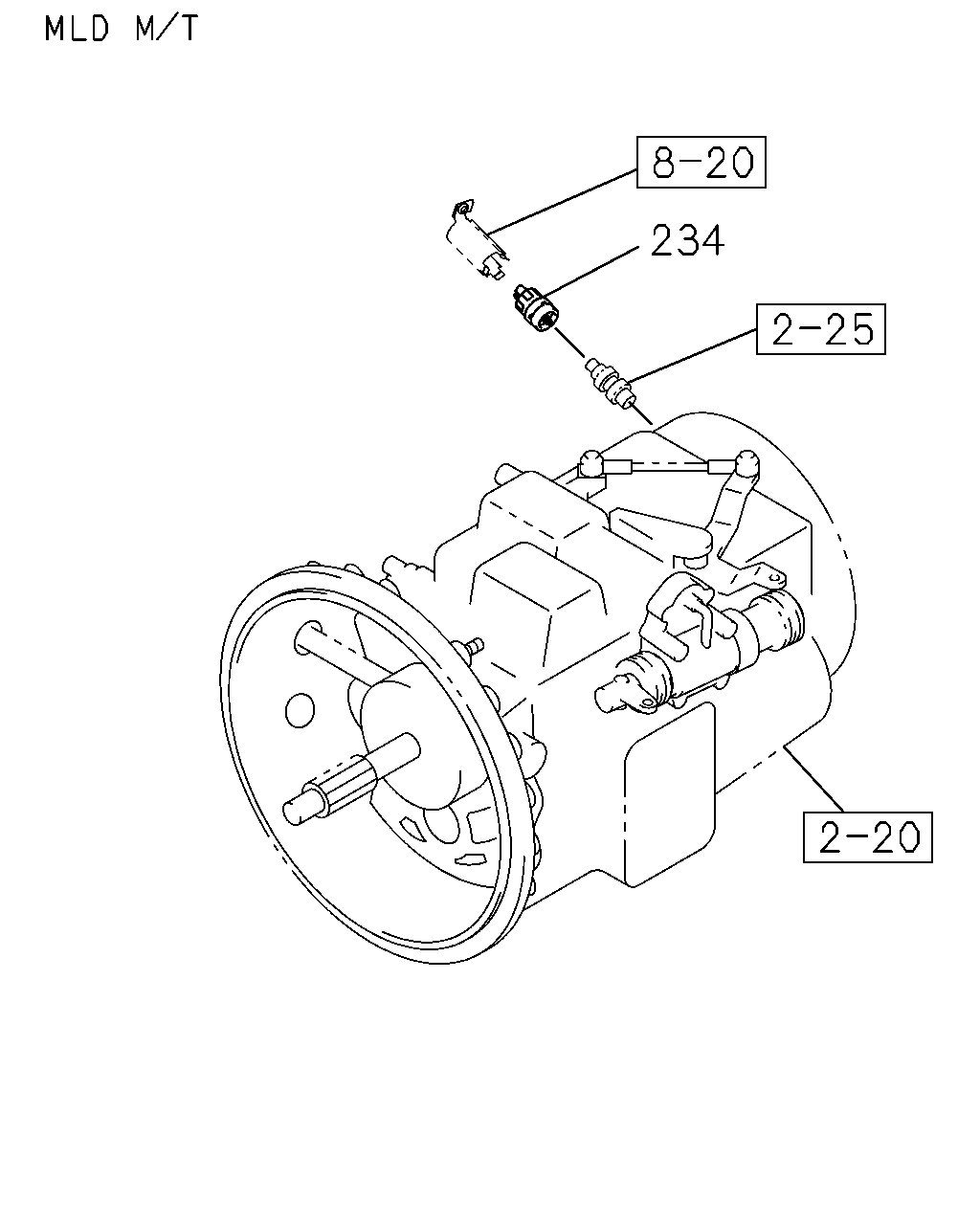

çizim 8589
234
BalonParca AdiParca NoAdetTipApplied Date A B C D
234 SENSOR; VEHICLE SPD
FULLER FSO5206B OD M/T(Y4V) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0303- ●
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-1 01 1 0005-0011 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE 		1-83127-414-1 01 1 0005-0011 ●
234 SENSOR; VEHICLE SPD
25 PULSE 		1-83127-414-1 01 1 0005-0011 ●
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-1 01 1 0012-0210 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE 		1-83127-414-1 01 1 0012-0210 ●
234 SENSOR; VEHICLE SPD
25 PULSE 		1-83127-414-1 01 1 0012-0210 ● ●
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 0211-0302 ● ●
234 SENSOR; VEHICLE SPD
25 PULSE 		1-83127-414-1 01 1 0211-0302 ● ●
234 SENSOR; VEHICLE SPD
FULLER FS8209HD DD M/T(Y3A) 25 PULSE 		1-83127-414-1 01 1 0303- ● ● ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE 		1-83127-414-1 01 1 0303- ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K) 		1-80240-001-1 01 1 0005-0202 ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K) 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-0210 ●

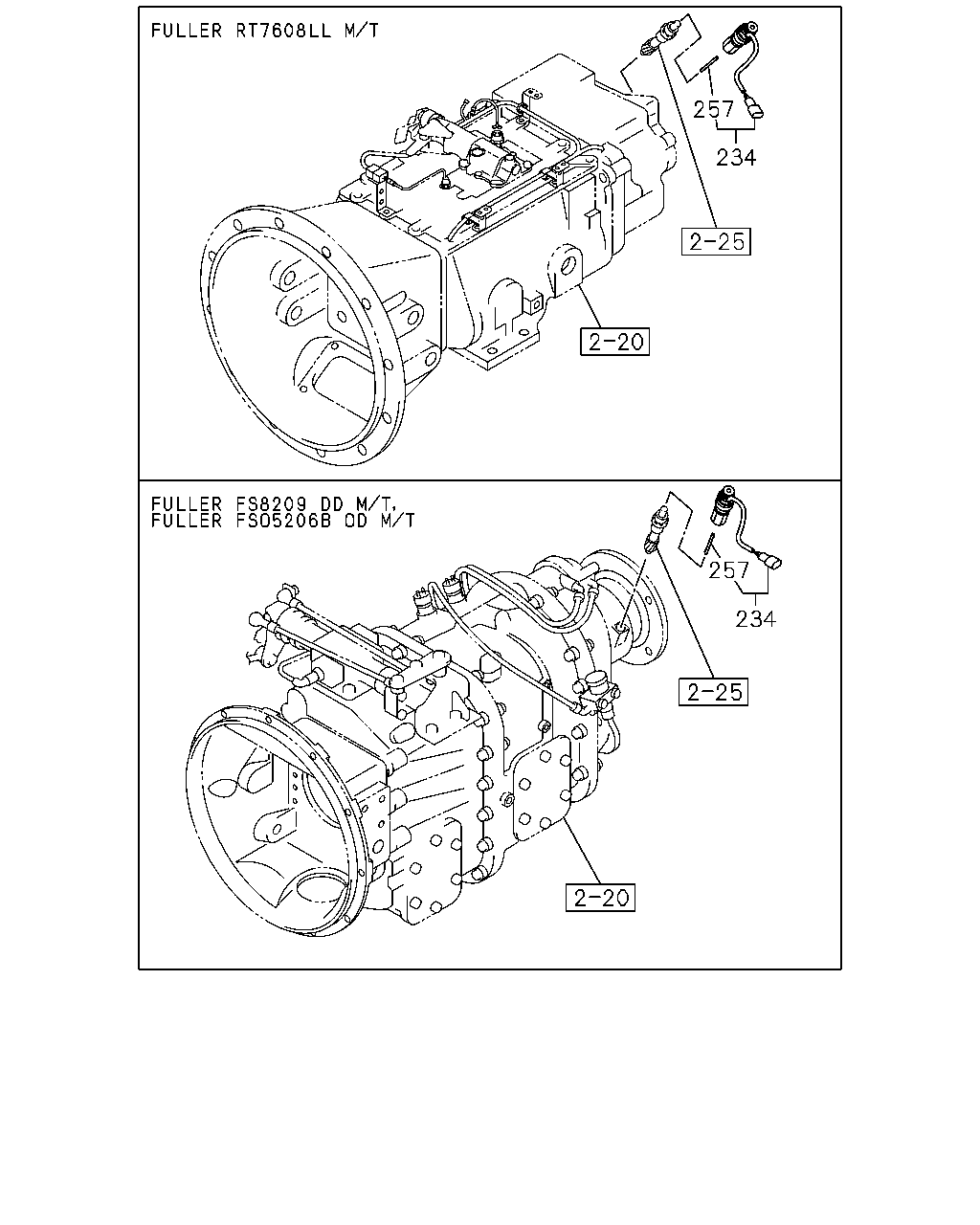

çizim 10669
257 234 257 234
BalonParca AdiParca NoAdetTipApplied Date A B C D
234 SENSOR; VEHICLE SPD
FULLER FSO5206B OD M/T(Y4V) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0303- ●
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-1 01 1 0005-0011 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE 		1-83127-414-1 01 1 0005-0011 ●
234 SENSOR; VEHICLE SPD
25 PULSE 		1-83127-414-1 01 1 0005-0011 ●
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-1 01 1 0012-0210 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE 		1-83127-414-1 01 1 0012-0210 ●
234 SENSOR; VEHICLE SPD
25 PULSE 		1-83127-414-1 01 1 0012-0210 ● ●
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 0211-0302 ● ●
234 SENSOR; VEHICLE SPD
25 PULSE 		1-83127-414-1 01 1 0211-0302 ● ●
234 SENSOR; VEHICLE SPD
FULLER FS8209HD DD M/T(Y3A) 25 PULSE 		1-83127-414-1 01 1 0303- ● ● ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE 		1-83127-414-1 01 1 0303- ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K) 		1-80240-001-1 01 1 0005-0202 ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K) 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-0210 ●
257 KEY; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 0005-0011 ●
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P) 		1-83129-073-0 01 1 0005-0011 ●
257 KEY; SPEED SENSOR 1-83129-073-0 01 1 0005-0011 ●
257 KEY; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 0012-0210 ●
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P) 		1-83129-073-0 01 1 0012-0210 ●
257 KEY; SPEED SENSOR 1-83129-073-0 01 1 0012-0210 ● ●
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 0211-0302 ● ●
257 KEY; SPEED SENSOR 1-83129-073-0 01 1 0211-0302 ● ●
257 KEY; SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		1-83129-073-0 01 1 0303- ● ● ●
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P) 		1-83129-073-0 01 1 0303- ●

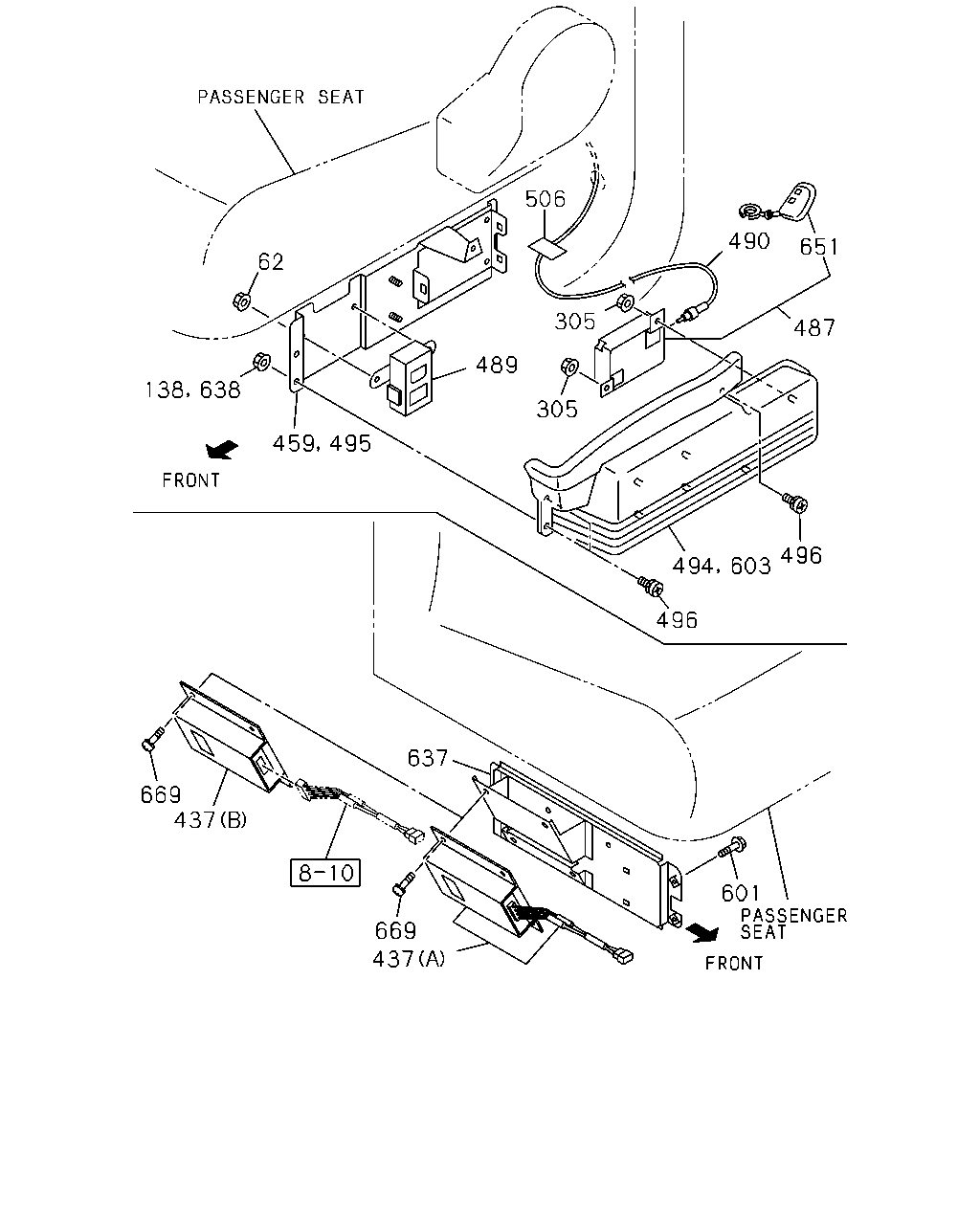

çizim 45167
506 490 651 62 305 487 489 138 638 305 459 496 603 494 496 637 669 437 601 669 437 495
BalonParca AdiParca NoAdetTipApplied Date A B C D
62 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0005-0011 ● ● ●
62 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0012-0210 ● ● ● ●
138 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0211-0602 ● ● ● ●
138 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ●
305 NUT; CONT UNIT
6HK1 TCS ENG(80L) M6 FLANGE 		0-91150-106-0 04 1 0303-0602 ●
305 NUT; CONT UNIT
6HK1 TCS ENG(80L) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
305 NUT; CONT UNIT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 0005-0011 ● ● ●
305 NUT; CONT UNIT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 0012-0210 ● ● ● ●
305 NUT; CONT UNIT
A/T<X9D> M6 FLANGE 		0-91150-106-0 03 1 0211-0602 ● ●
305 NUT; CONT UNIT
A/T<X9D> M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0211-0602 ● ● ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ● ● ● ●
437 CONVERTER; DC
(A) 		1-84122-037-1 01 1 0005-0008 ● ● ●
437 CONVERTER; DC
(B) MITSUBISHI 		1-84122-034-1 01 1 0009-0011 ● ● ●
437 CONVERTER; DC
(B) MITSUBISHI 		1-84122-034-1 01 1 0012-0603 ● ● ● ●
437 CONVERTER; DC
(B) METRO DENSO 		8-98046-423-0 01 1 0604- ● ● ● ●
459 BRACKET; CONTROL BOX 1-75558-488-5 01 1 0005-0011 ● ● ●
459 BRACKET; CONTROL BOX 1-75558-488-5 01 1 0012-0210 ● ● ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-006-1 01 1 0005-0011 ● ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-006-1 01 1 0012-0106 ● ● ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-033-0 01 1 0107-0210 ● ● ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 1-86855-033-2 01 1 0211-0809 ● ● ● ●
489 CONTROL UNIT; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82540-049-1 01 1 0005-0011 ● ● ●
489 CONTROL UNIT; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82540-049-1 01 1 0012-0210 ● ● ● ●
489 CONTROL UNIT; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82540-049-1 01 1 0211- ● ● ●
490 ANTENNA; AUTO REMOTE DOOR LOCK
CUSTOM CAB(SR5) 		1-86855-023-1 01 1 0005-0011 ● ● ●
490 ANTENNA; AUTO REMOTE DOOR LOCK
CUSTOM CAB(SR5) 		1-86855-023-1 01 1 0012-0210 ● ● ● ●
490 ANTENNA; AUTO REMOTE DOOR LOCK 1-86855-023-1 01 1 0211-0809 ● ● ● ●
494 COVER; ELEC BOX 1-72538-160-3 01 1 0211-0810 ● ● ● ●
494 COVER; ELEC BOX 8-97589-725-0 01 1 0811- ● ● ● ●
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 0211- ● ● ● ●
496 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0005-0011 ● ● ●
496 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0012-0703 ● ● ● ●
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0704- ● ● ● ●
506 TAPE; ANTENNA
CUSTOM CAB(SR5) 100X30 		1-74998-068-0 06 1 0005-0011 ● ● ●
506 TAPE; ANTENNA
CUSTOM CAB(SR5) 100X30 		1-74998-068-0 06 1 0012-0210 ● ● ● ●
506 TAPE; ANTENNA
100X30 		1-74998-068-0 06 1 0211-0809 ● ● ● ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0005-0011 ● ● ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0012-0703 ● ● ● ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0704- ● ● ● ●
603 COVER; CONT UNIT,SEAT STAND 1-72538-160-2 01 1 0005-0011 ● ● ●
603 COVER; CONT UNIT,SEAT STAND 1-72538-160-2 01 1 0012-0210 ● ● ● ●
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0005-0011 ● ● ●
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0012- ● ● ● ●
638 NUT; DC-DC CONVERTER
M6 FLANGE 		0-91150-106-0 04 1 0005-0011 ● ● ●
638 NUT; DC-DC CONVERTER
M6 FLANGE 		0-91150-106-0 04 1 0012-0210 ● ● ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-017-0 01 1 0005-0011 ● ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-017-0 01 1 0012-0106 ● ● ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86860-008-0 01 1 0107-0210 ● ● ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 1-86860-008-0 01 1 0211-0809 ● ● ● ●
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0005-0011 ● ● ●
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0012- ● ● ● ●

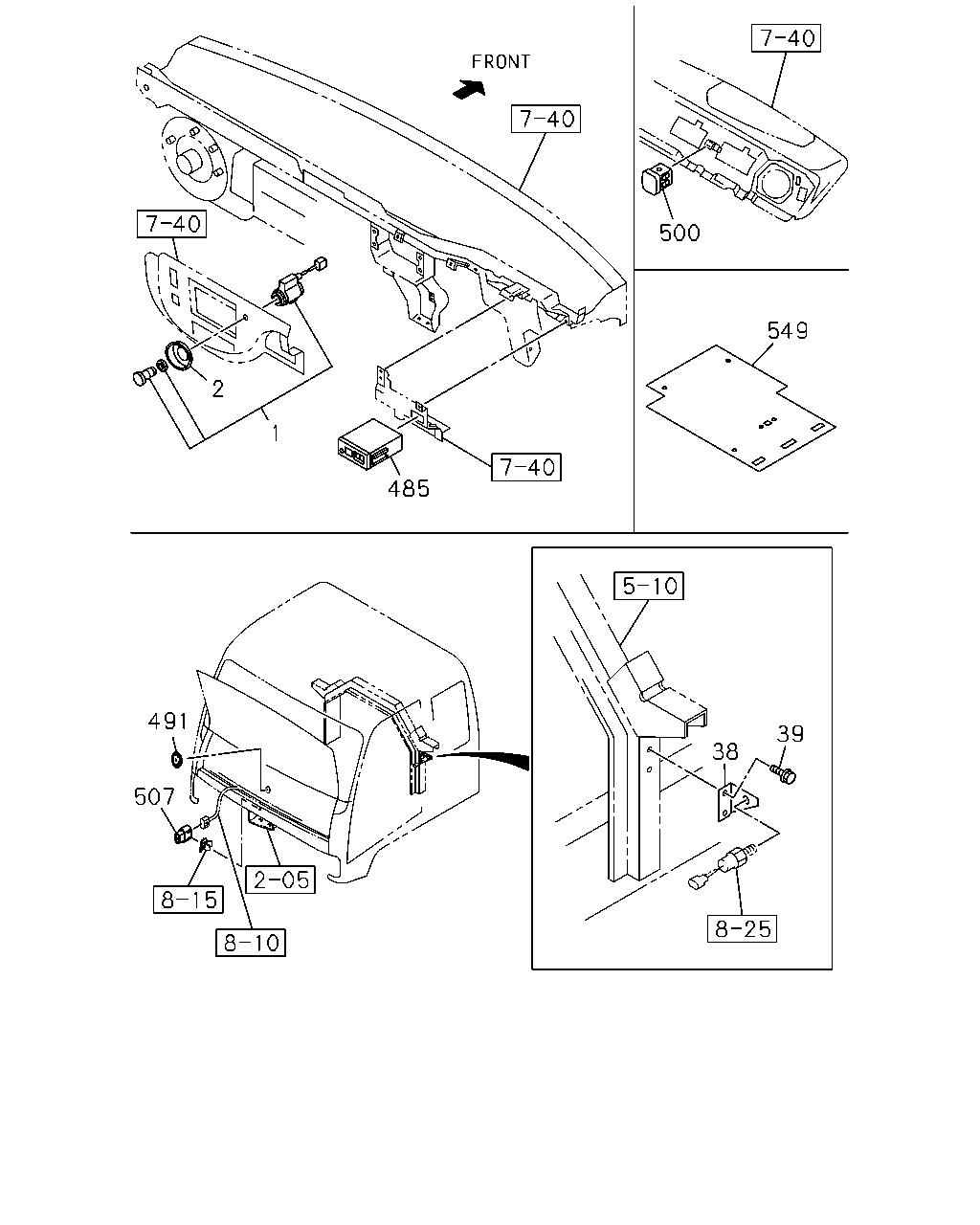

çizim 45168
2 1 485 500 549 491 507 38 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0005-0011 ● ● ●
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0012-0108 ● ● ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0005-0011 ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0012- ● ● ● ●
38 BRACKET; SW,STARTER SUB 1-82698-232-0 01 1 0005-0011 ● ● ●
38 BRACKET; SW,STARTER SUB 1-82698-232-0 01 1 0012-0211 ● ● ● ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82698-232-0 01 1 0212- ● ● ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0011 ● ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0012-0211 ● ● ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ● ● ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
485 CONTROL UNIT; SPEED SENSOR
ALLISON MD3060P A/T(Y4G) 		1-80190-061-0 01 1 0005-0210 ●
485 CONTROL UNIT; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) 		1-80190-061-0 01 1 0005-0210 ●
485 CONTROL UNIT; SPEED SENSOR
A/T<X9D> 		1-80190-061-0 01 1 0211- ● ●
485 CONTROL UNIT; SPEED SENSOR
MLD7Q M/T(X5K),FULLER FS8209 DD M/T(Y2S) 		1-80190-038-1 01 1 0005-0011 ●
485 CONTROL UNIT; SPEED SENSOR
FULLER RT7608LL M/T(X8P) 		1-80190-038-1 01 1 0005-0011 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0011 ●
485 CONTROL UNIT; SPEED SENSOR
MLD7Q M/T(X5K),FULLER FS8209 DD M/T(Y2S) 		1-80190-038-1 01 1 0012-0210 ●
485 CONTROL UNIT; SPEED SENSOR
FULLER RT7608LL M/T(X8P) 		1-80190-038-1 01 1 0012-0210 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0012-0210 ● ●
485 CONTROL UNIT; SPEED SENSOR
FULLER M/T<X9B> 		1-80190-059-1 01 1 0211-1008 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0211-1008 ● ●
485 CONTROL UNIT; SPEED SENSOR
FULLER M/T<X9B> 		8-98140-862-0 01 1 1009-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR
FULLER M/T<X9B> 		1-80190-059-1 01 1 1110- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ● ●
491 PLUG; HOLE,CONT UNIT
6SD1 TCN ENG(31L) OD=54.5 		1-73907-309-0 01 1 0005-0011 ● ● ●
491 PLUG; HOLE,CONT UNIT
6SD1 TCN ENG(31L) OD=54.5 		1-73907-309-0 01 1 0012-0112 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0012-0112 ● ● ●
491 PLUG; HOLE,CONT UNIT
EXC. A/T<X9D> OD=54.5 		1-73907-309-0 01 1 0201-0201 ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0201-0201 ● ●
491 PLUG; HOLE,CONT UNIT
6SD1 TCN ENG(31L) OD=54.5 		1-73907-309-0 01 1 0202-0210 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0202-0210 ● ● ●
500 SENSOR; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82486-002-0 01 1 0005-0011 ● ● ●
500 SENSOR; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82486-002-0 01 1 0012-0210 ● ● ● ●
500 SENSOR; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82486-002-1 01 1 0211- ● ● ●
507 CONNECTOR
AIR HORN<WB8> 		1-82690-666-0 01 1 0705- ● ● ● ●
549 SHEET
ALLISON MD3060P A/T(Y4G) 		8-98236-226-0 01 1 0005- ●
549 SHEET
ALLISON MD3560P A/T(Y3B) 		8-98236-226-0 01 1 0005- ●

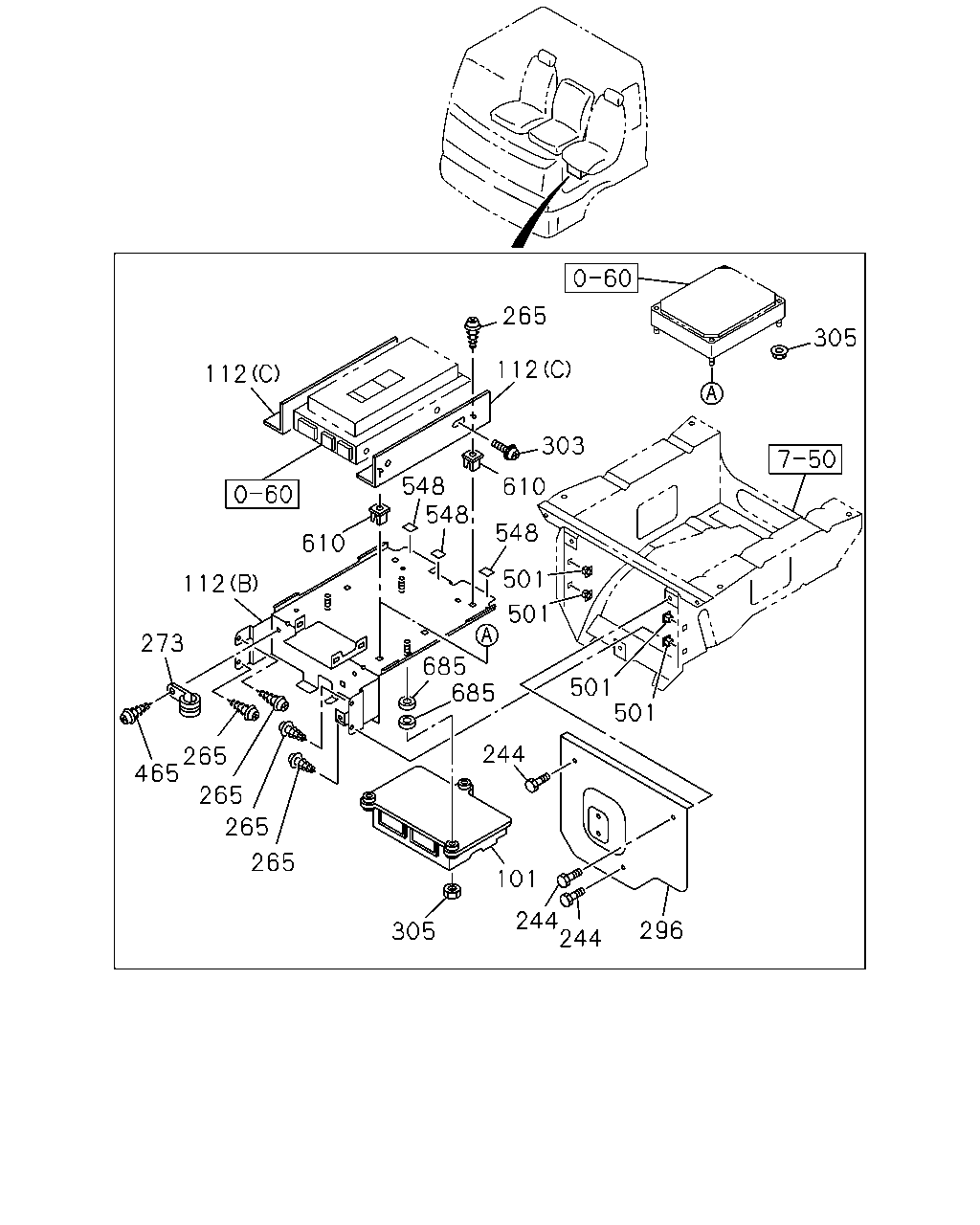

çizim 48943
265 305 112 112 303 548 548 610 548 610 501 501 112 273 685 685 501 501 244 265 465 265 265 265 101 244 244 296 305
BalonParca AdiParca NoAdetTipApplied Date A B C D
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80110-623-0 01 1 0005-0005 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80110-747-0 01 1 0006-0008 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80110-755-0 01 1 0009-0208 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80111-016-0 01 1 0209-0210 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3060P A/T(Y4G) 		1-80110-877-0 01 1 0211-0405 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3060P A/T(Y4G) 		1-80111-118-0 01 1 0406- ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80110-613-0 01 1 0005-0005 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80110-746-0 01 1 0006-0008 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80110-754-0 01 1 0009-0208 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80111-015-0 01 1 0209-0210 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80110-878-0 01 1 0211-0405 ●
101 CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B) 		1-80111-119-0 01 1 0406- ●
112 BRACKET; CONT UNIT
A/T<X9D> (A) 		1-75557-465-4 01 1 0005-0210 ● ●
112 BRACKET; CONT UNIT
6SD1 TCN ENG(31L) (C) 		1-75558-566-0 02 1 0211- ● ● ● ●
112 BRACKET; CONT UNIT
(B) 		1-75558-614-2 01 1 0211- ● ● ● ●
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0211-0703 ● ● ● ●
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0704- ● ● ● ●
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0211- ● ● ● ●
265 SCREW; BRKT,CONT UNIT
6SD1 TCN ENG(31L) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0211- ● ● ● ●
273 CLIP; HARNESS
ID=35 L=35 		1-09700-726-0 01 1 0211- ● ● ● ●
296 COVER; CONT UNIT 1-75558-556-1 01 1 0211- ● ● ● ●
303 SCREW; CONT UNIT
6SD1 TCN ENG(31L) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0211-0604 ● ● ● ●
303 SCREW; CONT UNIT
6SD1 TCN ENG(31L) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ● ● ● ●
305 NUT; CONT UNIT
6HK1 TCS ENG(80L) M6 FLANGE 		0-91150-106-0 04 1 0303-0602 ●
305 NUT; CONT UNIT
6HK1 TCS ENG(80L) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
305 NUT; CONT UNIT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 0005-0011 ● ● ●
305 NUT; CONT UNIT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 0012-0210 ● ● ● ●
305 NUT; CONT UNIT
A/T<X9D> M6 FLANGE 		0-91150-106-0 03 1 0211-0602 ● ●
305 NUT; CONT UNIT
A/T<X9D> M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0211-0602 ● ● ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ● ● ● ●
465 BOLT; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0211- ● ● ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 05 1 0211- ● ● ● ●
548 SEAL; NOISE
30X30 		8-97866-626-0 03 1 0211-0309 ● ● ● ●
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0310-0908 ● ● ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305 ● ● ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306- ● ● ● ●
610 GROMMET; SCREW,BRKT ELEC UNIT
6SD1 TCN ENG(31L) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0211- ● ● ● ●
685 SPACER; BRKT
A/T<X9D> ID=6.4 		1-09985-038-0 06 1 0211-0703 ● ●
685 SPACER; BRKT
A/T<X9D> 		8-94279-637-1 06 1 0704- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
