4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#80559) — 96 parça

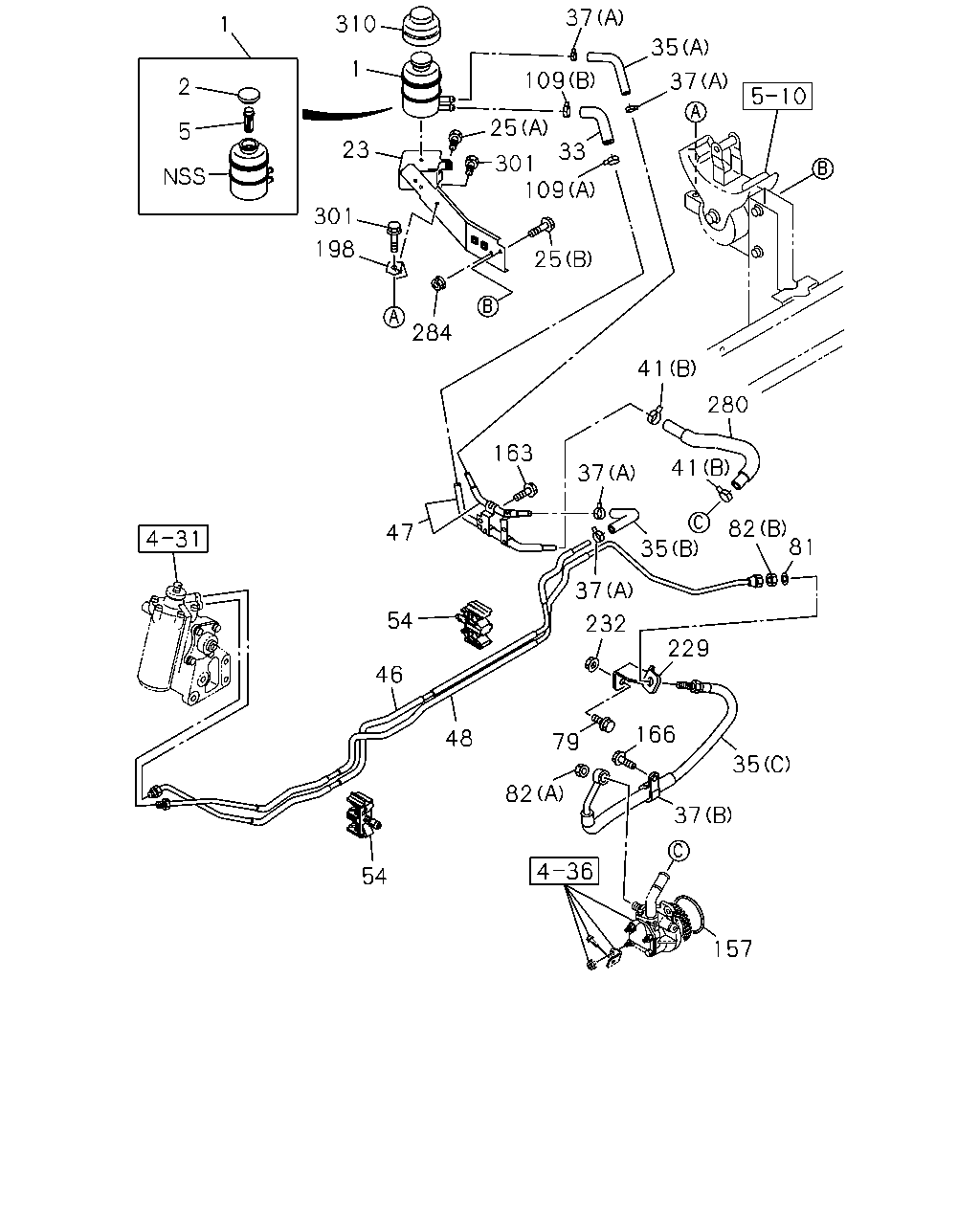

37 310 1 35 1 109 37 2 25 5 23 33 301 109 301 198 25 284 41 280 163 41 37 35 82 81 47 37 54 232 229 46 166 48 79 35 82 37 54 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1111-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1111-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1111-
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1111-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1111-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1111-
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1111-
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1111-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1111-
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1111-
37	01.762 CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1111-
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1111-
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1111-
41	06.672 CLIP; HOSE,P/S EURO4 SPECIFICATION(NT4) 02.559 (A) ID=32 L=35	1-09701-244-0	01	1	1111-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=1530	8-98138-265-0	01	1	1111-1507
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRONT WIDE TREAD<7GV> L=1530	8-98138-265-0	01	1	1508-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO4 SPECIFICATION(NT4) L=1530	8-98138-265-0	01	1	1508-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT WIDE TREAD<7GV>	8-98041-184-3	01	1	1111-1507
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRONT WIDE TREAD<7GV>	8-98041-184-3	01	1	1508-
47	06.671 PIPE; RETURN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98083-166-1	01	1	1111-
47	06.671 PIPE; RETURN EURO4 SPECIFICATION(NT4)	8-98174-178-1	01	1	1111-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=1672	8-98180-495-0	01	1	1111-1507
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRONT WIDE TREAD<7GV> L=1672	8-98180-495-0	01	1	1508-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO4 SPECIFICATION(NT4) L=1672	8-98180-495-0	01	1	1508-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRONT WIDE TREAD<7GV> L=1699	8-98178-428-0	01	1	1111-1507
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRONT WIDE TREAD<7GV> L=1699	8-98178-428-0	01	1	1508-
54	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	1111-
79	06.672 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1111-
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1111-
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1111-
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1111-
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1111-
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1111-
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1111-
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-
163	06.671 BOLT; OIL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-
163	06.671 BOLT; OIL PIPE EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1111-
229	06.606 BRACKET; HOSE,POWER STRG	8-98140-300-0	01	1	1111-
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-
280	06.672 HOSE; P/S OIL PUMP,INL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98082-973-0	01	1	1111-
280	06.672 HOSE; P/S OIL PUMP,INL EURO4 SPECIFICATION(NT4)	8-98174-177-2	01	1	1111-
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-1507
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1111-

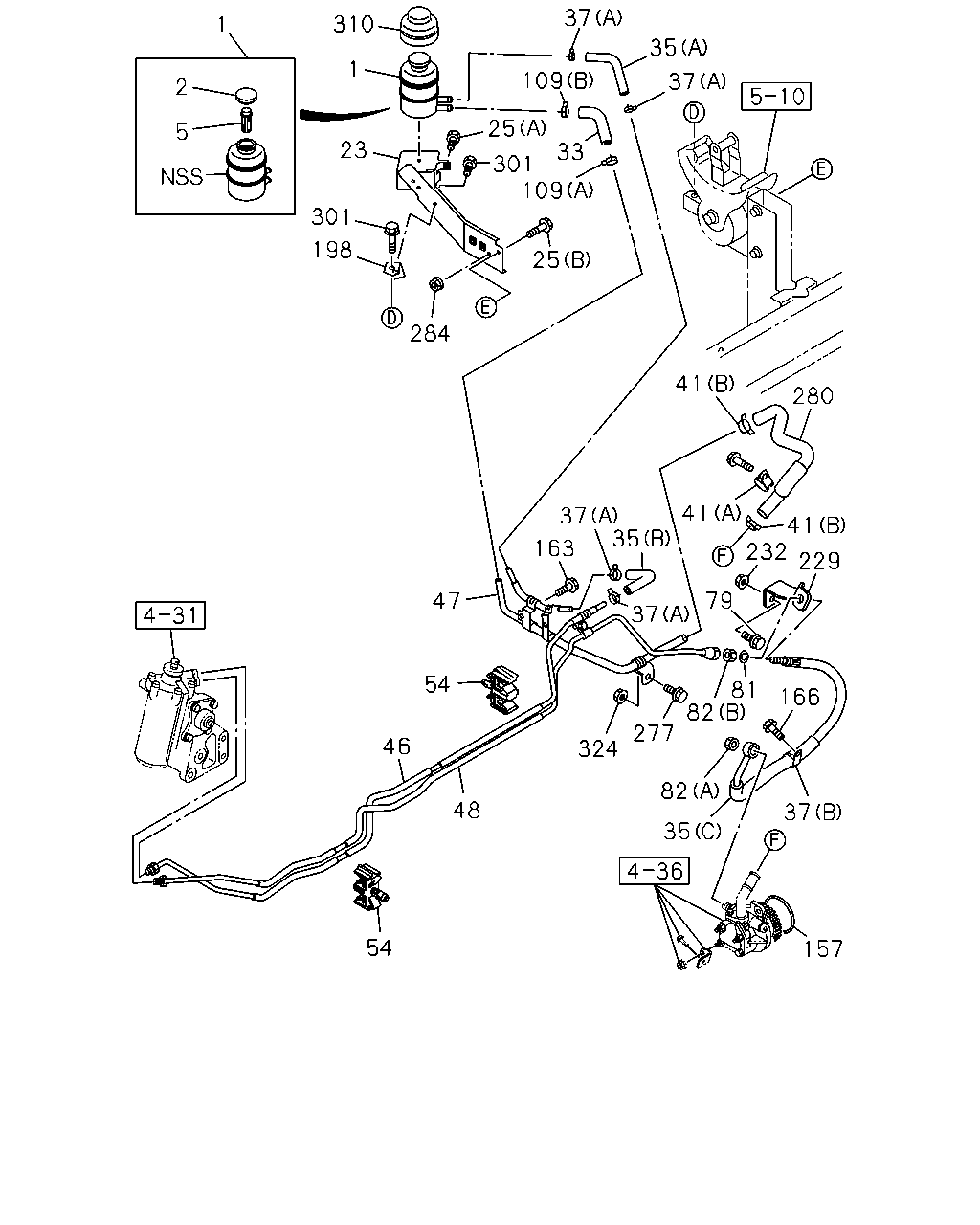

37 310 1 35 1 109 37 2 25 5 23 33 301 109 301 198 25 284 41 280 41 37 35 41 232 163 229 79 47 37 54 81 82 166 277 46 324 82 48 37 35 54 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1111-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1111-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1111-
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1111-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1111-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1111-
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1111-
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1111-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1111-
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1111-
37	01.762 CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1111-
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1111-
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1111-
41	06.672 CLIP; HOSE,P/S EURO4 SPECIFICATION(NT4) 02.559 (A) ID=32 L=35	1-09701-244-0	01	1	1111-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=1530	8-98138-265-0	01	1	1111-1507
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRONT WIDE TREAD<7GV> L=1530	8-98138-265-0	01	1	1508-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO4 SPECIFICATION(NT4) L=1530	8-98138-265-0	01	1	1508-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT WIDE TREAD<7GV>	8-98041-184-3	01	1	1111-1507
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRONT WIDE TREAD<7GV>	8-98041-184-3	01	1	1508-
47	06.671 PIPE; RETURN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98083-166-1	01	1	1111-
47	06.671 PIPE; RETURN EURO4 SPECIFICATION(NT4)	8-98174-178-1	01	1	1111-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=1672	8-98180-495-0	01	1	1111-1507
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRONT WIDE TREAD<7GV> L=1672	8-98180-495-0	01	1	1508-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO4 SPECIFICATION(NT4) L=1672	8-98180-495-0	01	1	1508-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRONT WIDE TREAD<7GV> L=1699	8-98178-428-0	01	1	1111-1507
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRONT WIDE TREAD<7GV> L=1699	8-98178-428-0	01	1	1508-
54	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	1111-
79	06.672 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1111-
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1111-
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1111-
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1111-
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1111-
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1111-
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1111-
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-
163	06.671 BOLT; OIL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-
163	06.671 BOLT; OIL PIPE EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1111-
229	06.606 BRACKET; HOSE,POWER STRG	8-98140-300-0	01	1	1111-
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-
277	06.672 BOLT; HOSE CLIP EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-
280	06.672 HOSE; P/S OIL PUMP,INL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98082-973-0	01	1	1111-
280	06.672 HOSE; P/S OIL PUMP,INL EURO4 SPECIFICATION(NT4)	8-98174-177-2	01	1	1111-
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-1507
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1111-
324	06.660 NUT; OIL PIPE EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-
