Isuzu WW
▶
TRUCKS
▶
NQR
▶
51386 - NQR AIR BRAKE RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

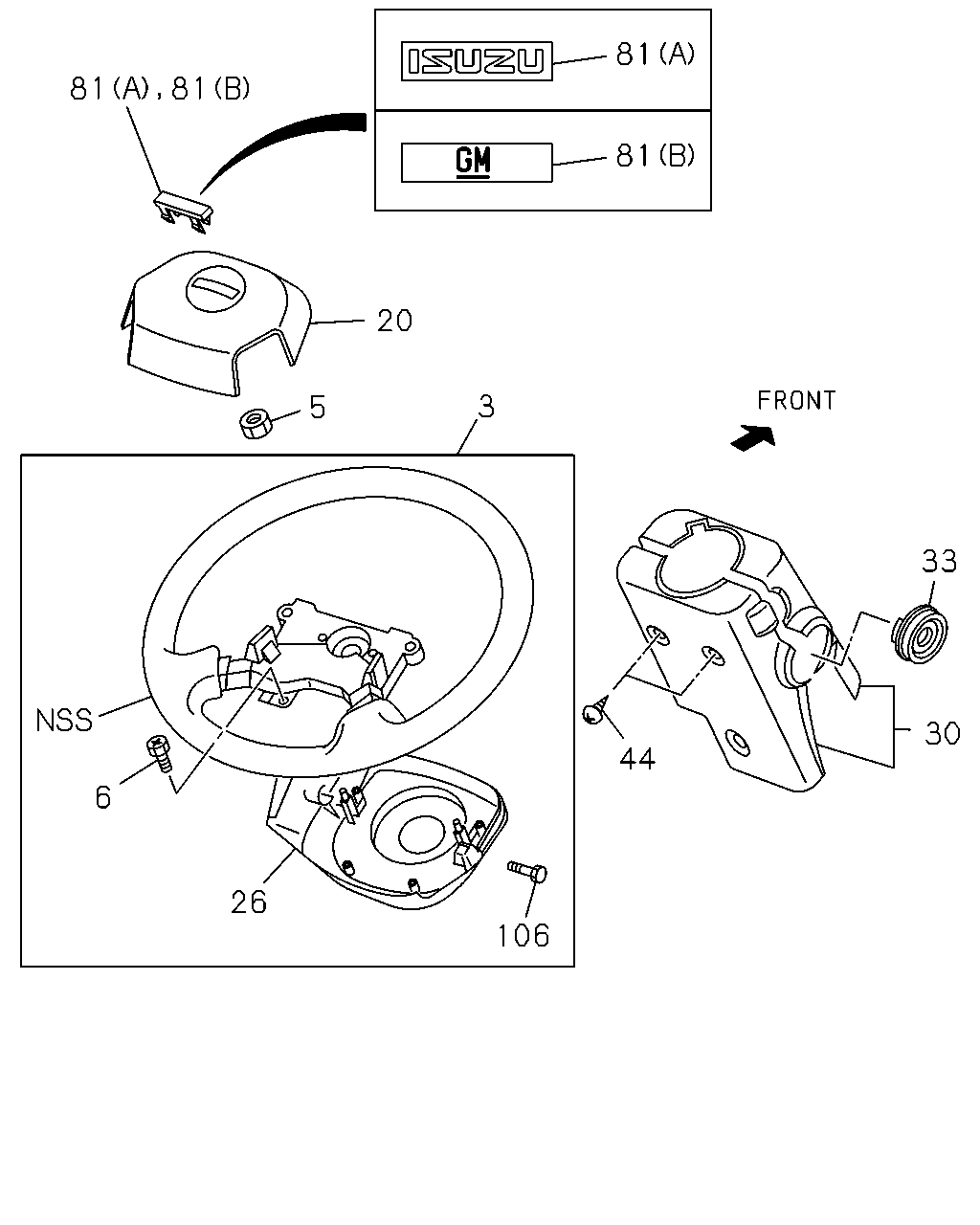

4-30 — STEERING WHEEL AND COWL
(#80556) — 11 parça
44
30
33
81
81
20
3
5
81
81
6
26
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
06.513 WHEEL; STRG
DARK GRAY
8-97412-556-1
01
1
1111-
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1111-
6
02.820 SCREW; HORN SPR CONTACT
M4X12
8-97167-588-0
04
1
1111-
20
06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY
8-97405-985-1
01
1
1111-
26
06.514 COVER; STRG WHEEL,LWR
DARK GRAY
8-97409-275-2
01
1
1111-
30
06.518 COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1111-
33
06.518 COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
1111-
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1111-
81
02.820 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> (A) DARK GRAY
8-97405-986-0
01
1
1111-
81
02.820 EMBLEM; STRG WHEEL
EXC. ISUZU BRAND<7WL> (B) DARK GRAY
8-97405-987-0
01
1
1111-
106
05.453 BOLT; TORX
8-98231-397-0
02
1
1111-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
